Acegear VB16CH 16CH Passive Video Balun.
![Acegear](http://bluestardist.com/cdn/shop/collections/ACEGEAR_60693e1c-5fe9-40b4-b797-5bfd89b8df27_100x51.jpg?v=1550164086)
![Acegear_AGVB16CH_Video_Balun_16CH_Passive_2000ft.jpg](http://bluestardist.com/cdn/shop/products/Acegear_AGVB16CH_Video_Balun_16CH_Passive_2000ft_be668709-d283-4406-9aad-3de10d9b1676_700x700.jpg?v=1540843377)
by Acegear
SKU AGVB16CH

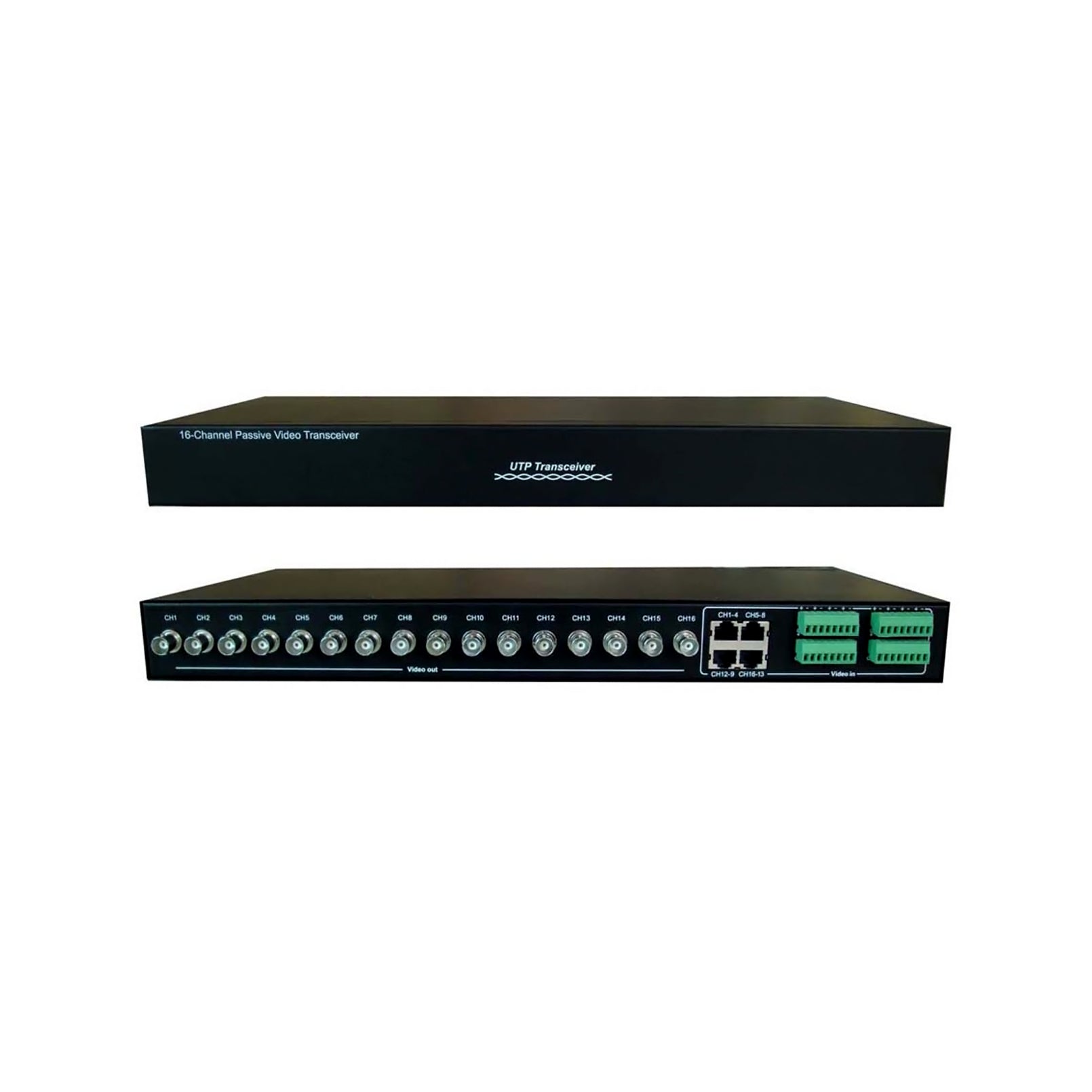

Video Balun 16CH Passive, 2000ft
- 16-Channel passive balun
- NTSC,PAL&SECAM Video format compatible
- RJ45 and detachable terminal blocks for UTP cat5e/6
- Female BNC connector
- No power required
- Black galvanized housing
- Product Name: 16 Channel Passive Video Transceiver Hub
- Applied Devices: CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment: Video
- Video Format: PAL, NTSC, SECAM
- Wire Type: Network Wiring
- One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
- Power: No external power required
- Connector: Video input/output
- Female BNC connector: Video output/input pluggable screw terminal block and RJ45 for UTP ( select one connection)
- Protection: Surge Protection renewable solid state surge
DIMENSIONS | 19 x 5.5 x 3 in |
---|---|
NET WEIGHT | (3 lbs.) |
