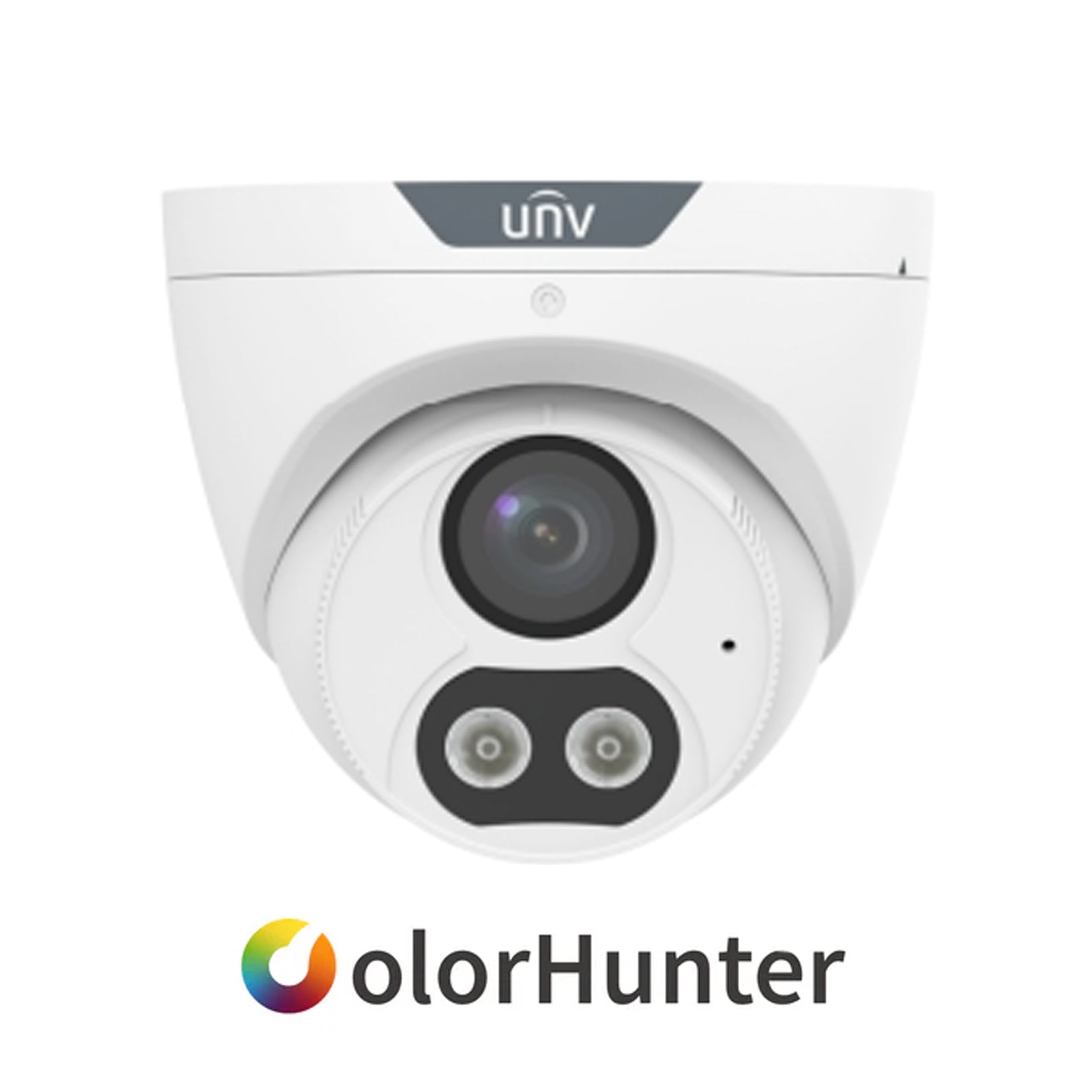

UNV IPC3612SR-ADF28KMC-DL-H, (2MP) Turret, IPC 2.8mm Lens, Color Hunter, Microphone & Speaker, WDR, UL Listed

Camera

Description

Max Resolution

2MP

Sensor

1/2.8" CMOS

Min. Illumination

Colour: 0.003 lux ( F1.6, AGC ON)
0 Lux with light

Day/Night

IR‑cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°

S/N

>52dB

WDR

120dB

Lens

Description

Focal Length

IPC3612SR-ADF28KMC-DL-H:2.8 mm
IPC3612SR-ADF40KMC-DL-H:4.0 mm

Iris Type

Fixed

Iris

F1.6

Field of View (H)

IPC3612SR-ADF28KMC-DL-H:106.7°
IPC3612SR-ADF40KMC-DL-H:87.5°

Field of View (V)

IPC3612SR-ADF28KMC-DL-H:57.1°
IPC3612SR-ADF40KMC-DL-H:46.3°

Field of View (D)

IPC3612SR-ADF28KMC-DL-H:115.7°
IPC3612SR-ADF40KMC-DL-H:92.4°

DORI

Description

DORI Distance(Lens)

IPC3612SR-ADF28KMC-DL-H:2.8mm
IPC3612SR-ADF40KMC-DL-H:4.0mm

DORI Distance(Detect)

IPC3612SR-ADF28KMC-DL-H:43.4m(142.4ft)
IPC3612SR-ADF40KMC-DL-H:62.1m(203.7ft)

DORI Distance(Observe)

IPC3612SR-ADF28KMC-DL-H:17.4m(57.1ft)
IPC3612SR-ADF40KMC-DL-H:24.8m(81.4ft)

DORI Distance(Recognize)

IPC3612SR-ADF28KMC-DL-H:8.7m(28.5ft)
IPC3612SR-ADF40KMC-DL-H:12.4m(40.7ft)

DORI Distance(Identify)

IPC3612SR-ADF28KMC-DL-H:4.3m(14.1ft)
IPC3612SR-ADF40KMC-DL-H:6.2m(20.3ft)

Illuminator

Description

Supplemental Light

Dual Light

Illumination Distance(IR)

30 m (98.4 ft)

Illumination Distance(Warm Light)

30 m (98.4 ft)

Wavelength

850 nm

Light On/Off Control

Auto/Manual

Video

Description

Video Compression

Ultra 265; H.265; H.264; MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;

Video Bit Rate

128 Kbps ~ 6144 Kbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video Stream

Dual Streams


Description

White Balance

Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Events

Description

Basic Detection

Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Intrusion (based on Human Body Detection); Cross line

General Function

Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication

Audio

Description

Audio Compression

G.711U; G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8KHZ

Storage

Description

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR; NAS (NFS)

Network

Description

Protocols

IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; SNMP; QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T); API; SDK

User/Host

Up to 32 users, 2 user levels: administrator and common user

Security

Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF

Client

UNV‑Link;  UNV‑Link Pro; EZStation

Web Browser

Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Description

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

Support

WIFI

N/A

Network

1 x RJ45 10M/100M Base‑TX Ethernet

Video Output

N/A

Certification

Description

EMC

CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130)
FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)

Environment

CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);

Protection

IP67 (IEC 60529)

General

Description

Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions

Φ110.5 x 97.2mm (Φ4.4” x 3.8”)

Weight

0.32kg (0.71lb)

Material

Metal

Working Environment

‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)

Storage Environment

‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)

Surge Protection

4KV

Reset Button

Support

Web Client Language

4 Languages
English, Russian, Spanish, Vietnamese
