UNV  |  SKU: UVIPC3612SR3-ADF28KMC-DL

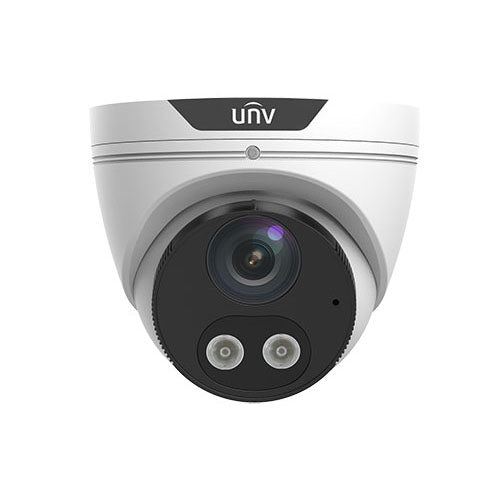

UNV IPC3612SR3-ADF28KMC-DL, (2MP) Turret, IPC 2.8mm Lens, ColorHunter, Microphone & Speaker, WDR, UL Listed

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Loading location-specific inventory...

Description

IPC3614SR3-ADF28KMC-DL

2MP HD Dual Light Fixed Eyeball Network Camera (Only for USA)

• High quality image with 2MP, 1/3"CMOS sensor
• 2MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic & Speaker
• Smart IR, up to 30m (98ft) IR distance
• White Light, up to 30m (98ft) white light distance
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

Specifications
Sensor
1/3", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination
Colour: 0.003Lux ( F1.6, AGC ON)
0Lux with light
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N
>52dB
WDR
120dB
Lens
Lens Type
2.8mm and 4.0mm @1.6, Fixed-focal
Lens Mount
M12
Angle Of View (H)
112.9°
91.2°
Angle Of View (V)
59.1°
47.9°
Angle Of View (O)
121.2°
95.9°
DORI
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
63.0
25.2
12.6
6.3
4.0
90.0
36.0
18.0
9.0
Illuminator
IR Range
Up to 30m (98ft) IR range
White Light Range
Up to 30m (98ft) white light range
Wavelength
IR：850nm
IR On/Off Control
Auto/Manual
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
U-code
Supported
9:16 Corridor Mode
Supported
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction
2D/3D DNR
Smart IR
Supported
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping
N/A
HLC
Supported
BLC
Supported
Defog
Digital Defog
Events
Basic Detection
Cross line, intrusion(based on human body detection)
motion detection, tampering alarm, audio detection
General Function
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Audio
Audio Compression
G.711
Suppression
Supported
Sampling Rate
8KHZ
Storage
Edge Storage
Micro SD, up to 128 GB
Network Storage
ANR,NAS(NFS)
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network
1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic
Supported
Built-in Speaker
Supported
Certification
EMC
FCC: FCC Part 15
Safety
CE: EN 60950-1
UL: UL60950-1
IEC 60950-1
