UNV  |  SKU: UVIPC3618SB-ADF28KMC-I0

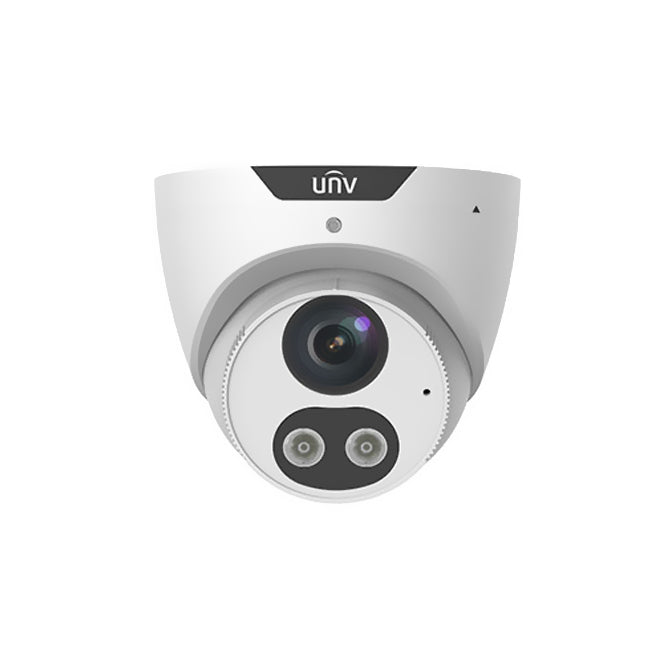

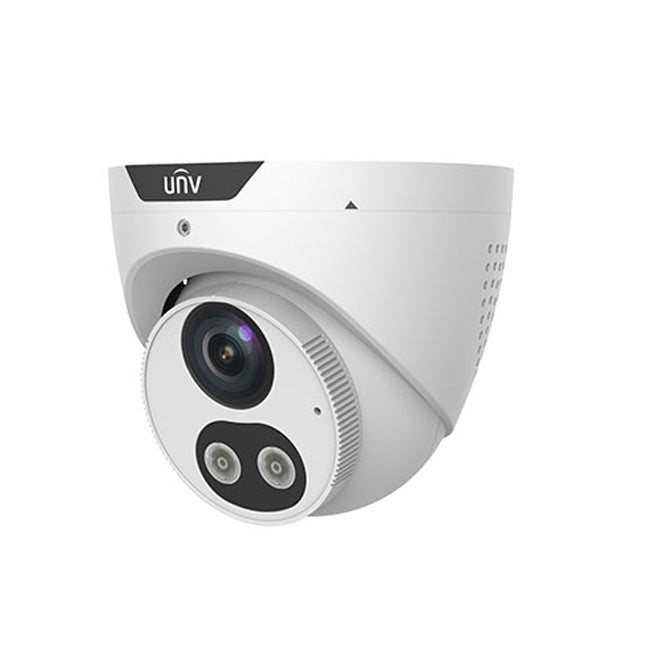

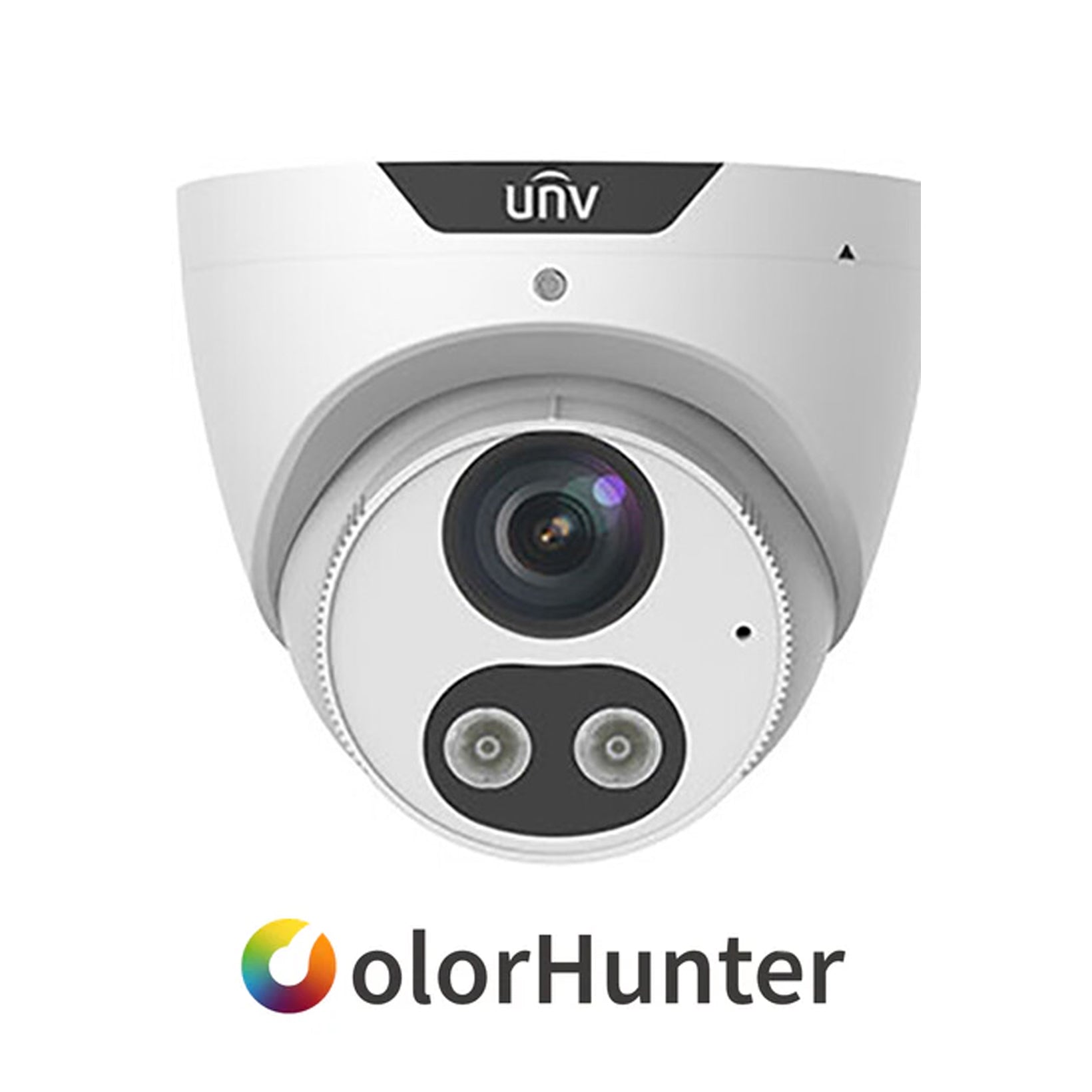

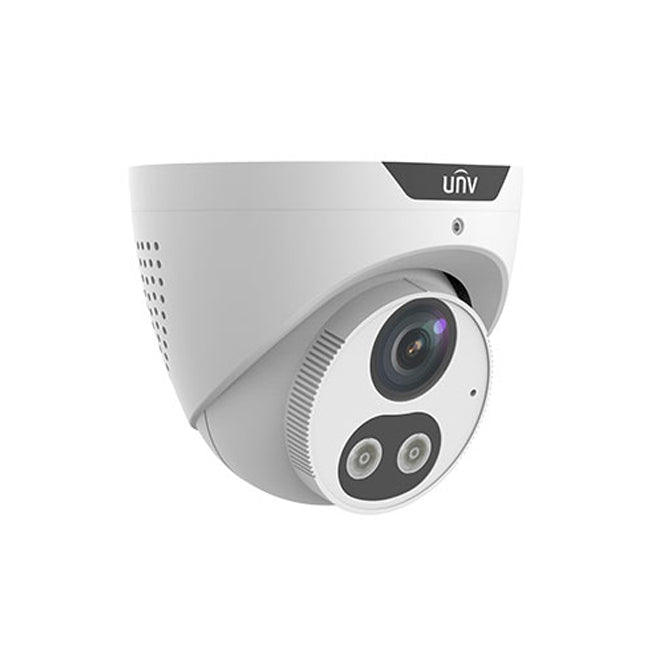

UNV IPC3618SB-ADF28KMC-I0, (8MP) Turret. IPC 2.8mm Fixed Lens, ColorHunter, Microphone & Speaker, WDR, UL Listed

MPN:

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description

IPC3618SB-ADF28KMC-I0

8MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera

• High quality image with 8MP, 1/2.8"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic and Speaker
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection

Specifications
Camera
Sensor
1/2.8", 8.0 megapixel, progressive scan, CMOS
Minimum Illumination
Colour: 0.0025 lux (F1.6, AGC ON)
0 lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0° ~ 360°
Tilt: 0° ~ 80°
Rotate: 0° ~ 360°
WDR
120dB
S/N
>56dB
Lens
Iris
Fixed
Field of View (H)
106.7°
87.5°
Field of View (V)
57.1°
46.3°
Field of View (D)
115.7°
92.4°
DORI
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
86.9
34.8
17.4
8.7
4.0
124.1
49.7
24.8
12.4
Illuminator
Illumination Distance(IR)
Up to 30m (98 ft)
Illumination Distance(Warm Light)
Up to 30m (98 ft)
Wavelength
850nm
IR On/Off Control
Auto/Manual
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; 640*360,Max 30fps; D1 (720*576), Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
U-code
Support
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Video Stream
Triple streams
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction
2D/3D DNR
Smart IR
Support
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping
Support
HLC
Support
BLC
Support
Defog
Digital Defog
Intelligent
Smart intrusion prevention
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis
People counting, support people flow counting and crowd density monitoring
Events
Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function
Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression
G.711
Audio Bitrate
64 Kbps
Two-way audio
Support
Suppression
Support
Sampling Rate
8KHZ
Storage
Edge Storage
Micro SD, up to 256GB
Network Storage
ANR, NAS(NFS)
Network
Protocols
IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O
N/A
Alarm I/O
N/A
RS485
N/A
Built-in Mic
Support
Built-in Speaker
Support
WIFI
N/A
Network
1 * RJ45 10M/100M Base-TX Ethernet
Video Output
N/A
Certifications
EMC
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W
Power Interface
Ø 5.5mm coaxial power plug
Dimensions (L × W × H)
Φ111 x 95mm (Φ4.4” x 3.7”)
Weight
0.45kg (0.992lb)
Material
Metal + Plastic
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection
4KV
Reset Button
N/A

​
