UNV  |  SKU: UVIPC3K28SE-ADF28KMC-DL-10

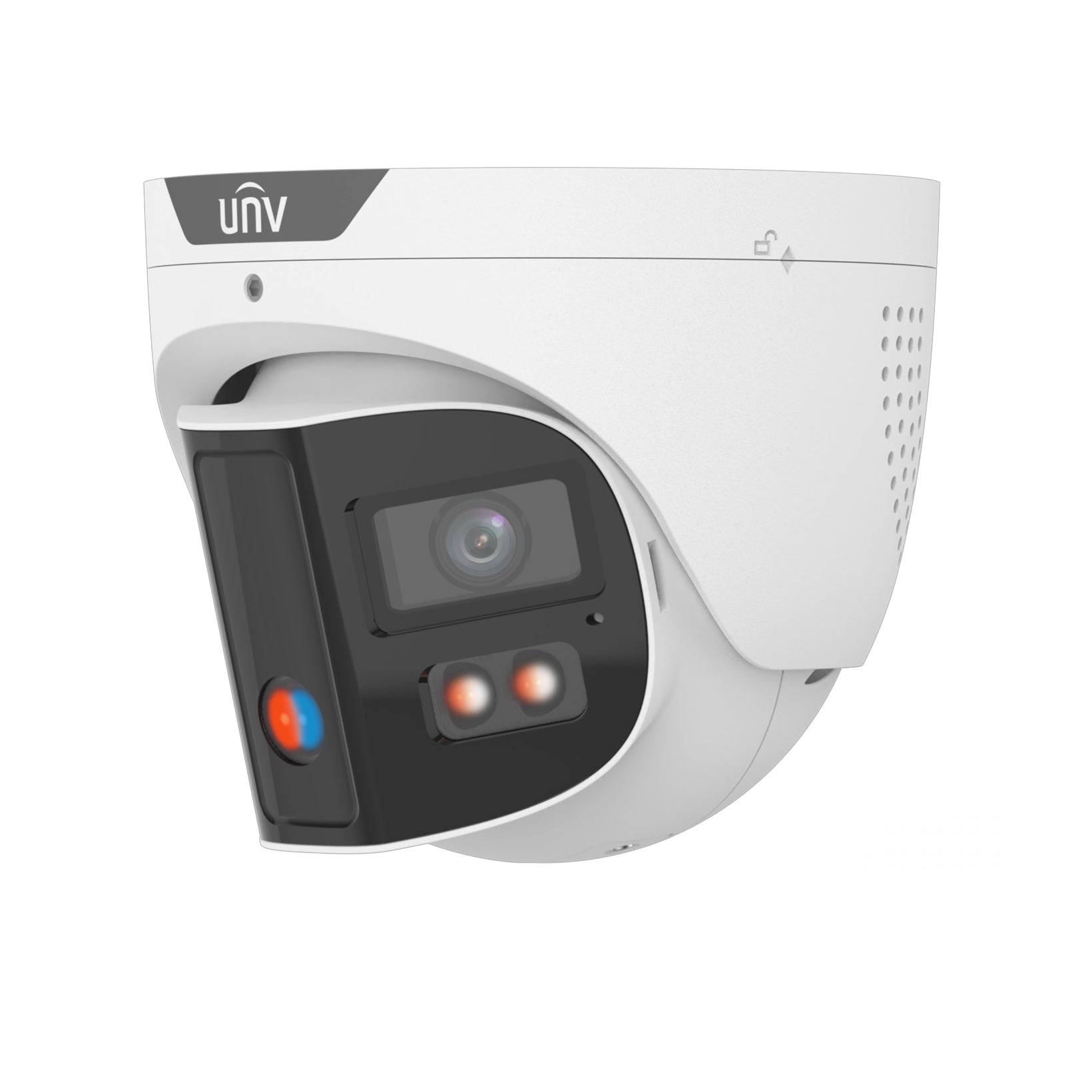

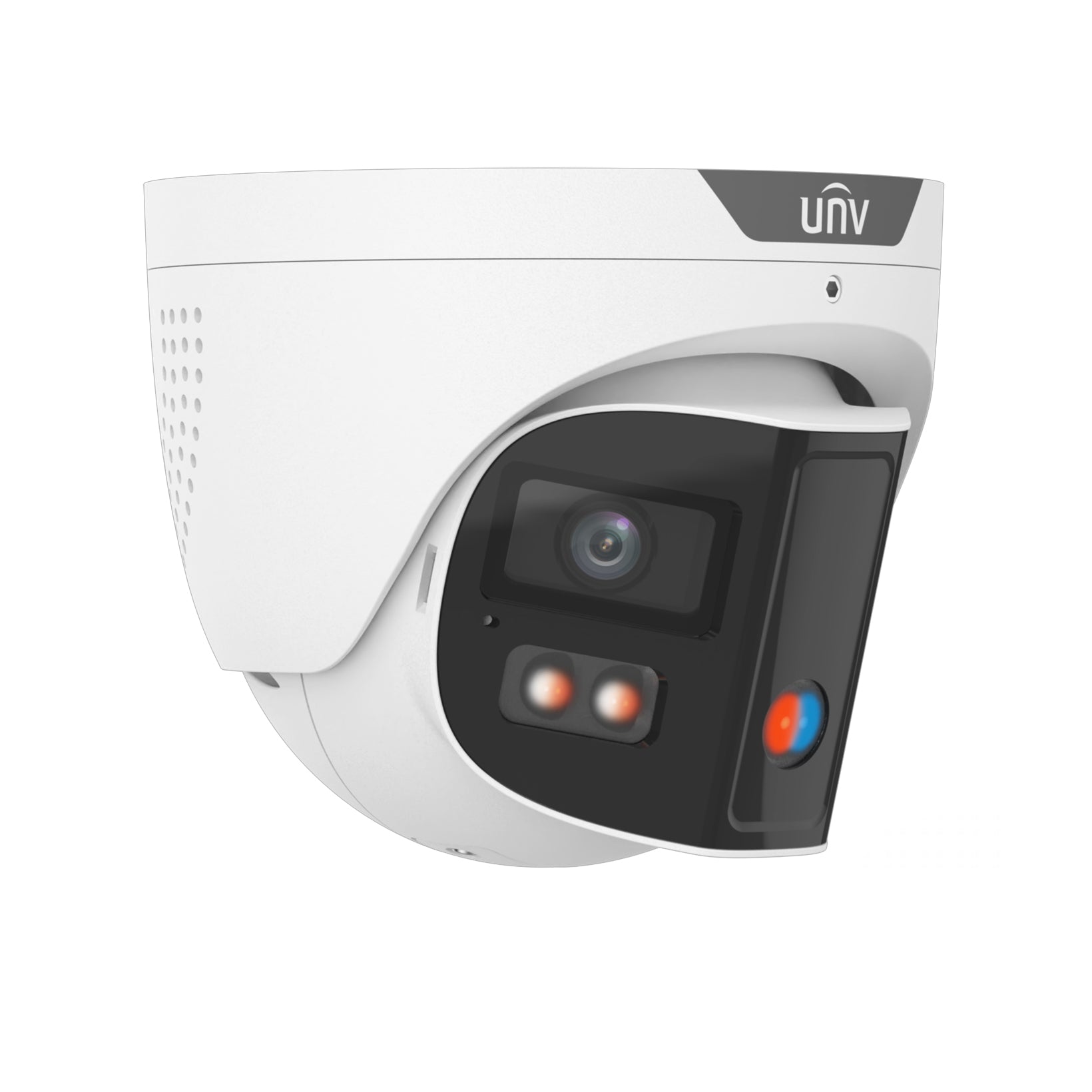

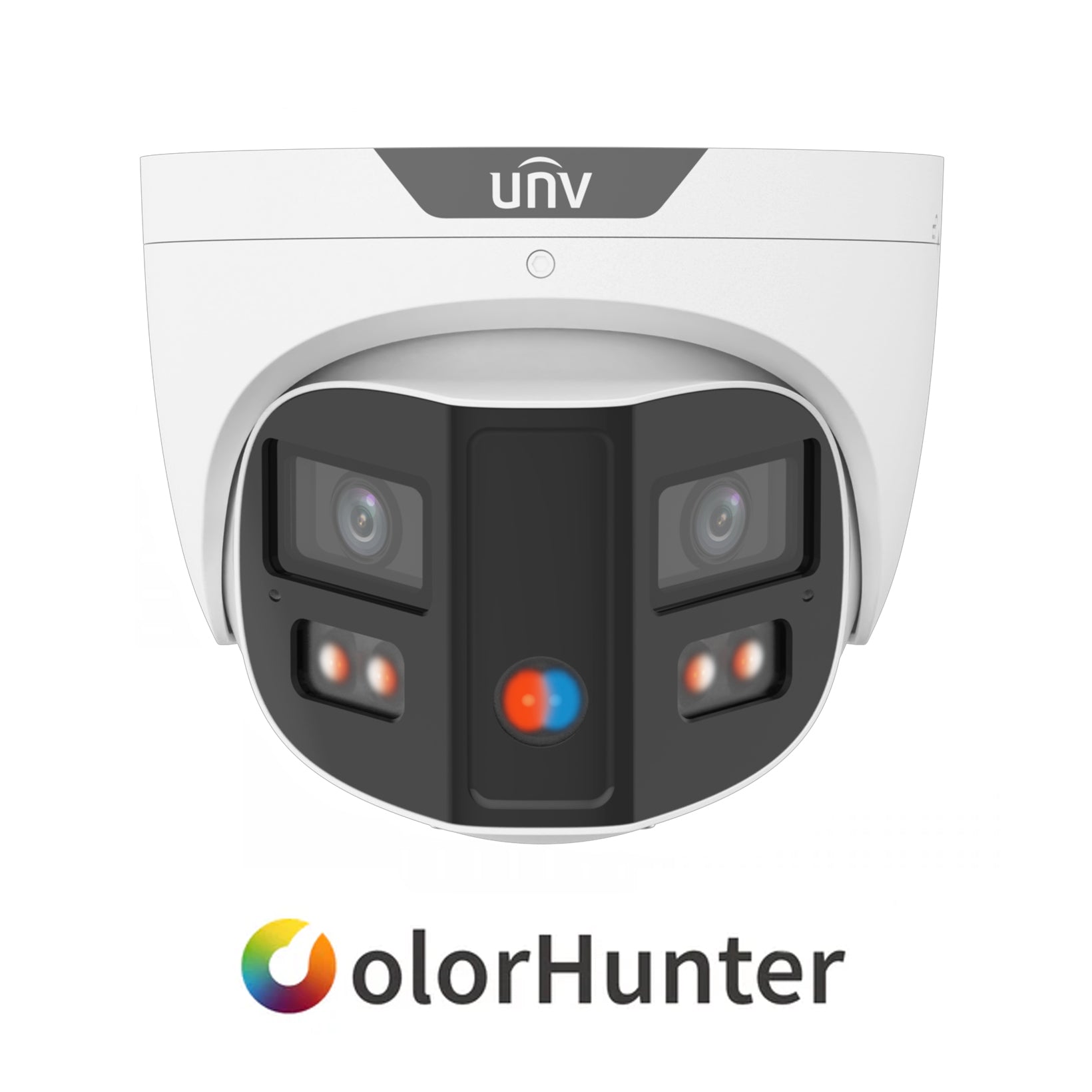

UNV IPC3K28SE-ADF28KMC-DL-10,(8MP) Turret, IPC 4mm Fixed Dual Lens, Color Hunter, Wide Angle up to 180 degrees, WDR, UL Listed

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description

IPC3K28SE-ADF28KMC-DL-I0 8MP

Double-Light Alarm Binocular Eyeball Network Camera

• High quality image with 8MP, 1/2.5"CMOS sensor
• 8MP (4096*1860)@20fps
• The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°
• Colorhunter technology ensures 24-hour full-color images
• Support red & blue warning light
• 130dB true WDR technology enables clear image in strong light scene
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Smart intrusion prevention with Color retrieval
• Auto Scene Match (ASM)（Only WDR）
• Alarm:1 in/1 out and Audio: 1 in/1 out
• Built-in speaker and dual mics
• Support 512 GB micro SD card

Specifications
Camera
Max Resolution
8 MP
Sensor
1/2.5" CMOS
Min. Illumination
Colour: 0.0005 lux ( F1.0, AGC ON)
0 Lux with light
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N
>52 dB
WDR
130 dB
Lens
Focal Length
2.8 mm
Iris Type
Fixed
Iris
F1.0
Field of View (H)
180°
Field of View (V)
65°
Field of View (D)
180°
Lens Type
Fixed
DORI
DORI Distance (Lens)
2.8mm
DORI Distance (Detect)
63.1m(206.7ft)
DORI Distance (Observe)
25.2m(82.7ft)
DORI Distance (Recognize)
12.6m(41.3ft)
DORI Distance (Identify)
6.3m(20.7ft)
Illuminator
Supplemental Light
Dual light
Illumination Distance (IR)
IR 30 m, Warm Light 30 m
Illumination Distance (Warm Light)
IR 30 m, Warm Light 30 m
IR On/Off Control
Auto/Manual
Wavelength
850 nm
Light On/Off Control
Auto/Manual
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 8MP (4096*1860), Max 20fps;
Sub Stream: 2048*936, Max 20fps
Video Bit Rate
128 Kbps to 16 Mbps
U-code
Support
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Video Stream
Dual Streams
Auto Scene Match (ASM)
Support (Only WDR)
White Balance
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction
2D/3D DNR
Smart IR
Support
Flip
N/A
Dewarping
N/A
HLC
Support
BLC
Support
Defog
Digital Defog
Image Stabilization
N/A
Intelligent
Smart Intrusion Prevention
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Recognition
N/A
Statistical Analysis
People Counting, Support People Flow Counting and Crowd Density Monitoring
Attribute Collection
SIP with color retrieval
Events
Basic Detection
Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Audio
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 kHz
Storage
Edge Storage
Micro SD, up to 512 GB
Network Storage
ANR, NAS (NFS)
Network
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration
ONVIF (Profile S, Profile G, Profile T),
API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client
UNV-Link, UNV-Link Pro, EZStation
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O
1/1
Serial Port
N/A
Built-in Mic
Built-in two mics
Built-in Speaker
Support
WIFI
N/A
Network
1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output
N/A
Certification
EMC
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B)
Safety
CE-LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection
IP67 (IEC 60529)
IK10 (IEC 62262)
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption
Max 12.6W
Power Interface
Ø5.5 mm coaxial power plug
Dimensions
Ø128.7 x 109.9mm (Ø5.1”x 4.3”) (Ø x H)
Weight
0.86kg (1.9lb)
Material
Metal
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection
4 KV
Reset Button
Support
Web Client Language
20 Languages
Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
