UNV | SKU:
UVUAC-T122-AF28M-W

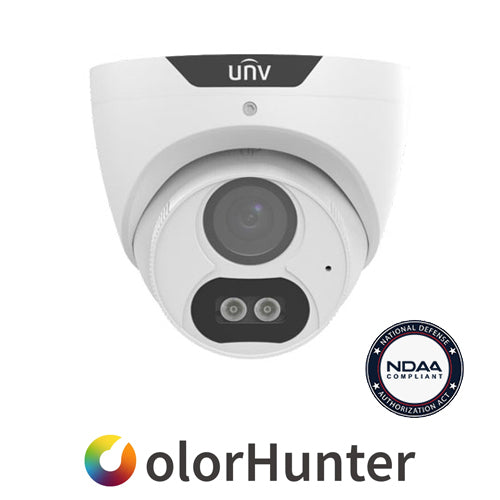

UNV UAC-T122-AF28M-W, (2MP) Turret, TVI 2.8mm Fixed Lens, ColorHunter, AOC, DWDR, UL Listed
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV UAC-T122-AF28M-W, (2MP) Turret, TVI 2.8mm Fixed Lens, ColorHunter, AOC, DWDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
UAC-T122-AF28M-W
2MP ColorHunter HD Fixed Turret Analog Camera 2MP high quality imaging
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- Supports digital defog
- Metal front face and housing
- 3-Axis
Specifications
|
Sensor
|
||
|
Pixel
|
2MP
|
|
|
Size
|
1/2.9"
|
|
|
Minimum illumination
|
0.005lux (F1.6, AGC ON)
0 lux (white light on) |
|
|
Lens
|
||
|
Lens
|
2.8mm
|
4.0mm
|
|
Lens mount
|
M12
|
|
|
Angle of view
|
H: 101.5° V: 56.9° D: 117.4°
|
H: 83.8° V: 42.7° D: 100.1°
|
|
Illuminator
|
||
|
Illuminator
|
Two white-light illuminators
|
|
|
Illumination distance
|
40m
|
|
|
Lifetime
|
≥60,000 hours
|
|
|
Video
|
||
|
Resolution
|
1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V) |
|
|
Frame rate
|
TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC |
|
|
Shutter time
|
PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s |
|
|
|
||
|
Exposure mode
|
Four modes: Global (default), BLC, HLC, DWDR
|
|
|
Day/Night
|
24/7 color images
|
|
|
Digital noise reduction
|
2D/3D
|
|
|
White balance
|
Two modes: Auto (default), Manual
|
|
|
WDR
|
DWDR
|
|
|
Flip
|
Supports 180° horizontal flip, 180° vertical flip
|
|
|
Defog
|
Digital Defog
|
|
|
Audio
|
||
|
Microphone
|
Built-in Mic
|
|
|
Camera audio
|
TVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps |
|
|
Interface
|
||
|
Power
|
5.5mm power interface
|
|
|
Video output
|
BNC, supports TVI/AHD/CVI/CVBS
|
|
|
Operating environment
|
||
|
Temperature
|
-30°C to 60°C (-22°F to 140°F)
|
|
|
Humidity
|
≤95% (RH, non-condensing)
|
|
|
Surge protection
|
4kV
|
|
|
Ingress protection
|
IP67
|
|
|
General
|
||
|
Power
|
DC 12V (±25%), with reverse polarity protection. Max 3.12W
|
|
|
Mount
|
Surface mount (default), optional junction box and wall mount bracket
|
|
|

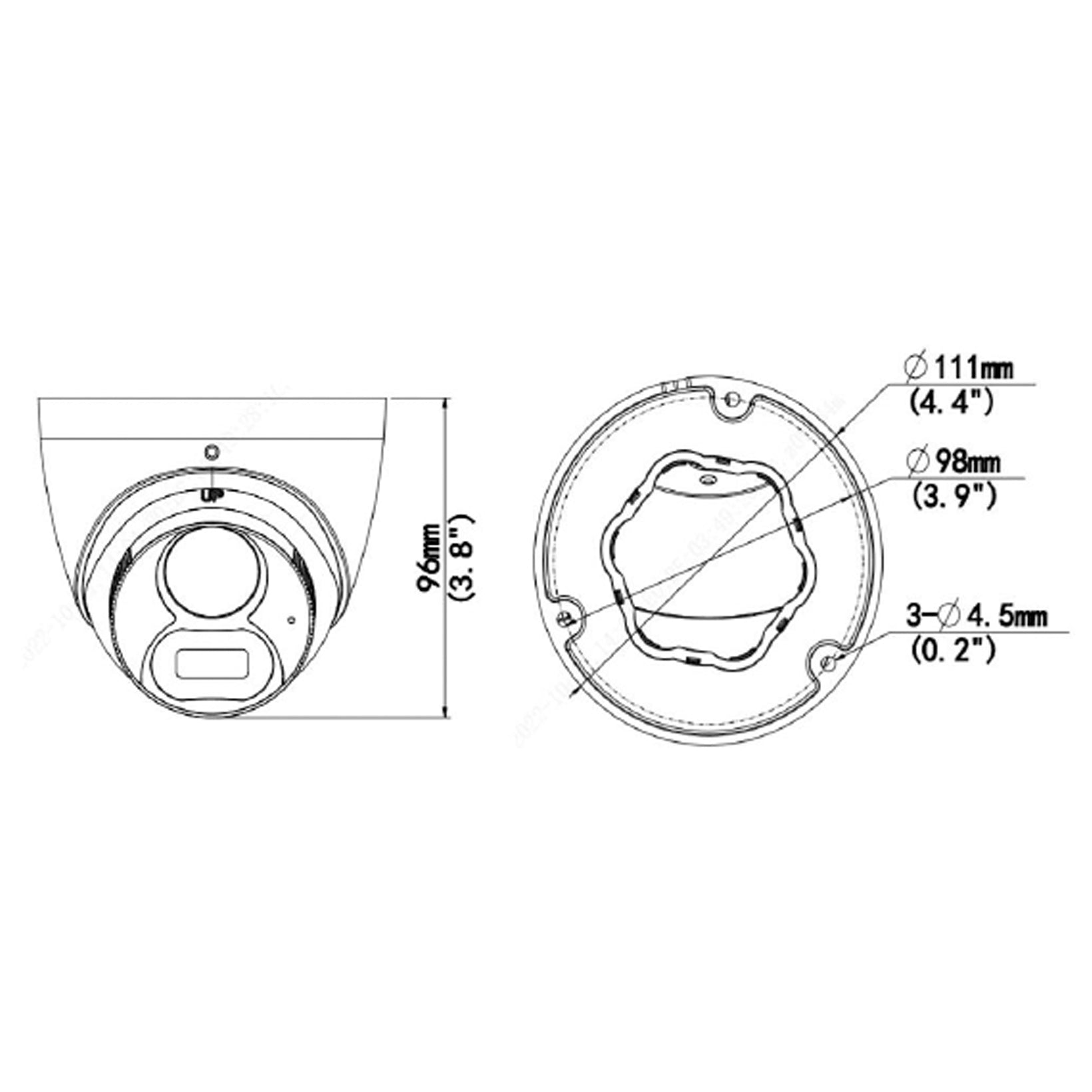

Dimensions
|
Φ111mm*96mm (diameter*height)
|
|
|
Material
|
Metal and plastic
|
|
|
Weight
|
356g (0.79lb)
|
|
|
Certification
|
CB, CE, FCC, UL
|
|
