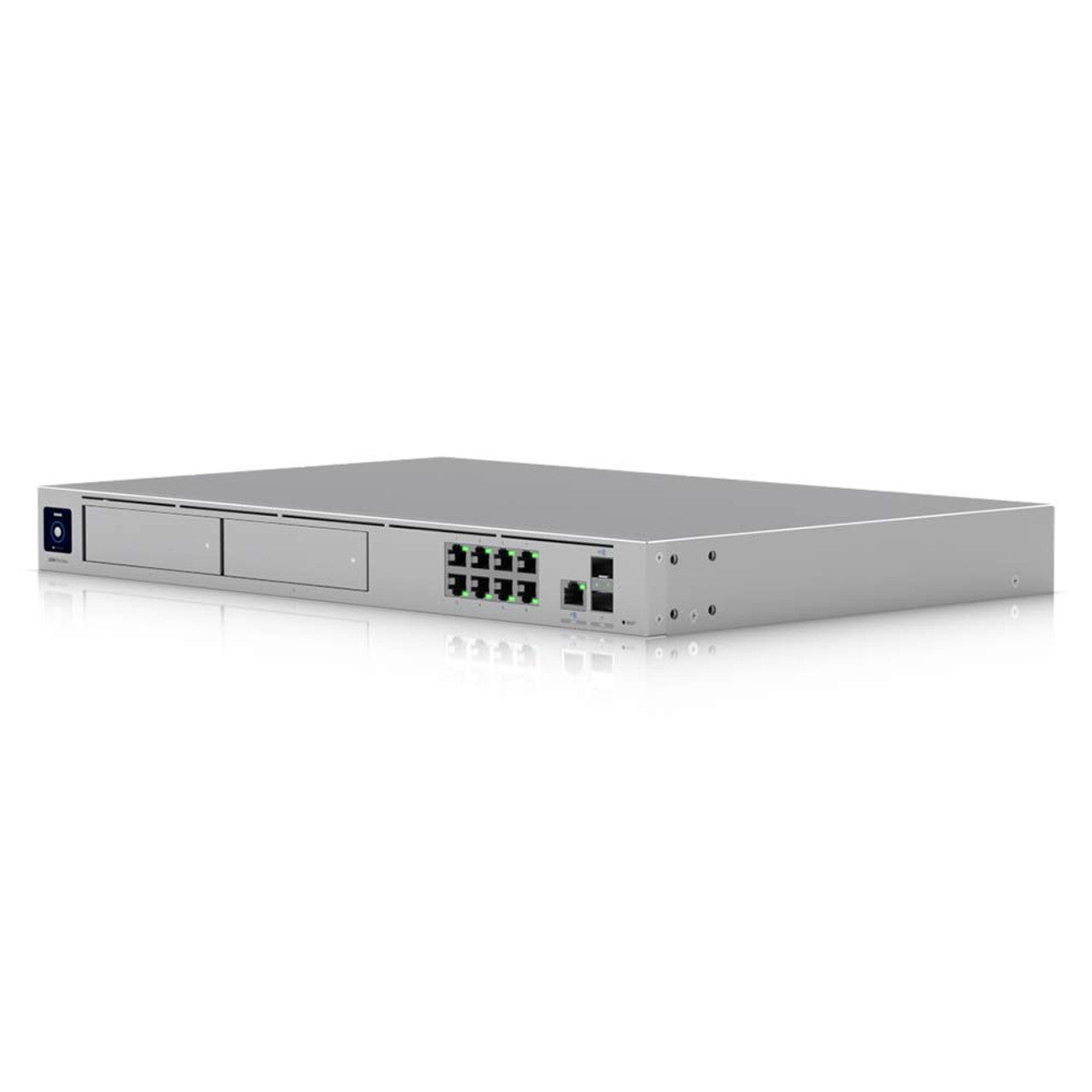

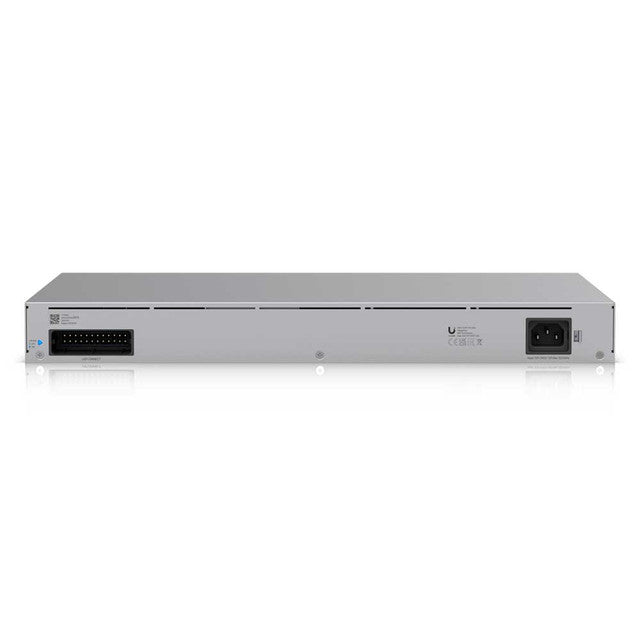

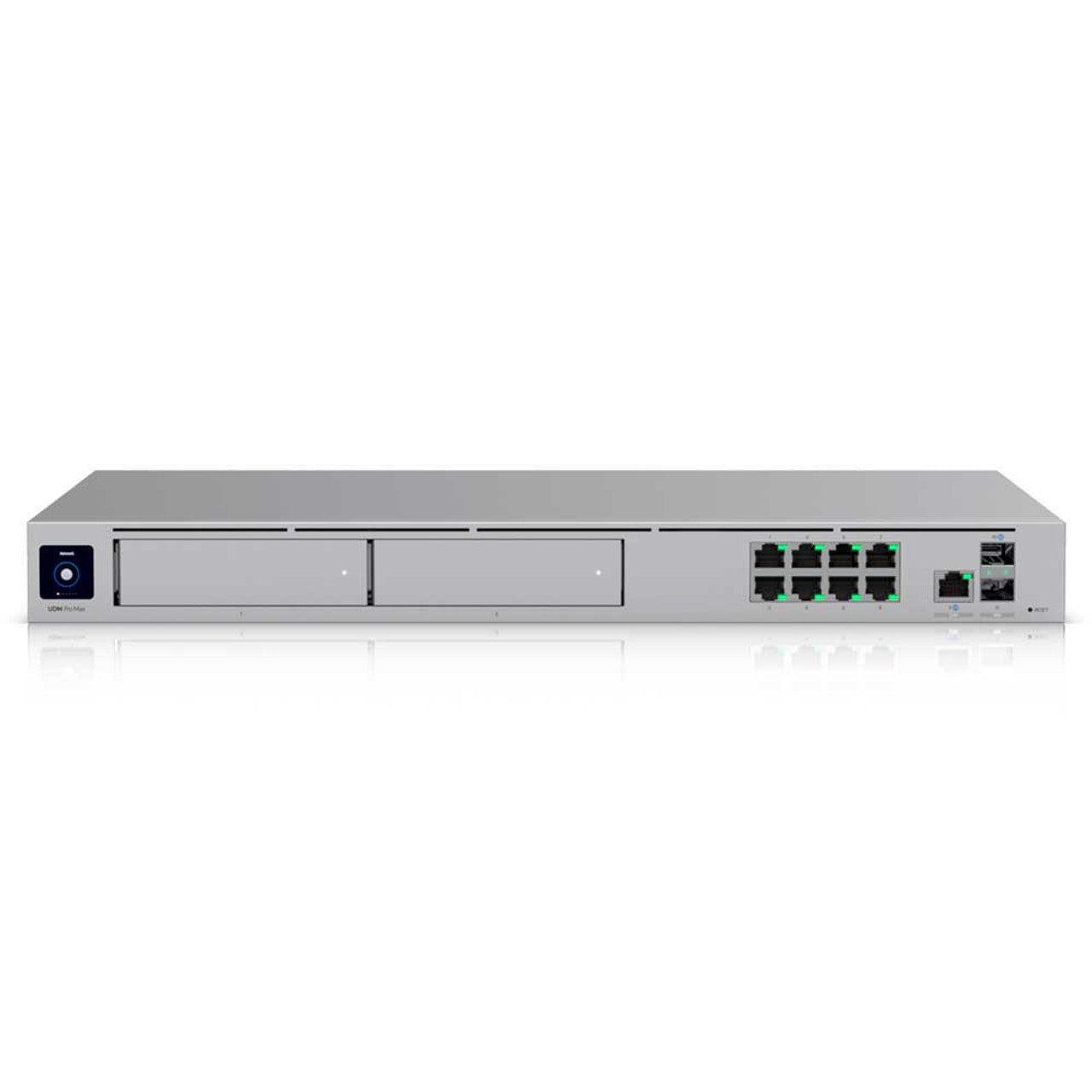

Ubiquiti UDM-PRO-MAX, UniFi Dream Machine Pro Max

Ubiquiti UDM-PRO-MAX – Dream Machine Pro Max 10G Cloud Gateway

The Ubiquiti UDM-PRO-MAX is a high-performance cloud gateway and network controller designed for demanding enterprise environments. With advanced routing, next-generation security, and integrated NVR capabilities, this device supports over 200 UniFi devices and 2,000+ clients while maintaining 5 Gbps IDS/IPS performance. Its redundant design includes dual 10G SFP+ ports and RAID-protected storage for unmatched reliability.

Key Features:

• Enhanced Capacity: Supports 2x the UniFi devices and clients compared to the Dream Machine Pro/SE.
• Powerful Routing: 5 Gbps IDS/IPS throughput with advanced security features.
• Full UniFi Suite: Includes UniFi Controller for comprehensive device and network management.
• Flexible Connectivity:
  • (1) 10G SFP+ WAN port and (1) 2.5 GbE RJ45 WAN port
  • (1) 10G SFP+ and (8) GbE RJ45 LAN ports
• Redundant Storage: (2) 3.5' NVR HDD bays with RAID support and a built-in 128 GB SSD for recordings.
• Power Backup Ready: Compatible with UniFi Power Backup for seamless power redundancy.
• Interactive Display: 1.3' touchscreen for device status and diagnostics.

Applications

• Enterprise network control with advanced routing, firewall, and VPN capabilities.
• High-capacity environments requiring support for numerous devices and clients.
• Integrated NVR for secure and scalable video recording.
• Reliable connectivity with failover and load balancing for mission-critical networks.

Technical Description:

• Mechanical:
  • Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2 in)
  • Weight: 4.7 kg (10.4 lb)
  • Enclosure Material: Aluminium CNC, SGCC Steel
• Hardware:
  • Processor: Quad-core ARM® Cortex®-A57 at 2.0 GHz
  • Memory: 8 GB DDR4
  • Storage:
    • 32 GB eMMC
    • 128 GB Integrated SSD
    • (2) 3.5' HDD Bays with RAID support
• Networking Interfaces:
  • LAN:
    • (8) GbE RJ45 Ports
    • (1) 10G SFP+ Port
  • WAN:
    • (1) 2.5 GbE RJ45 Port
    • (1) 10G SFP+ Port
• Power:
  • Power Method:
    • Universal AC (100–240V, 50/60Hz)
    • USP-RPS DC Input (11.5V, 8.7A)
  • Power Consumption: Max 100W
• Environmental:
  • Operating Temperature: -10°C to 40°C (14°F to 104°F)
  • Humidity: 5–95% Non-Condensing
• Certifications:
  • CE, FCC, IC
• Advanced Features:
  • Security:
    • Application-aware firewall
    • IDS/IPS threat detection
    • Ad, domain, and content filtering
  • Routing:
    • VLAN/subnet-based segmentation
    • Policy-based WAN and VPN routing
    • License-free SD-WAN
  • VPN Support:
    • WireGuard, L2TP, OpenVPN server/client
    • Site-to-site VPN with OpenVPN and IPsec
• LED Indicators:
  • Ethernet: Green for Link/Activity
  • SFP+: Green for Link/Activity
  • HDD: White for Disk Activity, Amber for Errors
  • RPS: Blue for Ready
