UNV | SKU:
UVKIT-TVI/02

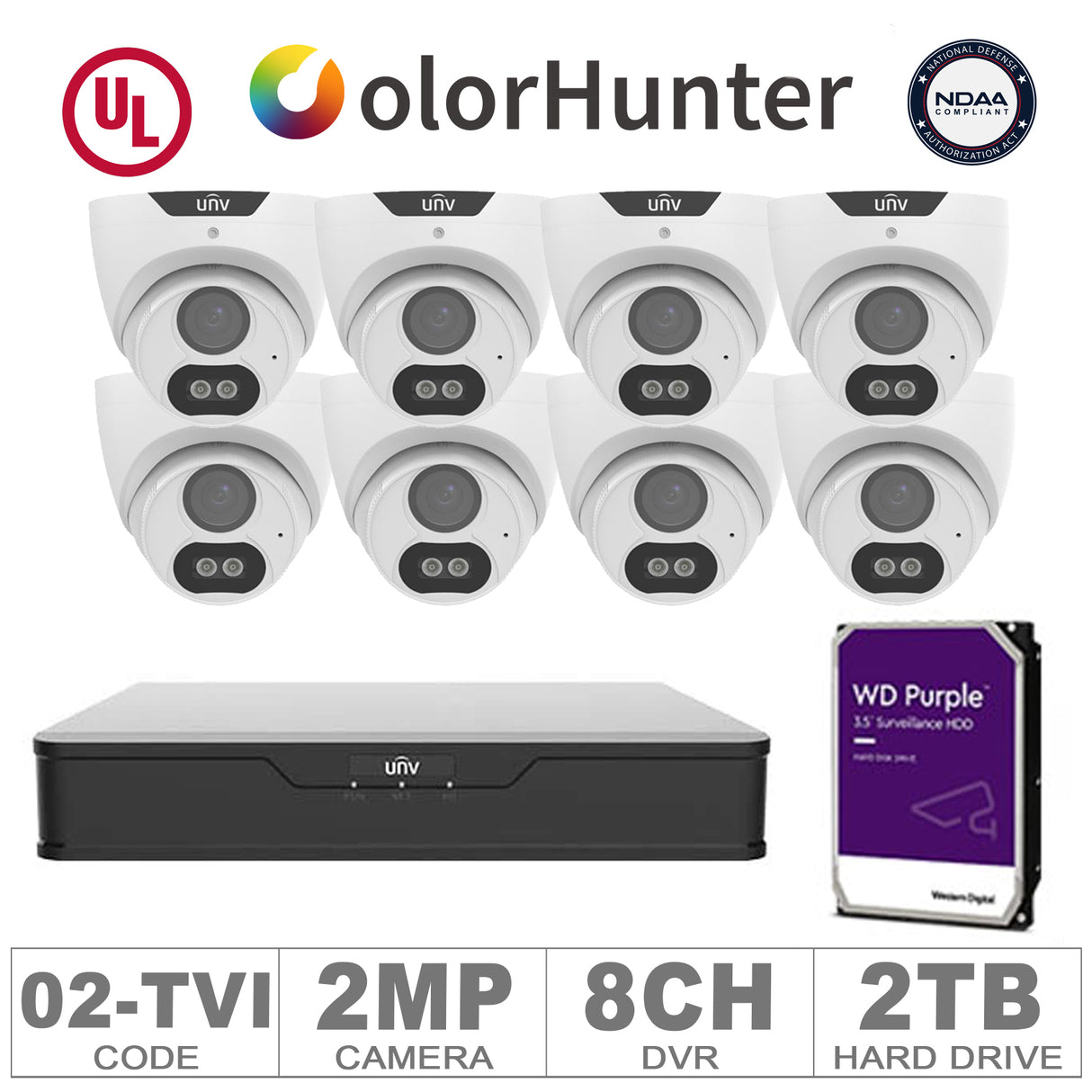

UNV KIT-TVI/02 (8 TVI Cameras 2MP + 1-WD/2-TB + 1-DVR/8-CH)
MPN: KIT-TVI/02
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV KIT-TVI/02 (8 TVI Cameras 2MP + 1-WD/2-TB + 1-DVR/8-CH) is backordered and will ship as soon as it is back in stock.
Description
Description
- 1-DVR 4 Channels: XVR301-08G3
-
4-Cameras 2MP: UAC-T122-AF28M-W
- 1-Hard Drive 2TB: WDHD2TBWDP
XVR301-08G3
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8/16 channel BNC input
- Support 1 ch HDMI output, 1 ch VGA output at up to 1920*1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
UAC-T122-AF28M-W
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- Supports digital defog
- Metal front face and housing
- 3-Axis
WDHD2TBWDP
Capacity |
2 TB |
|---|---|
Cache Memory Installed Size |
64 MB |
Disk Speed (RPM) |
5,400 rpm |
Hard Disk Form Factor |
3.5 in |
Hardware Connectivity |
SATA 6.0 Gb/s |
Dimensions (L x W x H) |
5.79" x 4" x 1.03" |
Compatibility |
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays. |
Item Weight |
0.99 lb |
