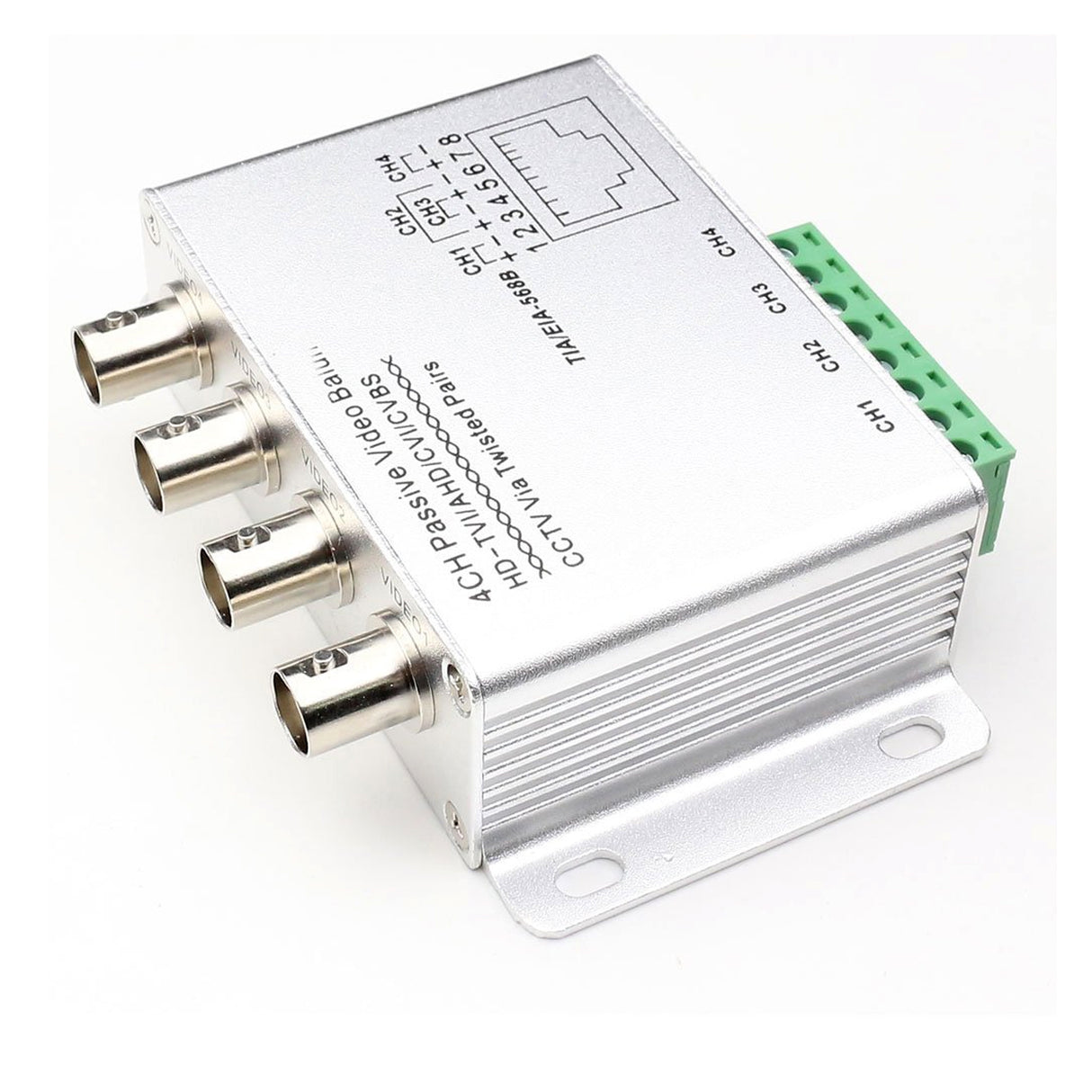

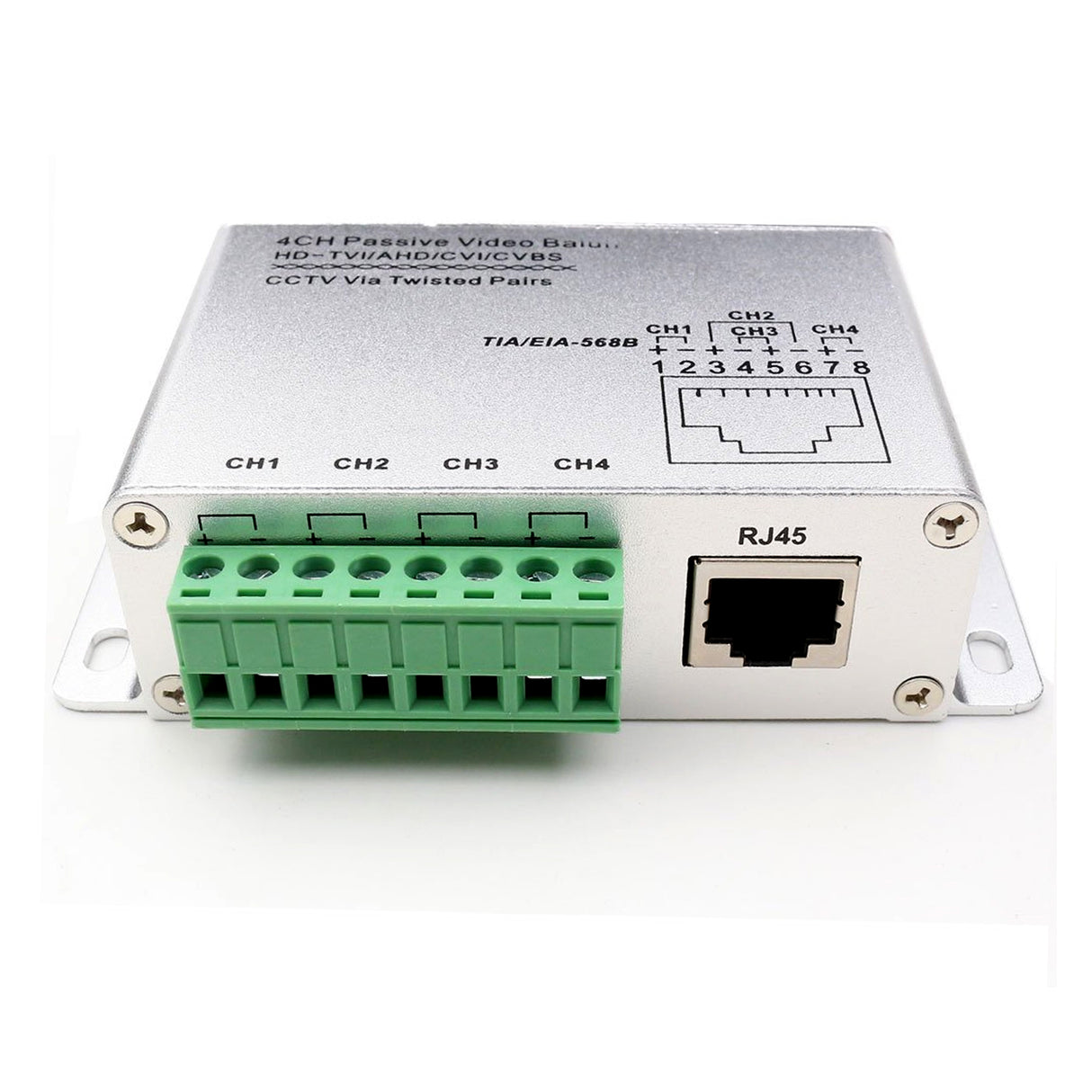

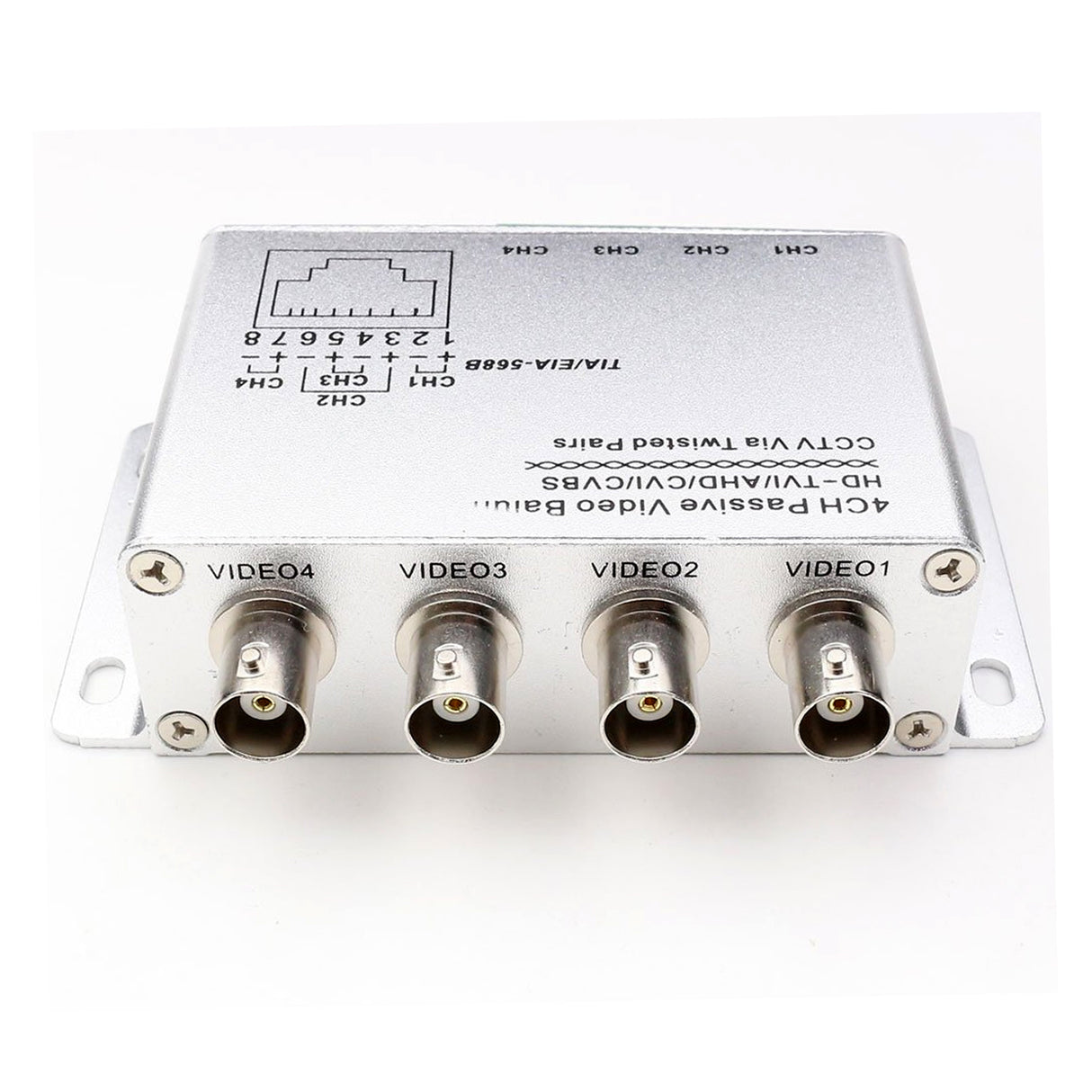

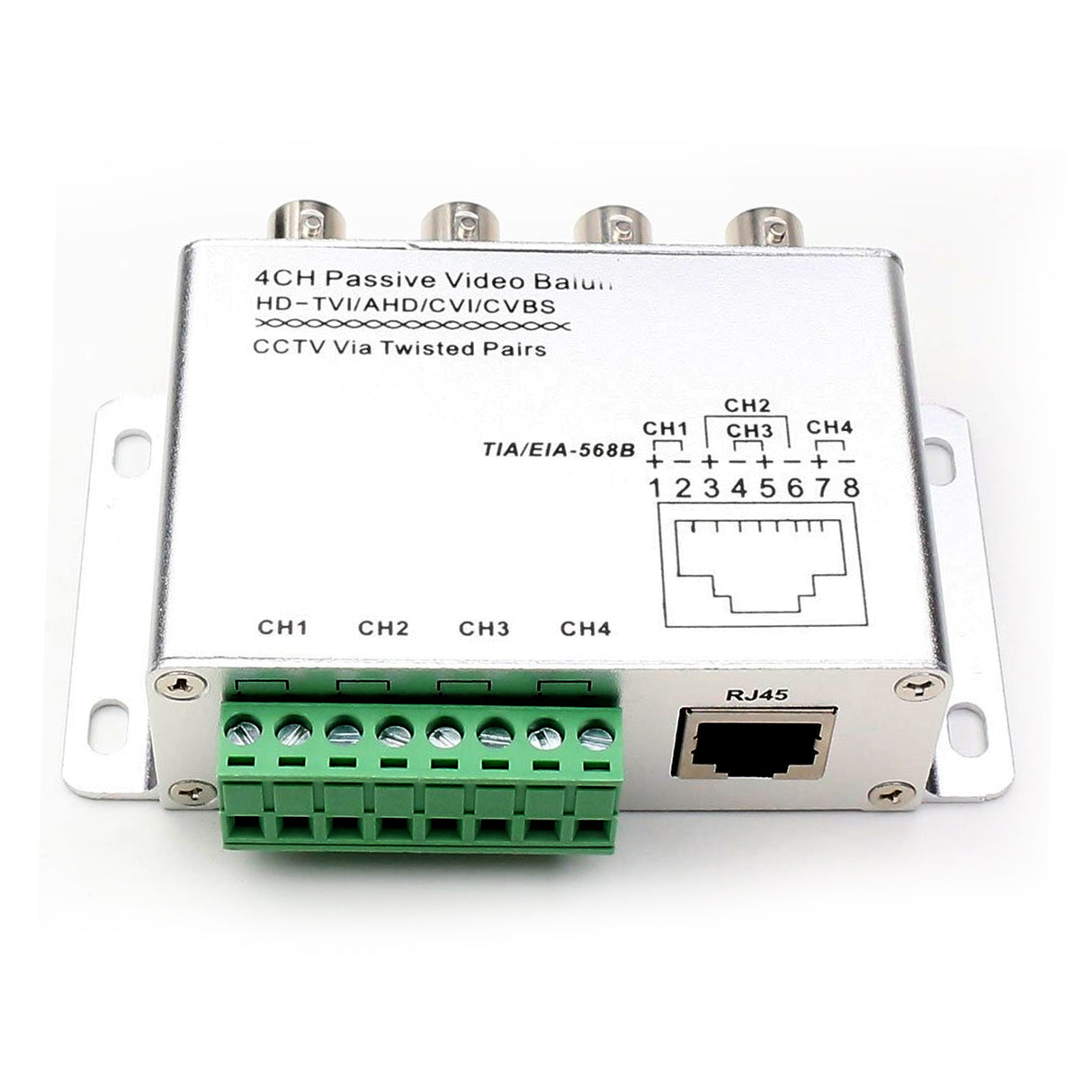

Acegear VB4CHBNC 4ch Passive Video Balun, BNC Coax to CAT5 Ethernet RJ45, CCTV AHD TVI

1.This item is 4-Ch Passive HD video balun transceiver, it works with passive transceiver and active transmitters allow signals transmission up to 300m respectively.

2.Each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal.

3.Full motion CCTV video at distances up to 300m when used with any passive UTP video transceiver.

4.Up to 1500m with any active UTP video receiver.

5.No power required.

6.Category Type: UTP CAT5/5E/6

7.Connector: BNC Female

8.Video Transmission Compatible Format: HDCVI/HDTVI/AHD

9.Anti-interference: >60db

10.ESD: 1A Contact Discharge Electricity Level 3

11.Coaxial Cable Connector: 2KV(common-code).Per:IEC1000-4-5

12.UTP Cable Connector: 2KV(different-code),4KV(common-code).Per:IEC1000-4-5

13.BNC Male Impedance: 75ohms ; UTP Cable Impedance:100ohms

14.Dimension(L*W*H): 105mm*58mm*29mm

15.Shell Material: ABS & Aluminium Alloy Shell ; Color: Silver ; Net Weight: 180g

16.MTBF: >10000H

17.Operating Temperature: -10~55°C; Storage Temperature: -20~70°C; Humidity: 0~95%(non-condensing)

Note:

The transceiver is not waterproof set,so keeping transceiver away wet environment will be prefer.

Cable Recommendation:

Link cable is recommended to use high quality UTP cable.

Poor quality cable or network connection or improper construction will cause unstable connection,video or sound disruptions,picture noise appears.

Package Included :

1x 4-Ch Passive HD UTP Cable Transceiver
