Acegear CAT5E PATCH CORD 350MHz Network Cable, Mold Injected Boot
by Acegear
SKU AGCAT5E14PATCHCORD

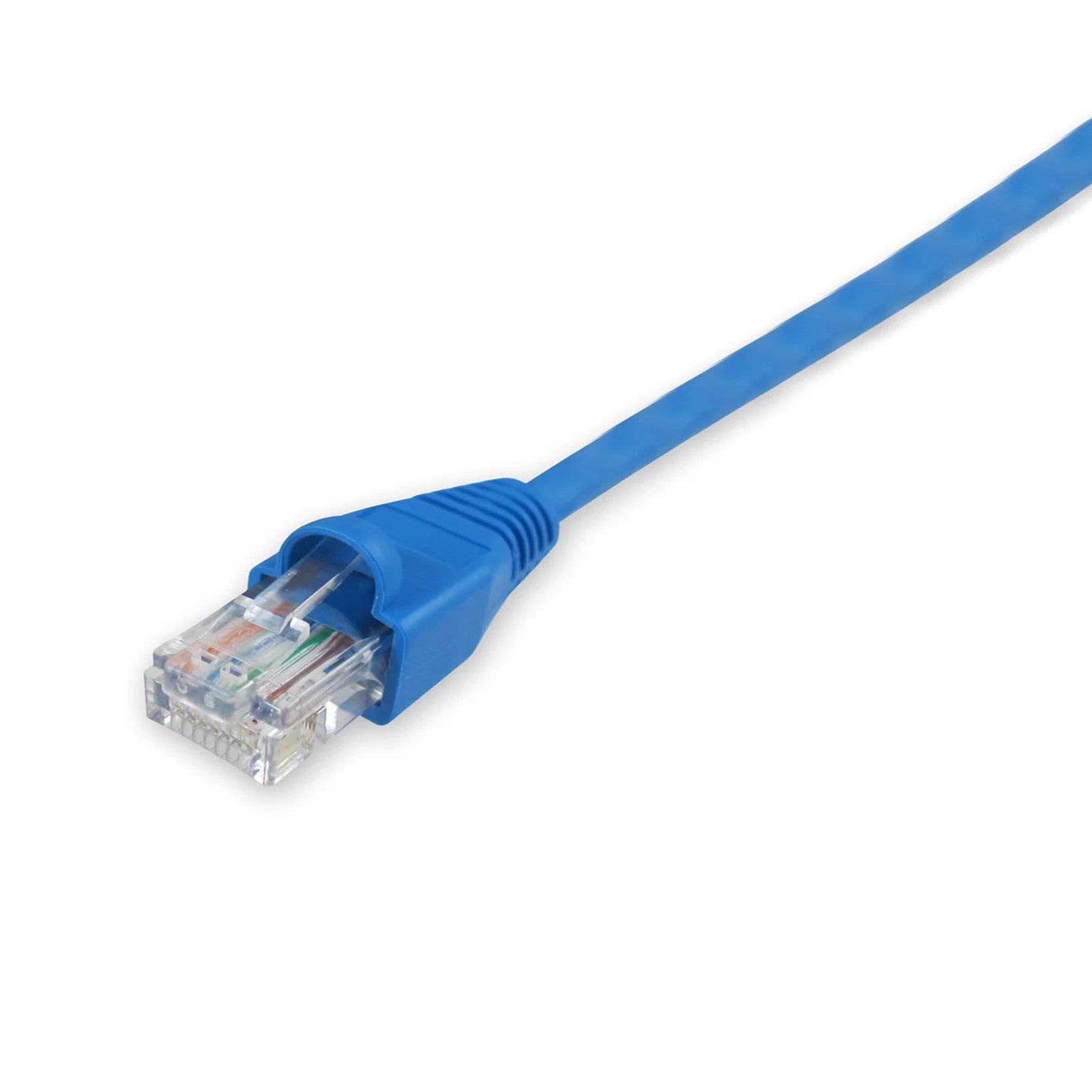

Network Cable Cat5e, 350MHz - Mold Injected Boot, BLUE
The Blue Cat5e 350 MHz Patch Cord Cable is an Ethernet patch cable, suitable for use in professional network installations. It features a male-to-male design, using standard gold-plated RJ-45 connectors on each end. The cable's 350 MHz speed reduces loss when compared to standard a 100 MHz cable. It is suitable for use in Gigabit Ethernet and high speed Ethernet networks. Comprehensive CAT5E 350 Mhz Cables have a molded low profile and a snagless boot that makes installing these cables quick and easy
- Gold-plated RJ-45 connectors
- CAT5E cable meets high-speed 350 MHz standard
- Features 26 awg 4-pair twisted pair construction
- Compliant with all 568A and 568B TIA/EIA standards
- Snagless boot design ensures easy installation
- X-traflex jacket is strong and flexible
| Connector 1 | RJ-45 (Male, Gold-Plated) |
|---|---|
| Connector 2 | RJ-45 (Male, Gold-Plated) |
| Cable Type | Cat5e Ethernet |
| Length | 1' / 3' /7' / 10' / 14' / 25' / 50' / 75' |
| Performance Grade | Good |
| Bandwidth | Supports voice/data/video distribution applications up to 350 MHz |
| Standards | Meets Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2 |
| Cable | Style: Molded snagless boot |
| Conductors | 4 Twisted pairs 26 AWG bare copper stranded cable |
| Conductor DC Resistance | 89 Ω/km (maximum) |
| Insulation Resistance | 100 Ω/km (minimum) |
| Material of Construction | Connector: Polycarbonate Contact: Copper alloy plated with 50u gold |
| Outer Diameter | 0.2" |
| Compatibility | 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5); 55/155Mbps ATM; Voice |
| RoHS Compliant | Yes |
| Jacket | PVC |
