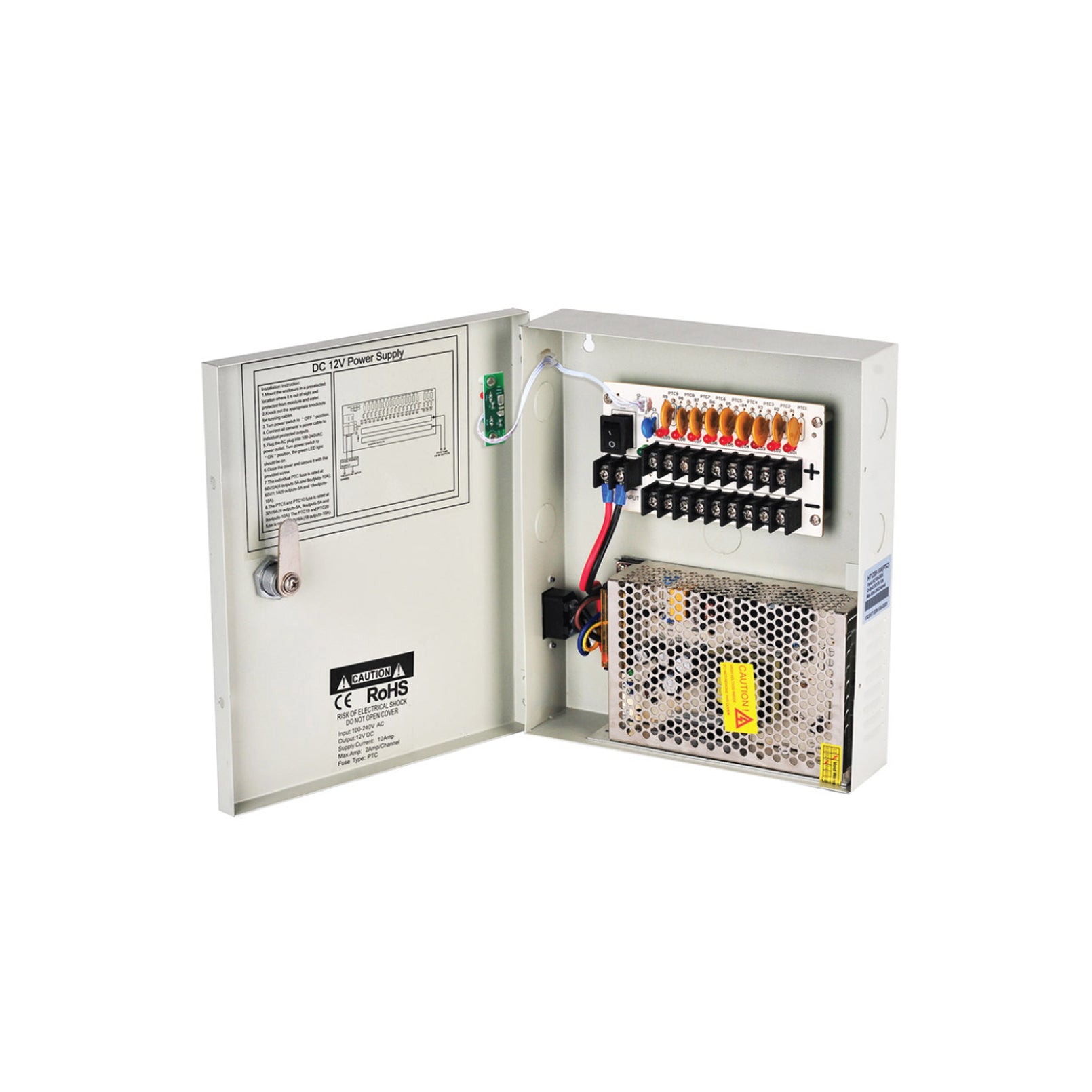

Acegear PBHT12095A CCTV Power Supply Box 9 Cameras (1.1 Amp/Channel) 12V 5.0Amp
by Acegear
SKU AGPBHT12095A
CCTV Power Supply Box 9 Cameras 100-240V to DC 12V 10A 9ch DC power adapter box for CCTV security
Powering multiple cameras could not be easier! CCTV Camera Power Box has PTC fuse protection for Circuit Short, High Voltage, and Over Current. Consolidate all cameras power to one central location.
- General Protection: Individual PTC(Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working
- Short Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit
- High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device
- Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state
- Application: CCTV Camera, PTZ, IR Illuminators, Video Process,Access Control, etc
| Input Voltage Range | AC 90V-264V |
|---|---|
| Input Frequency Range | 50Hz-60Hz |
| Output Voltage Range | DC 12V+/-5% |
| Output Current | 10 Ampere |
| Output Power | 120 Watt |
| Output Ripple & Noise | ≤42MV |
| Output Efficiency | ≥83% |
| Output Channel | 9 Channel |
| Output Fuse Type | PTC |
| Output Fuse Rating | 2A |
| Environment Operatiing Amb.Temp | -30℃~45℃ 20%~90%RH |
| Envionment Storage Temp | -40℃~85℃ 10%~95%RH |
