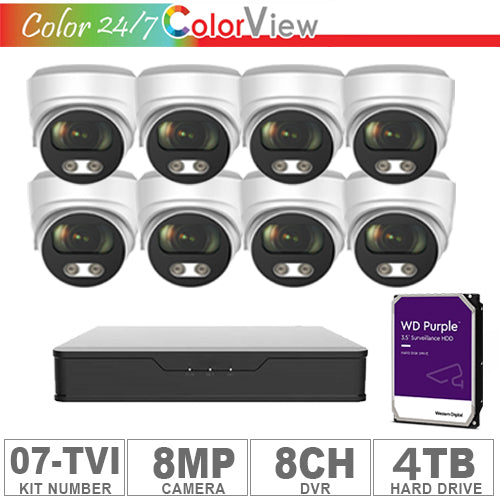

Acegear KIT-07-TVI (8 Cameras TVI 8MP + 1-WD/4-TB + 1-DVR/8-CH)
by Acegear
SKU AGKIT-07-TVI
- 1 DVR 8 Channels: (XVR301-08Q3)
- 8 Cameras 8MP: (CT1806-CV)
- 1 Hard Drive 4 TB: (HD4TBWDP)
- APP: (UNV-Link Mobile App)
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Resolution: 4K / 8MP TVI Camera
- Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
- Lens: 2.8mm
- Functions: WDR,3DNR/Defog
- IR: Smart IR
- Menu: OSD
- Light Distance: Up to 25m (82ft)
- Multiprotocol Output: TVI
- Protection: IP67
- Warranty: 3 Years
| Capacity | 4 TB |
|---|---|
| Cache Memory Installed Size | 64 MB |
| Disk Speed (RPM) | 5,400 rpm |
| Hard Disk Form Factor | 3.5 in |
| Hardware Connectivity | SATA 6.0 Gb/s |
| Dimensions (L x W x H) | 5.79" x 4" x 1.03" |
| Compatibility | WD Purpleâ„¢ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays. |
| Item Weight | 0.99 lb |
