Acegear | SKU:
AGV368

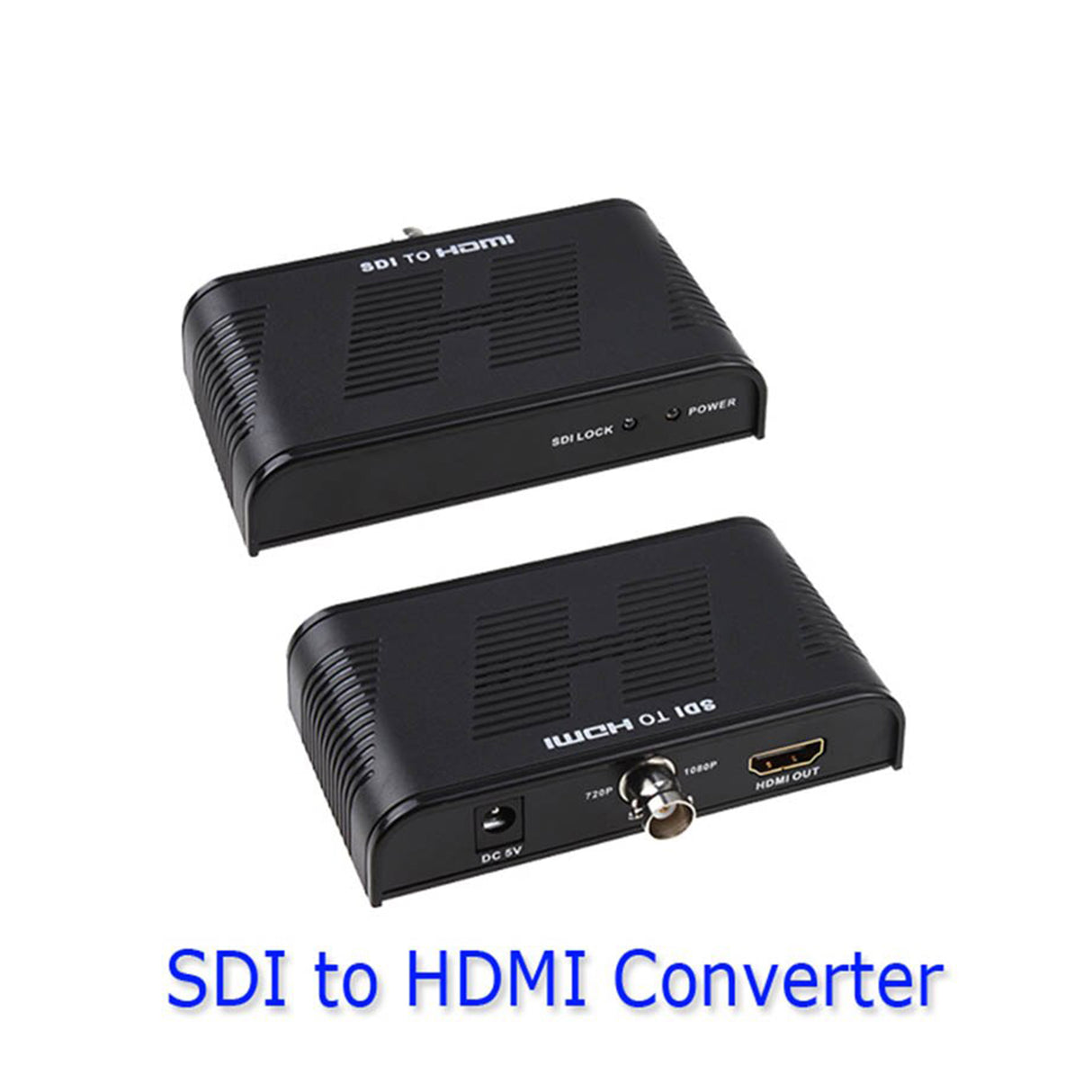

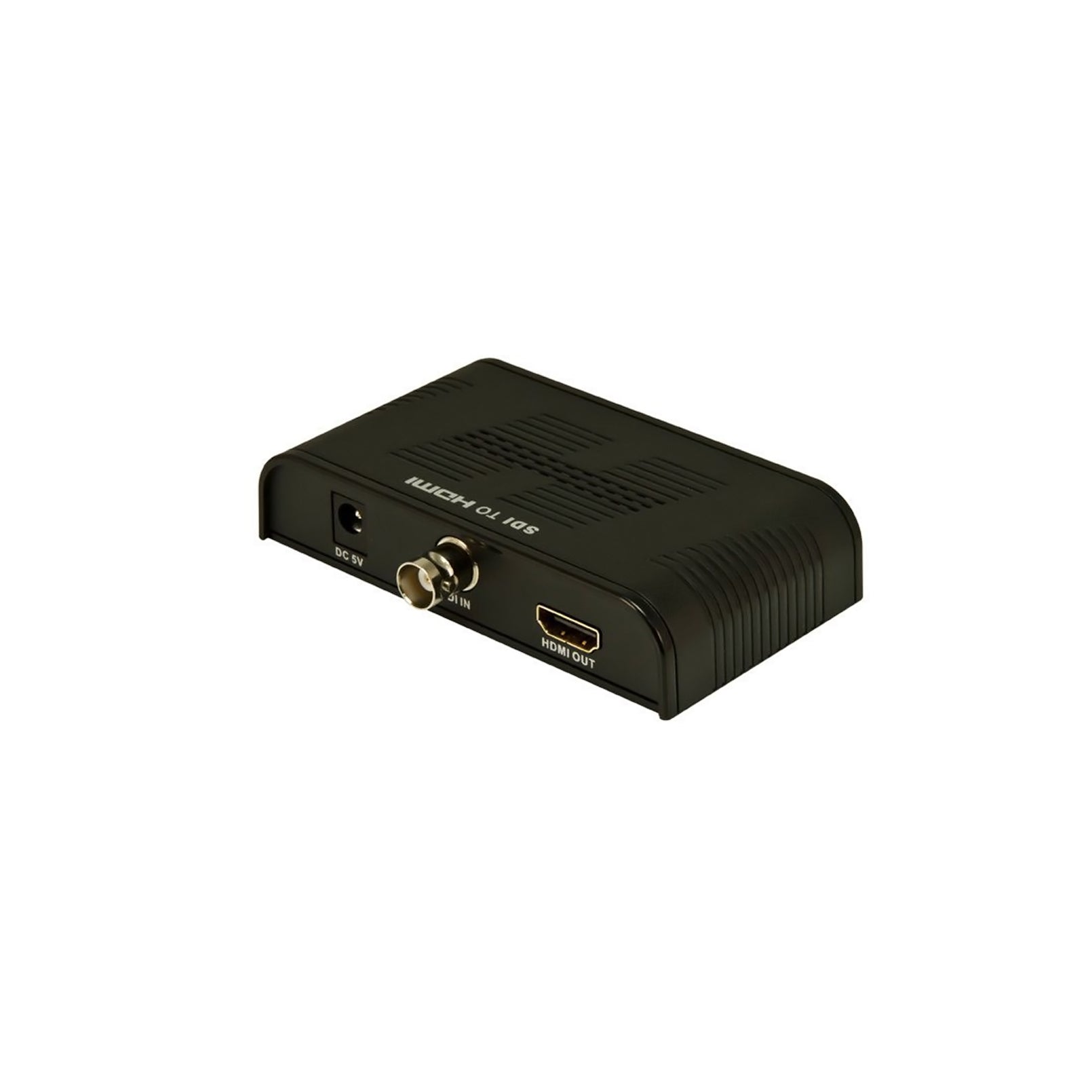

Acegear V368 SDI to HDMI Converter
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Acegear V368 SDI to HDMI Converter is backordered and will ship as soon as it is back in stock.
Description
Description
SDI to HDMI converter

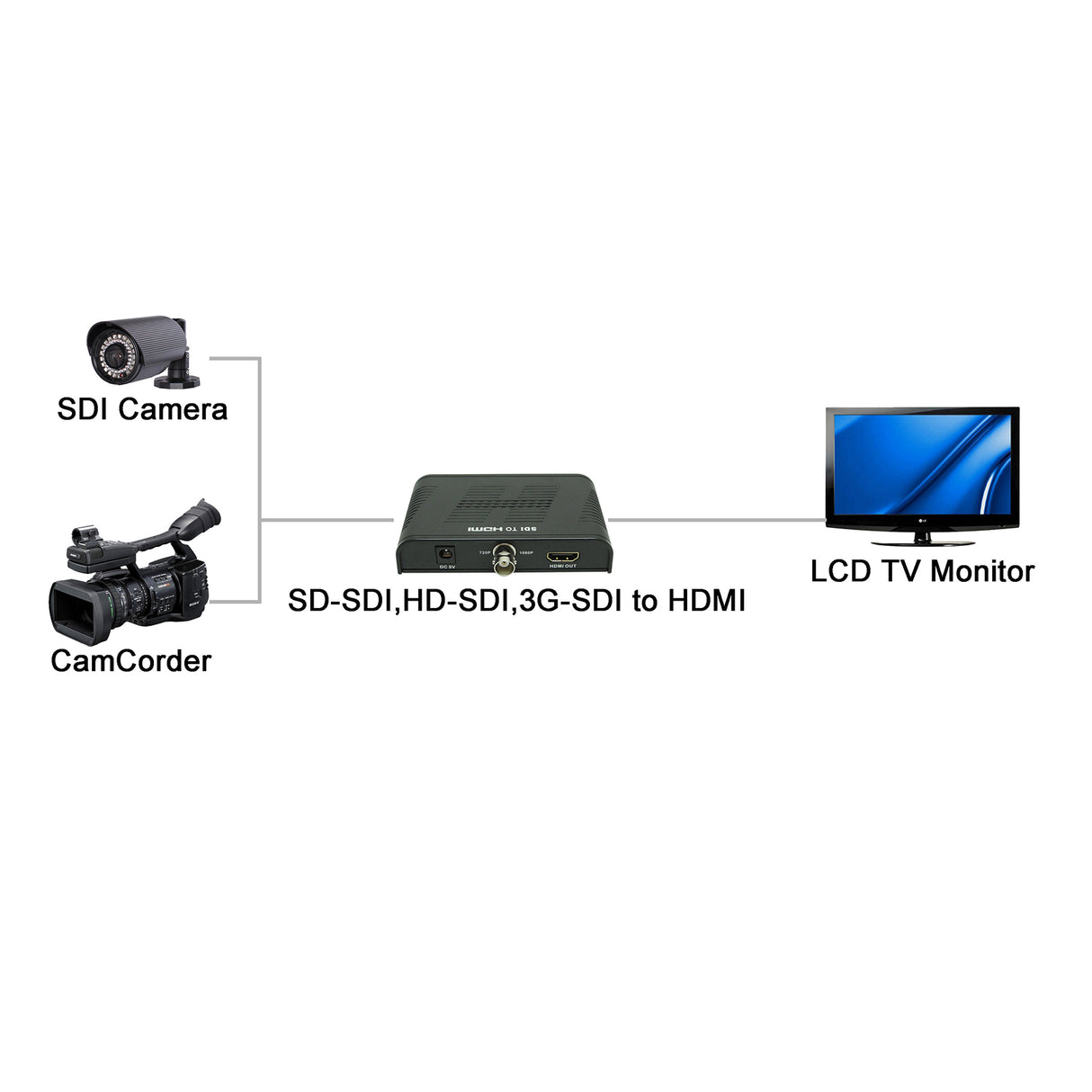

Video Converter could convert SDI signal to HDMI,VGA or CVBS signal (any two interface), then our products could process resolution ratio,frame rate and image scaling of different interface. Audio signal that embedded in SDI could embed to HDMI through separating and converting and simultaneously transmit to analog circuit output interface.
Features
- Supported Video Formats: HD-SDI, SD-SDI, 3G-SDI
- Receive Distance: SD-SDI: 460, HD-SDI: 230 meters
- Supported Video Resolutions:
- SD 525i 625i
- HD 720P@50HZ, 720P@60HZ
- HD 1080i@50HZ, 1080i@60HZ,
- HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ
- BNC Input / HDMI Output
Specs
| Dimensions | 4.3 x 3.5 x 2.5 in |
|---|---|
| Weight | 0.5 Lbs |
