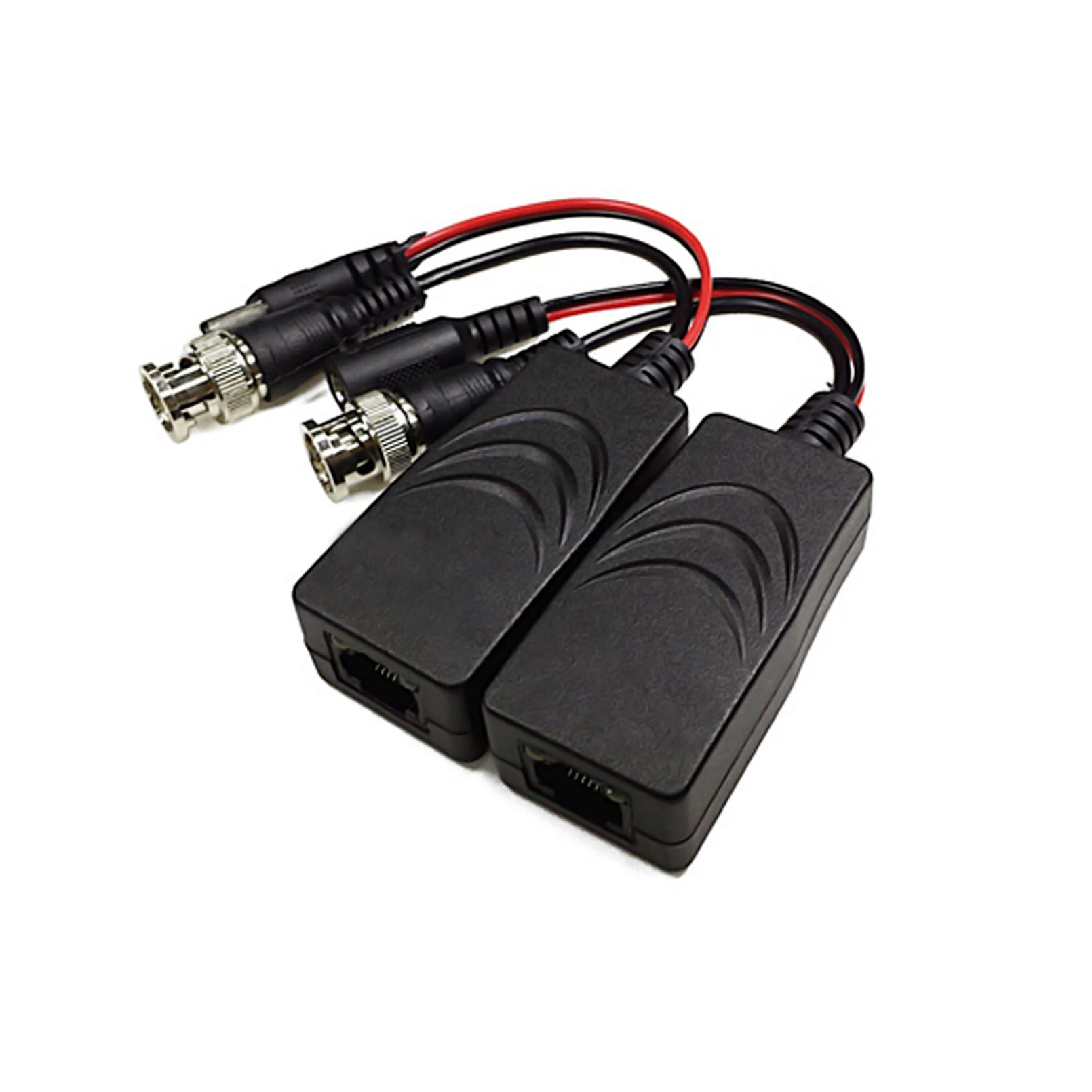

Acegear VB4301.PAIR CCTV HD Video Baluns (Pair).
by Acegear
SKU AGVB4301.PAIR
VB-4301 CCTV HD Video Balun
- Connector - VIDEO BALUN/ BNC to RJ-45
- Male BNC Connector Type
- Connector - VIDEO BALUN/ BNC to RJ-45 Audio
- 2 screw-mount Video
- 2 screw-mount Power Input
- 1 Connector Input
- RJ45 Output Connector
- Male BNC Connector
- 1CH Security HDTVI Video Balun, Transceiver for HD CCTV Cameras
- support all HD-CVI,HD-TVI,HD-AHD & HD-CVBS analog camera
- Color video max up to 480m for HD-CVI 720P camera
- if you adjust saturation of DVR,max to 440m
- Color video max up to 220m for HD-CVI 1080P camera
- color video max up to 190m for Hikvision TVI 720P and 1080P camera
- color video max to 210m for TVT HD-TVI 720P camera
- color video max to 230m for TVT HD-TVI 1080P camera
- color video max to 300m for AHD 720P camera
- color video max up to 240m for AHD 960P camera
- color video max up to 220m for AHD 1080P camera
- Build in TVS for surge protection
- wave filter design,anti-static design
- lightning protection design grade:san
- 60 dB crosstalk and noise immunity
- exceptional interference rejection
| Dimensions | 6.7 x 3.9 x 0.8 inches |
|---|---|
| Weight | 3.2 Ounces |
