Kanto PDC650, Full Motion Corner TV Mount for 37" - 70" TVs, Compatible with Inner and Outer Corners
MPN: PDC650
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Kanto PDC650, Full Motion Corner TV Mount for 37" - 70" TVs, Compatible with Inner and Outer Corners is backordered and will ship as soon as it is back in stock.
Description
Description
- 125 lb Weight Capacity
- Two Independent Wall Plates
- Up to ±40° Swivel

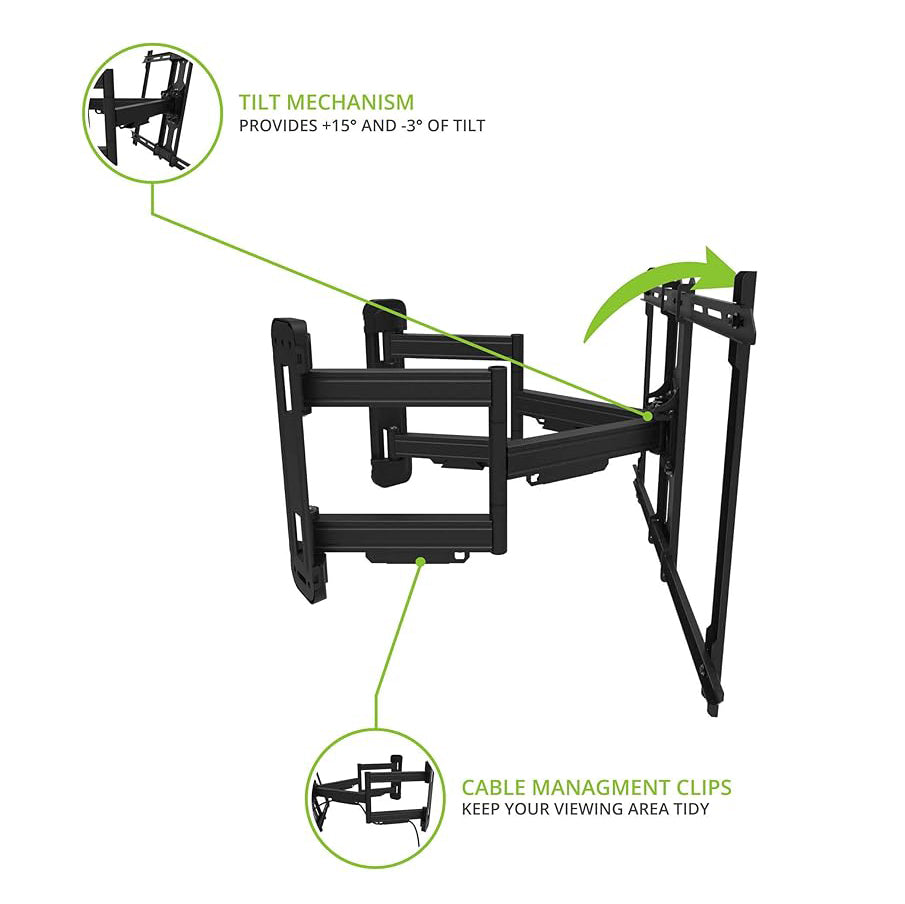

- 15° Forward, 3° Backward Tilt
- Cable Management Clips
- Wall Plate Covers

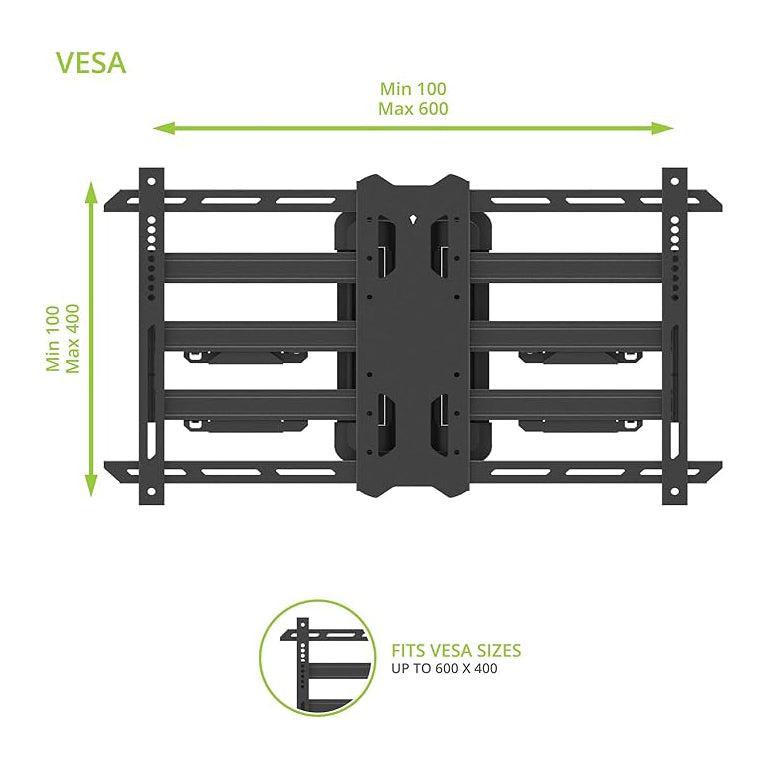

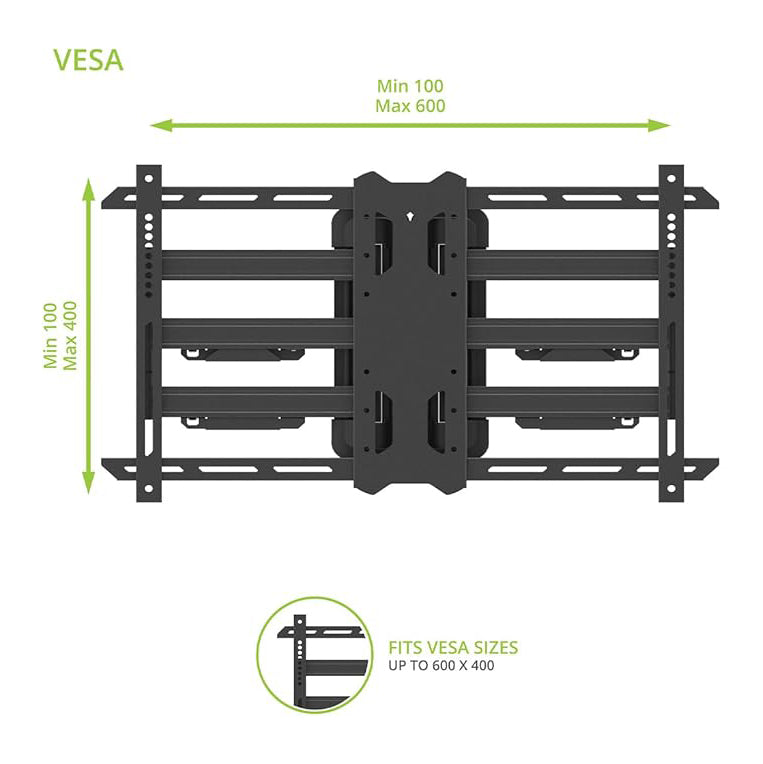

- 100 x 100 to 600 x 400mm VESA Compliant
Feature

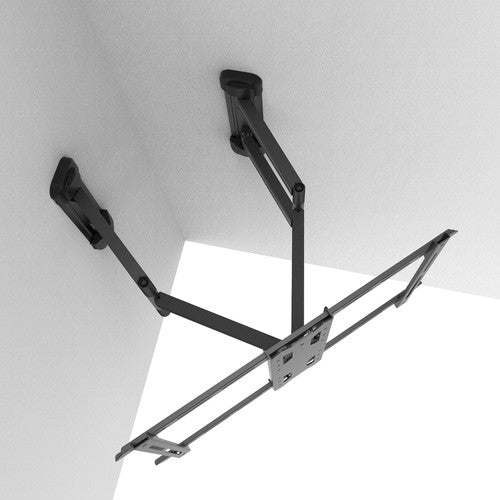

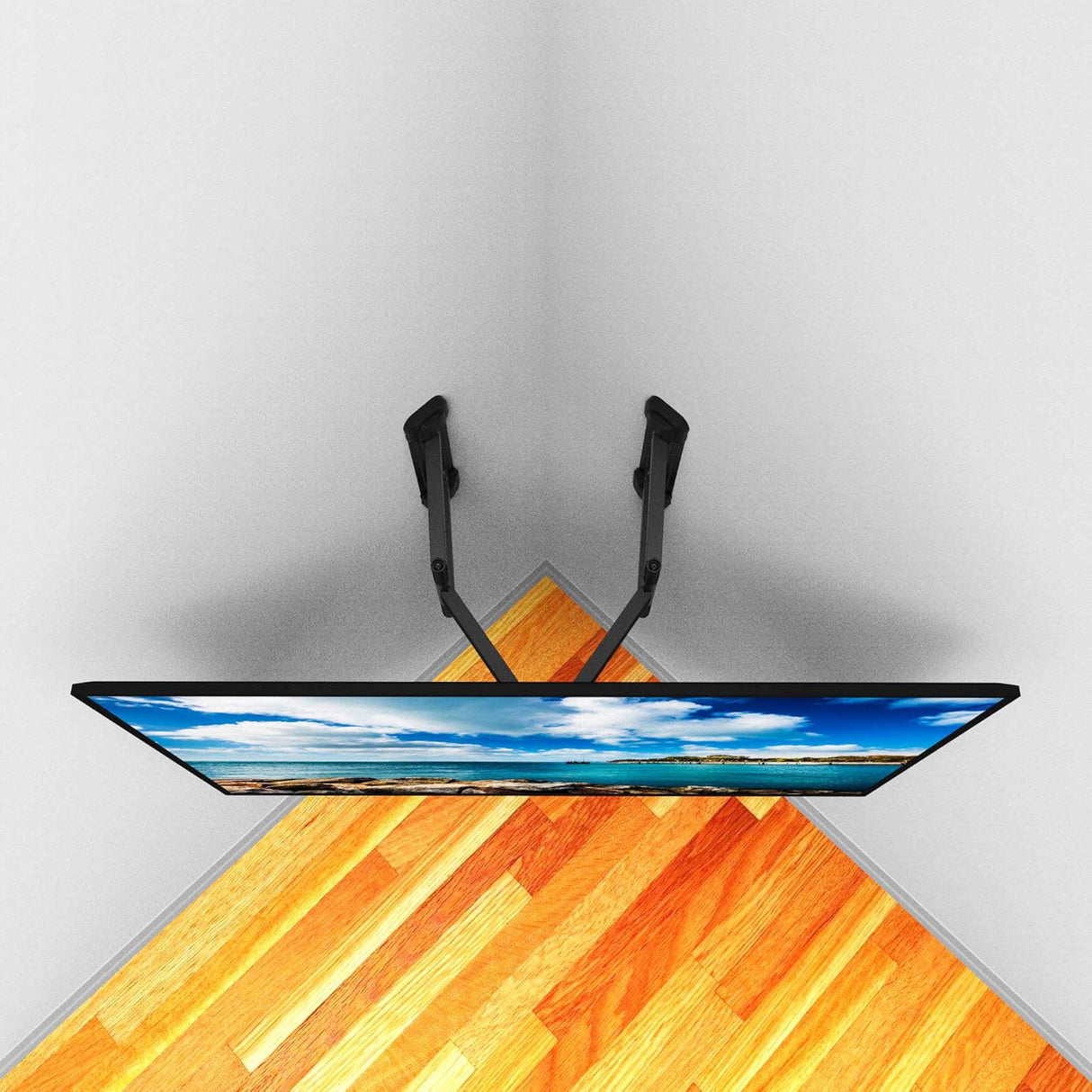

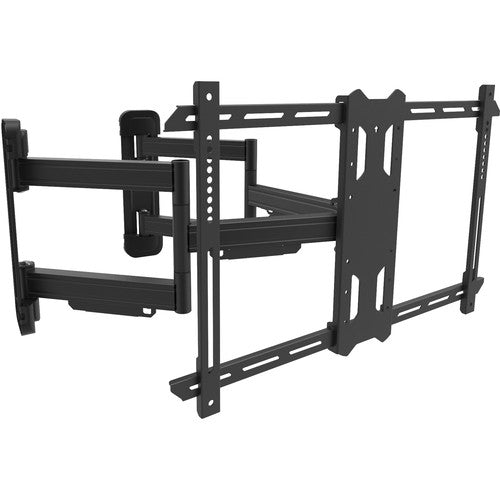

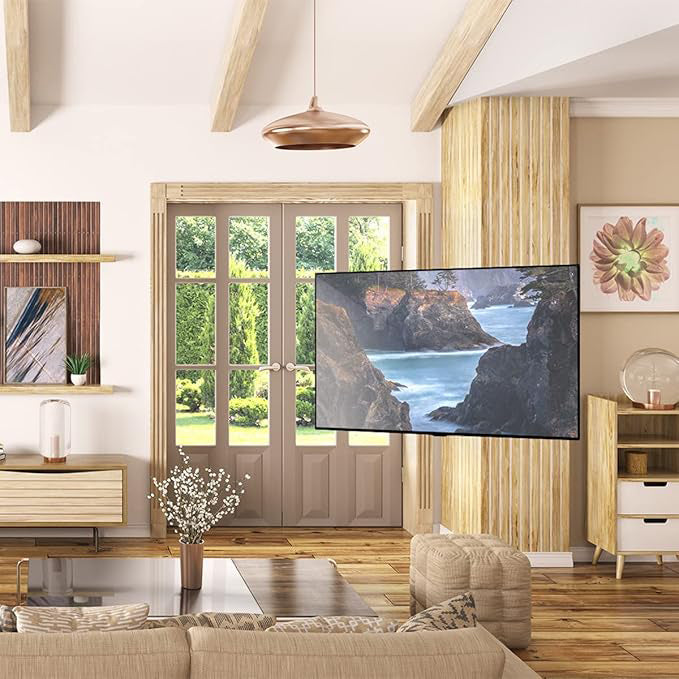

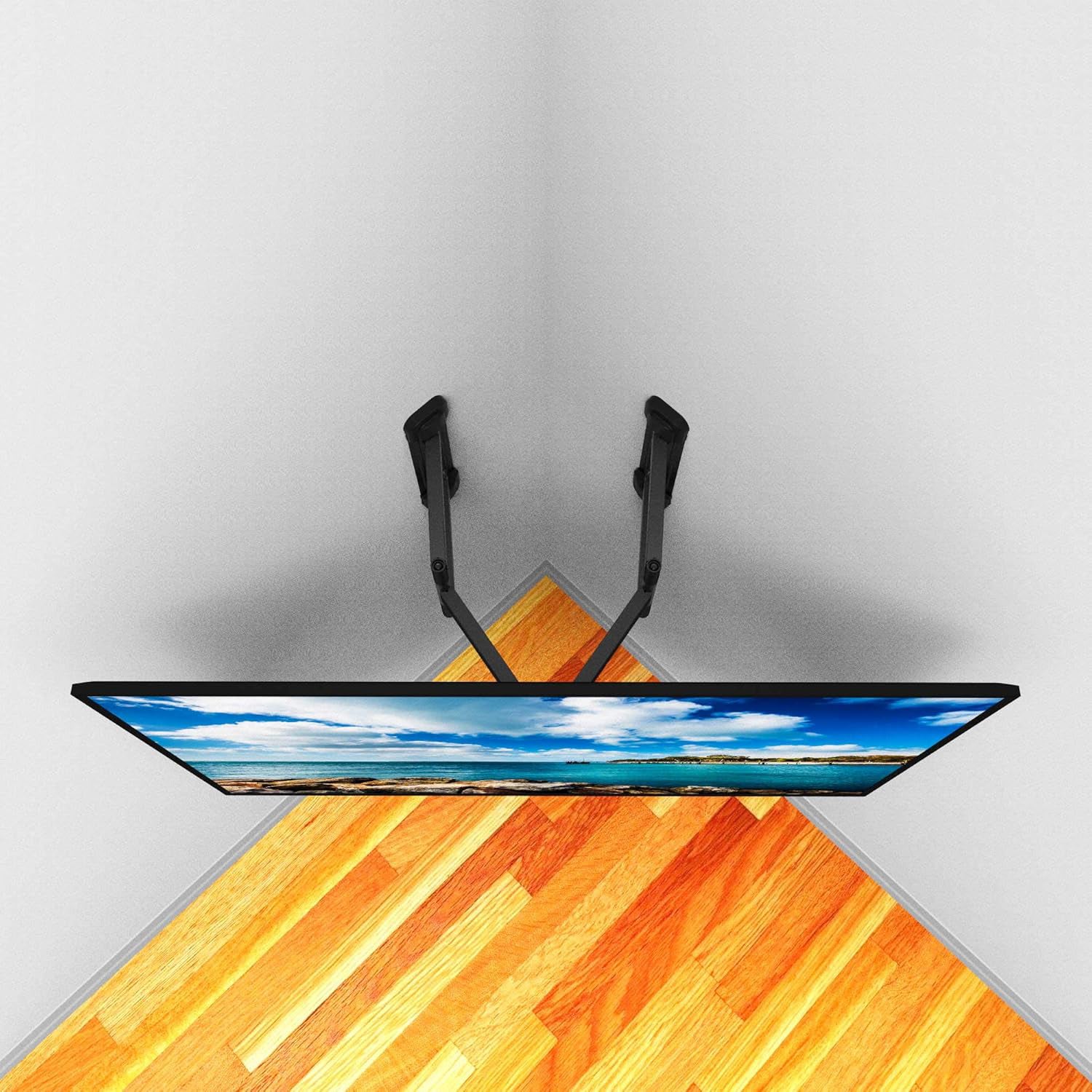

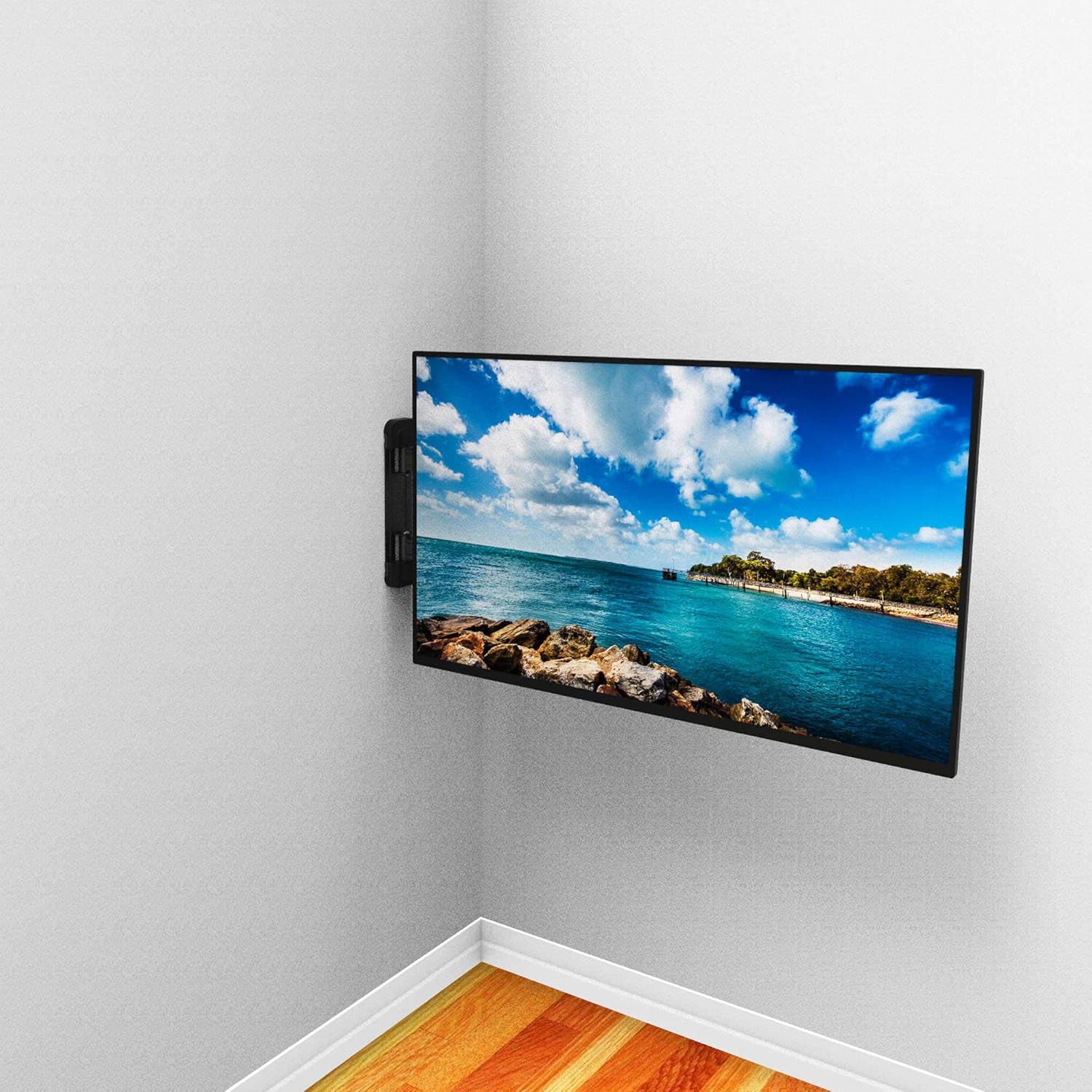

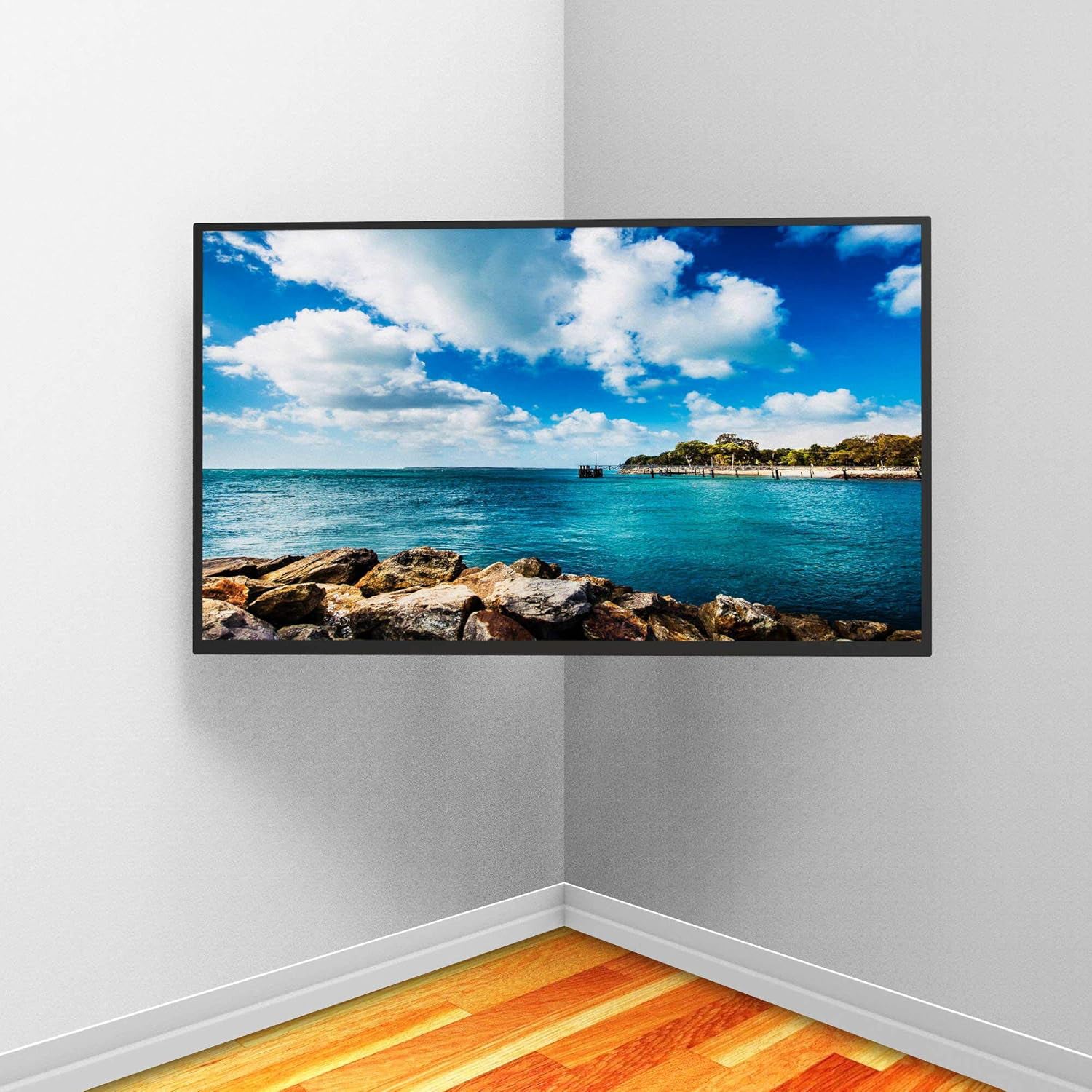

The Full Motion Corner Mount from Kanto Living is designed to mount a 37-70" TV. Its two independent wall plates can be mounted to adjacent walls, allowing TVs up to 125 lb to be safely positioned within a corner. Alternatively, turning the wall plates inwards allows for mounting to an outer edge, column, or pillar. Depending on the screen size and the distance between the wall plates, the articulating arms offer up to 40° of swivel in either direction. You can improve the line-of-sight and reduce glare by tilting your TV 15° forward or 3° backward. This mount includes cable management clips and wall plate covers.
- Fits most flat panel TVs from 37-70"
- Accommodates VESA sizes from 100 x 100 to 600 x 400mm

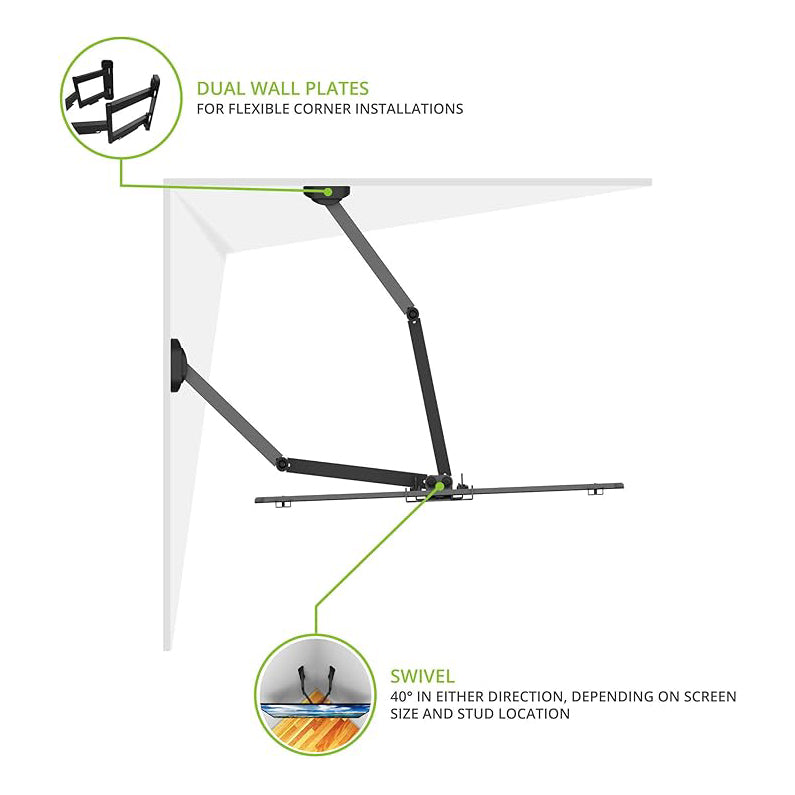

- Dual wall plates for flexible corner installations

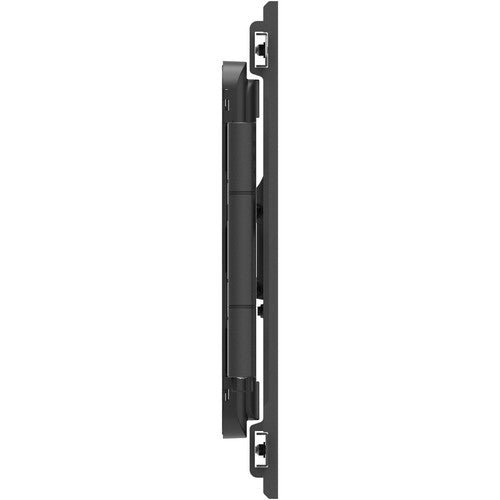

- Sits 2" from the wall

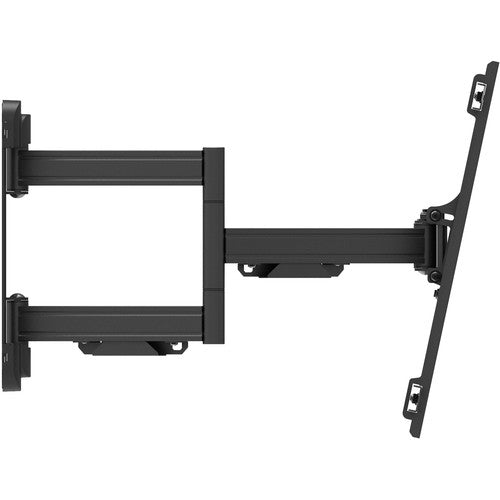

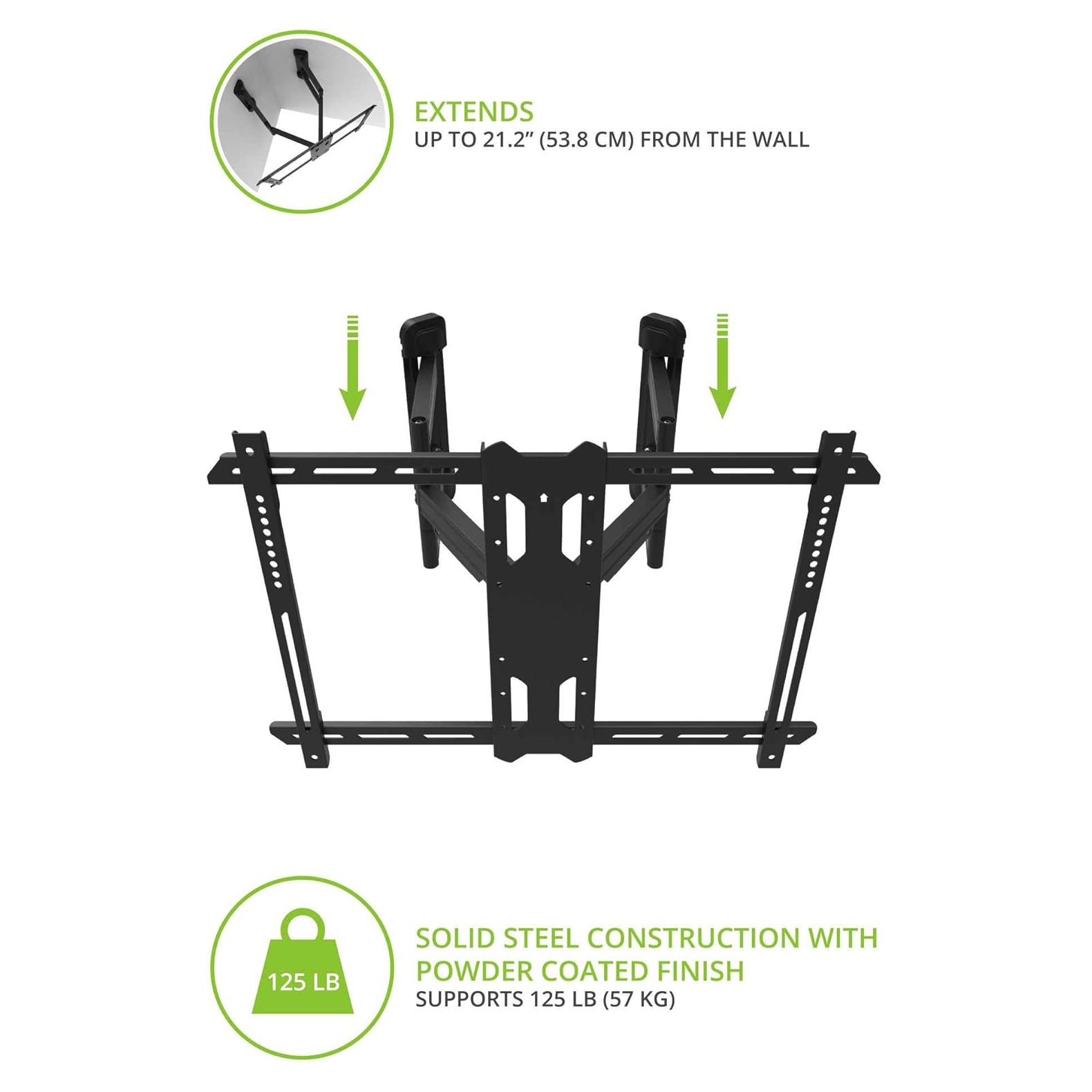

- Extends up to 21.2"
- Adjustable horizontal leveling
- Cable management clips conveniently route your cables
- Plastic wall plate covers hide any sign of installation
- Solid steel construction with durable powder coated finish

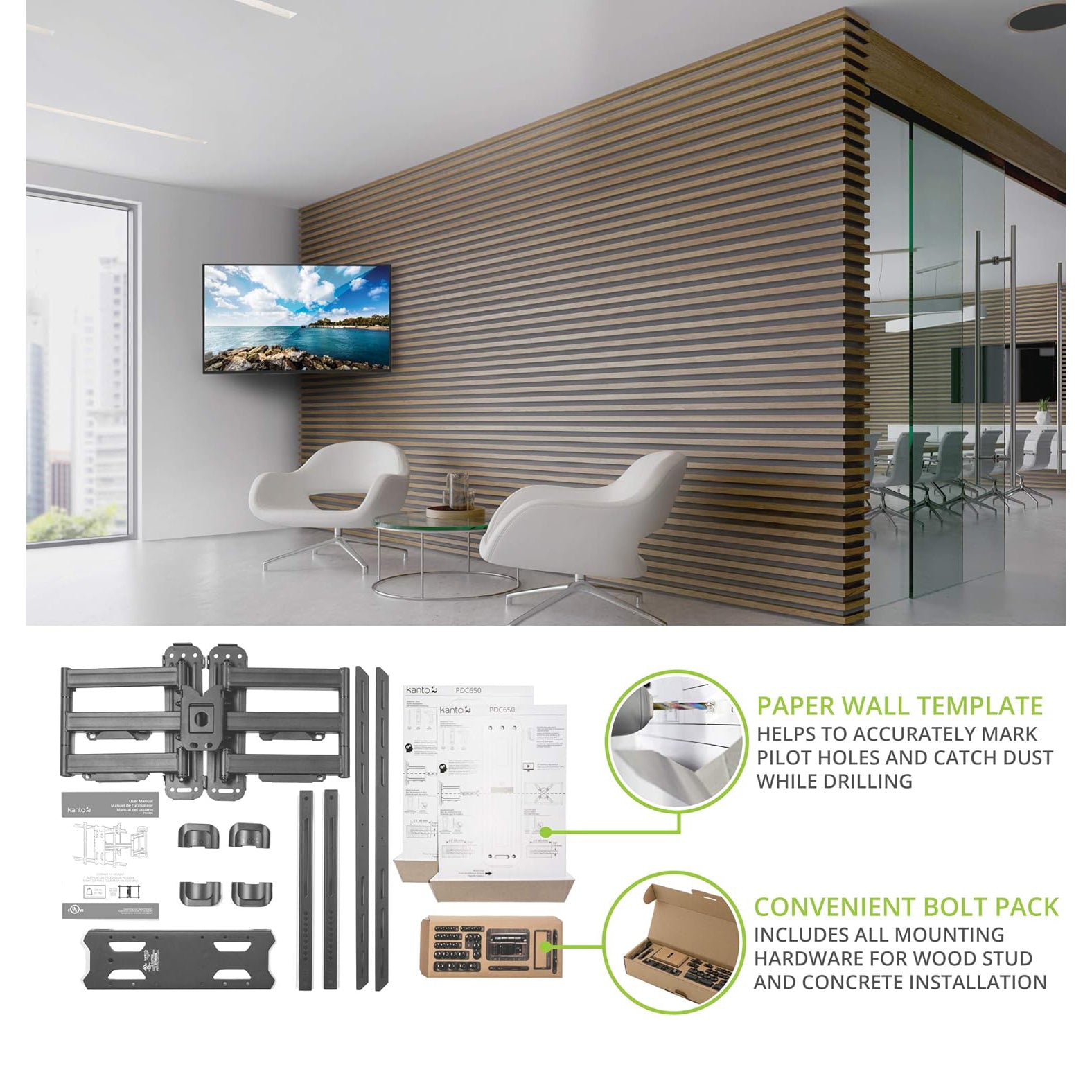

- Includes mounting hardware for wood stud and concrete insta
Specifications
Compatibility |
Displays • Screen Sizes 37 to 70" • Weighs up to 125 lb / 56.7 kg |
VESA Mounting-Hole Pattern |
100 x 100 mm 120 x 180 mm 200 x 100 mm 200 x 200 mm 200 x 400 mm 300 x 200 mm 300 x 300 mm 400 x 200 mm 400 x 300 mm 400 x 400 mm 400 x 600 mm 400 x 650 mm 450 x 400 mm 450 x 660 mm 500 x 300 mm 500 x 400 mm 500 x 500 mm 500 x 600 mm 600 x 200 mm 600 x 300 mm 600 x 400 mm |
Mounting Compatibility |
Double Stud |
Adjustments |
Tilt -3 to 15° Swivel -40 to 40° |
Distance from Mounting Surface |
2.0 to 21.2" / 5.1 to 53.8 cm |
Material of Construction |
Steel |
Dimensions |
12.83 x 3.54" / 32.6 x 9 cm (Wall Plate) 23.62 x 15.75 x 1.93" / 60 x 40 x 4.9 cm |
Weight |
23.3 lb / 10.57 kg |
Package Weight |
27.25 lb |
Box Dimensions (LxWxH) |
29.5 x 14.25 x 4" |
