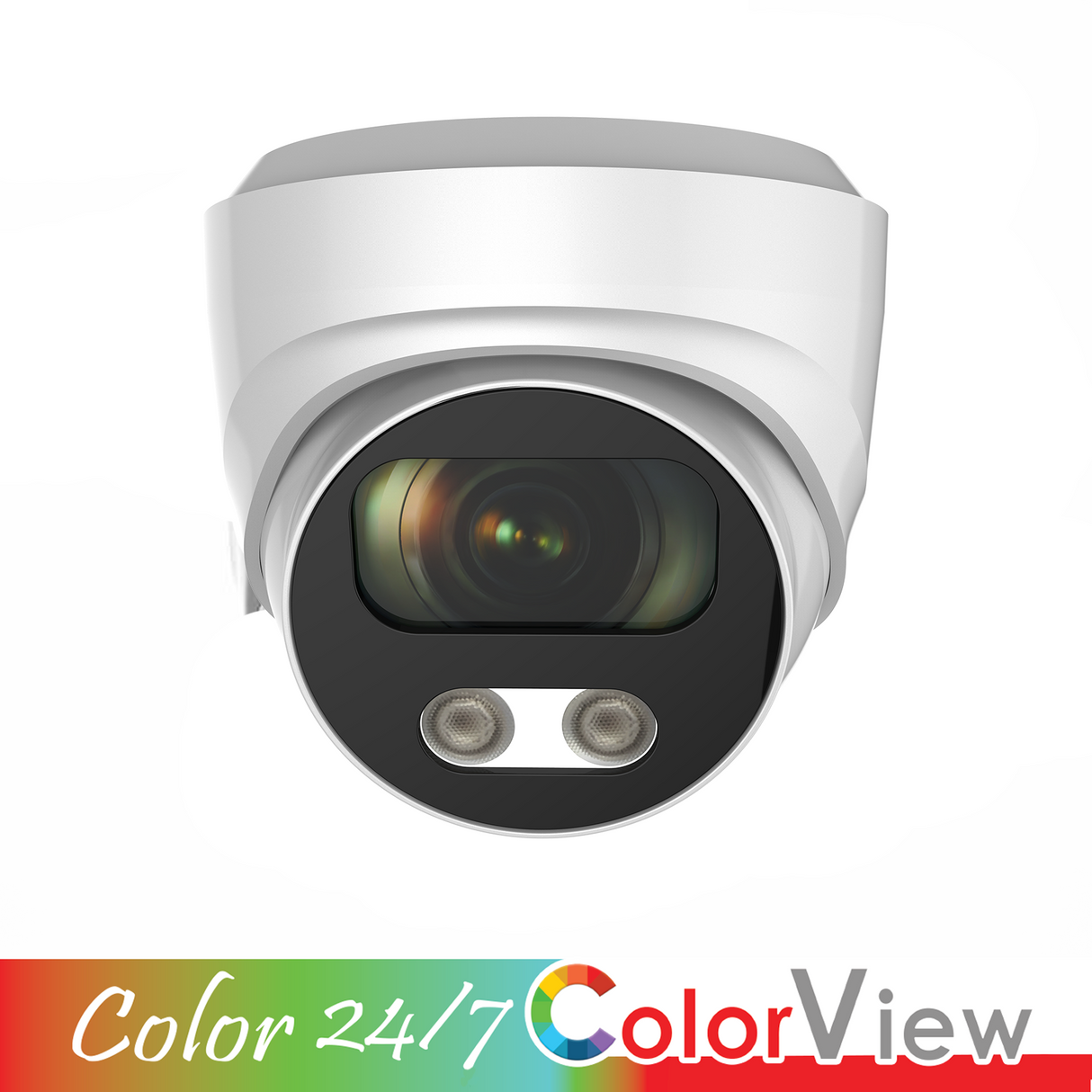

Acegear CT1806-CV, (8MP) Turret, TVI, 2.8mm Fixed Lens, Color View, 120db WDR, Smart-IR
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Acegear CT1806-CV, (8MP) Turret, TVI, 2.8mm Fixed Lens, Color View, 120db WDR, Smart-IR is backordered and will ship as soon as it is back in stock.
Description
Description
- Resolution: 4K / 8MP TVI Camera
- Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
- Lens: 2.8mm
- Functions: WDR, 3DNR/Defog
- IR: Smart IR
- Menu: OSD
- Light Distance: Up to 25m (82ft)
- Multiprotocol Output: TVI
- Protection: IP67
- Warranty: 3 Years
Features
Acegear CT1806-CV ColorView Outdoor Fixed Turret Camera features an 1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule. The 2.8 mm fixed lens option is optimized for capturing a wide horizontal field of view. 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
Specifications
| Video Output Mode | AHD: 8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps TVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps |
|---|---|
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor |
| Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
| TVÂ System | PAL/NTSC |
| Electronic Shutter | Auto |
| Scanning System | Progressive Scan |
| Focus Length | Board Lens 2.8mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| IR Cut Filter | YES |
| Infrared LED | No, Support Warm light LED 3015U—2 |
| Light Distance | up to 25m |
| IRÂ Status | AGC Auto Control |
| Day/Night | YES |
| OSD Menu | YES |
| WDRÂ | YES |
| UTCÂ | YES |
| Noise Reduction | 3DNR |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| Housing | IP67 |
| Bracket | NO |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%,450mA |
| Dimension | 108x85(H)mm |
| Weight | 400g |
