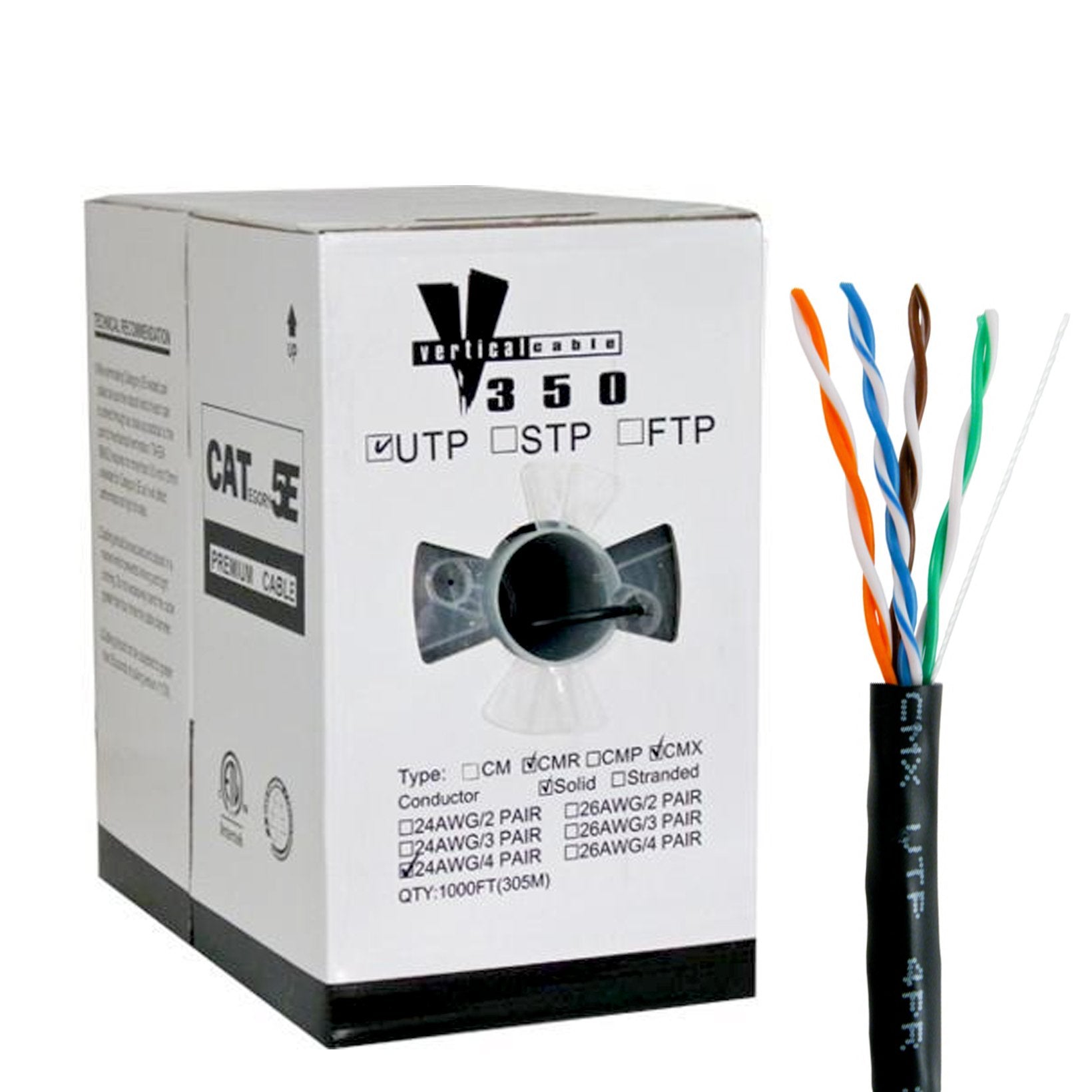

Vertical Cable (059-485-CMFX), CAT5E CMXF, Direct Burial, Gel Flooded Core, LLDPE Jacket, 8-Conductor, 24AWG, Solid Bare Copper, 1000ft, Pull Box, Black
SKU VECAT5EDIRBUR(059-485-CMXF)
Vertical Cable CAT5E CMXF 1000' Direct Burial Gel Filled, Black

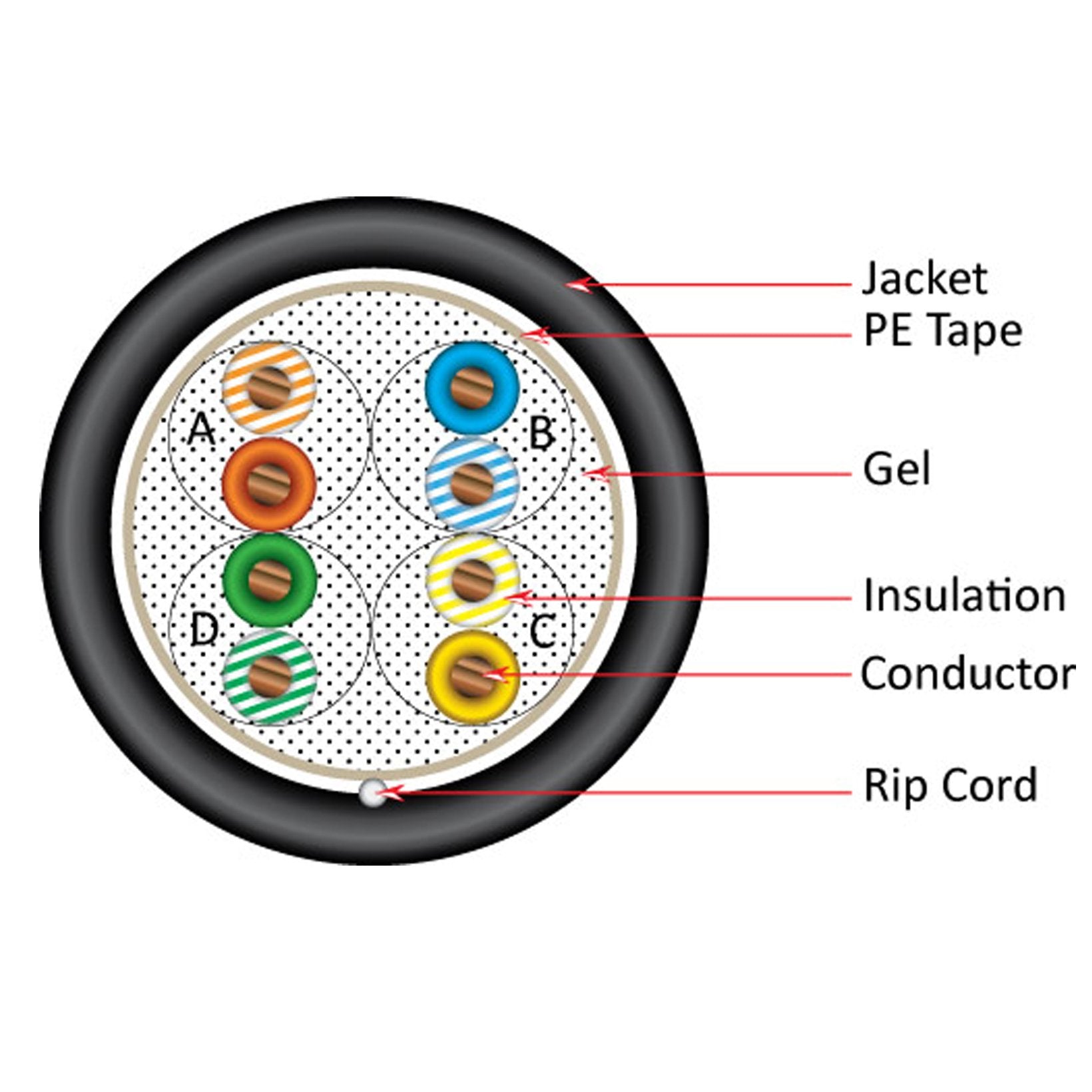

CAT5E CMXF, Direct Burial, Gel Flooded Core, LLDPE Jacket, 8-Conductor, 24AWG, Solid Bare Copper, 1000ft, Pull Box, Black
Applications: outdoor above ground, direct burial.
- High-Performance Data Cable
- 350MHz Bandwidth for Data Applications,
- Fast Ethernet and 155Mbps TP-PMD/CDDI
- Category-5E Unshielded Twisted Pair
- Easily Identified Color-Striped Pairs
- 24AWG Solid Copper Conductors
- Exceeds TIA / EIA-568C.2, ISO / IEC 11801
- CAN/CSA -C22.2 No. 214
- Direct Burial Gel Filled (Flooded Core)
- ETL Listed, 1000ft Pull Box, or Spool
Mechanical Characteristics
- Test Object Jacket
- Test Material LLDPE
- Before Tensile Strength (Mpa) >=13.8
- Aging Elongation (%) >=100
- Aging Condition (ºCxhrs) 100x168
- After Tensile Strength (Mpa) >=85% of unaged
- Aging Elongation (%) >=50% of unaged
- Cold Bend (-20±2º Cx4hrs) No Crack
- Marking on Jacket
- VERTICAL 4001453 cETLus VERIFIED UTP 4PR 24AWG OUTDOOR DIRECT
- BURIAL (FLOODED) UV LLDPE CAT5E 350MHz TIA/EIA - 568B.2 RoHS XXFT
(SEQUENTIAL FOOT MARKERS ON JACKET)
| Rated Temperature | (ºC) 75 |
|---|---|
| Product Standard | Certification CMX |
| Application Horizontal | Wiring in LAN |
| Reference Standard | TIA/EIA 568 & ISO/IEC 11801 |
| Conductor | Conductor Solid Bare Copper |
| Conductor | Solid Bare Copper |
| Size | 24 AWG |
| Insulation | PE |
| Average Thickness | (mm) 0.208 |
| Min. Point Thickness | (mm) 0.186 |
| Insulation Diameter | (±0.005mm) 0.91 |
| Twisted Pair Diameter | (±0.01) 1.92 |
| Filler | Gel |
