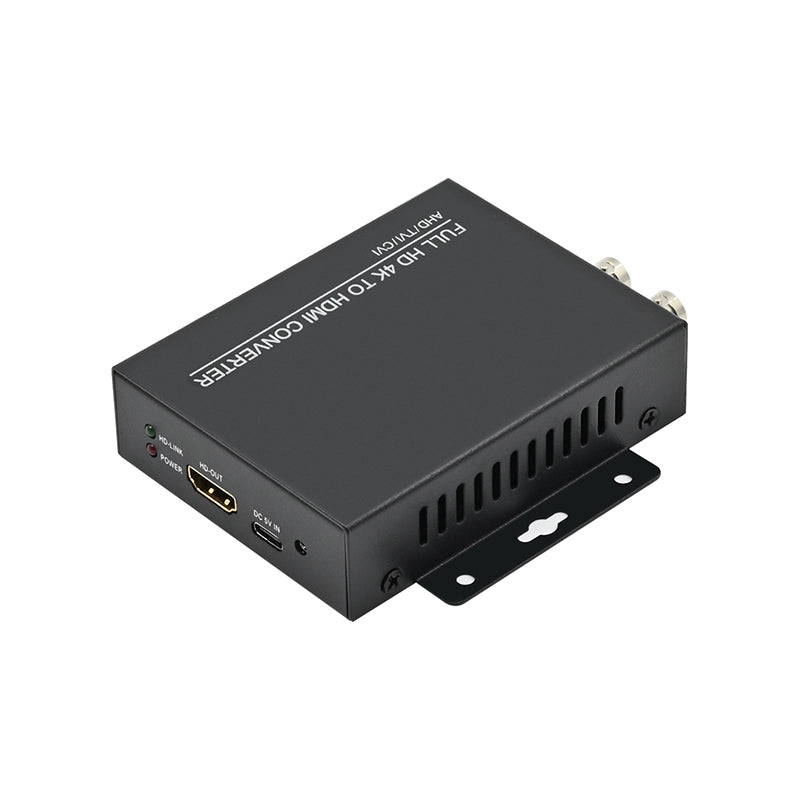

CT-TVIHDMI-4K power supply,connected to the power - New Arrival
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
CT-TVIHDMI-4K power supply,connected to the power - New Arrival is backordered and will ship as soon as it is back in stock.
Description
Description

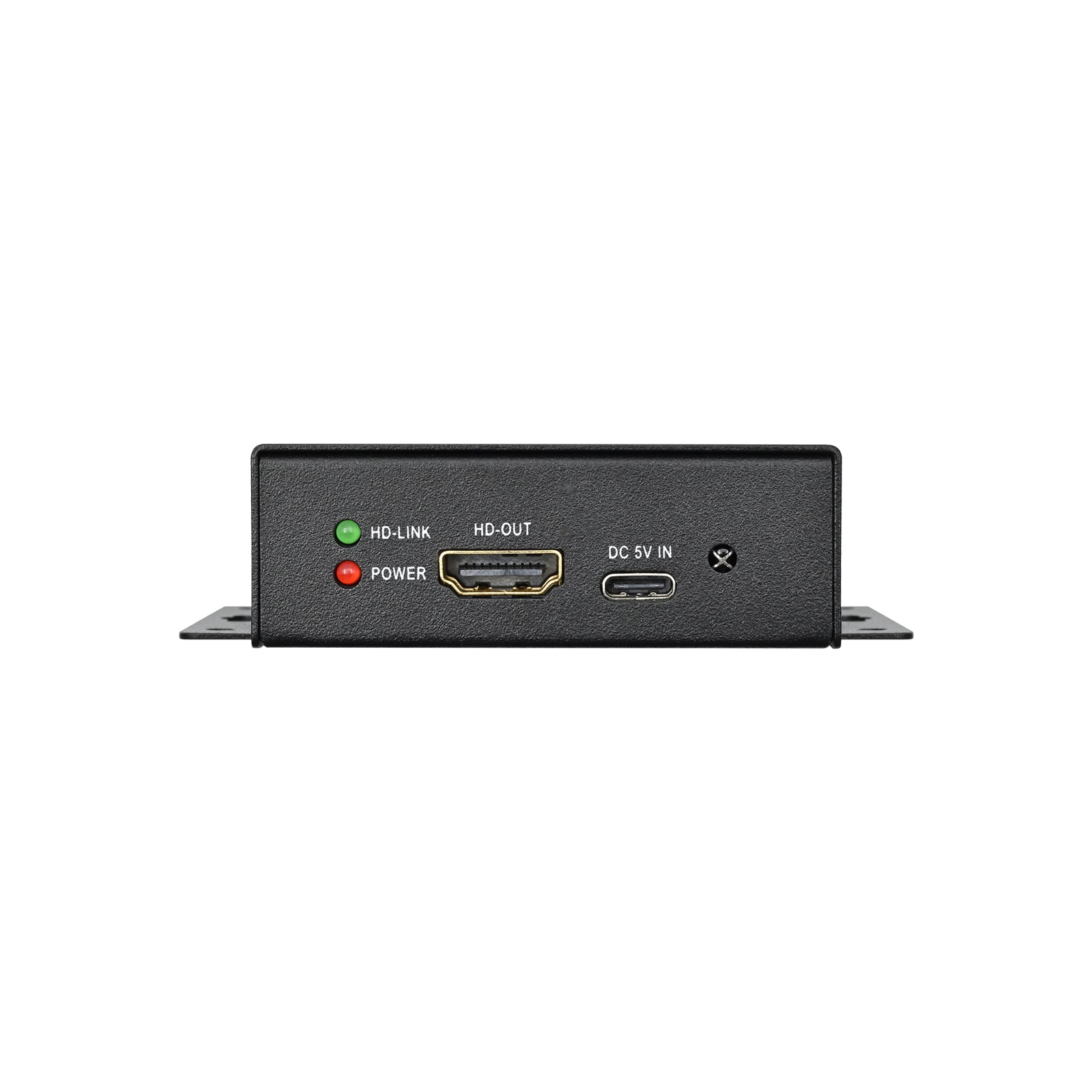

The device uses 5V 2A power supply,connected to the power can be used normally, power indicator light.
2.Functions Introduction
（1）CVI/TVI/AHD/CVBS to HDMI, HDMI output 1080P 60FPS, connect HDMI output cable, HD-LINK light, display yellow light.
（2）Support up to AHD/TVI/CVI 8MP test.
（3）One channel AHD/TVI/CVI/CVBS loop out.
（4）Auto recognition 720P/1080P/3MP/4MP/5MP/8MP
（5）resolution, indicator visual display.
AHD/TVI/CVI supported resolution table:
|
Resolution
|
CVI
|
TVI
|
AHD
|
|
720P
|
1280 x 720P 25/30/50/60 FPS |
1280 x 720P 25/30 FPS |
|
|
1080P
|
1920 x 1080P 25/30 FPS |
||
|
3 MP
|
-
|
2048 x 1536P 18/25/30 FPS |
|
|
4MP
|
2560 x 1440P 25/30 FPS |
2688 x 1520P 15 FPS 2560 x 1440P 15/25/30 FPS |
2560 x 1440P 15/25/30 FPS |
|
5MP
|
-
|
2592 x 1944P 12.5/20FPS |
|
|
4K（8MP）
|
3840 x 2160P 12.5/15 FPS |
3840 x 2160P 15 FPS |
|
Specifications
|
Item
|
Description
|
|
Optional cable length
|
Onechannel CVI/TVI/AHD/CVBS BNC input |
|
Output Port
|
OneChannel CVI/TVI/AHD/CVBS BNC output, One channel HDMI output
|
|
Impedance
|

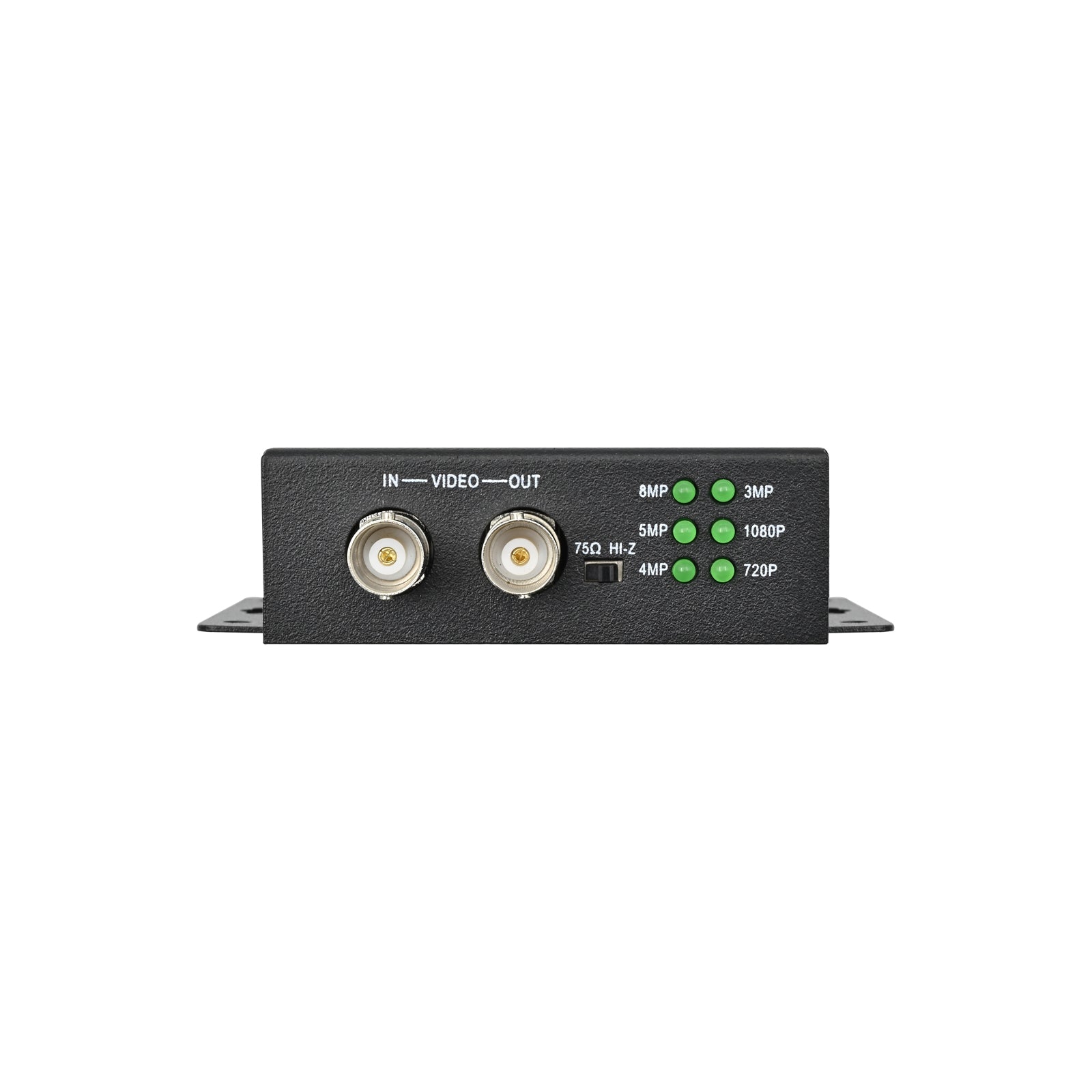

75Ω（When the IN port of the converter is connectedto the camera, and the OUT is not connected to the DVR, please set theimpedance switch to 75Ω.When the IN port of the converter is connected to the camera and the OUT portis connected to the DVR, please set to HI-Z.） |
|
Cablelength
|
500~700meters,differentresolution,different transmission distance
|
|
Power
|
|
|
External power supply
|
DC5V（2A）
|
|
General
|
|
|
Working Temperature
|
-10℃~+50℃
|
|
Working Humidity
|
30%-90%
|
|
Dimension
|
109x94x25mm
|
