AtlasIED EZSYS-BGM-S / Complete business music & paging system for surface mount applications - with wall level controller

SKU ATEZSYS-BGM-S
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

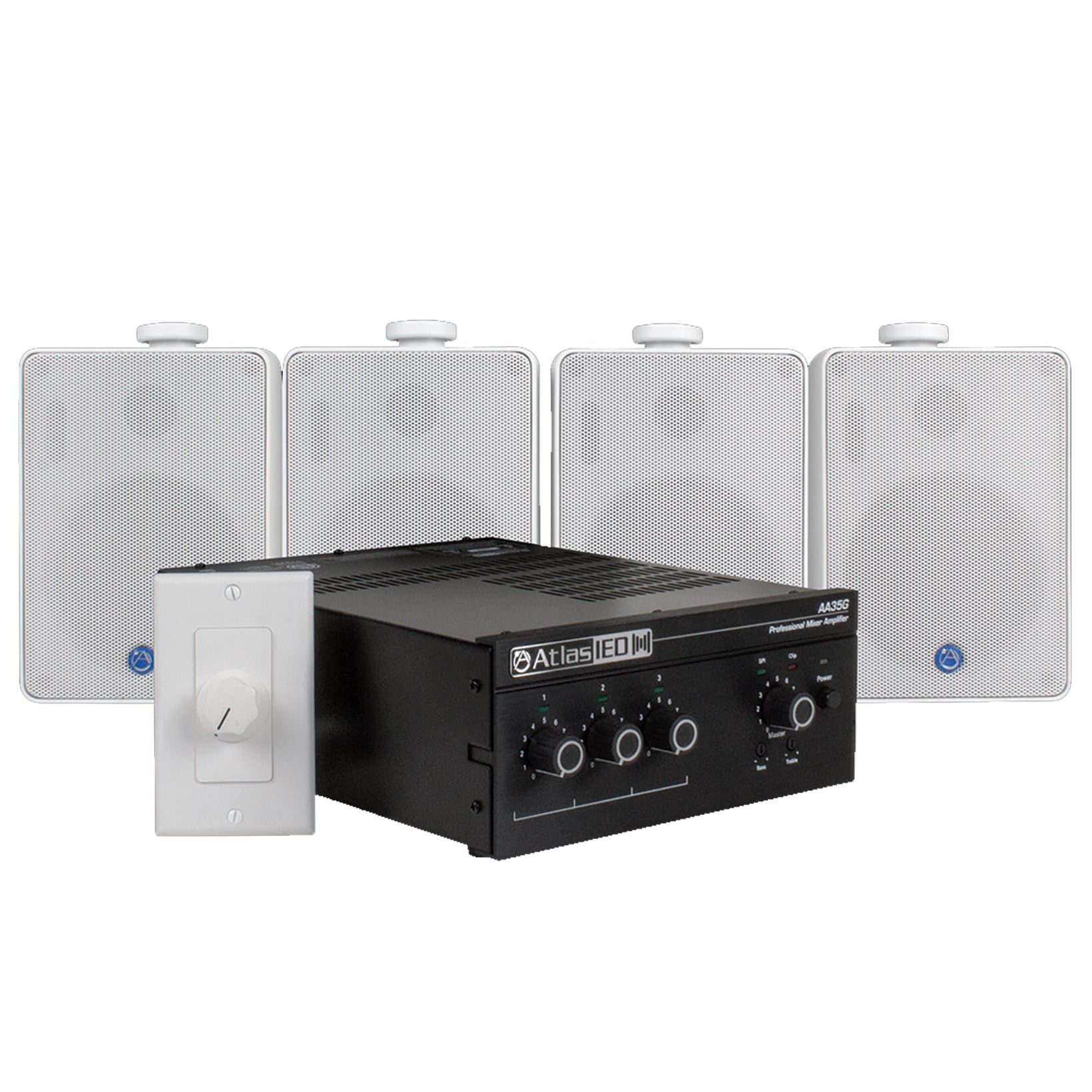

The EZSYS-BGM-S package is an entire business music and paging system. It is designed for surface-mount installations and includes the proper amplification, system control, and speakers. All you need are audio sources and cables.

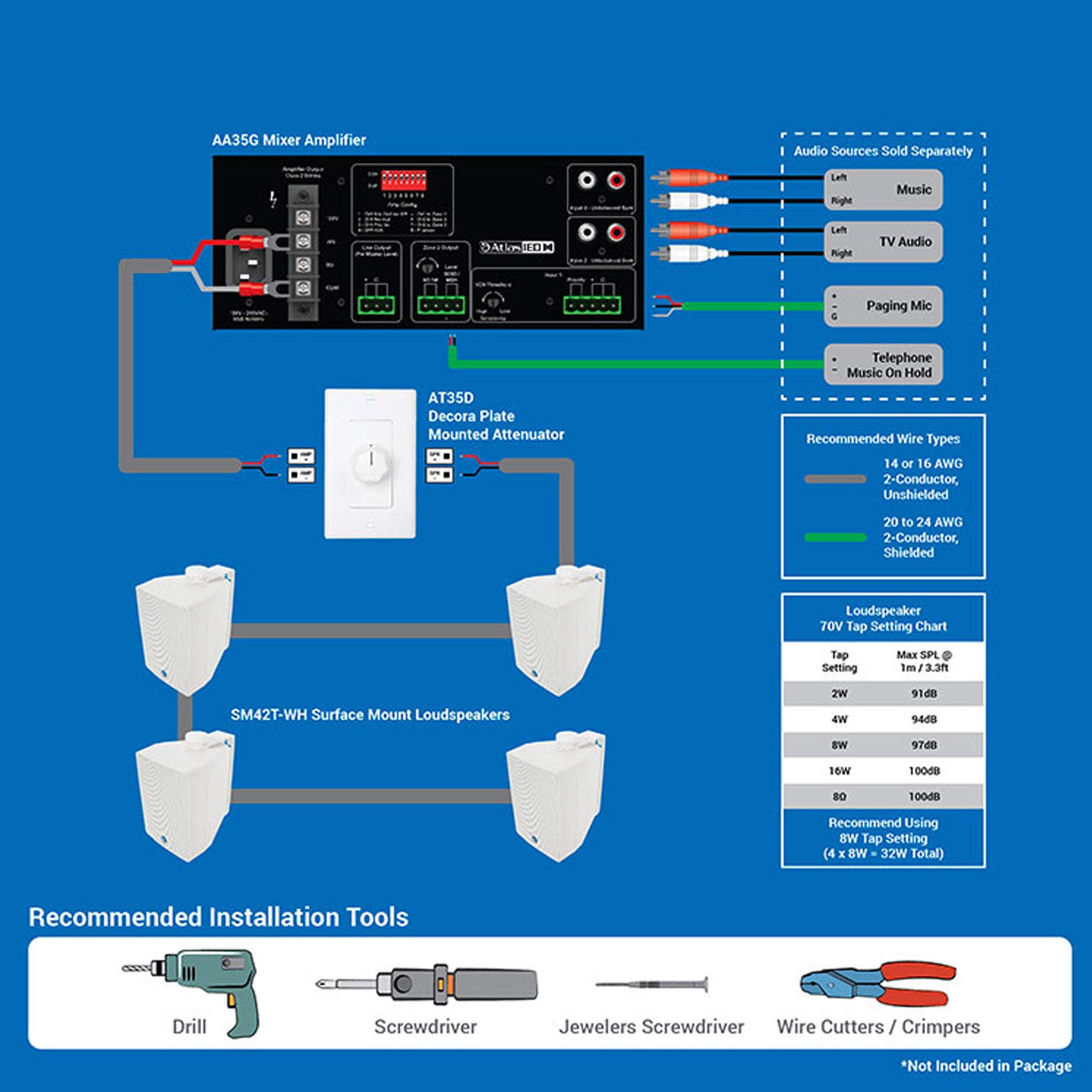

The box illustrates the proper way to connect the equipment including cable and tool requirements

  • 10 oz Dual Cone Speaker Provides Familiar Response & Performance
  • Quality 5 Watt Dual Voltage Transformer
  • Individually Packaged for Stocking & Ordering Convenience
  • Safety Listed to UL1480 and UL2043


Applications
The SD72 is an aggressively priced, high quality speaker/transformer
package suitable for almost any paging or background application including
retail stores, restaurants, schools, and other institutional facilities

Model SD72 SD72W SD72WV
Size 8" (205mm) 8" (205mm) 8" (205mm)
Power Taps .25, .5, 1, 2, & 5 Watts
Sensitivity 97dB Average
Frequency 55Hz-19kHz (±5dB)
Dispersion 105° (2kHz Octave Band, -6dB Points)
Diameter 81 /8" (205mm) 123
/4" (206mm) 123
/4" (206mm)
Depth 27
/8" (73mm)
