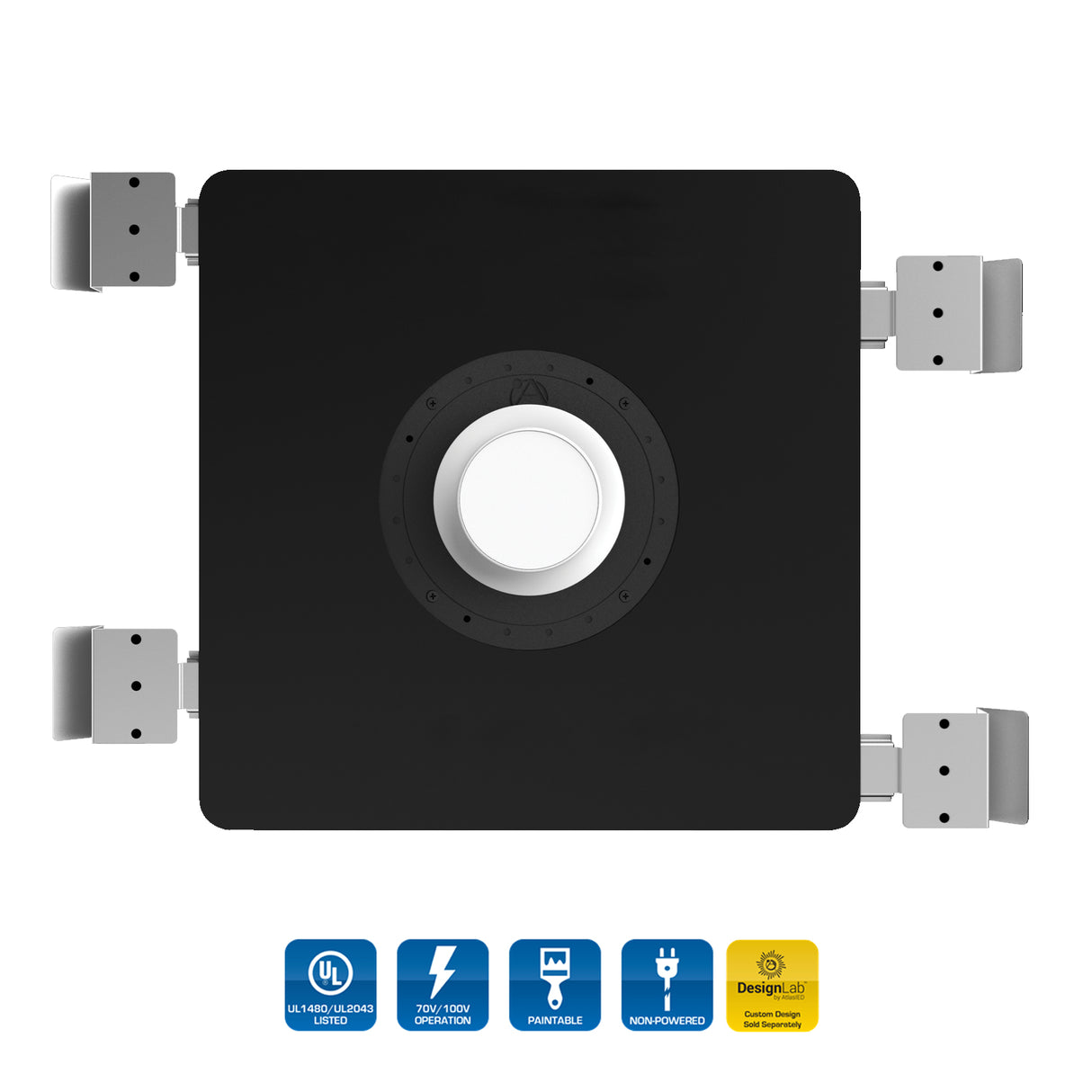

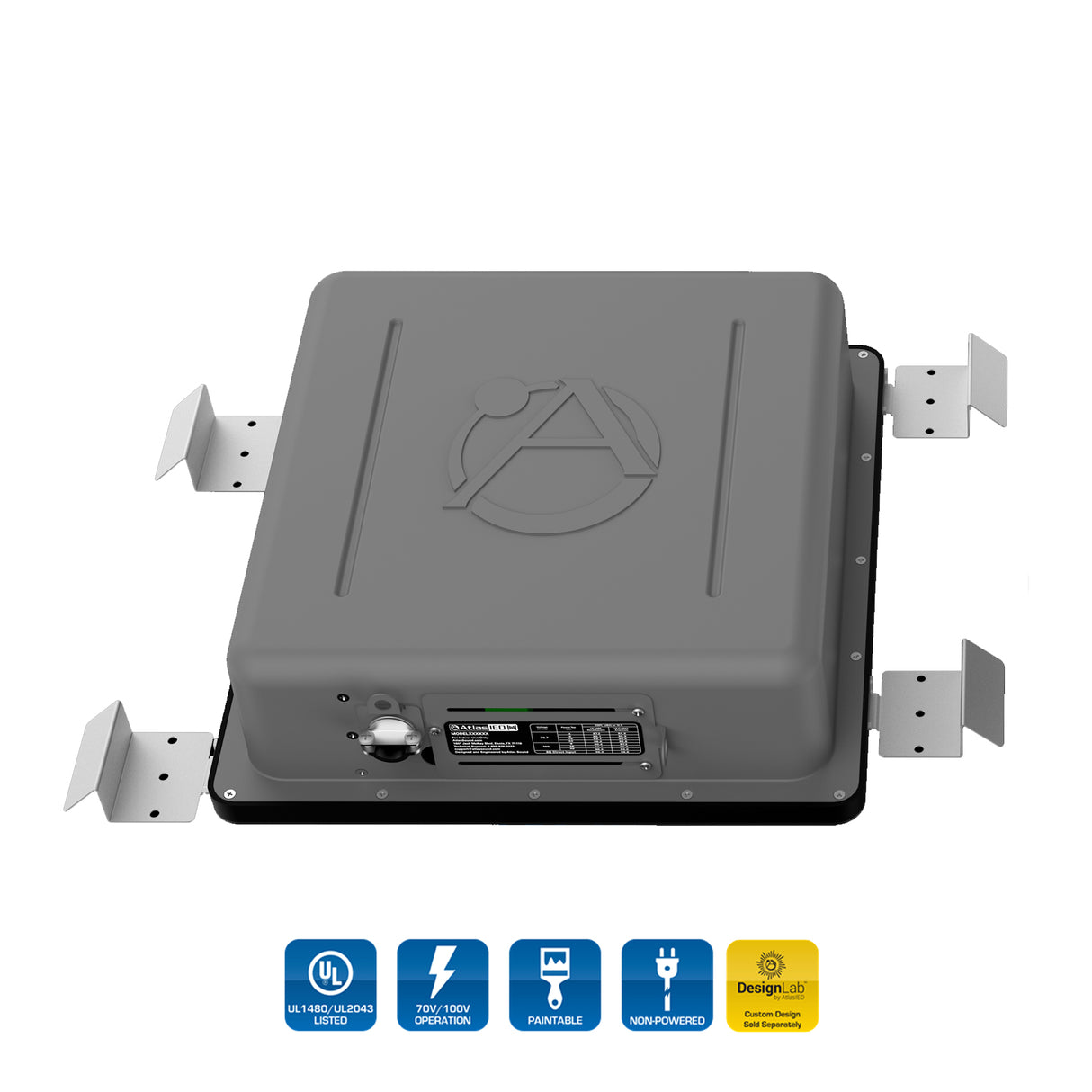

AtlasIED SHS-6T2 / Strategically Hidden Loudspeaker with Adaptive Dispersion Lens Technology with 32-Watt - 70.7V/100V Transformer
STRATEGICALLY HIDDEN SPEAKER WITH 32-WATT 70/100V TRANSFORMER AND ENCLOSURE
The SHS-6T2 is an industry-first strategically hidden ceiling speaker. It is designed to blend into the aesthetic of any ceiling while retaining optimal sound performance.
The perfect speaker for architecturally impressive environments where you want your high-definition audio heard, not seen. SHS is easy to install and particularly useful for background music, paging/ notification and sound masking.
It comes packaged with three different adaptive dispersion lenses for a variety of applications and installation locations.
-
Subtle Form & Design Blends Into Any Ceiling
-
Easy & Quick Installation
-
Patented Waveguide with User Selectable Adaptive Dispersion Lenses
-
Self Contained Unit Includes Loudspeaker, Enclosure, and Adjustable Tile Rails
-
Sealed Enclosure Provides Optimal Bass Response
-
Optional Color Match Process Via DesignLab™ by AtlasIED
| SPEAKER TYPE | Coaxial |
|---|---|
| SENSITIVITY | 86dB (1W/1m) |
| POWER TAPS | 4, 8, 16, 32-Watts (70.7V) |
| POWER TAPS | 8, 16, 32-Watts (100V) |
| RMS POWER (WATTS) | 75 @ 4Ω |
| FREQUENCY RESPONSE | 100Hz - 15kHz (DSP Corrected) |
| DISPERSION | 130°, 2kHz Octave Band with 4mm Dispersion Lens |
| CUT OUT DIAMETER | 2.75" (69.85mm) |
| CERTIFIED TO SAFETY LISTING | UL1480 / UL2043 |
| DIMENSIONS (HXWXD) | 12.73" (323.3mm) x 12.73" (323.3mm) x 3.92" (99.6mm) |
