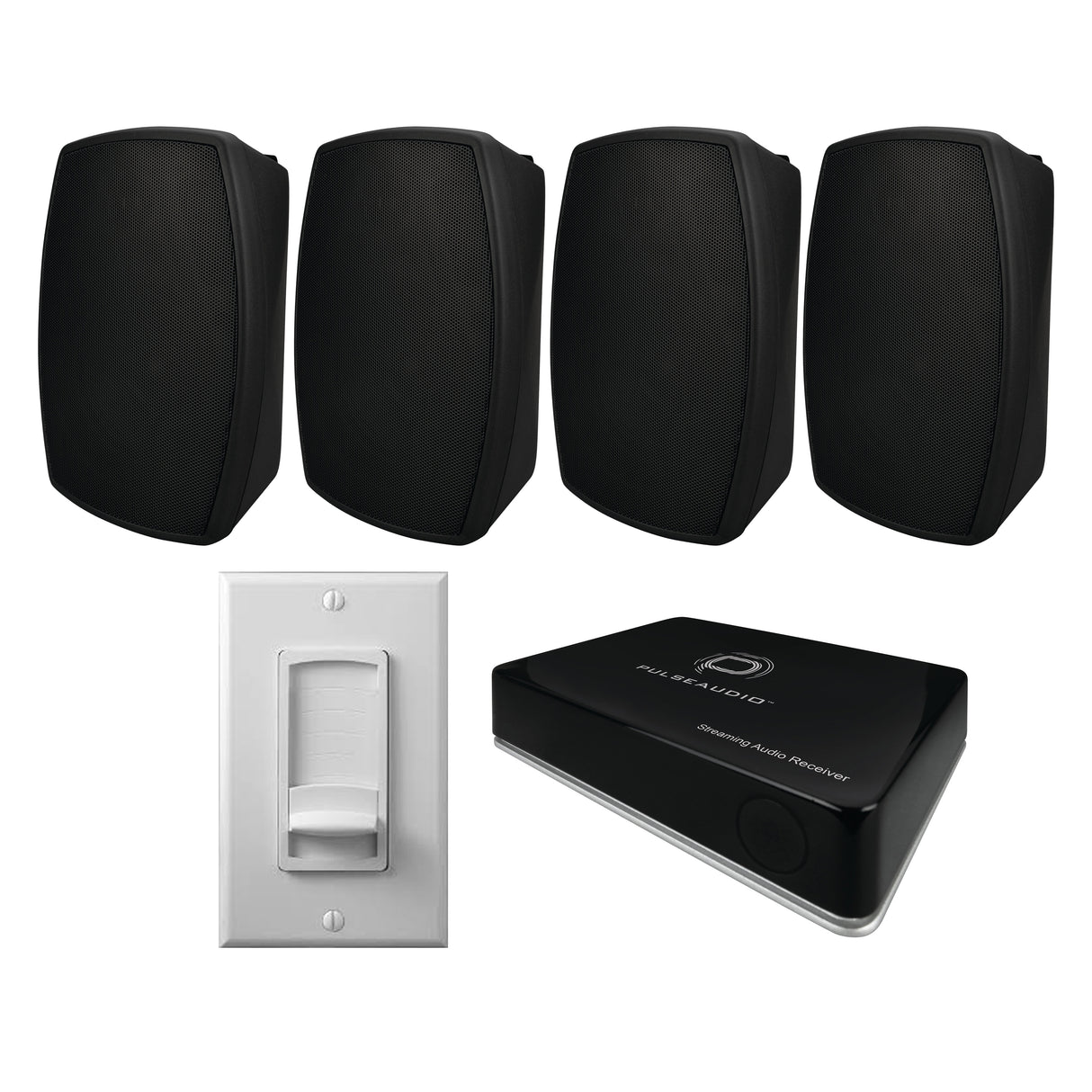

Vanco BAPKIT-OUT, Outdoor Bundle Kit 70v 4ch audio system, 100w, 4 surface mount in/out 5.25 speakers, 50w, with inwall slider volume control

Vanco BAPKIT-OUT, Outdoor Bundle Kit 70v 4ch audio system, 100w, 4 surface mount in/out 5.25 speakers, 50w, with inwall slider volume control

• 4) W5VB-BSC
• 1) PAV1100

• 1) RV100

Features

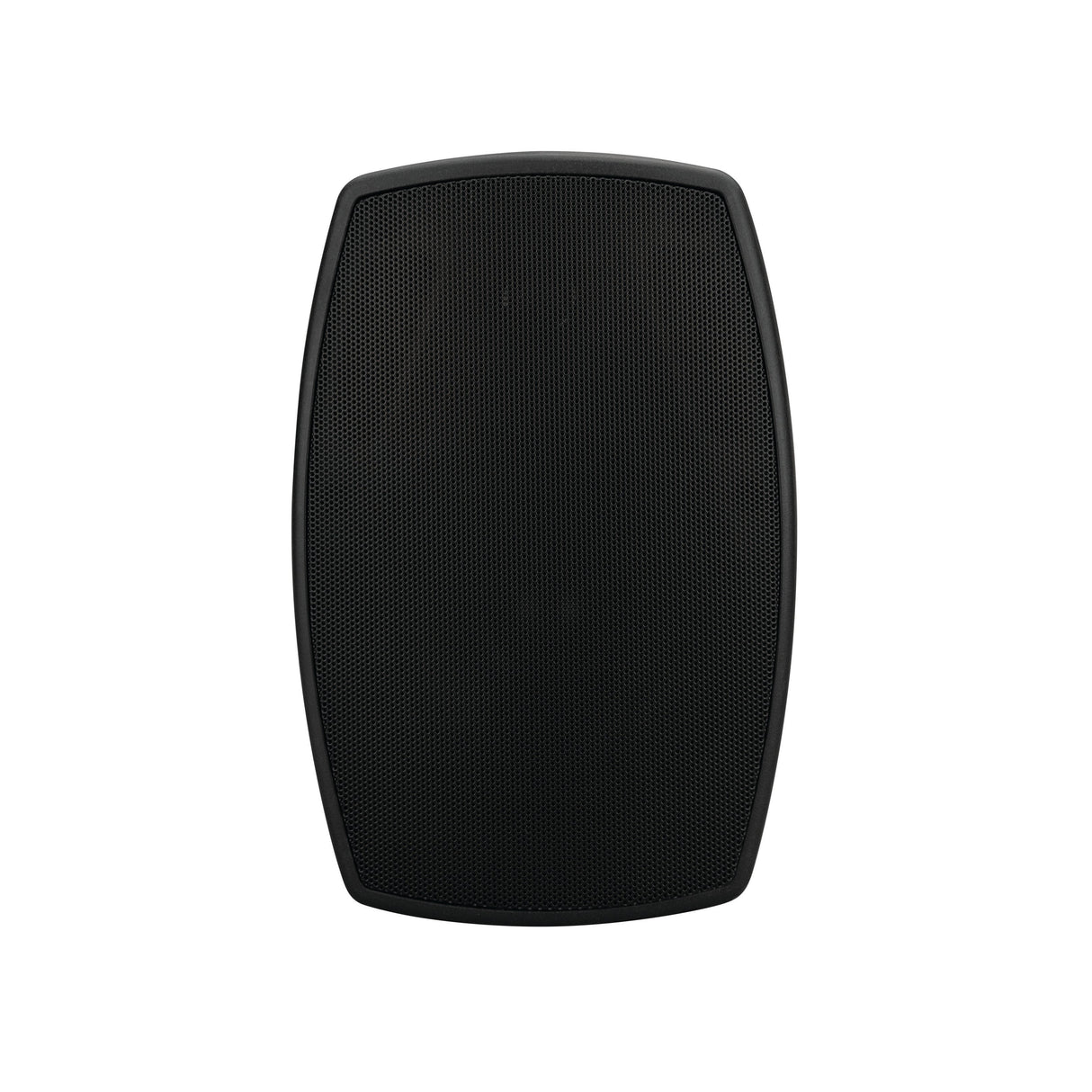

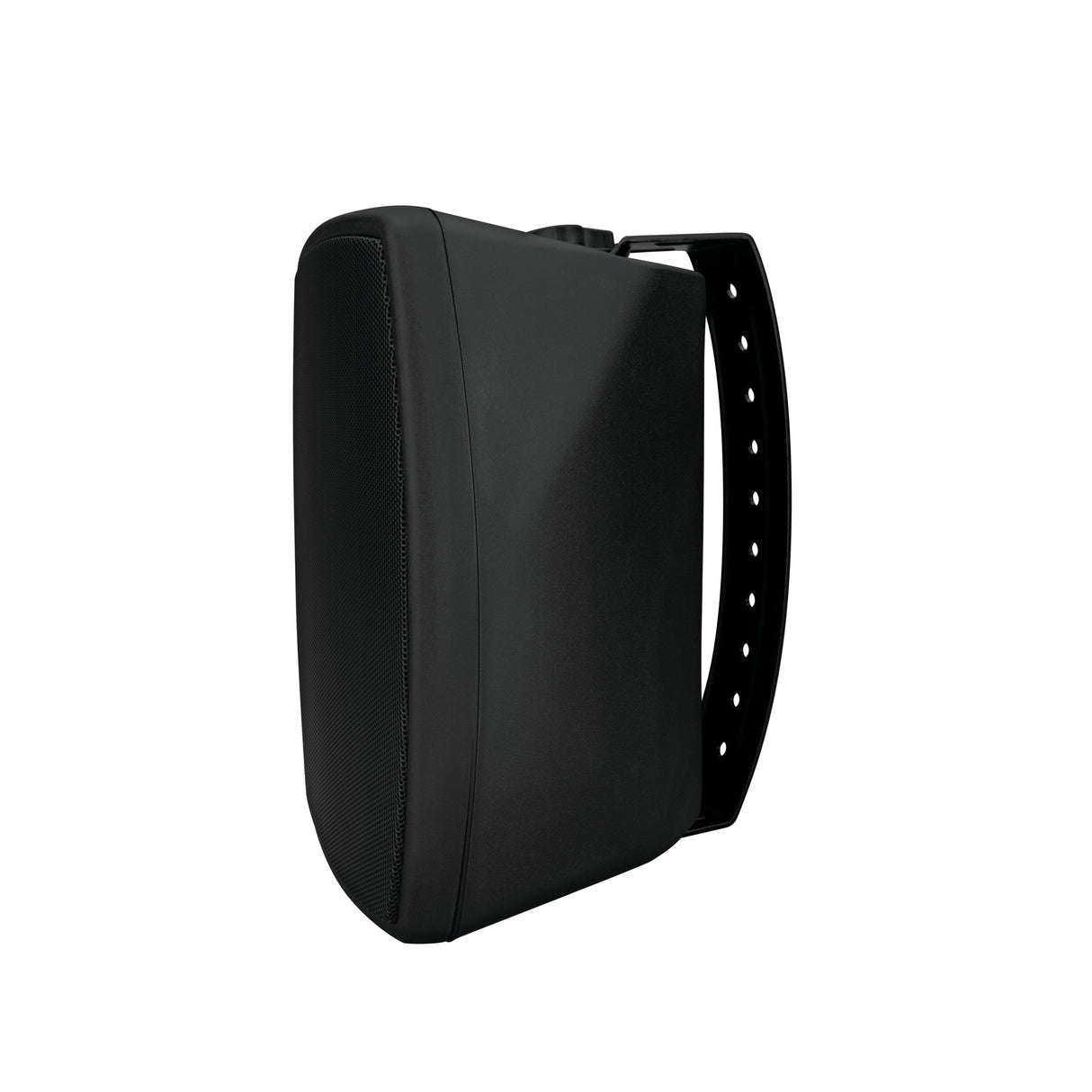

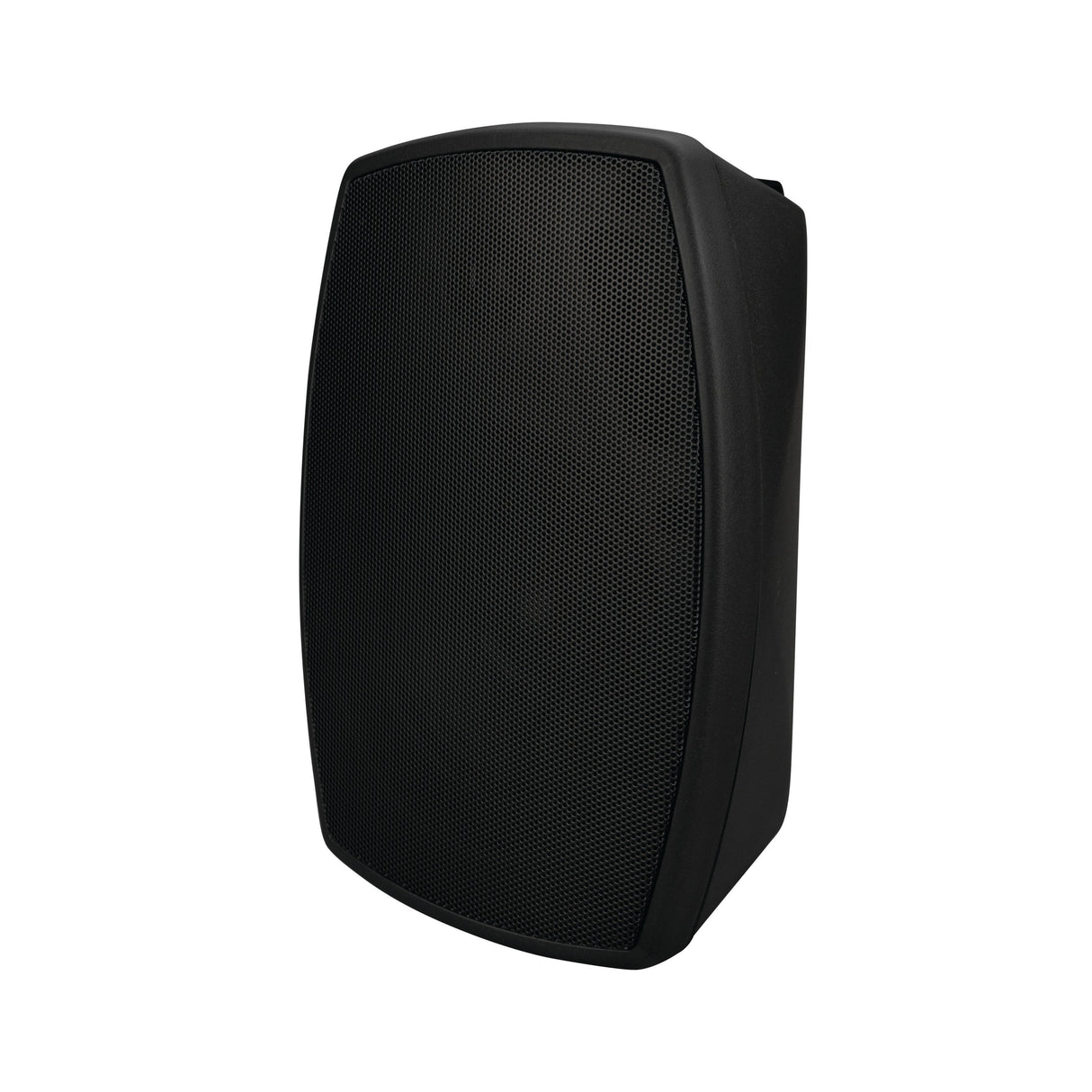

VCW5VB-BSC

• 0.75” Titanium Tweeter
• 5.25” Engineered Woven Fiber Woofer
• Frequency Response of 60Hz-20 kHz
• Sensitivity: 89dB
• RMS Power Output of 50 Watts
• IP44 Outdoor Rating
• Compatible with 8 ohm and 70V/100V systems
• Dimensions: 7.9” x 7.5” x 10.6” (200mm x 195mm x 270mm)
• Weight: 4.9 lbs (2.2kg)

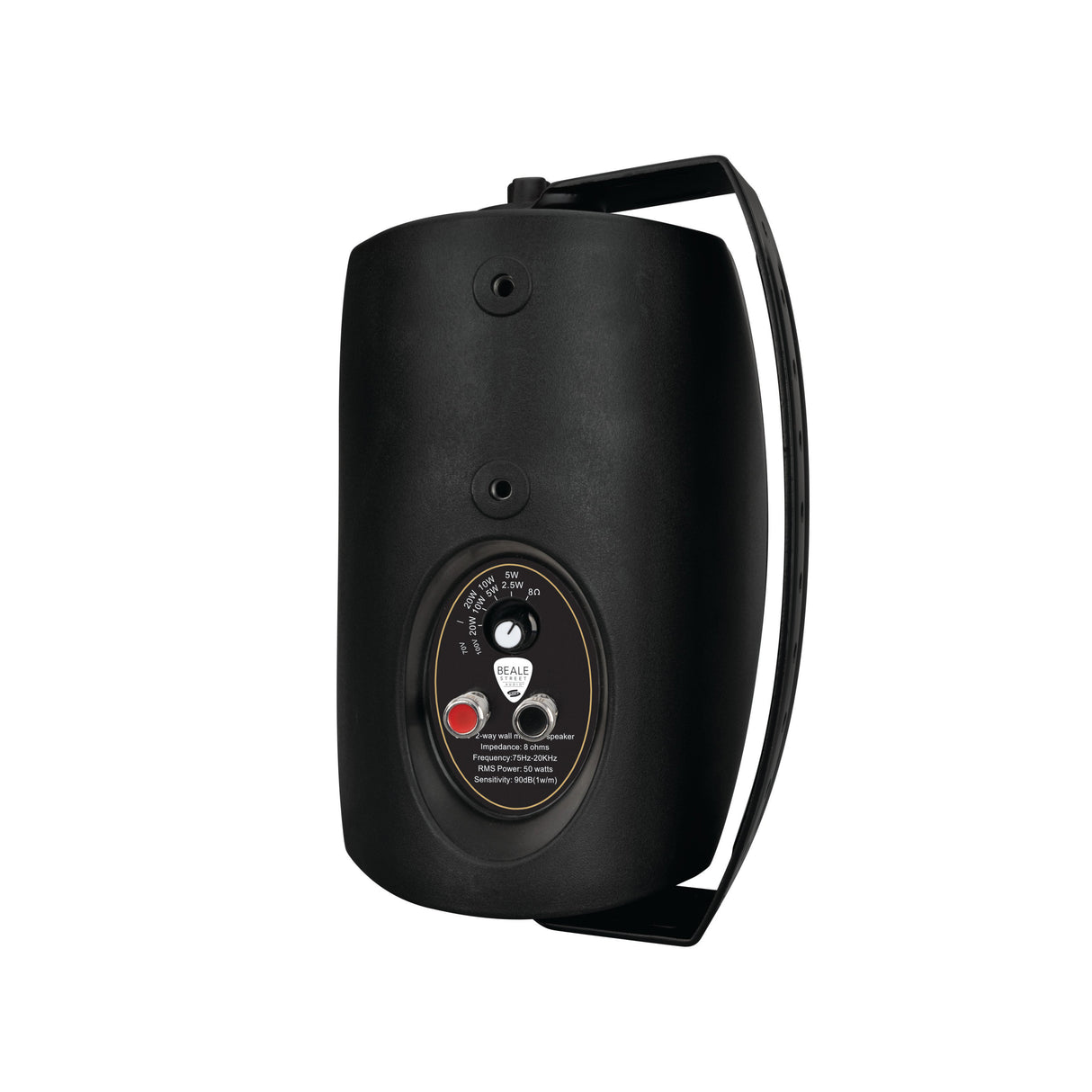

• Transformer-70V Taps: 5W, 10W, 20W
• Transformer-100V Taps: 2.5W, 5W, 10W, 20W

PAV1100 Amplifier

• Mono audio output at 100W
• Switchable between 70V and 100V
• Sixteen ID codes for controlling multiple PAV1100 amplifiers in a system
• 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone, with ducking or mixing function
• MIC input supports balanced/unbalanced signal, and suppresses external noise effectively
• One 2-channel analog audio inputs and one digital audio input, switchable by button, IR remote & RS232
• Manual volume control
• Bass/Treble controllable via front panel, IR remote & RS232
• Convection cooled, no external fan needed
• LED indicator, for power and working status
• Anti-static case design provides good protection for long-term and stable performance

RV100 Volume Control

• Peak RMS power rating: 350W (both)
• Continuous RMS power: 105W (both)
• Frequency response: DC to 500kHz +/- 0.1db
• Mounting depth: Rotary: 1.8” (45mm) / Slider: 1.6” (42mm)
• Electrical box junction: Single gang junction box
• Speaker: 70V or 100V (single or multiple speakers)
• Connection: Removable screw terminals
