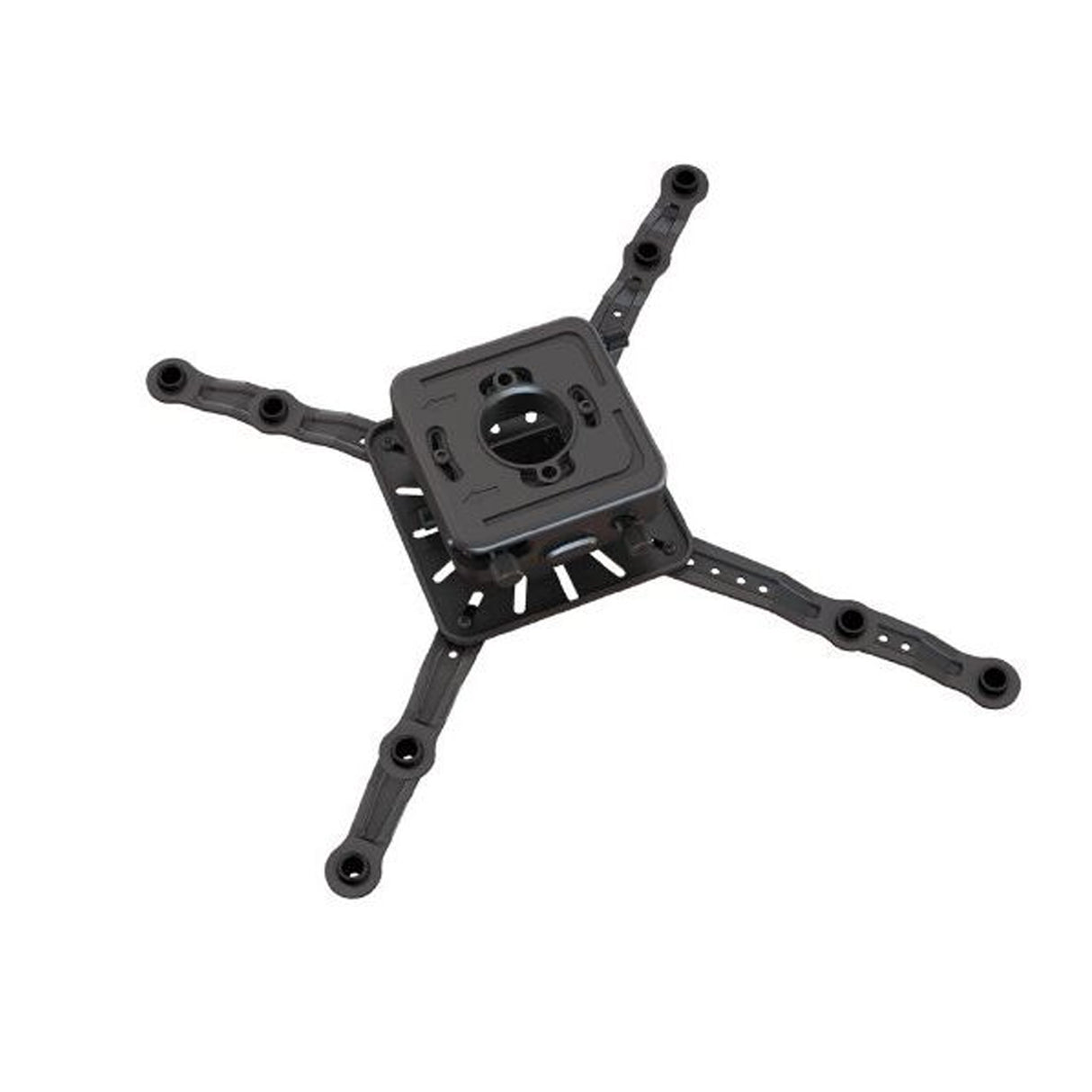

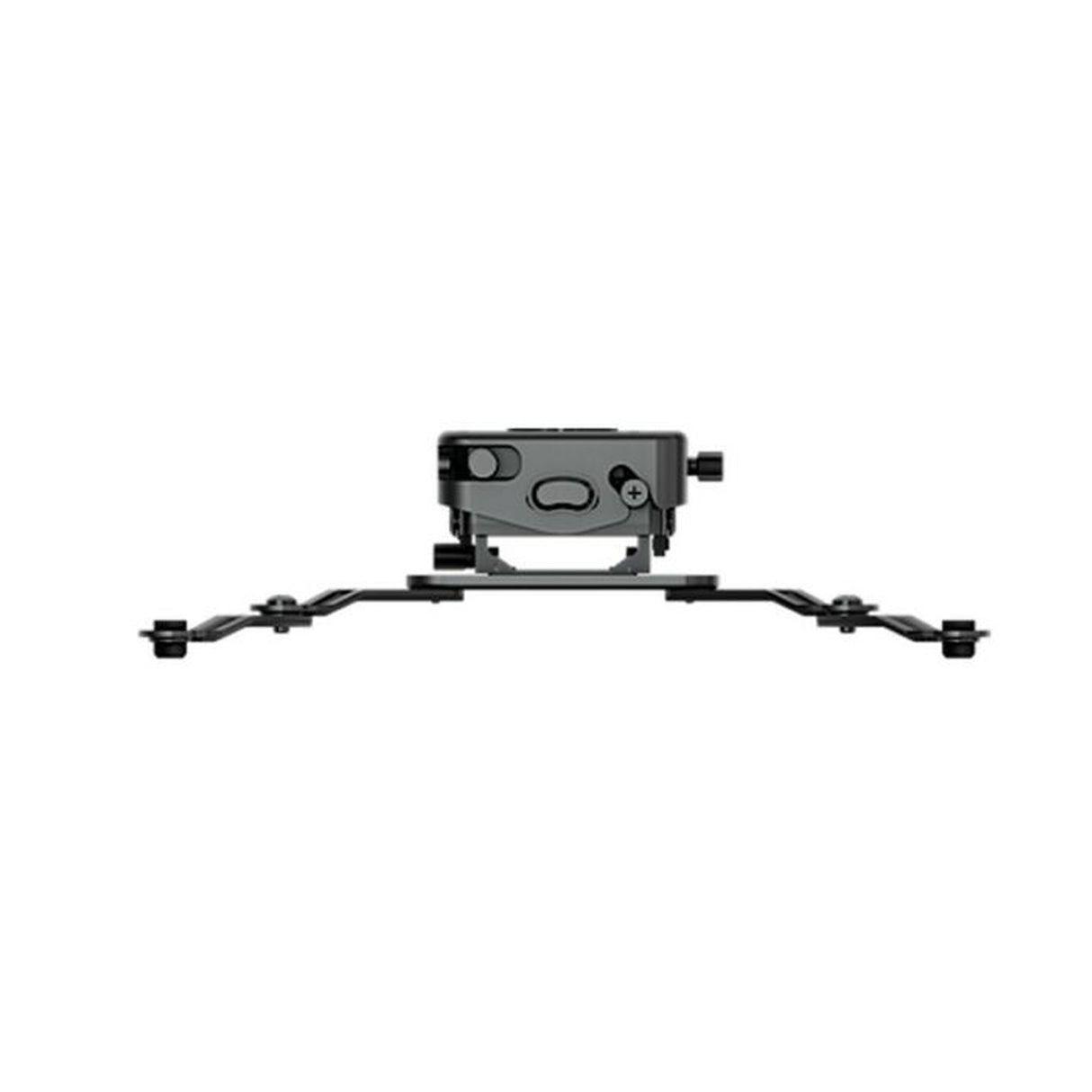

Crimson JR3XL Universal Mount for Projectors with Micro Adjust and Aditional Extenders (70lbs).

by Crimson
SKU CMJR3XL
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Universal mount for projectors with micro adjust and additional extenders SyncPro™ This top-end projector mount is simply the easiest to install and precisely adjust without the use of tools. Rotate the large, easy to grip knobs to make all necessary adjustments during installation. Crimson lead screw adjustment mechanism is unique and precise. Heavy-duty design makes it ideal for larger projectors and/or those with an off-center lens.

  • Additional ADJR3 hanger brackets
  • Security hardware included for all connection points
  • Completely pre-assembled mounting interface for quick installation
  • Fully adjustable roll, pitch and yaw
  • Quick release mechanism allows for easy service of projector
  • Mounts to any 1.5" NPT threaded pipe
  • Pre-sorted hardware pack for easy installation
  • Weight capacity: 70lb (31.8kg)
  • Max mounting pattern: 21.1" (536.6mm) diameter
  • Micro Adjust: Yes
  • Height: 3.46" (88mm) from ceiling to projector surface
  • Pitch (up/down): +/- 15°
  • Roll (side to side): +/- 8°
  • Rotation (yaw): 360°
  • 1.5" NPT thread compatible: Yes
  • Mounting interface: 1.5" NPT thread compatible
  • Construction: aluminum/high-grade cold rolled steel
  • Product finish: scratch resistant epoxy powder coat
  • Product weight: 2.2lb (1kg)
  • Package specifications: 14"x7"x4"
  • Color: black and white
  • Model number: JR3XL (black), JR3XLW (white)
  • Warranty: limited lifetime
