Kanto  |  SKU: KTPF300

Kanto PF300, Fixed Low-profile TV Wall Mount for 32" - 90" TVs

MPN: PF300

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.


Description

  • Supports 32 to 90" Displays up to 150 lb

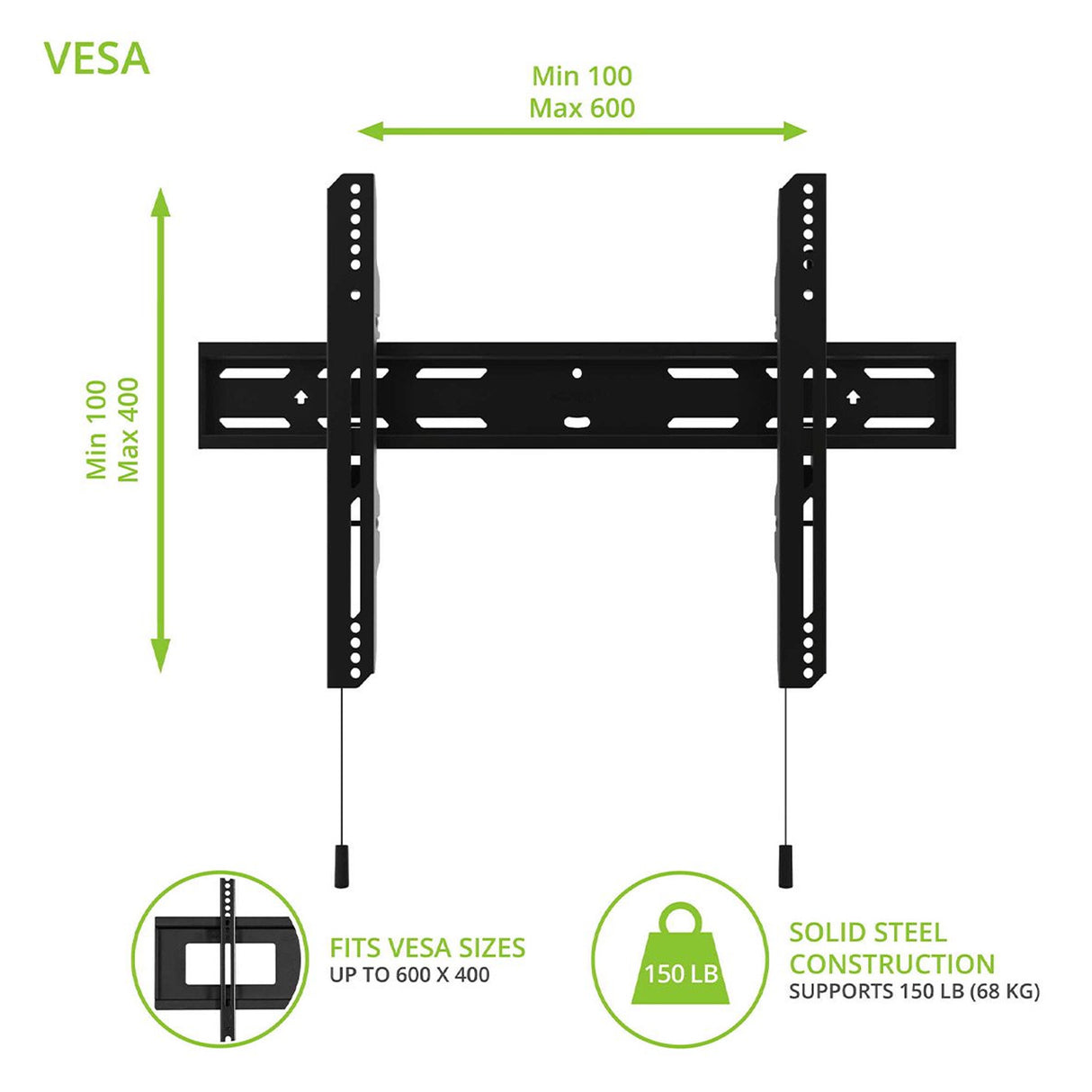

  • 100 x 100 to 600 x 400mm Mount Pattern
  • Adjustable Horizontal Leveling
  • Mount TV 1.4" from Wall

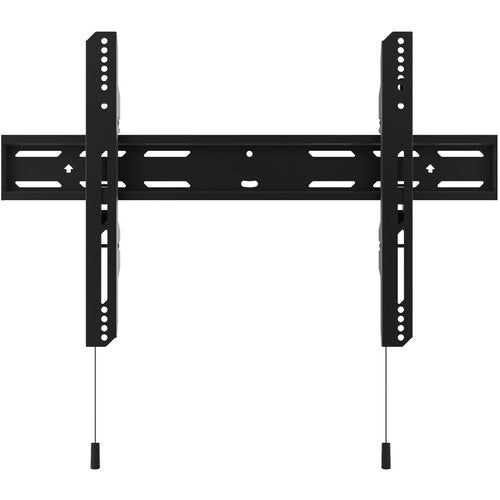

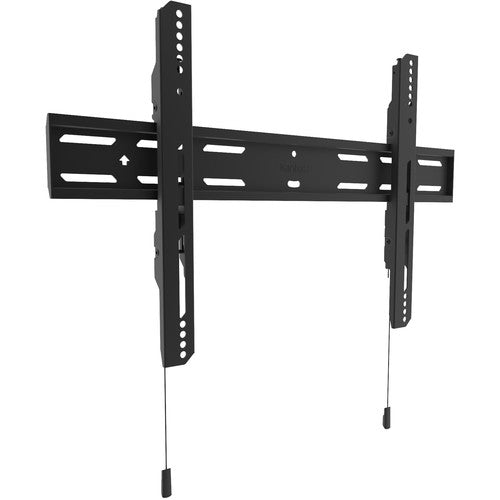

Mount your 32 to 90" display weighing up to 150 lb with the Kanto PF300 Fixed Wall Mount. It supports displays with 100 x 100 to 600 x 400mm mounting patterns and holds your display just 1.4" from the wall. It provides post-installation horizontal leveling and includes security screws to help deter theft.

Features

Mount your 32 to 90" display to the wall with the Kanto Living PT300 Tilting Wall Mount. It supports displays weighing up to 150 lb with 100 x 100 to 600 x 400mm VESA patterns and provides up to 12° of forward tilt.

  • Low-Profile Design

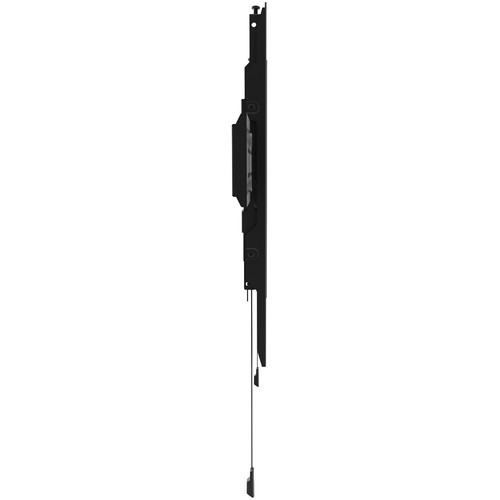

The slim wall plate and mounting brackets of the PF300 of allow your display to sit just 1.4" from the wall.

  • Wide Wall Plate

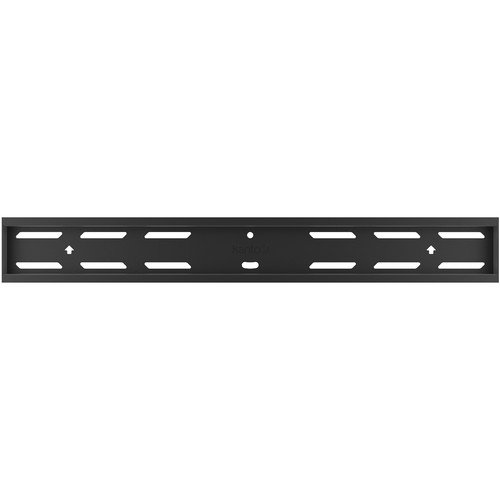

At 27" wide, the steel wall plate accommodates both 16 and 24" stud spacing.

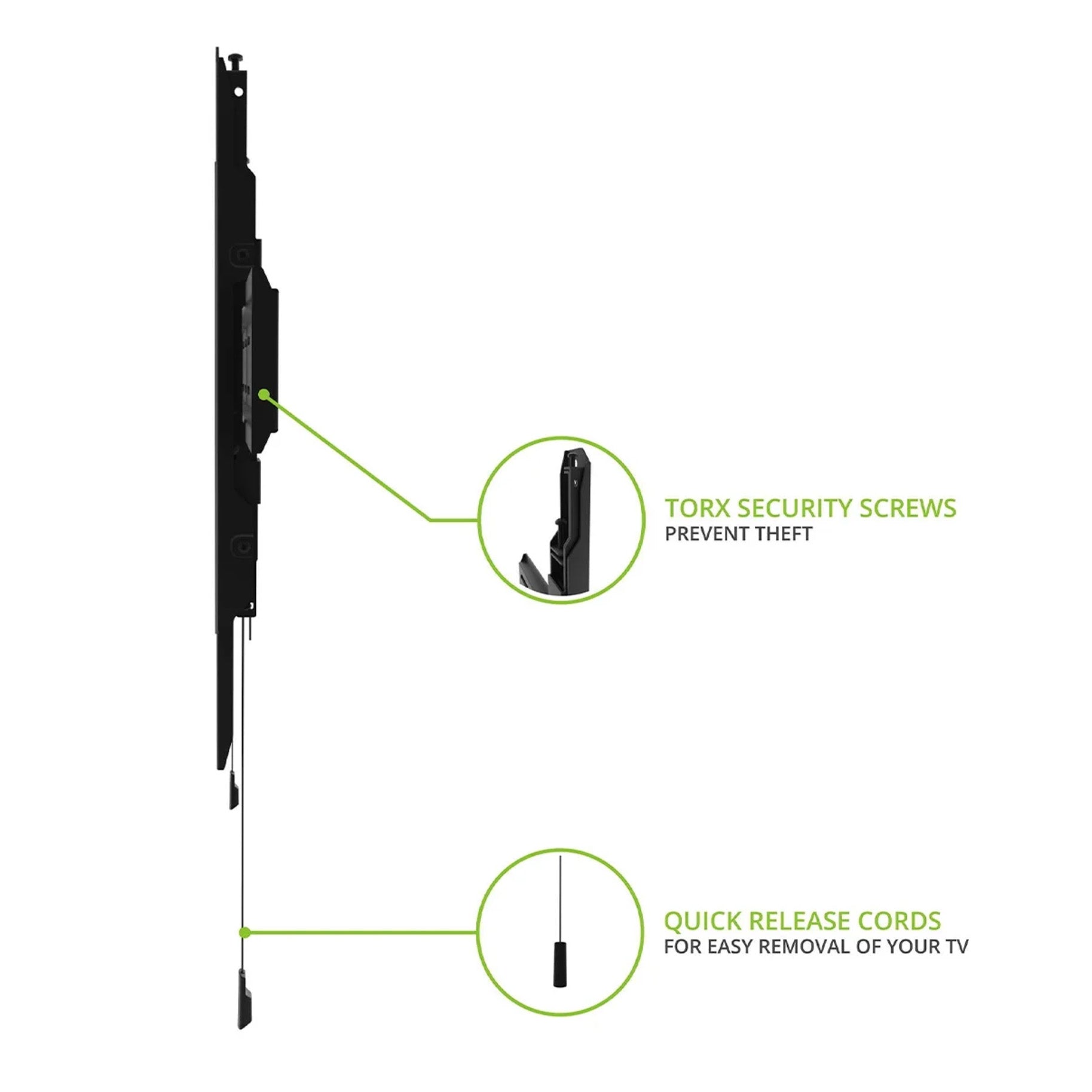

  • Lockable Arms

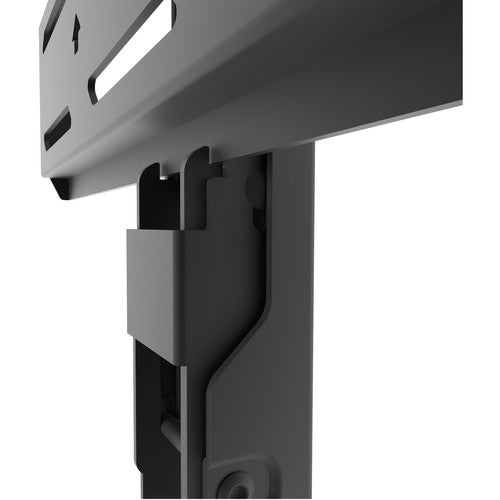

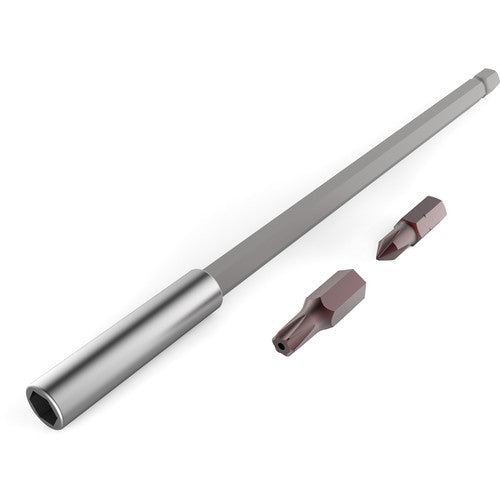

Two security screws can be tightened using the included key and extension bit to help prevent your display from being removed.

  • Magnetic Quick-Release Cords

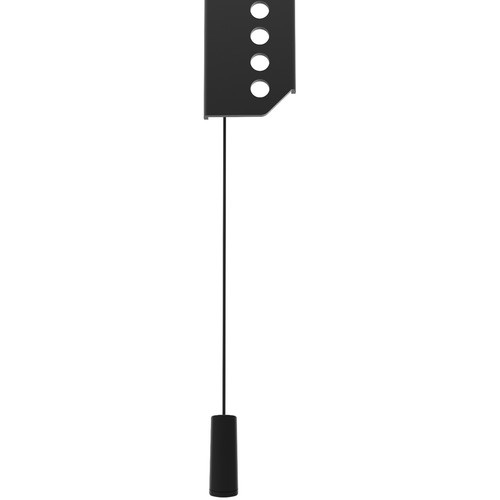

Removing your display from the wall is as easy as pulling on two quick release cords. Each cord has a magnetic end, allowing them to be tucked out of sight.

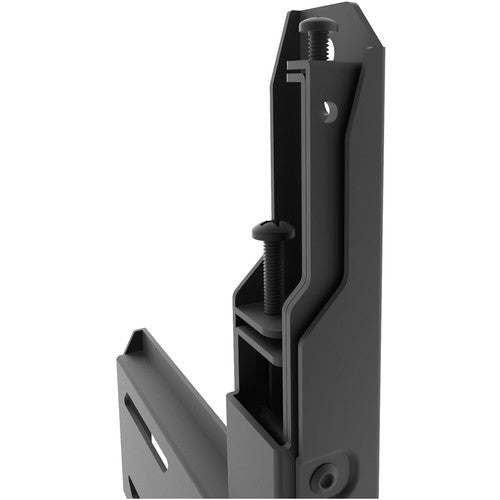

  • Post-Installation Leveling

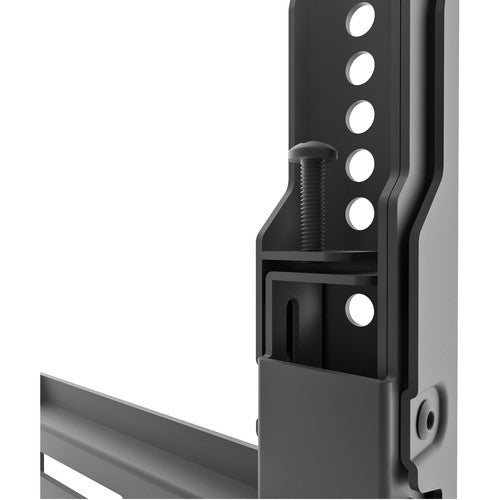

Precision leveling can be achieved with two adjustable screws. Use the included 6" extension bit to access them after your display has been mounted.

Specifications
Compatibility
Displays
• Screen Sizes 32 to 90"
• Weighs up to 150 lb / 68.04 kg
VESA Mounting-Hole Pattern
100 x 100 mm
120 x 180 mm
200 x 100 mm
200 x 200 mm
300 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
400 x 600 mm
400 x 650 mm
450 x 400 mm
500 x 300 mm
500 x 400 mm
500 x 500 mm
500 x 600 mm
600 x 200 mm
600 x 300 mm
600 x 400 mm
Mounting Compatibility
Double Stud
Orientation
Landscape
Distance from Mounting Surface
1.4" / 3.56 cm
Material of Construction
Steel
Dimensions
26.9" / 68.33 cm (Wall Plate)
Packaging Info
Package Weight
8.25 lb
Box Dimensions (LxWxH)
28.2 x 7 x 3.4"
