Western Digital  |  SKU: WDHD8TBWDP

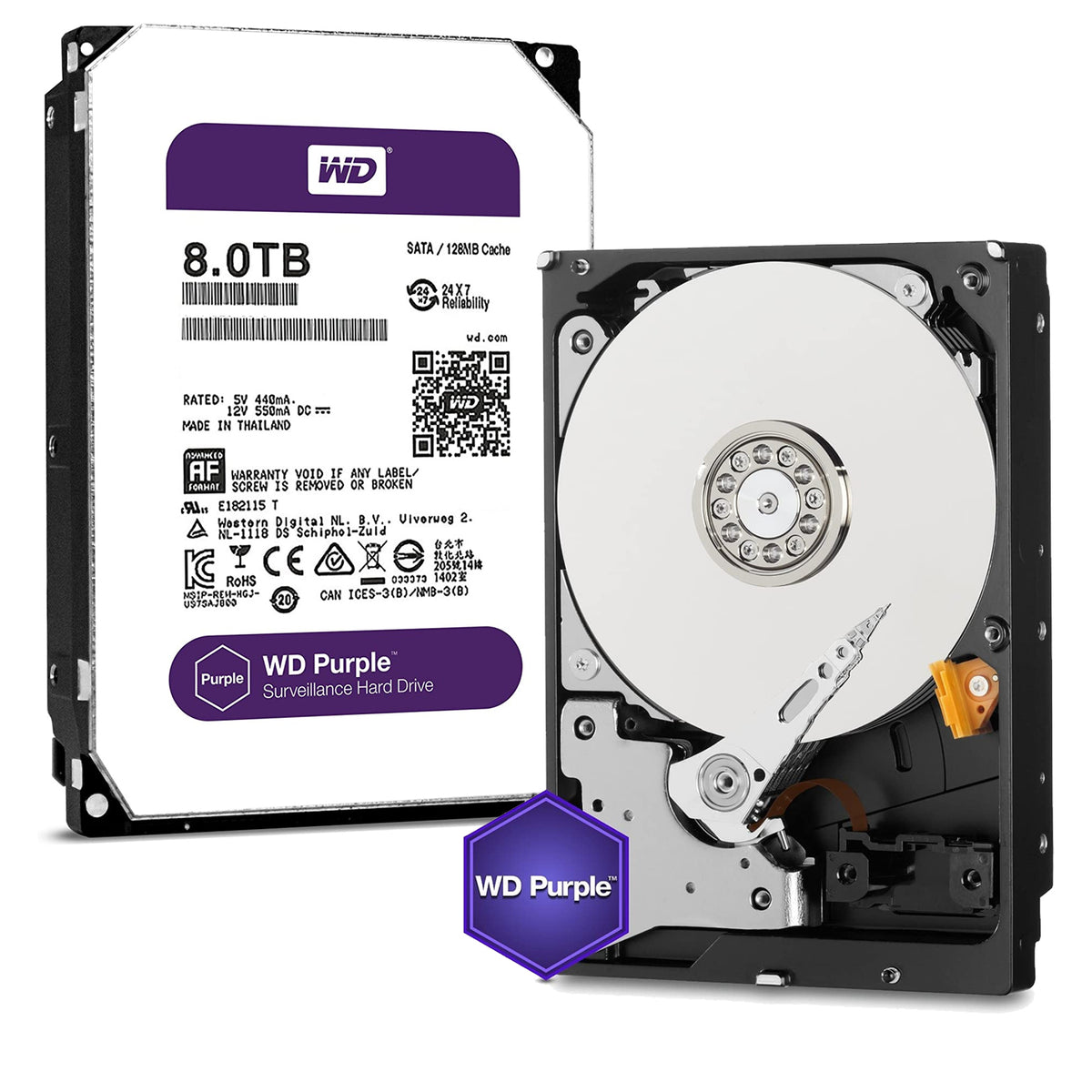

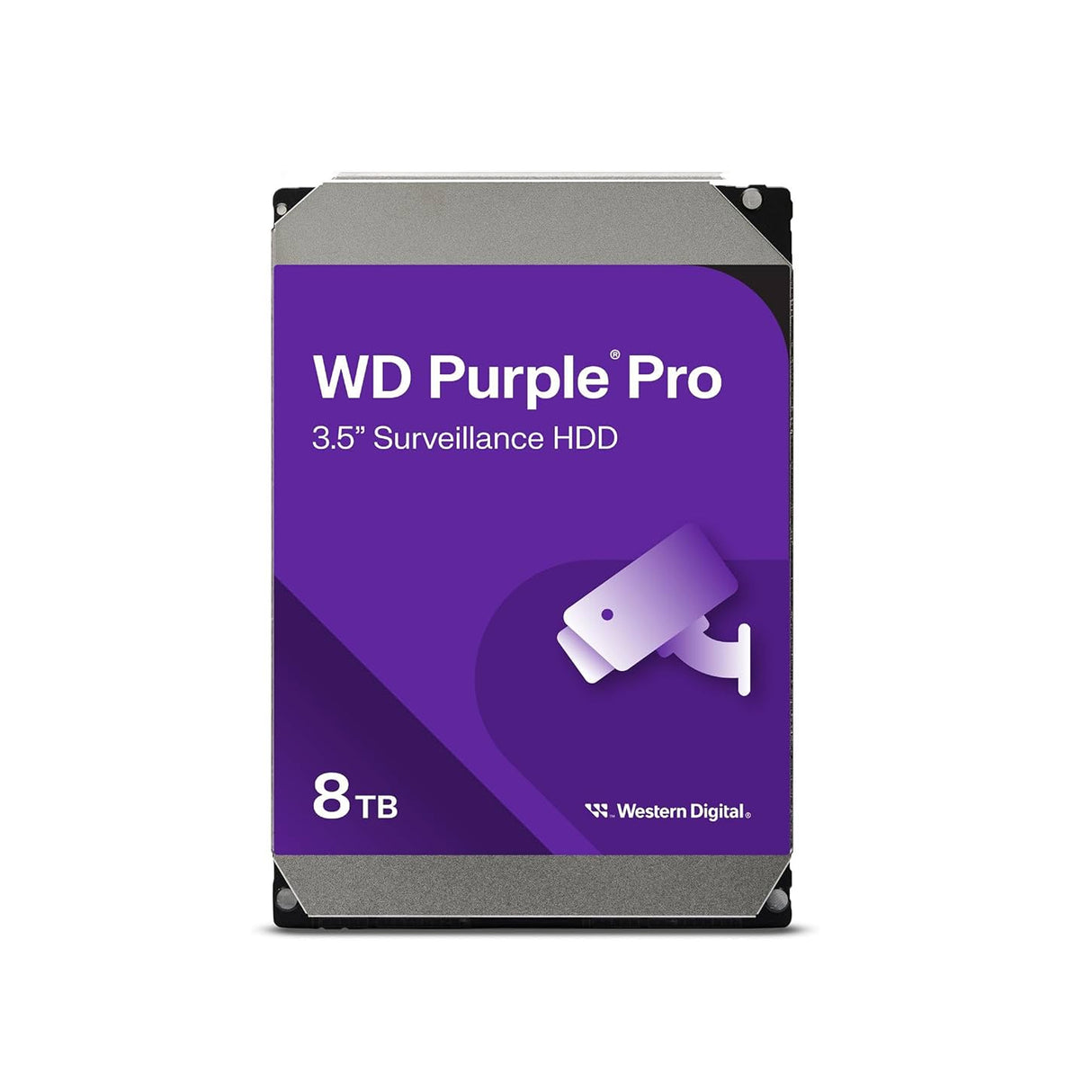

Western Digital 8TB Purple Surveillance Hard Disk Drive.

MPN: WDHD8TBWDP

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.


Description

  • 8TB Storage Capacity
  • 3.5" Form Factor
  • SATA III 6 Gb/s Interface
  • 256MB Cache
  • Up to 215 MB/s Sustained Data Transfers
  • 300,000 Load/Unload Cycles
  • 180TB per Year Workload Rating
  • Designed for 24/7 Surveillance
  • Supports up to 64 HD Cameras
  • WD AllFrame Technology

Features

The 8TB Purple 5640 rpm SATA III 3.5" Internal Surveillance Hard Drive from WD is designed to withstand the stresses placed on it in a 24/7, always-on, high-definition surveillance system with 16 drive bays.

With support for up to 64 high-definition surveillance cameras, this 8TB hard drive can hold a large amount of data and gives you the ability to easily upgrade and expand your security

A SATA III 6 Gb/s interface, sustained data transfer speeds of up to 175 MB/s, and a 256MB cache all help to ensure uninterrupted data transfers. Furthermore, the drive's 300,000 load/unload cycles, annualized workload rating of 180TB per year, MTBF rating of 1 million hours, and <1 in 1014 non-recoverable read errors per bit read also help to ensure a strong operational life.

Highlights
  • 8TB storage capacity
  • Designed for mainstream surveillance systems
  • WD AllFrame technology helps reduce dropped frames
  • Supports a workload rate of up to 180TB per year
  • Support for up to 16 bays

Specifications

Total Capacity
8 TB
Drive Type
SATA III / 3.5" HDD (5640 rpm)
Read Speed
Maximum: 215 MB/s
Write Speed
Maximum: 215 MB/s
Total Capacity
8 TB
Drive Type
SATA III / 3.5" HDD (5640 rpm)
Read Speed
Maximum: 215 MB/s
Write Speed
Maximum: 215 MB/s
Encryption Support
No
Mean Time Between Failures (MTBF)
1.0 Million Hours
Endurance (Total Bytes Written)
180 TB
Power Draw
5.3 W (Active)
4.7 W (Idle)
0.4 W (Standby)
Operating Conditions
32 to 149°F / 0 to 65°C
Operating Shock
70 G / 2.0 ms
Storage Conditions
-40 to 158°F / -40 to 70°C
Dimensions
5.8 x 4 x 1" / 147 x 101.6 x 26.1 mm
Weight
1.58 lb / 0.72 kg
Package Weight
1.785 lb
Box Dimensions (LxWxH)
7.5 x 5 x 2.5"
