WyreStorm EXP-SP-0104-H2 1:4 HDMI Splitter 4K@60Hz 4:4:4 (4K; 7m/ 23ft / 1080p; 15m/49.2ft) HDCP2.2, EDID and HDMI2.2.

SKU WSEXP-SP-0104-H2
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

4K HDR 4:4:4 60Hz HDMI 1x4 Splitter with 1080p Scaling Feature

EXP-SP-0104-H2

The latest addition to the WyreStorm Essentials splitter range, the EXP-SP-0104-H2 now offers H2 features and the same value and reliability found in its predecessor, not to mention a few new tricks up its sleeve! Upgrades to support of the full 18Gbps bandwidth HDMI 2.0 offers; 2160p@60Hz 4:4:4 and support for Dolby Vision™ included. As if that wasn’t enough, the EXP-SP-0104-H2 is now featuring a powerful built-in scaler, allowing users to simultaneously connect a mix of 4K and 1080p displays, which gives the source range to play to its fullest potential!

SCALING FROM 4K TO 1080P

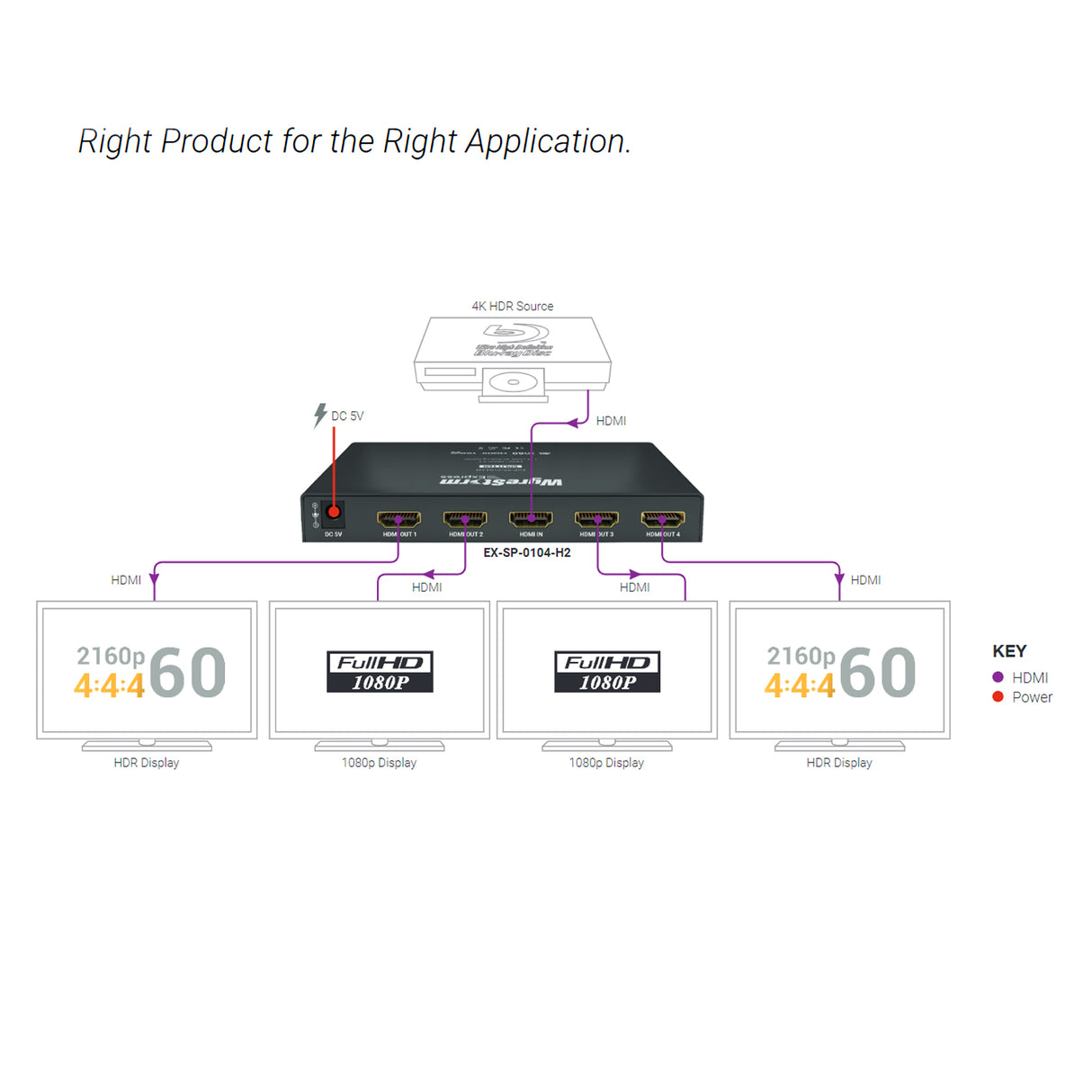

With the EXP-SP-0104-H2, the user doesn’t have to give up 4K content when mixed resolution displays are present, as each output is capable of downscaling from 4K to 1080p without affecting the source!

PLUG AND PLAY

WyreStorm’s variety of express splitters offers lossless duplication and distribution of a single HDMI UHD or HD source to multiple outputs for a flexible and reliable solution supporting resolutions up to 4K. EDID and HDCP device communication are automatically negotiated, truly making a plug-and-play device.

HDMI 2.0 VIDEO: MAXED OUT!

The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be split with the 0104-H2. Newly emerging 60Hz HDR-10 & Dolby Vision content can also be handled by this powerful device.

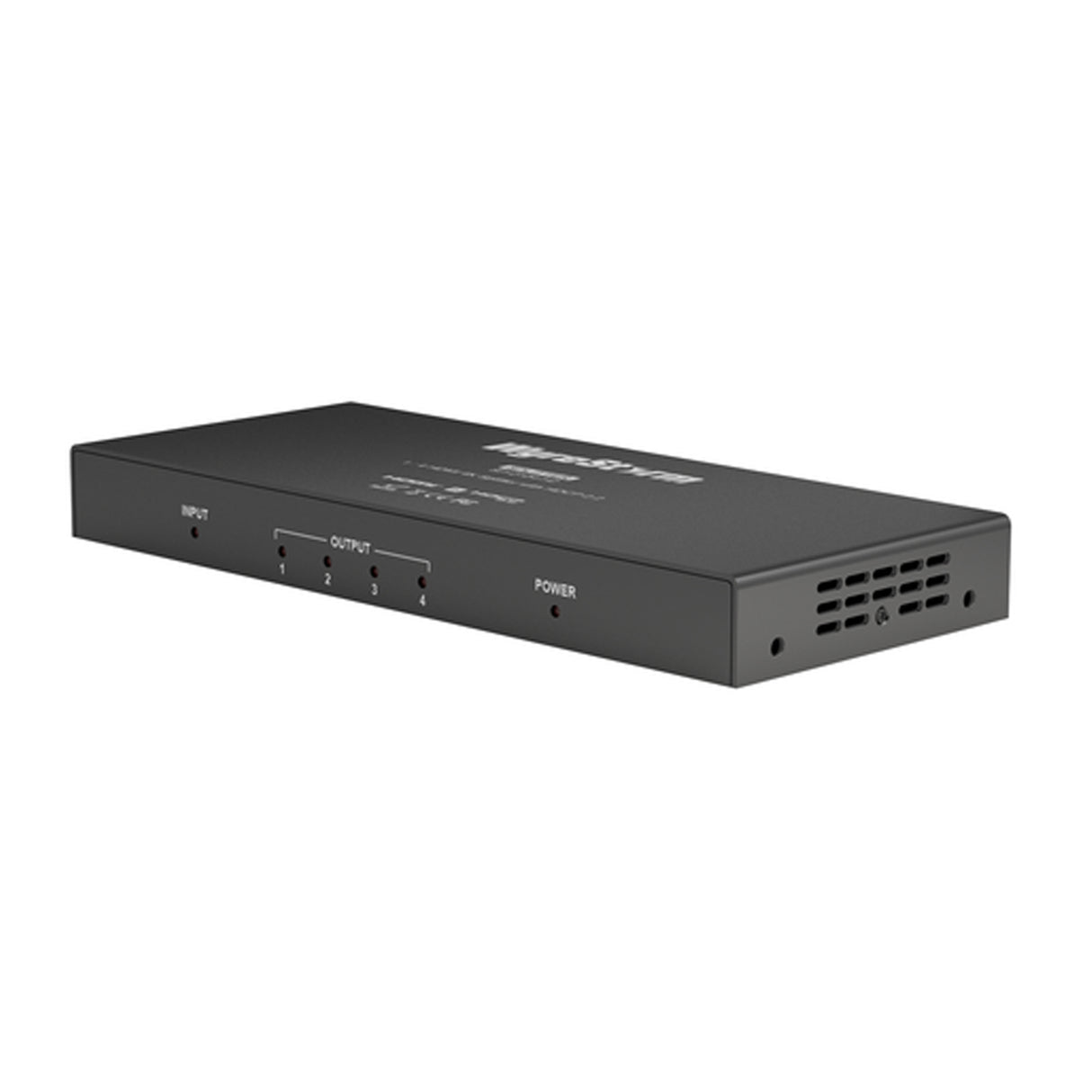

SLIM BY DESIGN

All of WyreStorm’s Express splitters showcase a low profile, ultra slim chassis for greater installation convenience without giving up strength and quality. This allows the device to be installed under a table or desk for neat, discreet integration.



  • Allows a transmission from a single HDMI audio/video device to be duplicated and simultaneously distributed to up to two HDMI display devices, such as TV, AVR, digital signage panel or digital projector
  • Supports 4K@60Hz 10bit 4:2:0 | 4:4:4 and HDR@24Hz 10bit BT.2020
  • Fully HDCP 2.2 compliant
  • Data rates up to 18Gbps
  • HDR and Dolby Vision support
  • Each HDMI output supports scaling down to 1080p
  • Automatic input cable equalization for signal regeneration
  • DTS-X and Dolby Atmos™ supported
  • Plug and play set up for easy installation – no set up / drivers / software required
  • Compact, durable design for unobtrusive installation

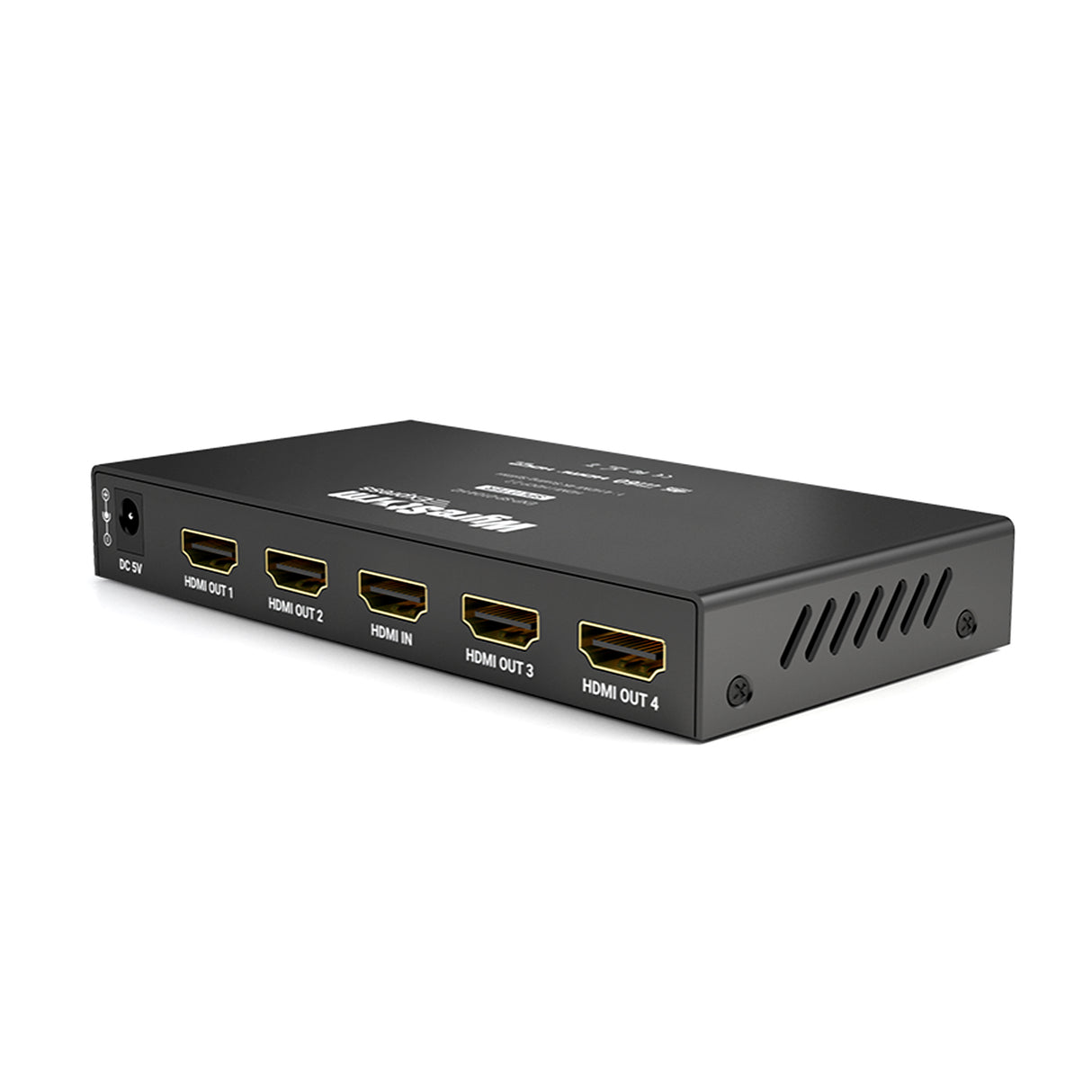

Inputs 1x HDMI 19-pin type A
Outputs 4x HDMI 19-pin type A
Audio Formats 2ch PCM | Up to DTS-X and Dolby Atmos
Max. Video Resolution 1920x1080p @60Hz 12bit (15m/49.2ft) | 16bit (15m/49.2ft)
3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft) | @24Hz 4:2:0 HDR 10bit (15m/49.2ft)
4096x2160p @60Hz 8bit 4:2:0 (15m/49.2ft) | @60Hz 8bit 4:4:4 (3m/9.8ft)
Color Depth 1080p: 48bit | 4K UHD: 24bit | HDR @24p: 10bit BT.2020
Maximum Pixel Clock HDMI: 340mHz
HDMI HDMI | HDCP 1.4 | Configurable EDID | DVI/D supported with adapter (not included)
RS-232 1x RS-232 3-pin Phoenix Connector (Firmware Updates)
Power Supply Input: 100~240V AC 50/60Hz | Output: 12V DC 0.5A
Max Power Consumption 4W
Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
StorageTemperature -4°F to ~ 158°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Maximum BTU 13.64 BTU/hr
Rack Units/Wall Box 1U
Height 0.71 in
Width 6.59 in
Depth 2.75 in
Weight 0.7 lbs
Safety and Emission CE | FCC
