UNV | SKU: UVIPC86CEB-AF18KC-I0

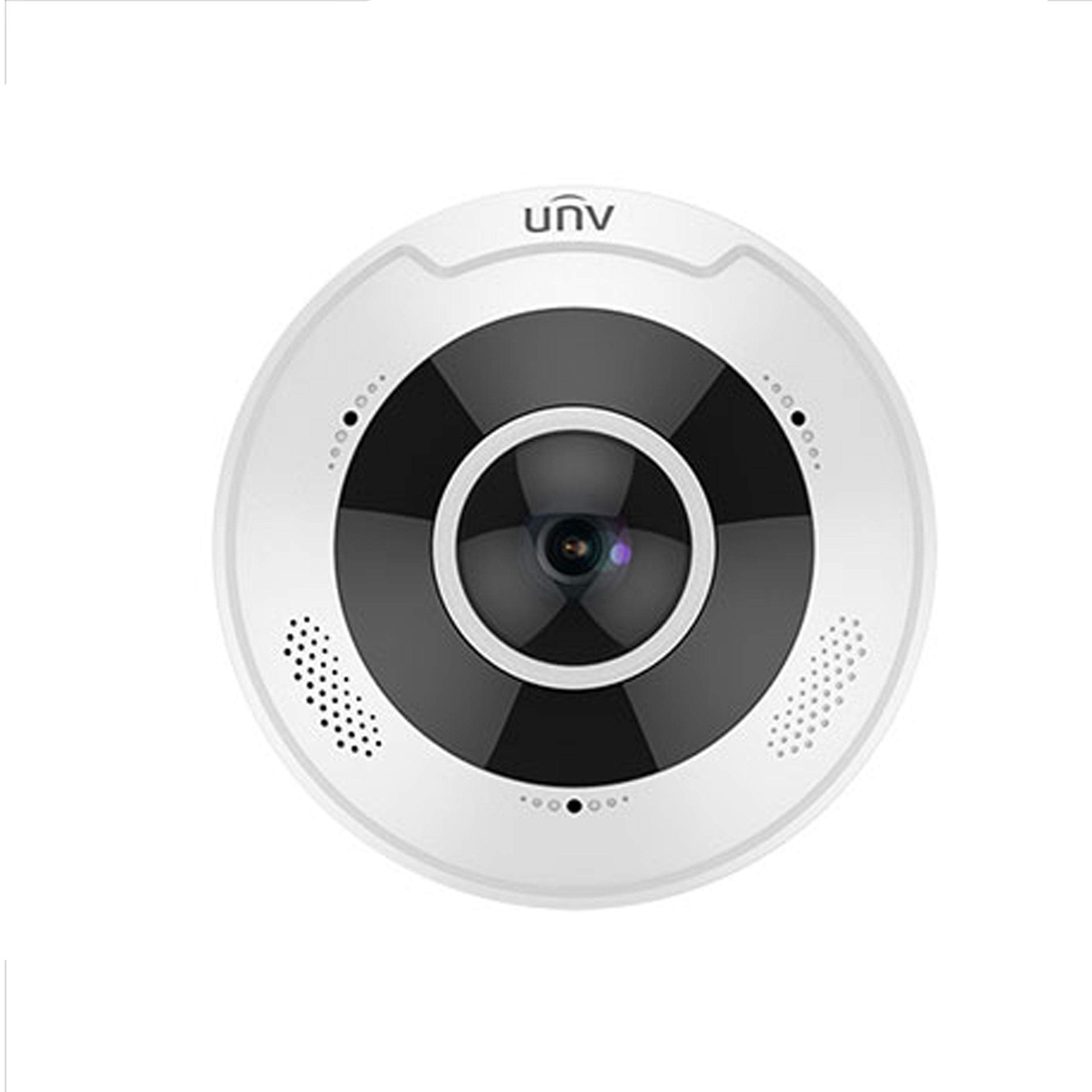

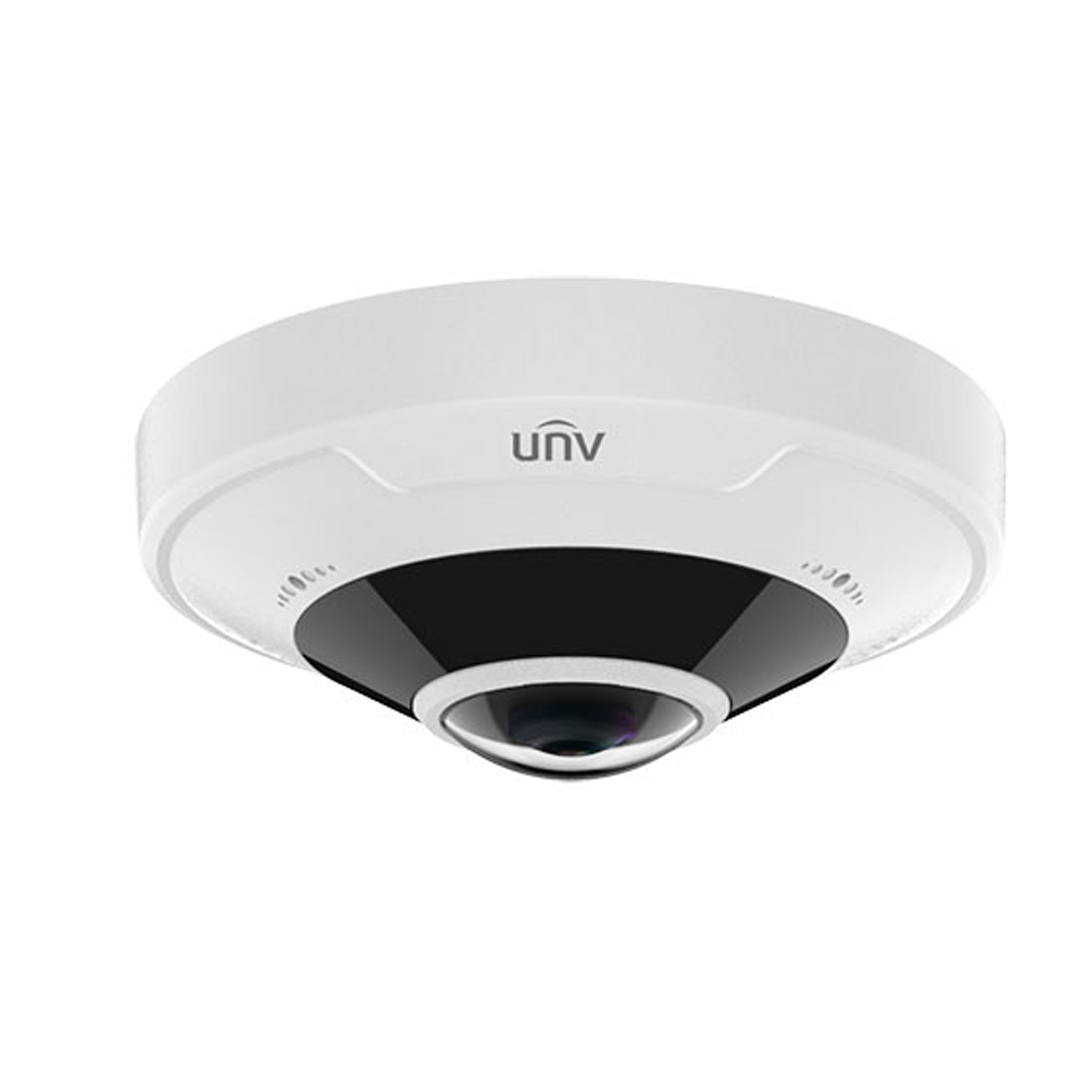

UNV IPC86CEB-AF18KC-I0, 12MP OmniView Fixed IR Fisheye Network Camera

Name: UNV IPC86CEB-AF18KC-I0, 12MP OmniView Fixed IR Fisheye Network Camera
Brand: UNV
SKU: UVIPC86CEB-AF18KC-I0
Availability: InStock

MPN: IPC86CEB-AF18KC-I0

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Description

IPC86CEB-AF18KC-I0

12MP OmniView Fixed IR Fisheye Network Camera

• High quality image with 12 MP, 1/1.7" CMOS sensor
• Max. 4000 × 3000 resolution
• Ultra 265, H.265, H.264, MJPEG
• Ultra wide-angle lens, 360° panoramic image
• Embedded infrared light, 360° fill-in light, up to 15 m (49.2 ft) IR distance
• Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
• Heatmap: working with management platform, the data of moving objects is counted in real time on an intuitive color map
• Built-in mic and speaker, supports two-way audio
• MicroSD, up to 512 GB
• IK10 vandal resistant
• IP67 protection

Features

12MP HD RESOLUTION

The IPC86CEB-AF18KC-I0 captures video up to a resolution of 12MP @ 25 FPS, which is 4000 x 3000 pixels. Every pixel added to your camera's picture gives you a higher quality and more details. So at 12MP, your going to get a crisper, cleaner, and more detailed image.

1.8mm Fixed Lens

The IPC86CEB-AF18KC-I0 has a 1.8mm Fixed Lens. That means it's fixed at one length: it can't optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up detail you'll be able to see. But the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

2-Way Audio

The IPC86CEB-AF18KC-I0 has a built-in microphone and speaker enabling you to easily communicate with family members, pets, coworkers, or even intruders. The crisp, clear 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and so much more!

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Specifications

Camera Type	IP
Form Factor	Fisheye
Resolution	12MP
Max Resolution	4000 x 3000
Frames Per Second	25 FPS
Image Sensor	1/1.7", 12.0 megapixel, progressive scan, CMOS
Lens Type	Fixed Lens
Focal Length	1.8mm
Field of View	360°
Illumination	Infrared
IR Range	Up to 50ft
Video Compression	Ultra H.265\|H.265\|H.264
Max Video Bitrate	16Mbps
Weatherproof Rating	IP67
Vandal proof Rating	IK10
Audio	2-Way Audio
Onvif Compatible	Yes
Intelligent Events	Cross Line Detection\|Intrusion Detection\|Heat Map
Onboard Storage	Up to 256GB
Power Supply	DC12V\|POE
Power Consumption	DC 12V±25%, PoE (IEEE 802.3af)
Operating Temperature	-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH
Weight	1.16lbs (524g)
