DoorBird | SKU:
DBA1071

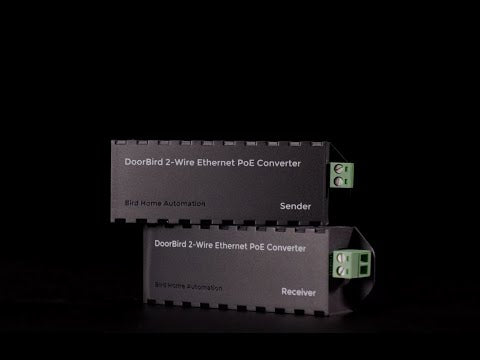

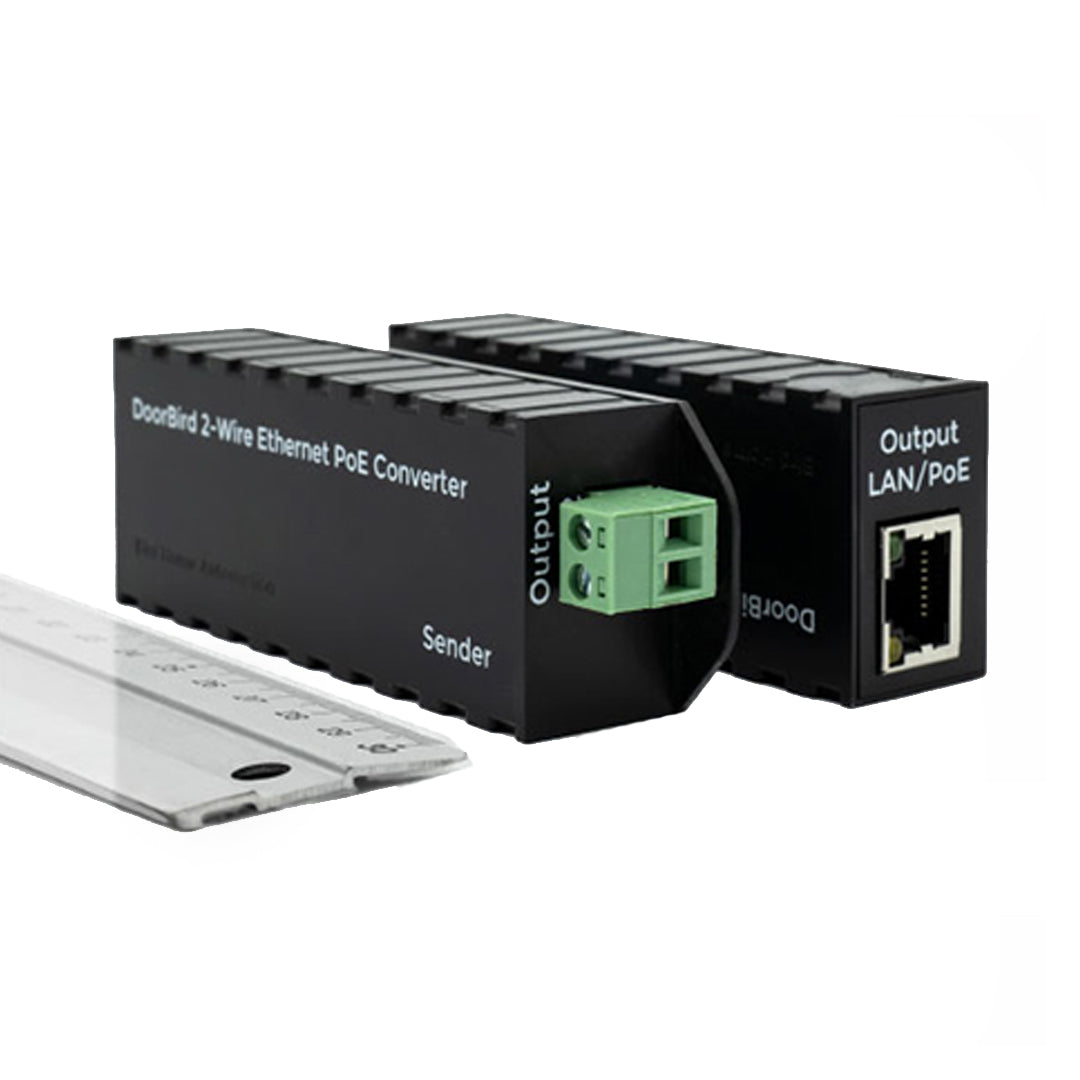

DoorBird A1071, 2-Wire Ethernet PoE Converter
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
DoorBird A1071, 2-Wire Ethernet PoE Converter is backordered and will ship as soon as it is back in stock.
Description
Description
The DoorBird 2-Wire Ethernet PoE Converter is probably the world‘s smallest and most powerful converter.
It allows you to transfer network data (Ethernet) and power (PoE)
with a simple two-wire cable over long distances. For example; existing buildings with a simple two-wire bell wire can be equipped with network technology without having to retrofit any network cables.
Features
- Use of existing cabling
- Only a two-wire cable required for both data transmission and power supply (PoE)
- Compact design, robust metal housing
- Easy and fast installation
Specifications
Power |
15 V DC or Power over Ethernet (POE 802.3af Mode-A) |
|---|---|
Power supply |
PoE-Switch or PoE-Injector (IEEE 802.3 af/at), not included |
Operating conditions |
-25 to 55°C / -13 to 131°F |
Speed |
Up to 60 mbit/s at maximum transmission range |
Latency |
~ 0.01ms |
Connectors |
1x RJ45 jack (10/100 Base-T), 2x screw terminals |
PoE |
PoE 802.3 af/at Mode-A and PoE +, up to 30 W |
Dimension |
1,30 x 0,98 x 3,46 in (H x W x D) |
Range |
80 meters / 262 feet with unshielded two-wire cable |
Scope of delivery |
1 x DoorBird 2-Wire Ethernet PoE Converter Sender 1 x DoorBird 2-Wire Ethernet PoE Converter Receiver 1 x DIN-Rail adapter |
Required accessories |
2 x Network cable, IEEE 802.3 af/at PoE Switch or PoE Injector, e.g. DoorBird Gigabit PoE Injector, D-Link DGS-1008P or TPLink TL-PoE150S Compatible with all DoorBird IP Video Door Stations. |
Approvals |
CE, FCC, RoHS, IP50 |
EAN |
4260423860360 |
Weight |
140 g |
