DoorBird D1101V, Surface Mount, IP Video Door Station, 1 Unit, 1 Call Button,
by DoorBird
SKU DBD1101V-V2A S-M
Intercom system for single-family homes and businesses with 1 unit, 1 call button

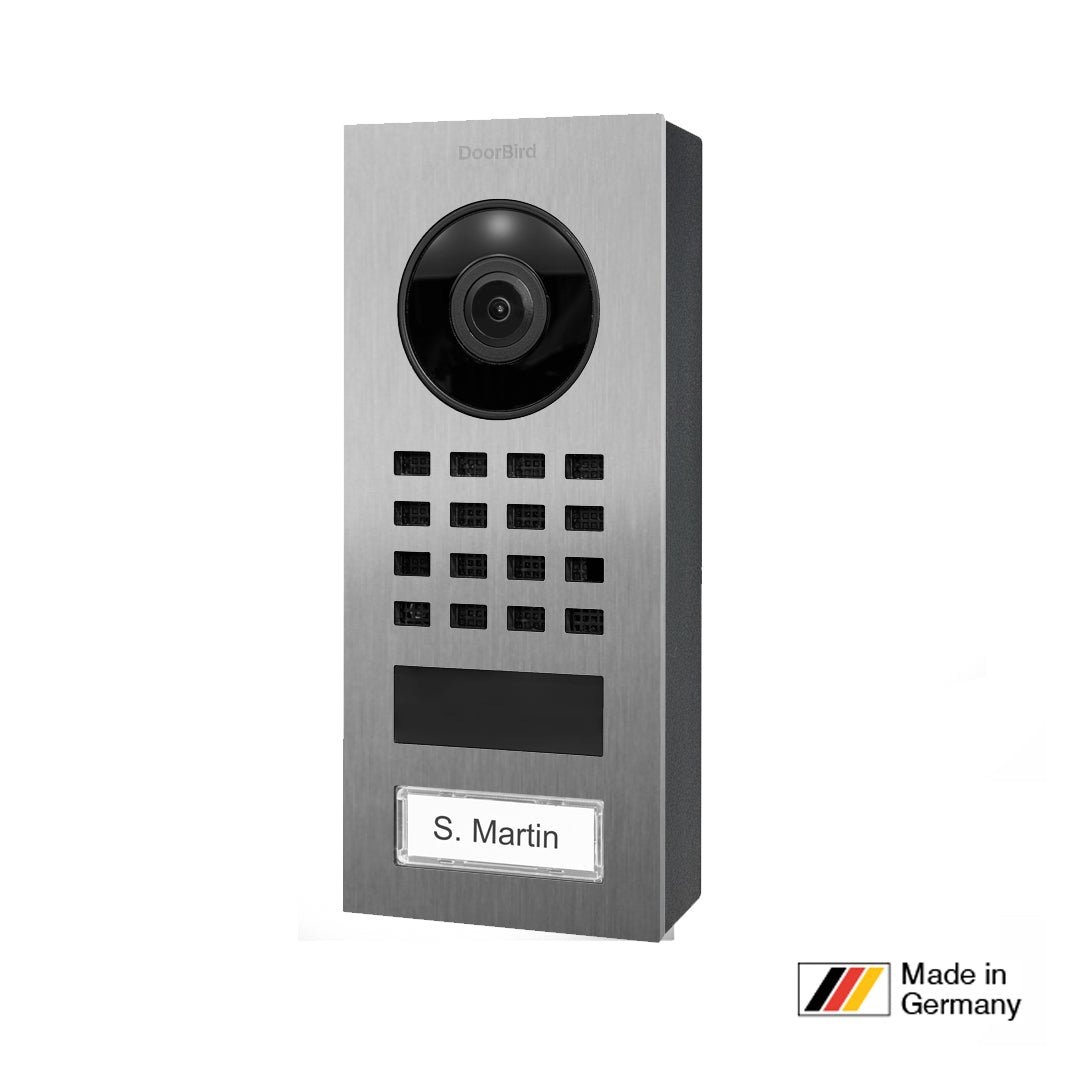

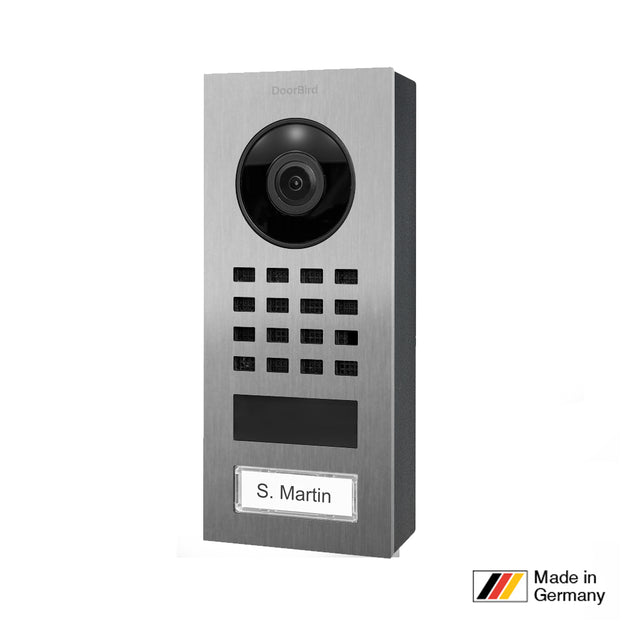

Stainless steel V2A, brushed

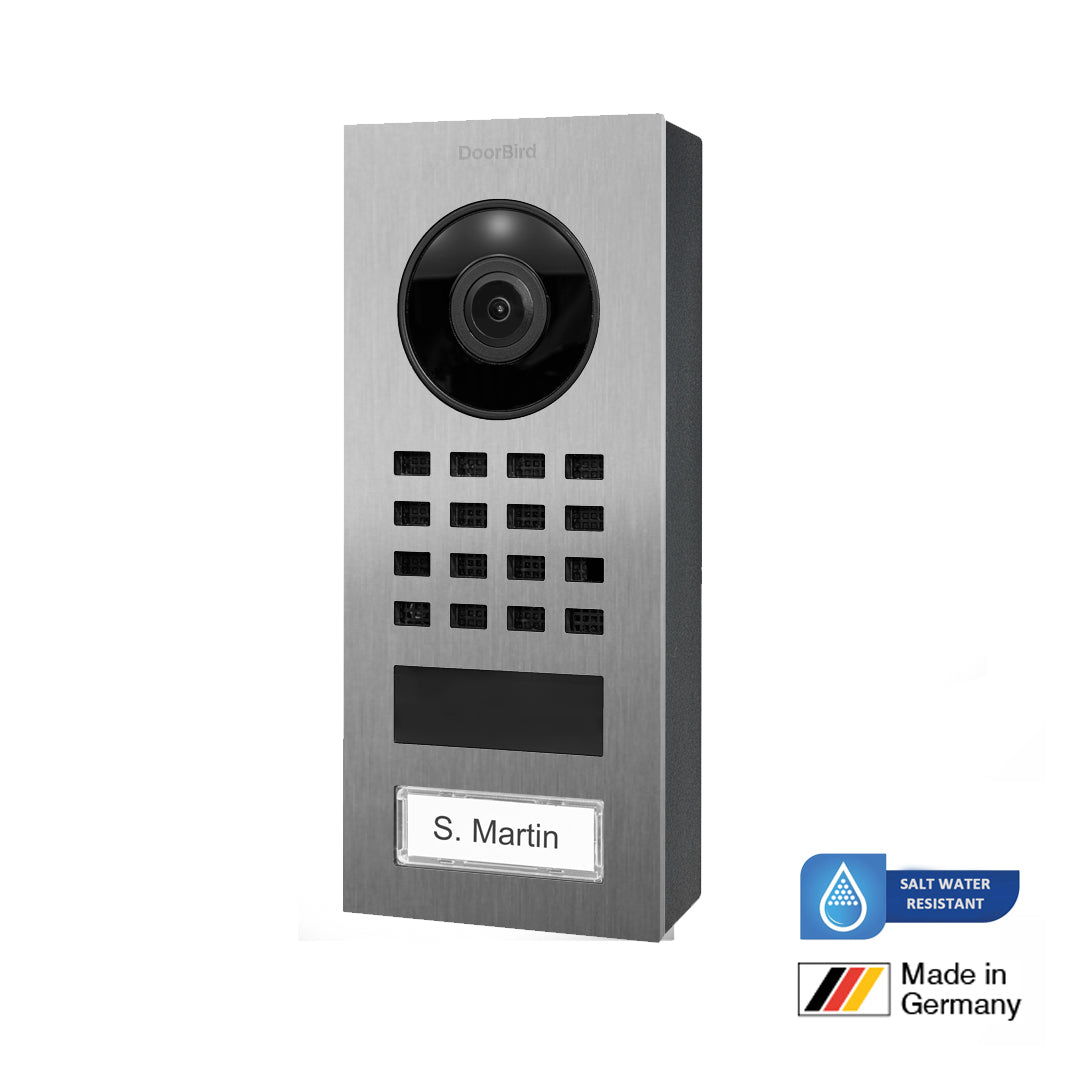

Stainless steel V4A (salt-water and grinding dust resistant), brushed

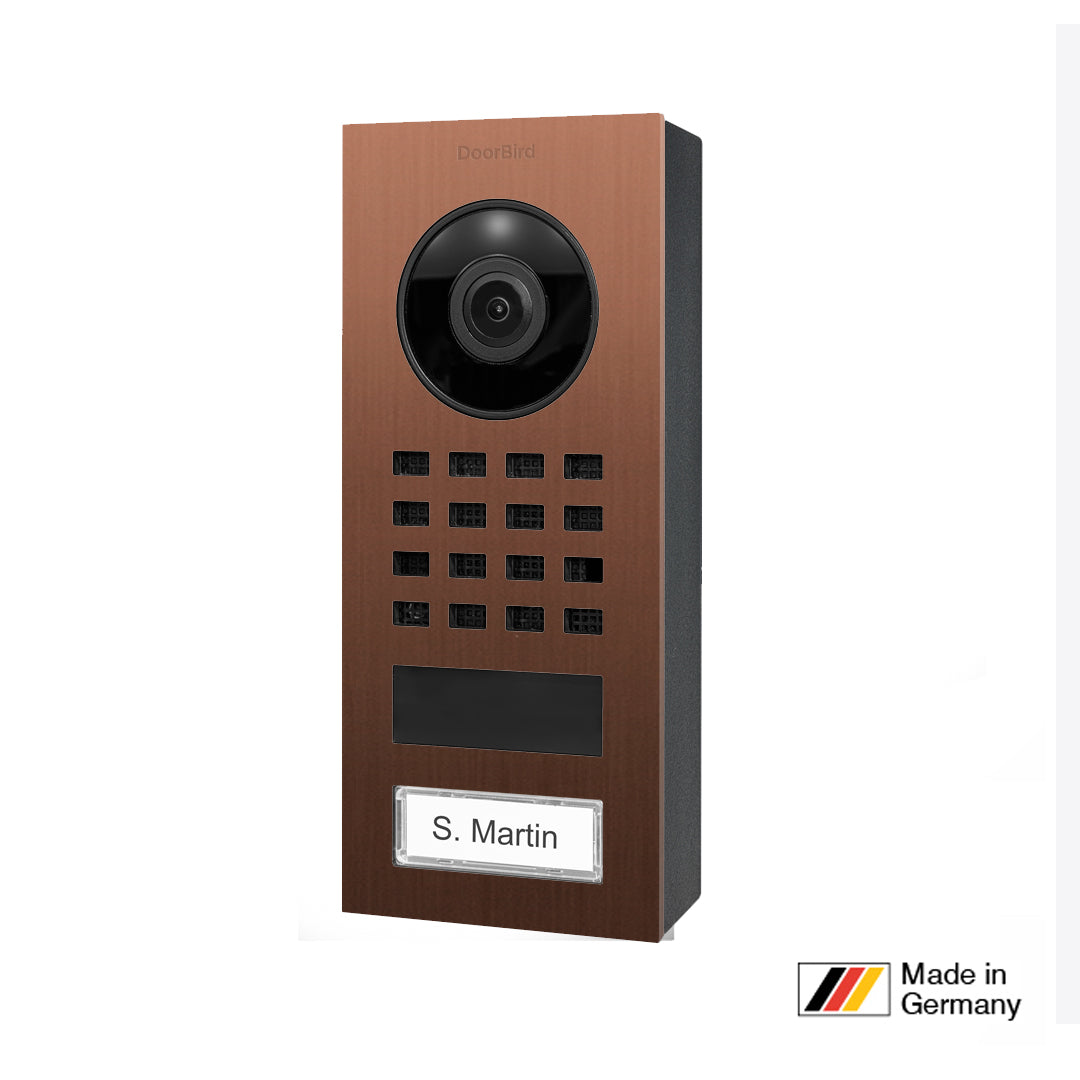

Bronze-finish V2A, as PVD coating, Stainless steel, brushed
- Surface-mount housing included
- WiFi / LAN connection (PoE capable)
- 2-way audio
- Ultra-wide angle lens, 1080p, night vision, IR LEDs
- 4D motion sensor
- 1 freely configurable bistable switching relay
-
Open API
Local interface for integration with third-party systems and SIP -
Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP) -
Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G -
Smart Home & NVR compatible
Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others -
Microphone
Video intercom with clear voice transmission -
Automatic door buzzer
For use in medical offices and office environments -
Free visitor history
Store still images for free, optional video recording available -
Individual action schedules, e.g.:
Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
4D motion sensor switches on external lamp between 9 pm and 6 am -
Geofencing
Automatic door and gate opening when returning home -
Night vision
With Infrared LEDs -
HDTV Video
Ultra wide-angle, hemispheric lens, 180° -
Light sensor
For night vision mode -
One freely configurable bistable latching relay
Control one door or one gate via App
Status configurable via App: temporary or permanent circuit -
Easy self-install
Quick installation of the intercom via QR code scan -
Call button
With backlit nameplate -
Motion sensor with 4D technology
Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft) - Noise reduction and echo cancellation (AEC, ANR)
-
Easy connection of the intercom to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data) -
WiFi enabled
Works within a WiFi network, no LAN cable needed -
Bluetooth Low Energy (BLE)
For access control, compatible external sensors and smart locks
| Front panel | Front panel 3 mm (0.12 in), stainless steel V4A/V2AÂ |
|---|---|
| Mounting housing | (backbox) Polycarbonate |
| Mounting type | Surface-mounted, flush-mounted version sold separately |
| Call button | Plastic |
| Nameplate | Illuminated |
| Power supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Weight | 471 g |
| Connectors | • LAN/PoE (T+, T-, R+, R-) • Bi-stable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W |
| Weatherproof | Â Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471, Wi-Fi CERTIFIEDâ„¢ |
| Dimensions | 151,9 x 65 x 32 mm (H x W x D) 5.98 x 2.56 x 1.26 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Surface-mounting housing (backbox) 1x Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP |
| Recommended installation height |
Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height. |
| Camera | HDTV 1080p, dynamic (VGA – HDTV) |
| Lens | High-end ultra wide-angle hemispheric lens 200° (D), 150° (H), 90° (V), straightened, IR-capable |
| Night vision | Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm) |
| Audio components | Speaker and microphone, noise reduction and echo cancellation (ANR, AEC) |
| Audio streaming | Two-way |
