UNV  |  SKU: UNOEI-372S-H-W-Z

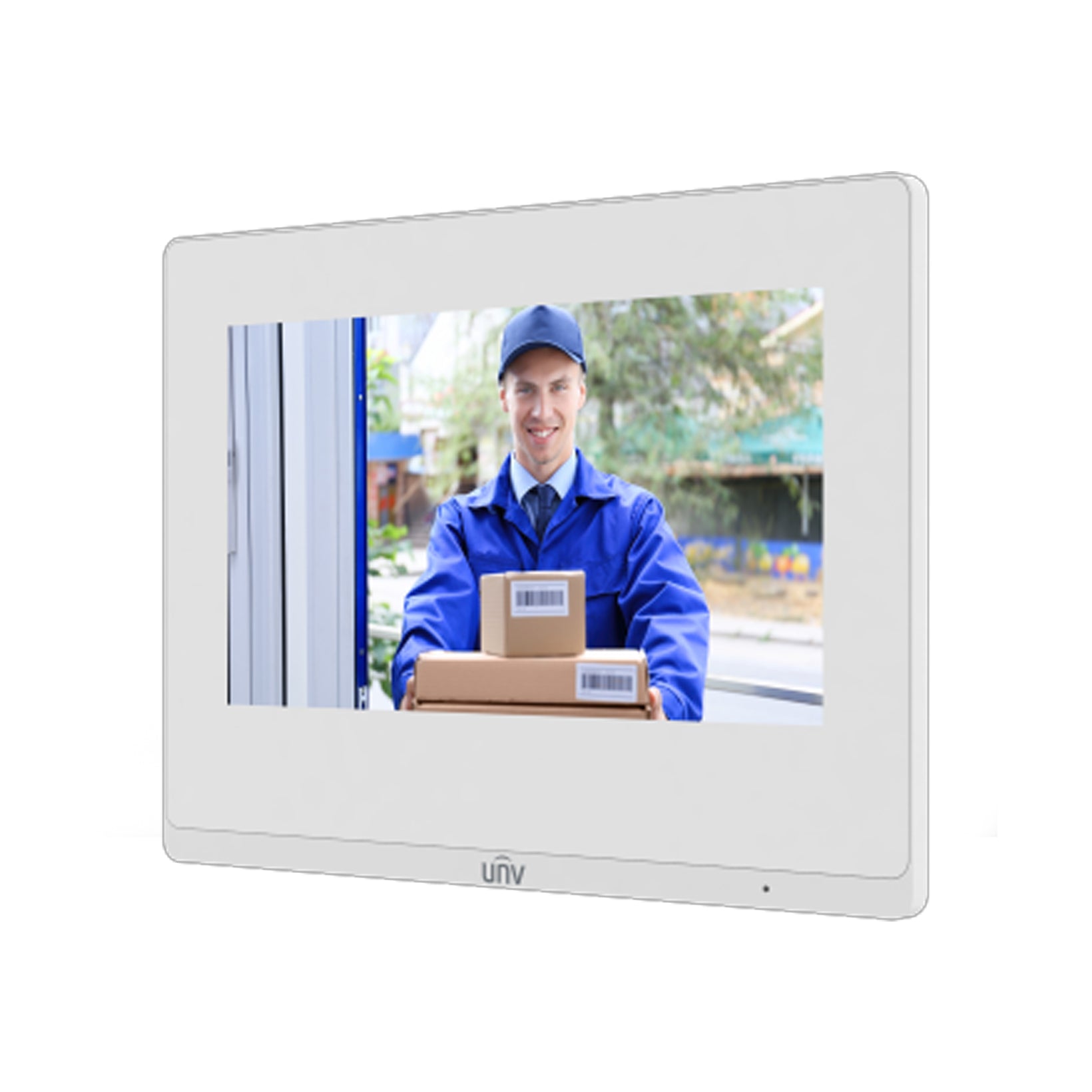

UNV OEI-372S-H-W-Z, Intercom Indoor Monitor, White

MPN: OEI-372S-H-W-Z

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description

• Durable ABS casing with a glass panel.
• 1024×600 HD touchscreen display.
• Batch configuration and transfer.
• Remote and one-touch unlocking of linked door stations.
• Network camera monitoring and security alarm.

Features
Hardware Specification
Power Supply DC12V±25%,IEEE802.3af, Standard PoE
Power Consumption ＜10W
Screen 7-inch ultra-thin TFT LCD screen
Screen Resolution 1024×600
Operation System Linux
Audio Quality Noise suppression,echo cancellation and AGC
Audio Input 1 built-in omnidirectional microphone
Audio Output 1 built-in speaker
Audio Compression Standard MP3 G711
Audio Compression Bitrate 128Kbps
Interface Power*1, network*1, WiFi*1,RS485*1, IO output*2, IO input*8, TF card slot*1
Network 100Mbps network port, supports IEEE802.3af PoE power supply,WIFI4、2.4GHZ
Weight 360g
Dimensions (L x W x H) 193mm×143mm×25mm
Operating Environment -10°C to +55°C, 10% to 90%, non-condensing, indoor
Basic Business
Protocol UNV private protocol
Network protocol TCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Specification Index
Capacity 200 ScreenShots
200 Zone Alarms
A total of 20 connected devices, including IPCs, entrance stations, NVRs (up to 2), and Doorbells
Linked Indoor Station Capacity 19 extensions
Compliance
NDAA Compliant Support
