UNV | SKU:
UVOEU-301S-HMKA

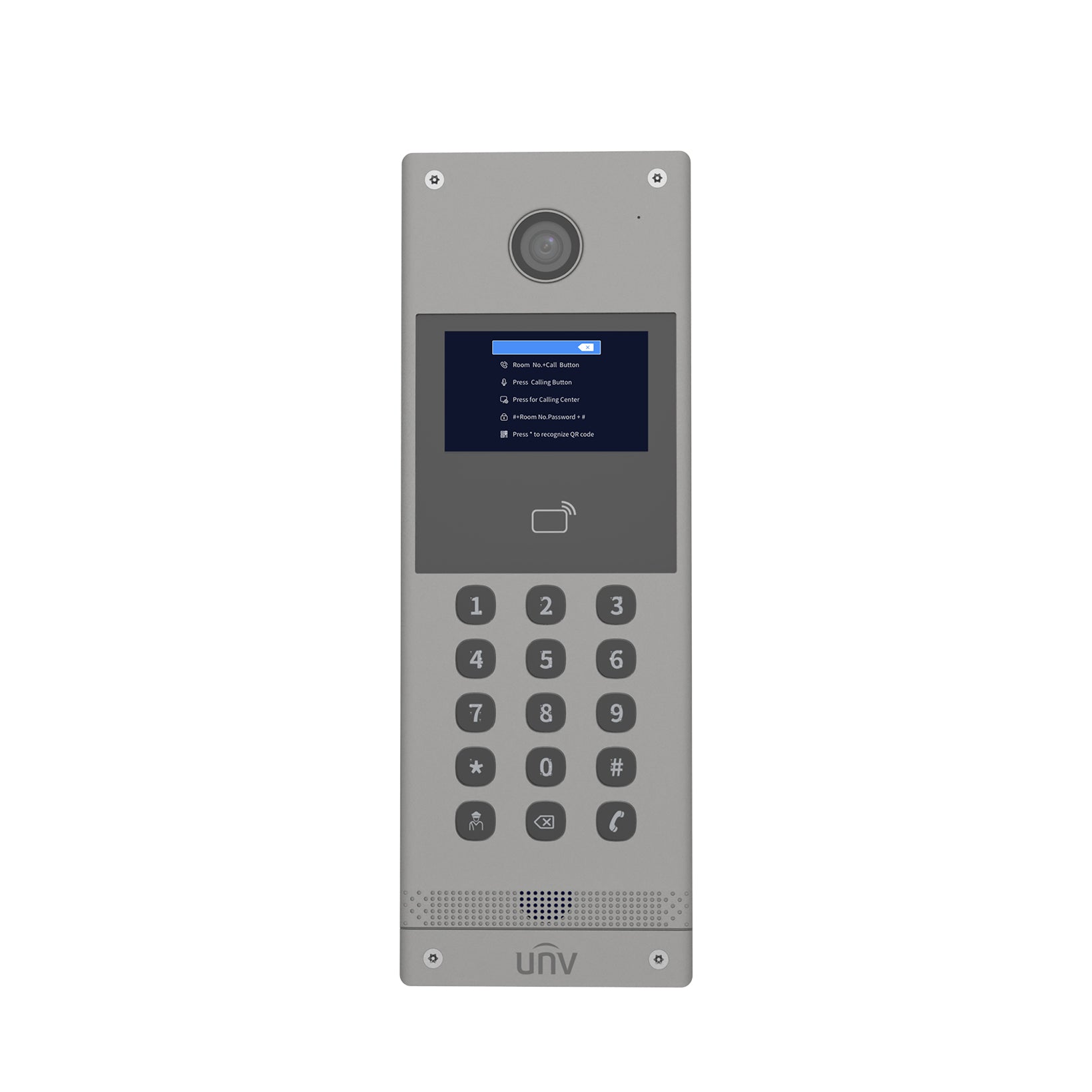

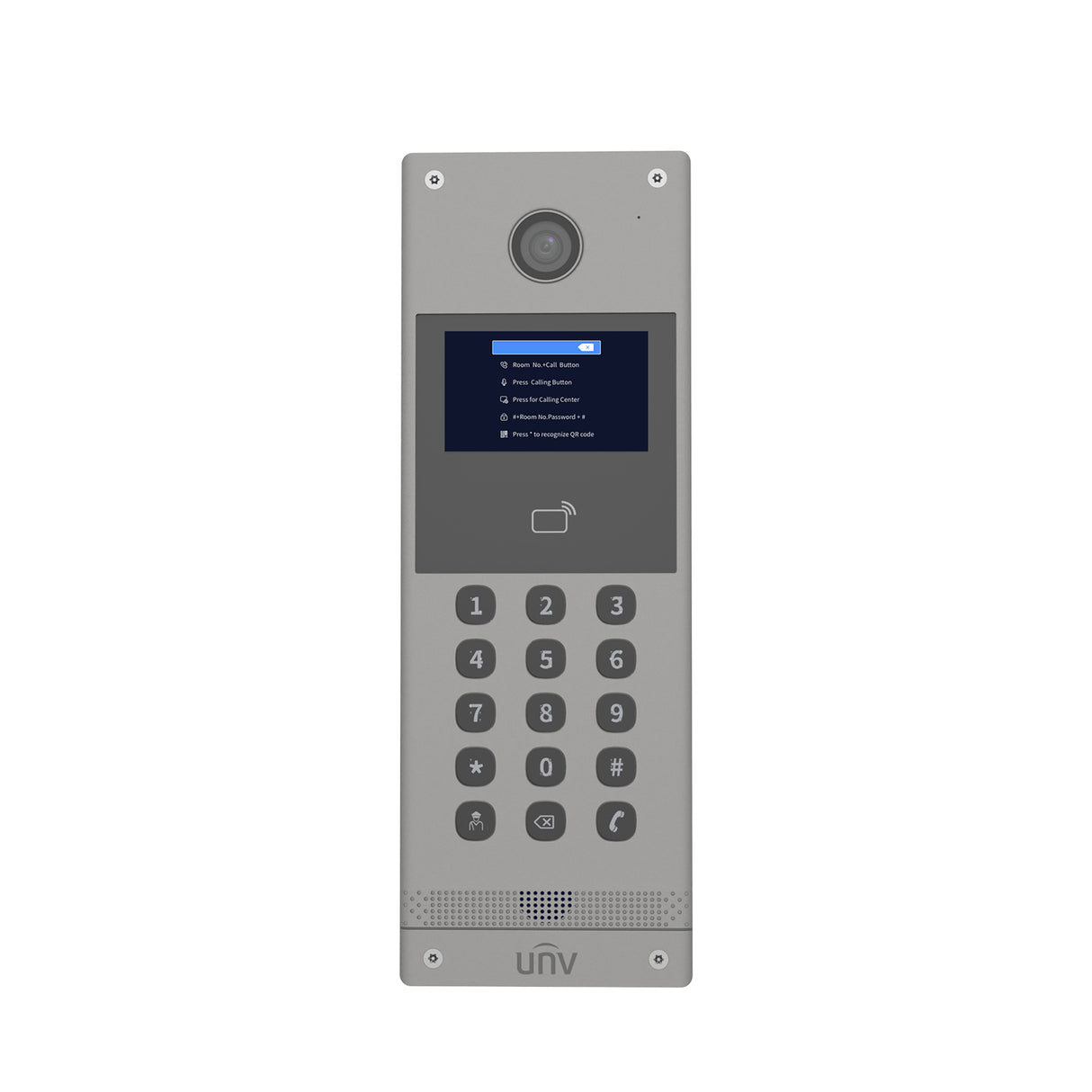

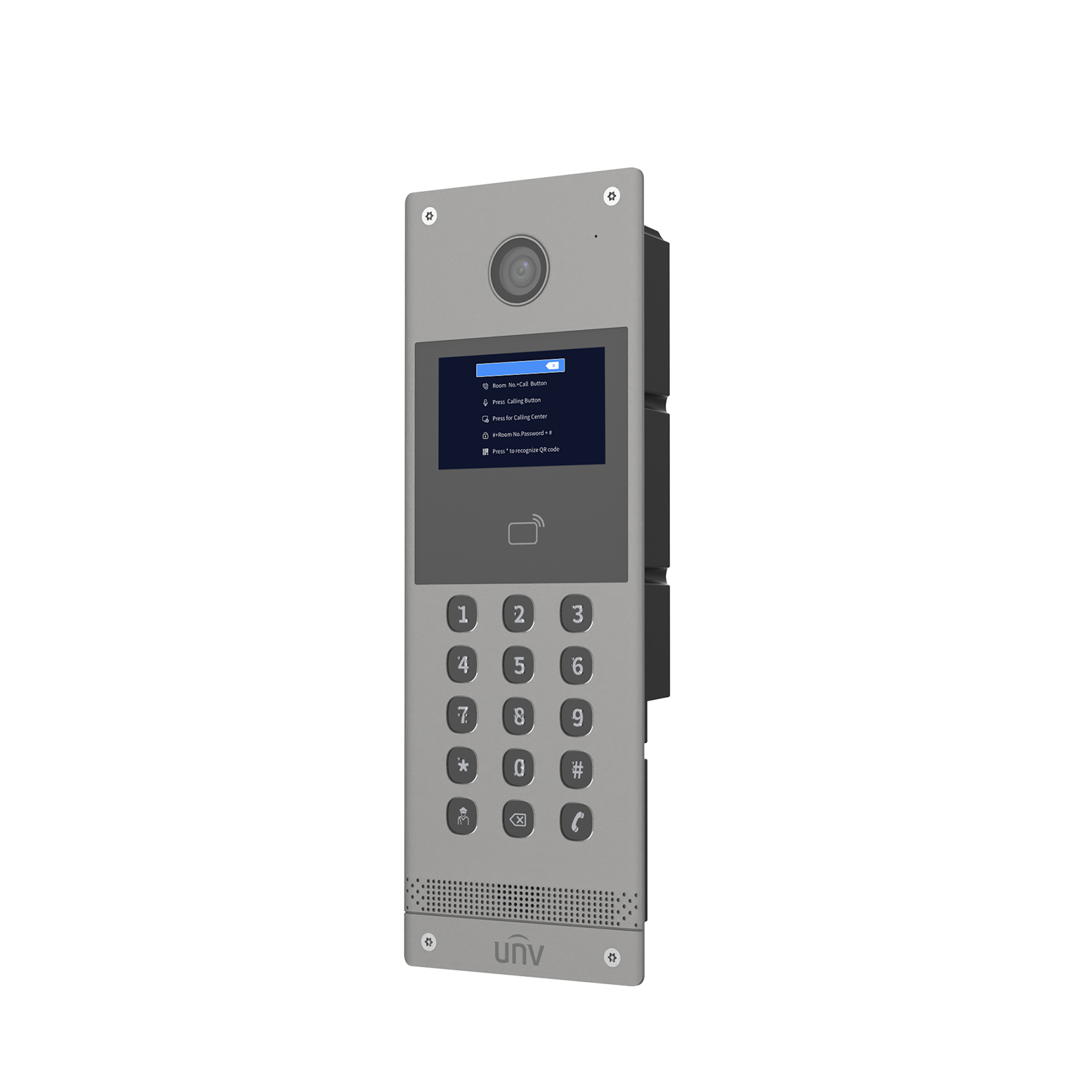

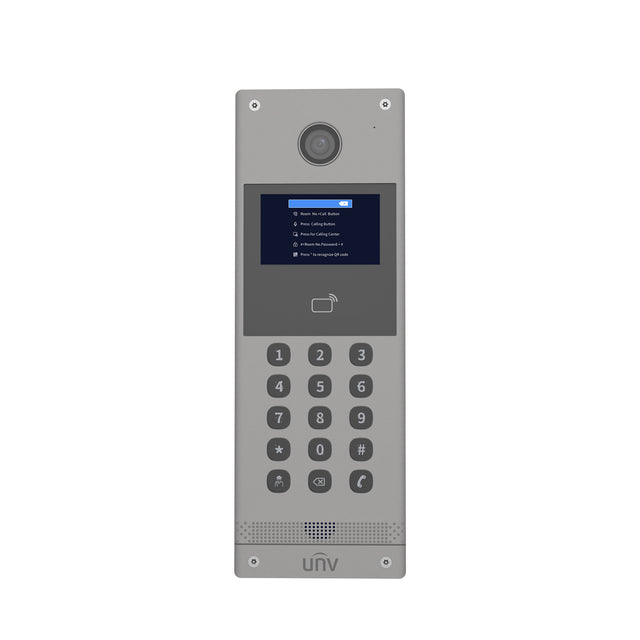

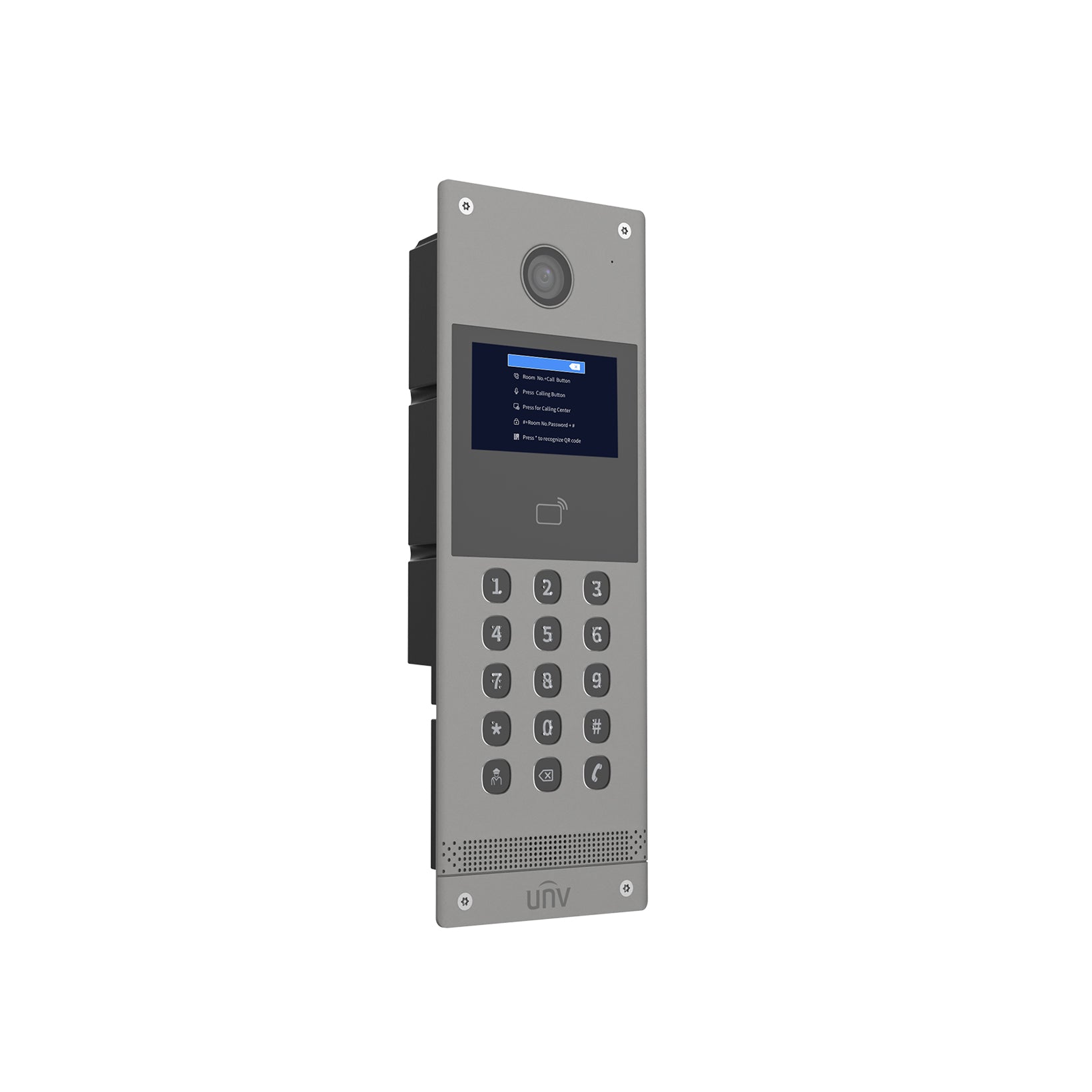

UNV OEU-301S-HMKA, Apartment Door Station
MPN: OEU-301S-HMKA
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV OEU-301S-HMKA, Apartment Door Station is backordered and will ship as soon as it is back in stock.
Description
Description
Apartment Door Station(IC Card,15 Keypads)
• Delivered with a recess box for recess mount.
• Built-in heating module supports operation at a very low temperature.
• Metal casing.
• Supports batch configuration.
• Supports call and intercom with the connected indoor stations and UNV Link.
• Supports video monitoring, security alarm, and tamper alarm.
• Built-in IC card reader.
• Built-in heating module supports operation at a very low temperature.
• Metal casing.
• Supports batch configuration.
• Supports call and intercom with the connected indoor stations and UNV Link.
• Supports video monitoring, security alarm, and tamper alarm.
• Built-in IC card reader.
Specifications
OEU-301S-HMKA | ||||||||
Basic Business | ||||||||
WDR |
Support DWDR |
|||||||
Protocol |
Private protocol |
|||||||
Button |
15 buttons with braille Buttons layout: Row 1: 1/2/3 Row 2: 4/5/6 Row 3: 7/8/9 Row 4: */0/# Row 5: Management center/Call/Cancel |
|||||||
Network protocol |
TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
|||||||
Specification Index | ||||||||
Card Capacity |
10000 |
|||||||
Maximum Connected Indoor Station |
500 |
|||||||
Hardware Specification | ||||||||
FOV |
Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9° |
|||||||
Power Consumption |
PoE: 10.73W DC12V: 8.62W |
|||||||
Volume Adjustment |
Support |
|||||||
Audio Quality |
Noise suppression, echo cancellation, AGC |
|||||||
Audio Input |
1 x Built-in omnidirectional microphone |
|||||||
Audio Output |
1 x Built-in speaker |
|||||||
Audio Compression Bitrate |
128Kbps |
|||||||
Protection Level |
IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08 |
|||||||
Power Supply |
DC12V ±25%, IEEE802.3af PoE power supply |
|||||||
Operating System |
Linux |
|||||||
Illuminator |
IR light (adaptive) |
|||||||
Screen Size |
3.97 inch |
|||||||
Weight |
2.10kg |
|||||||
Mount Method |
Wall mount |
|||||||
Network |
100Mbps network port, supports IEEE802.3af PoE power supply |
|||||||
Interface |
Power*1, network port*1, RS485*1, IO input*4, IO output*2, door lock*2 (electric lock/door magnet), door opening button*2, door magnet*2, tamper button*1 |
|||||||
Dimensions (L x W x H) |
125mm*358mm*53mm |
|||||||
Operating Environment |
-40°C to 60°C, 10% to 90%, noncondensing, outdoor |
|||||||
