JVC | SKU:
JVDLA-NZ700

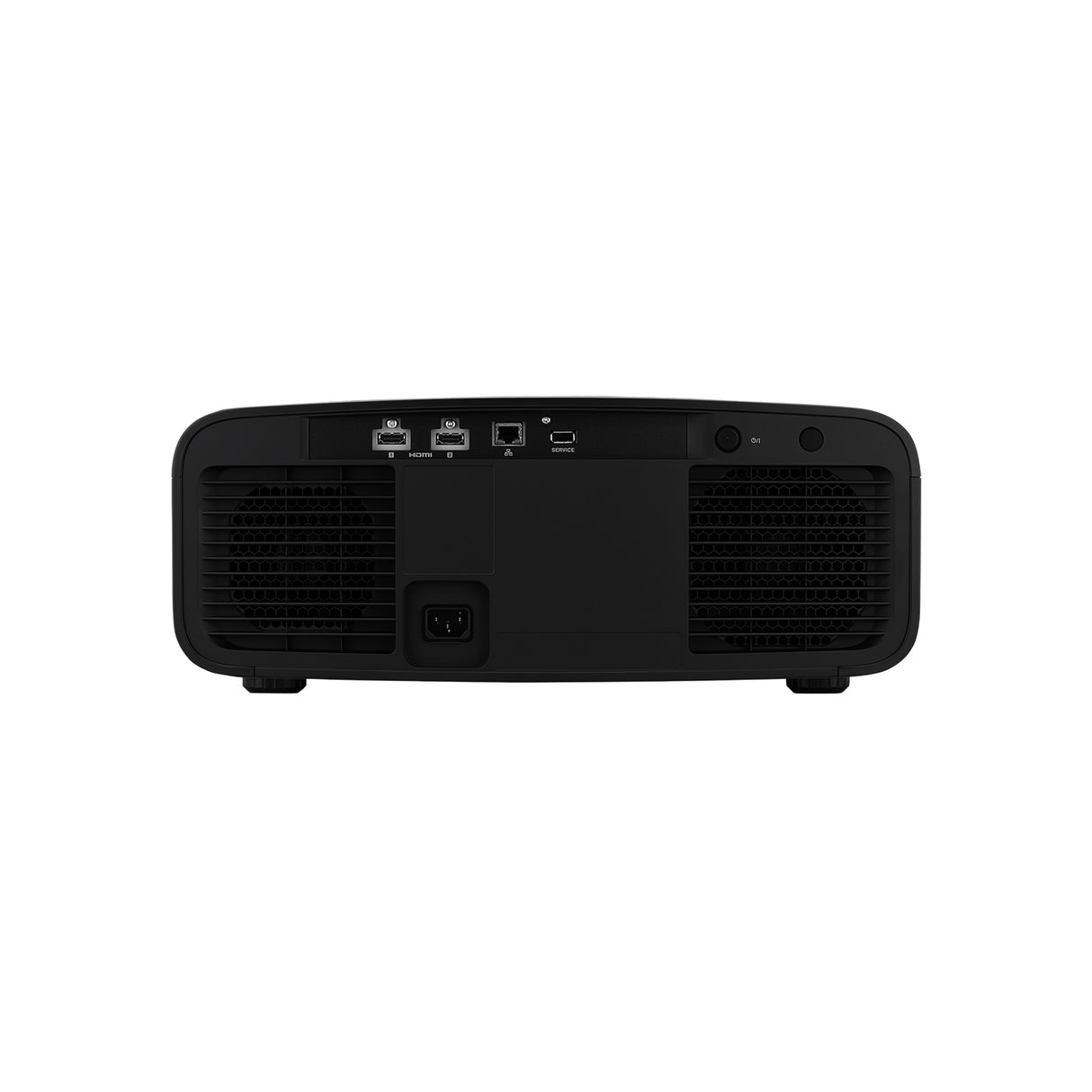

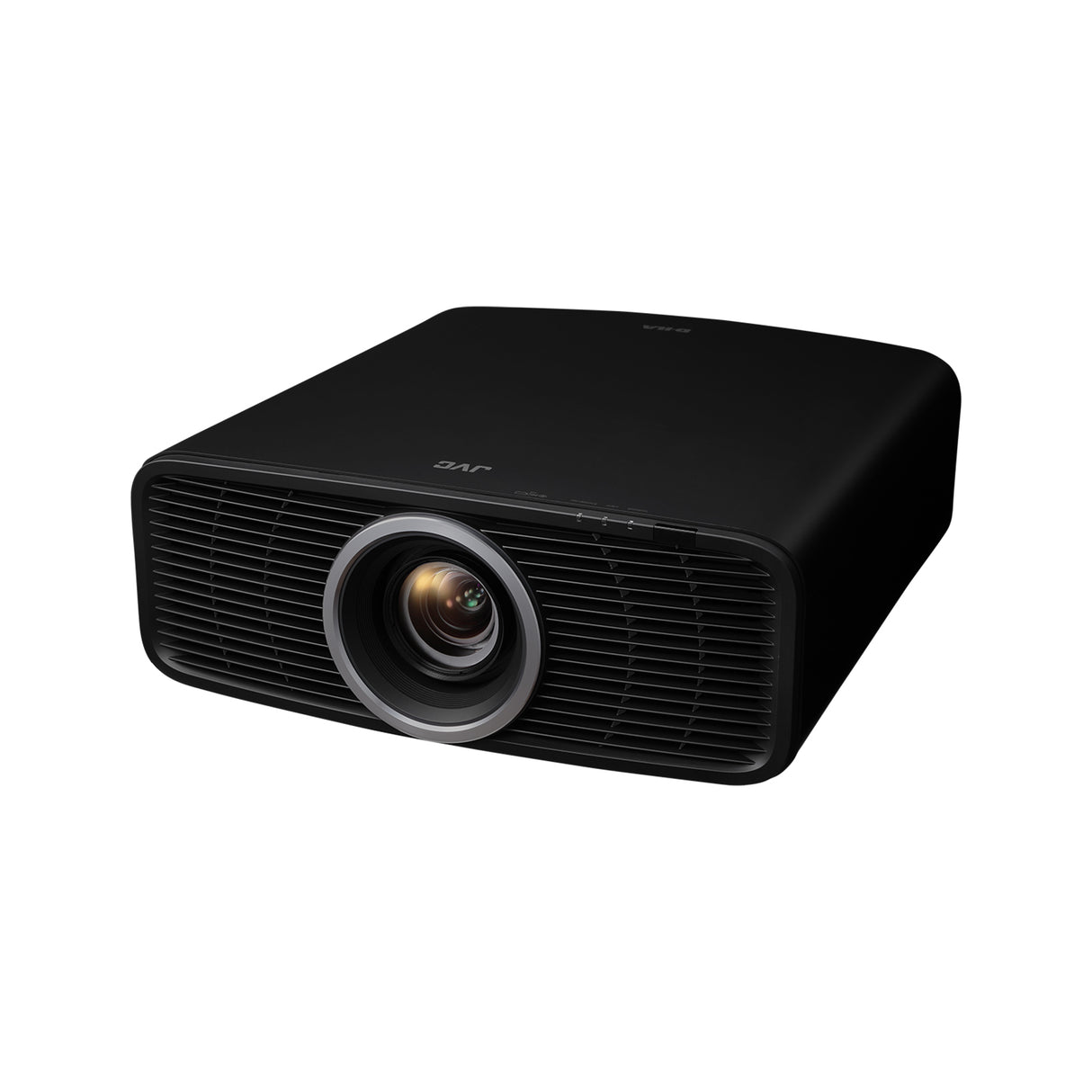

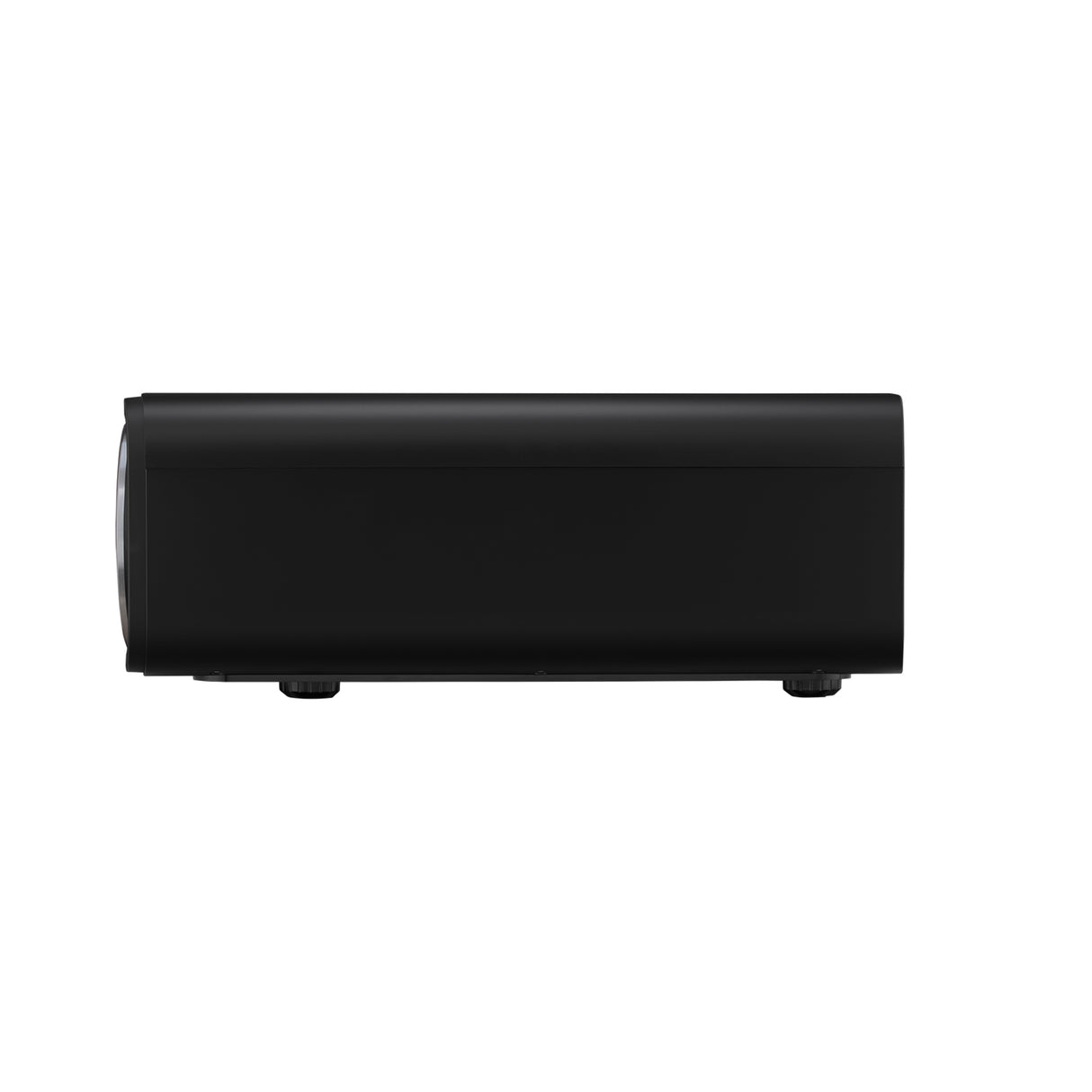

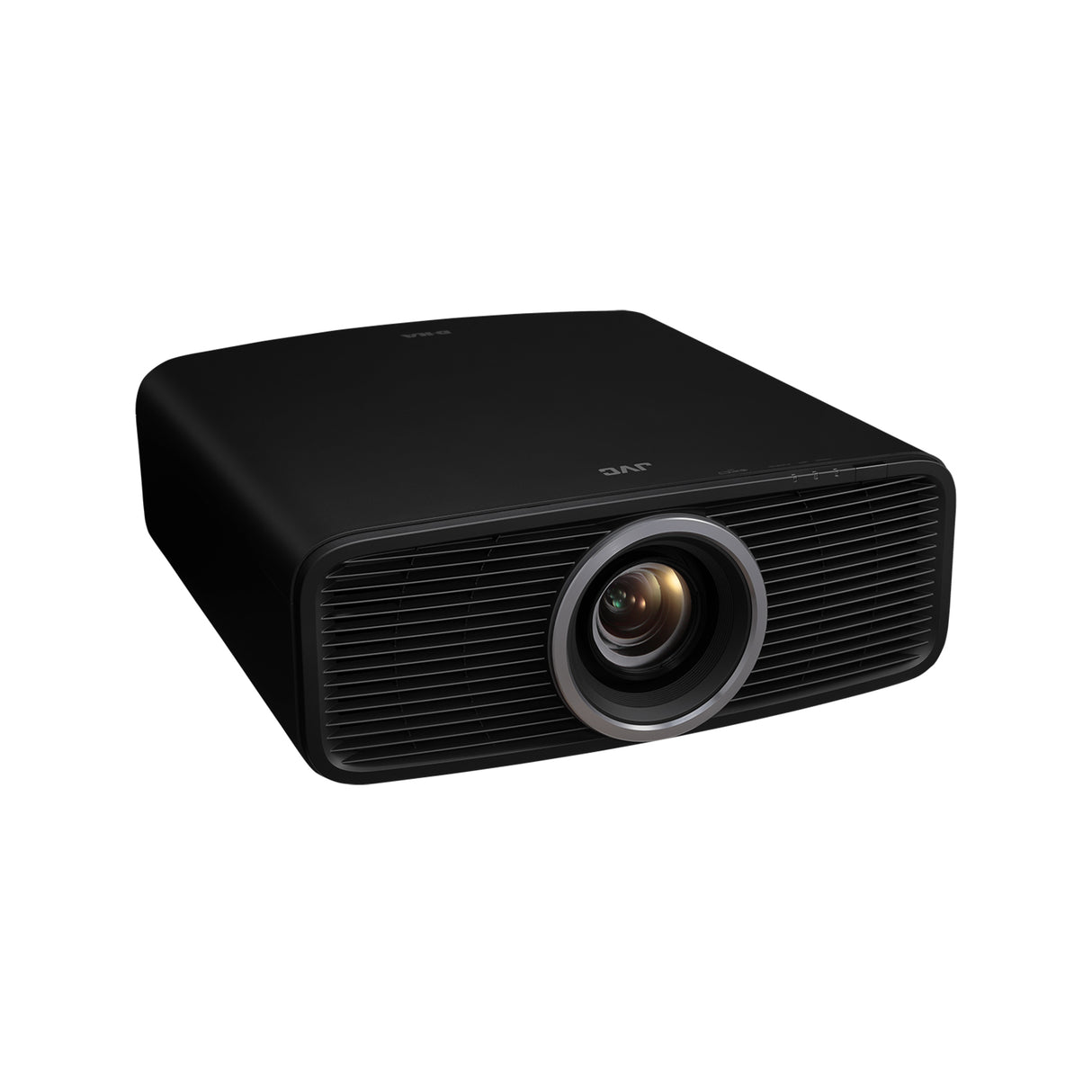

JVC DLA-NZ500 Blu-Escent Laser Projector , 2300 Lumes 80K:1 Native Contrast, 4K60P, 80mm 4K Lens, HDR10
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
JVC DLA-NZ500 Blu-Escent Laser Projector , 2300 Lumes 80K:1 Native Contrast, 4K60P, 80mm 4K Lens, HDR10 is backordered and will ship as soon as it is back in stock.
Description
Description
The JVC DLA-NZ500 is the world's smallest 4K D-ILA projector available today. The projector has been completely redesigned and includes a new casing, optical unit, lens system, and circuit boards. Using JVC's proprietary BLU-Escent Laser light source with 2,000 lumens and Native 4K D-ILA devices to display 4,096 x 2,160 pixel images and an 40,000:1 native contrast ratio. This projector features Gen2 Frame Adapt HDR to get the most out of HDR content, and Vivid mode to display SDR content such as animations to satisfy a variety of users.
- Infinite Black dynamic contrast
- 101 step laser light control by slider adjustment
- 80mm fully motorized 4K lens with 70% vertical and 28% horizontal shift ranges
- High-contrast Optical Block
- Two 32Gbps 4K/60p HDMI/HDCP 2.3 inputs
- Second-generation (Gen2) Frame Adapt HDR dynamic tone mapping
- DML (Display Mastering Luminance) adjusts/sets the dynamic range for a better HDR experience
- Picture mode "Vivid" for projecting animated works and game CGs in SDR format
- ISF Certified plus JVC Auto Calibration
specifications
|
Model
|
NZ500
|
|---|---|
|
D-ILA Technology
|
Yes
|
|
Chip Type
|
0.69-inch 4K D-ILA device
|
|
Native Resolution
|
4096 x 2160
|
|
Number Of Chips
|
3
|
|
Display Resolution
|
4096 x 2160
|
|
Laser
|
Yes
|
|
Type
|
BLU-Escent Laser Diode
|
|
Life Time (Standard Mode)
|
20000 hours
|
|
Brightness
|
2000 lm
|
|
Dynamic Contrast
|
∞ : 1
|
|
Native Contrast
|
40000 : 1
|
|
Dynamic Light Power control
|
Yes
|
|
Modes
|
Low,High,Balance,Off
|
|
Manual Aperture
|
Yes
|
|
Range
|
-15 (stops down) to 0 (opens up)
|
|
100% REC 709
|
Yes
|
|
Color Bit Depth
|
12 bit
|
|
ISFccc Certification
|
Yes
|
|
HDR10
|
Yes
|
|
HDR10+
|
Yes
|
|
Frame Adapt HDR
|
Yes
|
|
HLG
|
Yes
|
|
Mastering Info Display
|
Yes
|
|
Info data
|
MaxCLL, MaxFALL , DML
|
|
Deep Black Tone Control
|
Yes
|
|
Zoom
|
1.6 x
|
|
Throw Ratio
|
1.34 - 2.14 (16:9)
1.26 - 2.01 (17.9) |
|
Diameter
|
80 mm
|
|
Build
|
15-element, 11-group.
|
|
Lens Shift
|
Yes
|
|
Range Horizontal
|
± 28 %
|
|
Range Vertical
|
± 70 %
|
|
Motorized Zoom
|
Yes
|
|
Motorized Shift
|
Yes
|
|
Motorized Focus
|
Yes
|
|
Projection Display size (diagonal)
|
60 - 200 inch
|
|
Memory Function
|
Yes
|
|
Number of user presets
|
5
|
|
Lens Cover
|
Yes
|
|
HDMI
|
Yes
|
|
Number of Inputs
|
2
|
|
Data Rate
|
32 Gbps
|
|
HDCP Version
|
2.3
|
|
4K60P signal input
|
Yes
|
|
Video Signal range
|
480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
|
|
PC Signal range
|
640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
|
|
Input Level Adjustment
|
Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
|
|
Color Space Range
|
Auto/ YCbCr444 / YCbCr422 / RGB
|
|
EDID Modes
|
Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)
|
|
LAN
|
Yes
|
|
Connector
|
RJ45
|
|
Service
|
Yes
|
|
Connector
|
USB (Type A) for firmware update or backup
|
|
Picture Modes
|
Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
|
|
Color Temperatures
|
5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
|
|
Gamma Processing Depth
|
12 bit
|
|
Gamma Adjust
|
HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
|
|
Color Management
|
6-Axis adjustable CMS
|
|
MPC
|
Yes
|
|
Filmmaker Mode
|
Yes
|
|
Low Latency Mode
|
Yes
|
|
Auto Calibration
|
Yes
|
|
Installation Mode
|
Yes
|
|
Number of modes
|
5
|
|
Included settings
|
Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
|
|
Anamorphic Modes
|
4 Modes (A, B, C, D)
|
|
Control4 SDDP
|
Yes
|
|
Power Requirement
|
AC100-240V, 50/60Hz
|
|
Projector in Use
|
280W
|
|
Standby
|
Eco-mode: 0.3W
|
|
Network Standby
|
1.5W (LAN)
|
|
Eco Mode
|
Yes
|
|
Standby Timer
|
Yes
|
|
Operating Temperature
|
5°C to 35°C
|
|
Operating Humidity
|
20% to 80%
|
|
Installation Angle
|
Horizontal +/- 10 degree / Vertical +/- 10 degree
|
|
Installation Height
|
Below 2,000 m
|
|
Remote Control
|
Yes, RM-MH27
|
|
Quick Guide
|
Yes
|
|
Power Cord
|
Yes
|
|
Batteries
|
Yes, 2 x AAA-size batteries
|
|
Product Dimensions (WxHxD)
|
450 x 181 x 479 (mm)
|
|
Product Weight
|
14.6 Kg
|
|
Package Dimensions (WxHxD)
|
585 x 361 x 600 (mm)
|
|
Package Weight
|
18.9 Kg
|
