UNV  |  SKU: UVKIT-IP/02

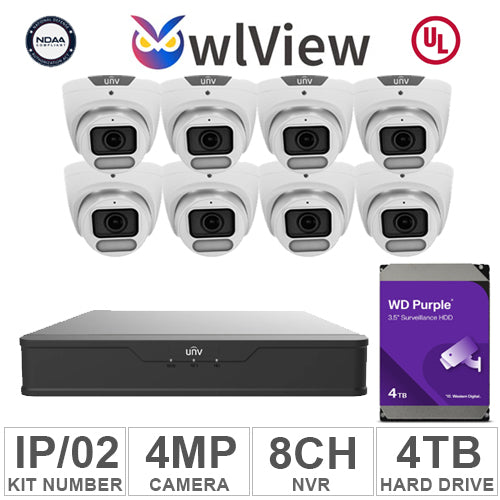

UNV KIT-IP/02 (8 IP Cameras 4MP + 1-WD/4-TB + 1-NVR/8-CH)

MPN: KIT-IP/02

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.


Description

  • 1-NVR 8 Channels: UVNVR501-08B-P8
  • 8-Cameras 4MP: UVIPC3624SR-ADF28KM-WP
  • 1-Hard Drive 4TB: WDHD4TBWDP

UVIPC3624SR-ADF28KM-WP

  • High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
  • 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Colorhunter with Wise ISP technology ensures 24 hour full color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built in Mic
  • White Light, up to 30m (98ft) warm light distance
  • Supports 256 GB Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3 Axis
UVNVR501-04B-P4
  • Support Ultra 265/H.265/H.264 video formats
  • 4/8‑channel input
  • Plug & Play with 4/8 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support HDMI and VGA simultaneous output
  • Up to 16 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
WDHD4TBWDP
Capacity
4 TB
Cache Memory Installed Size
64 MB
Disk Speed (RPM)
5,400 rpm
Hard Disk Form Factor
3.5 in
Hardware Connectivity
SATA 6.0 Gb/s
Dimensions (L x W x H)
5.79" x 4" x 1.03"
Compatibility
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
Item Weight
0.99 lb
