UNV  |  SKU: UVKIT-IP/05

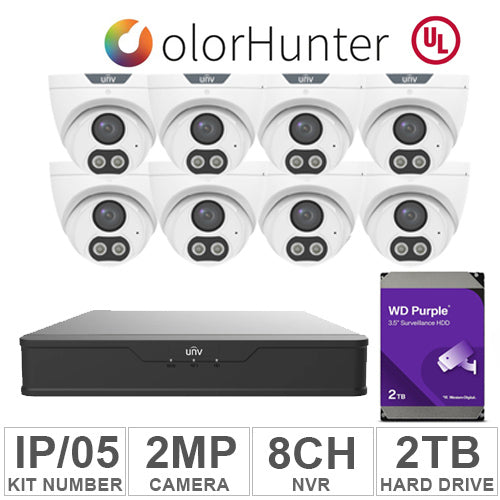

UNV KIT-IP/05 (8 IP Cameras 2MP + 1-WD/2-TB + 1-NVR/8-CH)

MPN: KIT-IP/05

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.


Description

  • 1-NVR 8 Channels: NVR301-8B-P8-IQ
  • 8-Cameras 2MP:  IPC3612SR-ADF28KMC-DL-H
  • 1-Hard Drive 2TB: WDHD2TBWDP

IPC3612SR-ADF28KMC-DL-H

  • High quality image with 2MP, 1/3"CMOS sensor
  • 2MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic & Speaker
  • Smart IR, up to 30m (98ft) IR distance
  • White Light, up to 30m (98ft) white light distance
  • Supports 128 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis
UVNVR301-08B-P8-IQ
  • Support Ultra 265/H.265/H.264 video formats
  • 4/8/16 channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support HDMI and VGA simultaneous output
  • Up to 12 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
WDHD2TBWDP
Capacity
2 TB
Cache Memory Installed Size
64 MB
Disk Speed (RPM)
5,400 rpm
Hard Disk Form Factor
3.5 in
Hardware Connectivity
SATA 6.0 Gb/s
Dimensions (L x W x H)
5.79" x 4" x 1.03"
Compatibility
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
Item Weight
0.99 lb
