UNV | SKU:
UVKIT-TVI/06

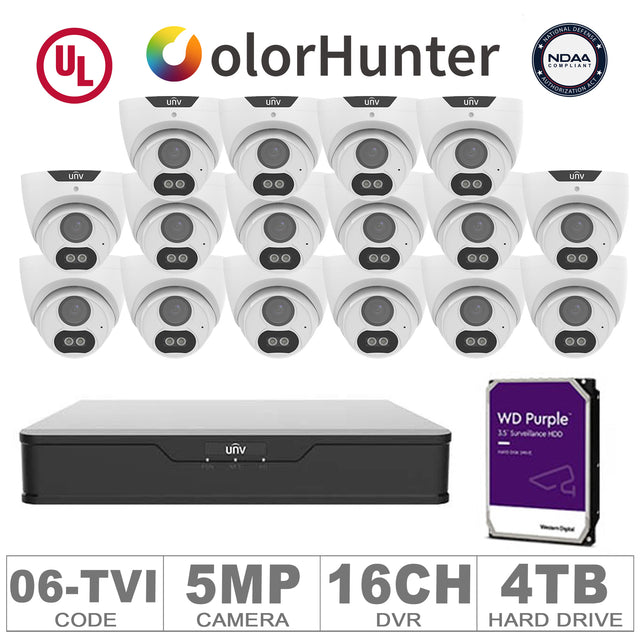

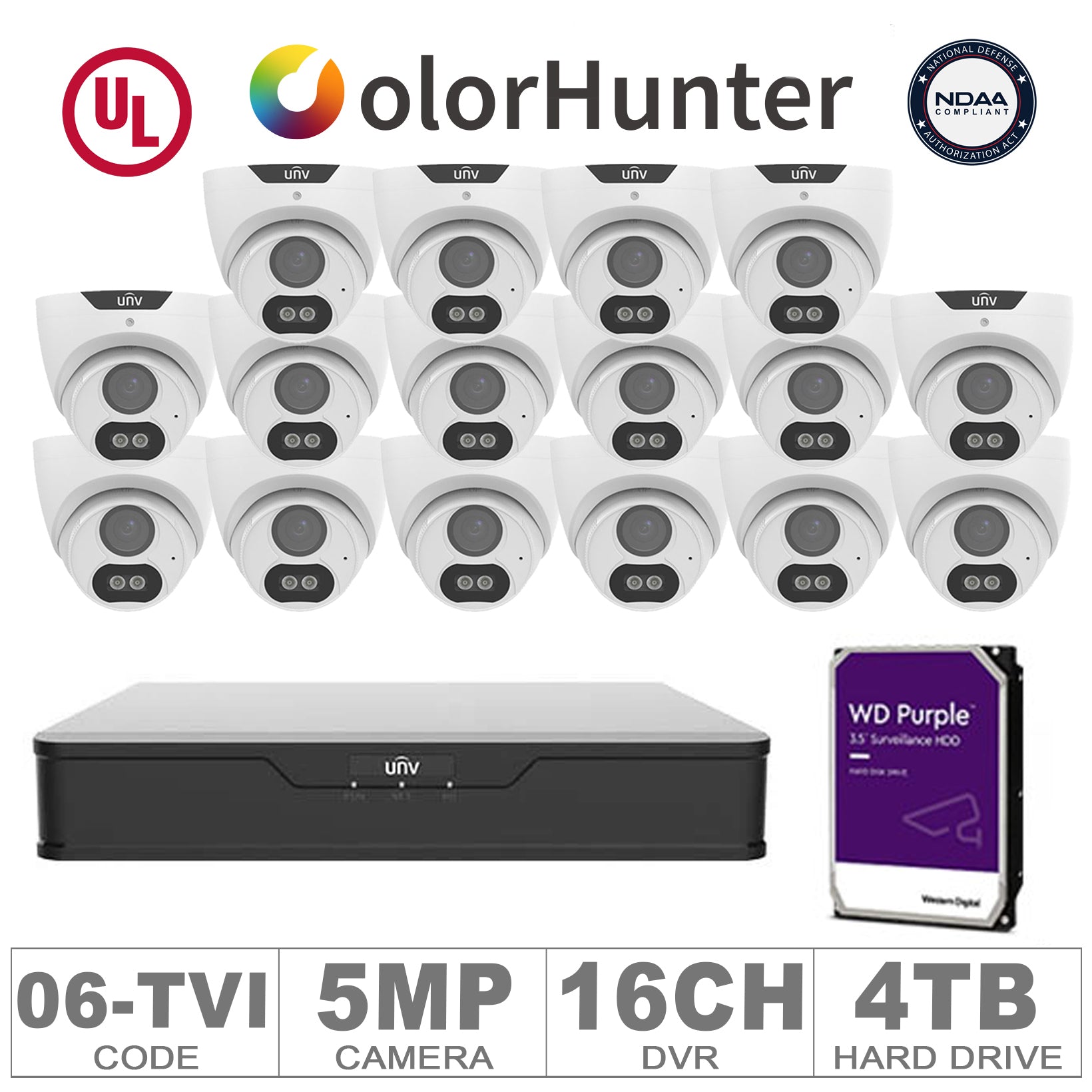

UNV KIT-TVI/06 (16 TVI Cameras 5MP + 1-WD/4-TB + 1-DVR/16-CH)
MPN: KIT-TVI/06
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV KIT-TVI/06 (16 TVI Cameras 5MP + 1-WD/4-TB + 1-DVR/16-CH) is backordered and will ship as soon as it is back in stock.
Description
Description
- 1-DVR 16 Channels: UVXVR302-16Q3
- 16-Cameras 5MP: UAC-T145-AF28M-DL
- 1-Hard Drive 4TB: WDHD2TBWDP
UVXVR302-16Q3
- Video Input: 16-channel BNC input + Up to 8 IP channels
- Resolution: Up to 5MP
- Video Output: 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 Long transmission distance over coaxial cable
- Support: TVI, AHD, CVI, CVBS,ONVIF and RTSP protocols, IP cameras with adaptive access
- Hard Drive: 1 SATA Up to 8TB each
- Audio: 1ch output, 1ch two way input , Over Coax
- App: Guard Viewer
- Warranty: 1 Year
UAC-T145-AF28M-DL
- High quality imaging with 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR cut filter with auto switch (ICR)
- Smart Dual Light
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built in microphone for high quality audio transmission via coaxial cables
WDHD4TBWDP
|
Capacity
|
4 TB
|
|---|---|
|
Cache Memory Installed Size
|
64 MB
|
|
Disk Speed (RPM)
|
5,400 rpm
|
|
Hard Disk Form Factor
|
3.5 in
|
|
Hardware Connectivity
|
SATA 6.0 Gb/s
|
|
Dimensions (L x W x H)
|
5.79" x 4" x 1.03"
|
|
Compatibility
|
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
|
|
Item Weight
|
0.99 lb
|
