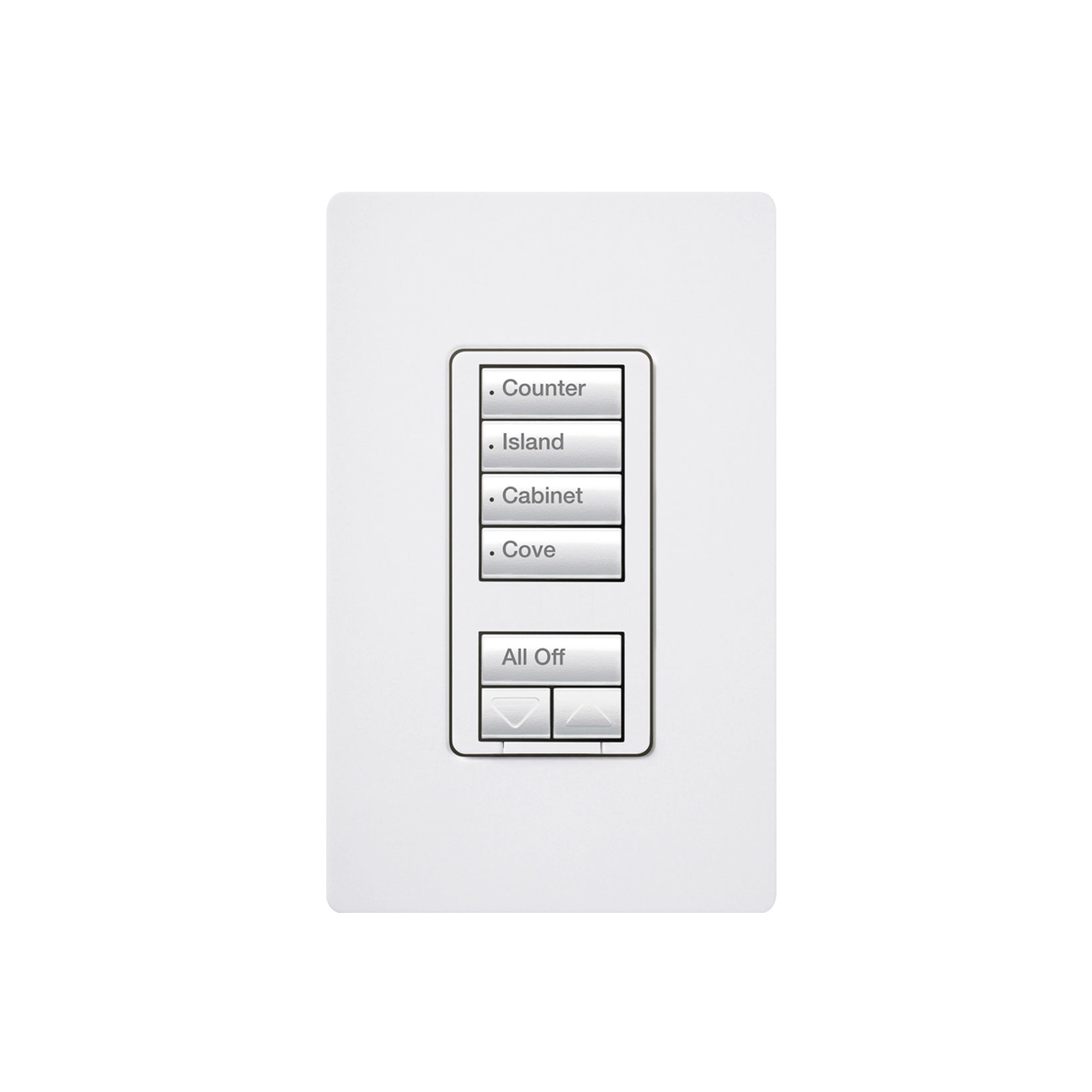

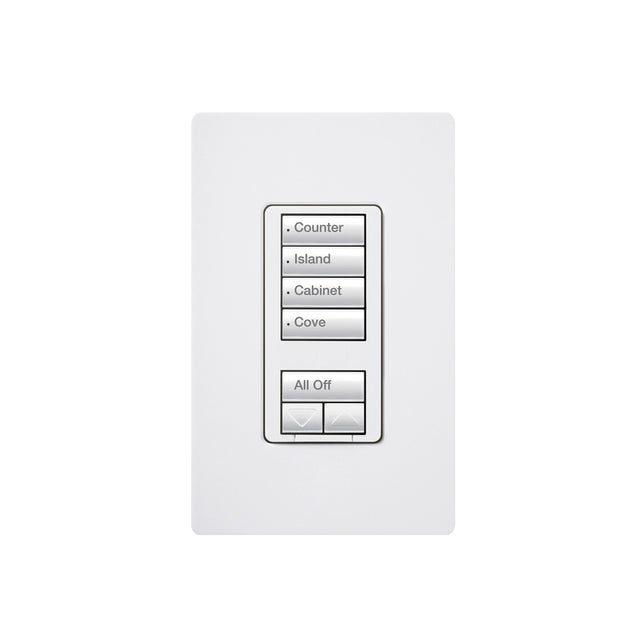

Lutron RRD-H4S-BL, RadioRA2, 4-Button Hybrid Keypad

by Lutron
SKU LURRD-H4S-BL
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Lutron RRD-H4S-XX Hybrid Keypad Lighting Control, 120 VAC at 50/60 Hz, 30 Ft Maximum Distance, 4-Button, Wall Mount - Gloss White

RadioRA 2 CL Hybrid Keypads function as a dimmer and keypad combined into a single device. CL Hybrid Keypads eliminate the need to install two separate devices. CL Hybrid Keypads are neutral-wire controls that can be used with small loads, such as screw-in CFL/LED lamps. Normal keypad operation will be available even if the attached load is not installed or the lamp is burned out.CL Hybrid Keypads can be controlled as part of a lighting control system and incorporate advanced features such as fade on/fade off and rapid full on. CL Hybrid Keypads feature la unique backlit engraving option that makes them readable any time of the day or night. CL Hybrid Keypads include a Front Accessible Service Switch (FASSTM) for safe lamp replacement.Use only Lutron Designer (Claro or Satin Colors) wallplates. The mechanical design of the keypad is compatible with Lutron wallplates ONLY and is NOT compatible with any other manufacturer’s wallplate. Wallplates are sold separately.CL Hybrid Keypads are designed for use with permanently installed incandescent, tungsten halogen, CFL/LED, magnetic low-voltage, or Lutron Hi-lume A-Series LTE LED drivers only

  • Hybrid keypads function as a dimmer and a keypad combined into a single device, to eliminate the need for extra wiring and construction
  • Keypads incorporate advanced features such as fade on/fade off and pre-selected scenes
  • Scenes can be fine-tuned by pressing and holding the raise/lower buttons to adjust L, A, backlit buttons
  • Available with neutral wire terminal that allows keypads to be installed in either two-wire or neutral wire installations
  • Type: Wall Mount, Raise/Lower
  • Number of Buttons: 4
  • Color: Gloss White
  • Inclusion: Front Accessible Service Switch, Prepaid Engraving
  • Load Type: Incandescent/Halogen/Magnetic Low Voltage
Length 2.9"
Width 2.9"
Height 4.6"
Weight 3.2 oz
Approval UL, CSA, NOM, FCC, IC, COFETEL
Voltage Rating 120 VAC at 50/60 Hz
Ambient Temperature 32 to 104 Deg F
Power Rating 450W
