Panamax MR5100, 11 Outlet Power Management, specifically designed and engineered to provide protection, filtration and power monitoring for your home theater system.

by Panamax
SKU PNMR5100
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

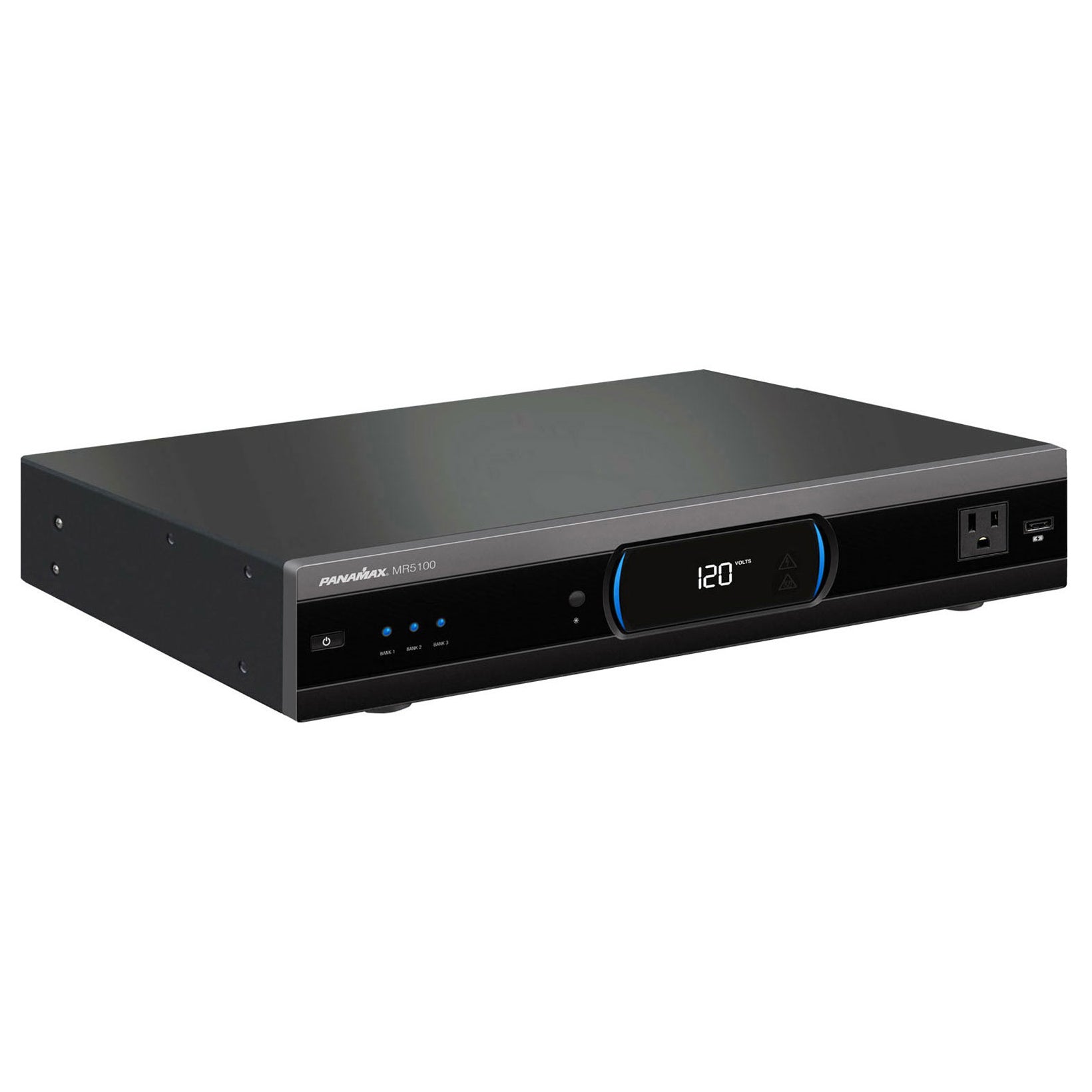

Panamax MR5100 Power Management

The Panamax MR5100 will protect even elaborate audio/video systems from damaging power spikes as well as current fluctuations that can compromise your system's performance over time. It can safeguard as many as eleven components, and it also provides a protected front-panel USB charging port for your smartphone, tablet or other portable device.

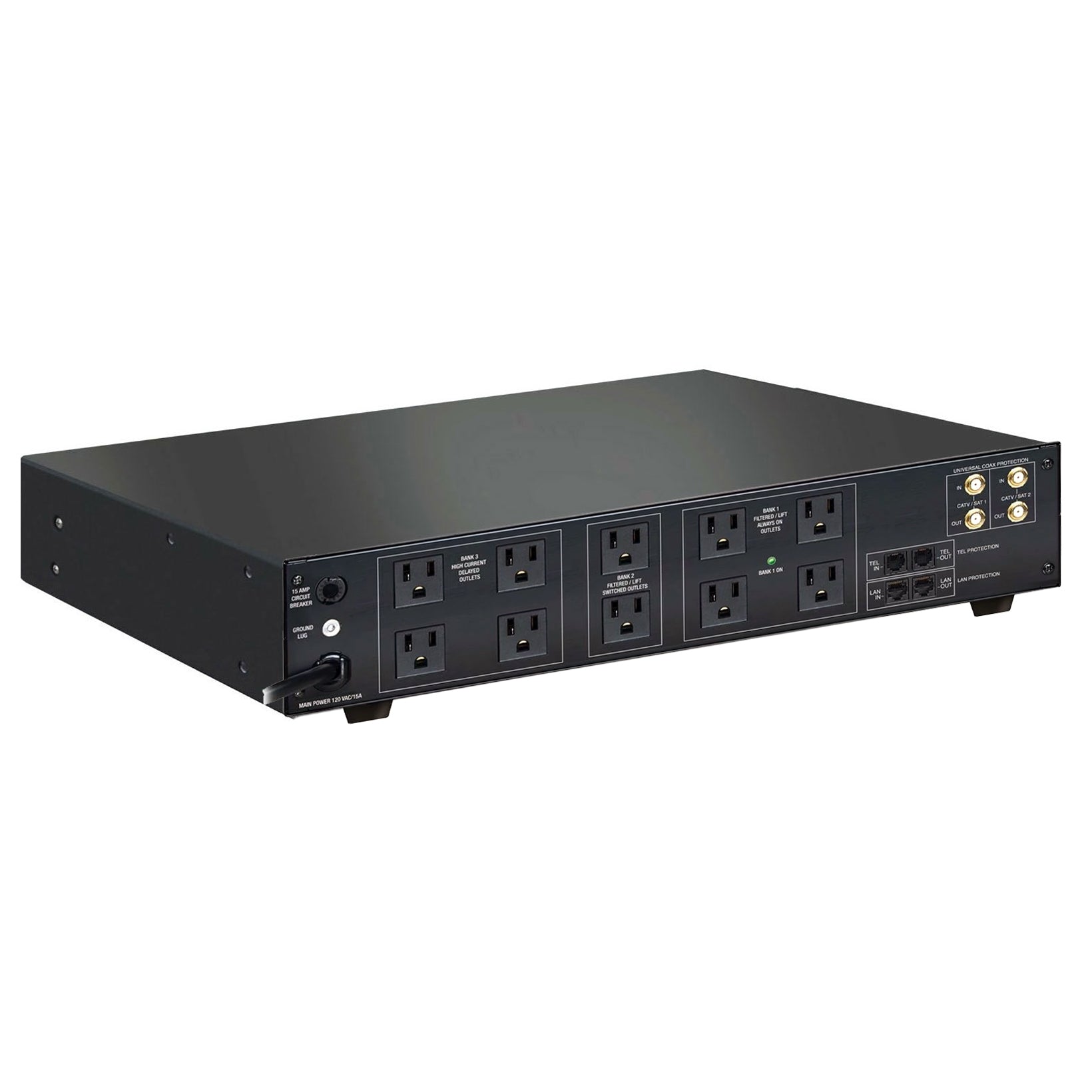

  • total of 11 surge-protected, noise-filtered AC outlets — 10 rear, 1 front:
    • one isolated bank of four always-on outlets with two-stage noise filtering
    • one isolated bank of four high-current outlets with delayed on/off
    • one isolated bank of two switched outlets
    • one front-panel always-on convenience outlet
  • front-panel USB charger port for Apple® and Android® smartphones, or other USB-equipped devices
  • Automatic Voltage Monitoring (AVM) technology continuously monitors incoming AC power to protect against over- and under-voltage situations
  • Protect or Disconnectâ„¢ technology disconnects AC power to equipment in the event of a catastrophic surge or spike
  • Linear Level 4 EMI/RFI noise filtration circuitry virtually eliminates line noise
  • two sets of in/out coaxial RF connections for cable/satellite/TV antenna
  • one set of in/out RJ-45 LAN connections
  • one set of in/out RJ-11 phone line connections
  • front-panel digital voltmeter
  • 2025-joule surge protection
  • maximum current rating: 15 amps
  • 8-ft. power cord with low-profile plug
  • includes rack-mount brackets
Total AC Outlets 11
High-Current Outlets 4
USB Connections 1
RF-EMI Filtering Yes
Joule Rating 2025
Powerline Network Compatible No
Connected Equipment Guarantee $5,000,000
Width (inches) 17-1/16
Height (inches) 3-13/16
Depth (inches) 14-1/6
Weight (pounds) 13.5
