Panamax VT1512-IP 12 Outlets Vertical strip style power distribution unit (PDU) / surge protector with local area network and BlueBOLT cloud control.

by Panamax
SKU PNVT1512-IP
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

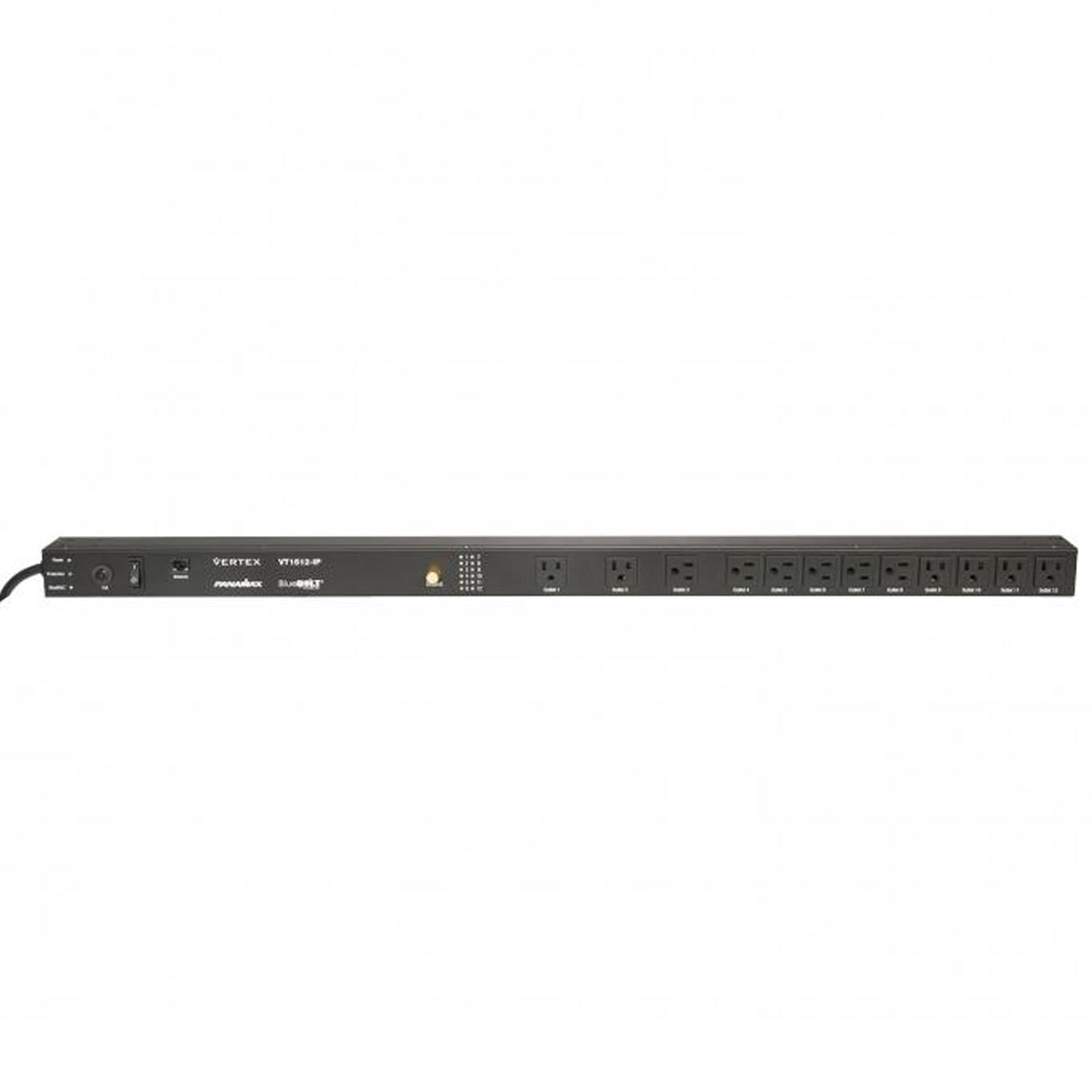

Panamax VT1512-IP

Vertical strip style power distribution unit (PDU) / surge protector with local area network and BlueBOLT cloud control

The VT1512-IP is a BlueBOLT enabled slim form factor vertical rack power conditioner and power sequencer. The VT1512-IP is a full featured power conditioner providing protection and filtration for maximum longevity and performance of connected equipment.

BlueBOLT enabled, the VT1512-IP allows remote reboot of 12 individually controlled outlets, as well as the ability to monitor energy use, set alerts, program scheduled commands, network pings with conditioner reboots.

For non-Cloud applications the VT1512-IP has an embedded webpage for control and programming, or you can use a LAN for secure control via an ELAN or other 3rd party control systems.

Panamax VT1512-IP Features at a Glance

  • Protect-or-Disconnect surge protection
  • Standard EMI/RFI Filtration
  • Over/Under voltage load disconnect
  • Power Sequencing
  • IP Monitor & Control - BlueBOLTâ„¢ enabled for IP control and monitoring
  • 12 individually controlled outlets, 3 spaced for wall-warts & 6 turned 90°
  • Ground lug to attach Panamax signal-line protection modules
  • Sleek design ideal for vertical mounting to an equipment rack with included brackets
  • 10 foot power cord with removable plug to customize length
  • 15A Capacity with circuit breaker
  • 3 year limited product warranty
  • $5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules.

AC Power: 120Vac, 50/60Hz
Total Outlets: 12
Total Current Capacity: 15A (1800W)
Voltage Protection Rating: (UL 1449 4th Edition, 3,000A)
L-N 500V, L-G 500V, N-G 500V
Protection Modes: L-N, L-G, N-G
Initial Clamping Level: 200V Peak, 141 RMS
Energy Dissipation: 200 Joules
Peak Impulse Current: 12,000
Protect-or-Disconnect: Yes
Thermal Fusing: Yes
Cord Length: Captive 10ft. cord with removable NEMA 5-15P for length customization
Temperature: 0 C -+ 40 degree C (+32 F -+ 104 degree F)
Operating Humidity: 0 - 90% non-condensing
Over-voltage load disconnect: 140 Vac
Under-voltage load disconnect: 85 Vac
Filtration Technology Standard: RFI/EMI Filtration
Filtration Rating: 18dB@100kHz ,53dB@1MHz, 18dB-53dB@100kHz-1MHz
