Lutron RRL-TLK-DL, Lutron Lumaris Tunable White Tape Light Starter Kit for RadioRA 3, Daylight White Temp Range
MPN: RRL-TLK-DL
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Lutron RRL-TLK-DL, Lutron Lumaris Tunable White Tape Light Starter Kit for RadioRA 3, Daylight White Temp Range is backordered and will ship as soon as it is back in stock.
Description
Description
lumSuited for popular tape lighting applications: undercabinet, cove, vanity, and more. Adjustable color temperature and intensity via keypad presets, automations and schedules, app, and voice.
"Day Mode" and "Night Mode" features provide for brighter and whiter light during the day, dimmer and warmer in the evening to enhance home ambience and homeowner comfort.
Features
The Lumaris tape light takes scene control to the next level, offering a simple and seamless way to add tunable white accent lighting to Lutron connected home projects. Built on the ultra-reliable Lutron Clear Connect–Type X wireless technology, the Lumaris tape light is a native component within the Lutron platform including controls, apps, programming software, and Lutron Connect cloud services.
A complete Lumaris tape light solution consists of fieldcut tunable white LED tape, a wireless controller with integrated LED drivers, high-reliability punch connectors, dedicated wiring, and a plug-in power supply. Aluminum mounting channel and lens for LED tape sold separately by others.
Lighting System
- Seamless integration with RadioRA 3
- User programmable intensity and color temperature presets
- Warm dim to mimic the dimming curve of an incandescent lamp
- Automatically changes color temperature based on time of day
- Manual adjustments via the app or integration
Wireless Controller (with plug-in power supply)
- 3 conductor cable - 10 ft (3 m)
- Continuous, flicker-free dimming from 100% down to 0.1% of measured light output 1
- 32 W rated load (16.4 ft [5 m] of LED tape)
- 50,000 hours rated lifetime 2
- Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Uses Clear Connect–Type X wireless communication
- Output short-circuit and overload-protection
- Low-profile, easy to hide
- Barrel connector for easy installation

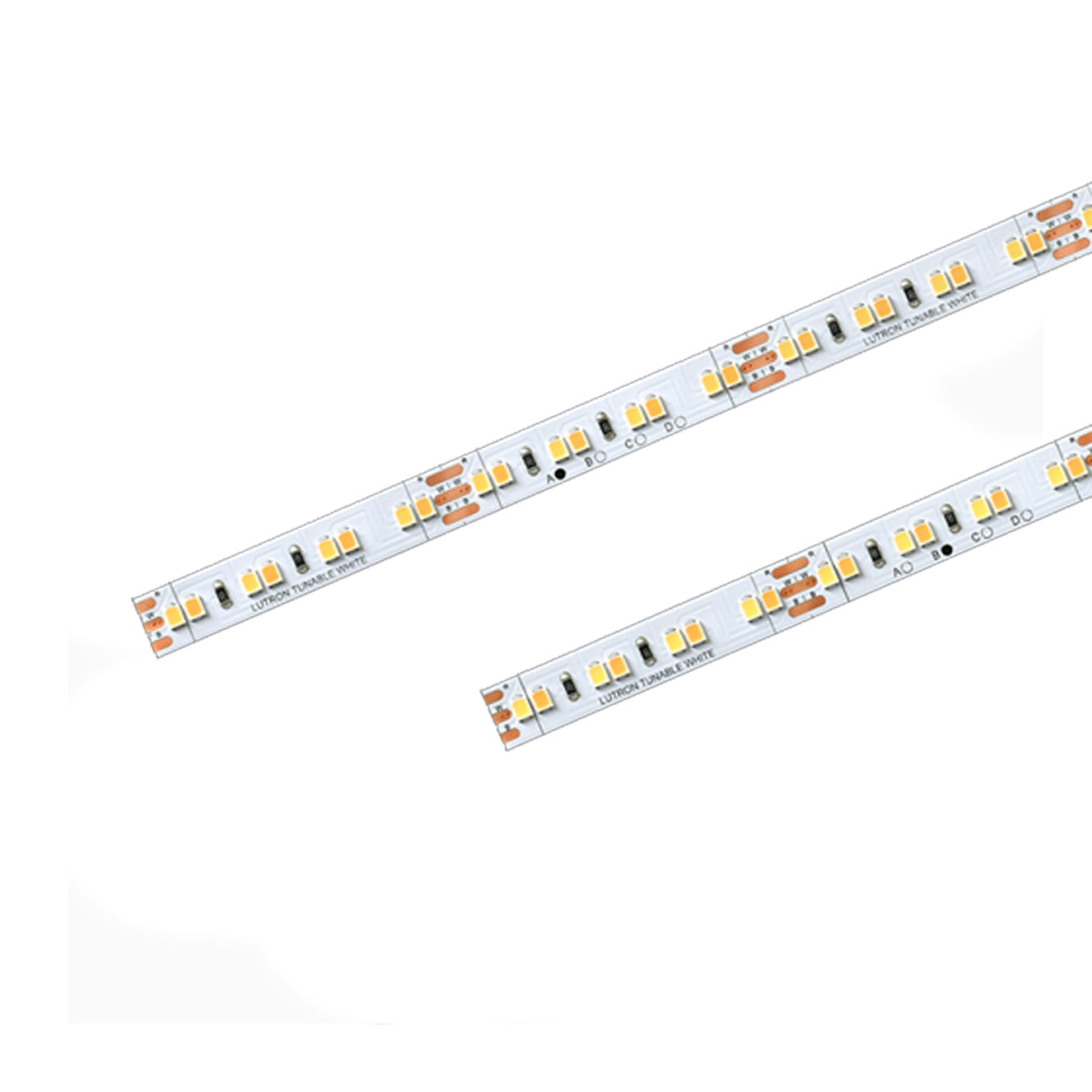

LED Tape
- 16.4 ft (5 m) reel
- 2-channel tunable white
- Daylight Color Temperature Range: 2500 K – 5000 K
- 3 step MacAdam ellipse (SDCM)
- Lumen output: 200 lumens per foot typical
- Luminous efficacy: 100 lumens per watt typical
- Power consumption: 1.8 W per foot typical
- Rated life: L70 – 50,000 hours
- 2 in (50.8 mm) cuttable segments
- Strong VHB adhesive
- Indoor damp/dry location rated
- Wardrobe closet rated
- Wire / tape connectors (Qty. 5)
