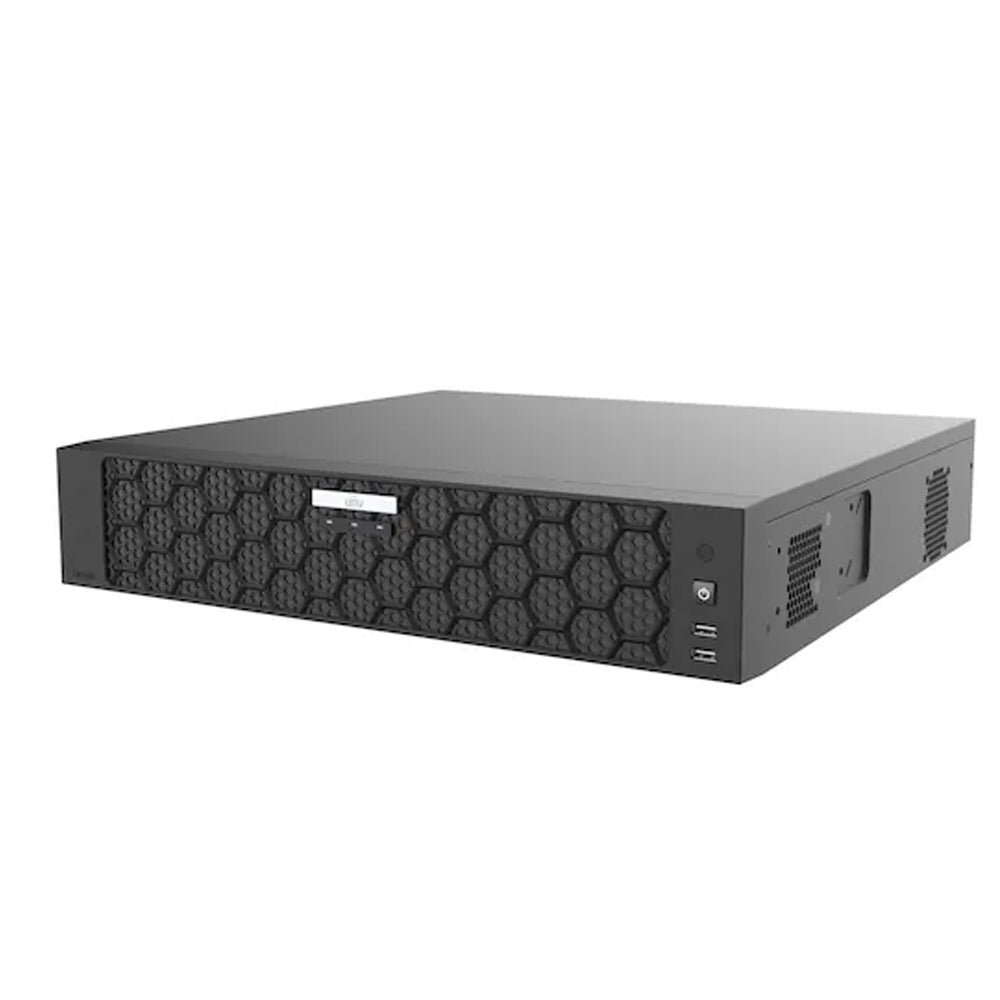

UNV NVR508-64B (64CH), 8-SATA Interface, 4K, Raid, UL Listed

Decoding

Description

DecodingFormat

Ultra 265, H.265, H.264

DecodingCapability

NVR508‑16B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 960P@30 NVR508‑32B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 32 x D1 NVR508‑64B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1

AudioCompression

G.711A, G.711U

Network

Description

IncomingBandwidth

320Mbps

OutgoingBandwidth

160Mbps

RemoteUsers

128

Protocols

TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; 802.1x; IPV6

Browser(Plugin)

Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)

Video/AudioInput

Description

IPVideoInput

NVR508‑16B:16‑ch NVR508‑32B:32‑ch NVR508‑64B:64‑ch

RCAAudioInput

1‑ch

Video/AudioOutput

Description

HDMIOutput

HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGAOutput

VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

RCAAudioOutput

1‑ch

LiveviewDisplay

NVR508‑16B:1/4/6/8/9/16 NVR508‑32B:1/4/6/8/9/16/25/36 NVR508‑64B:Simultaneous Output:
VGA:1/4/6/8/9/16/25/36/64,HDMI:1/4/6/8/9/16/25/36/64,
Independent Output:
VGA:1/4/6/8/9/16/25/32,HDMI: 1/4/6/8/9/16/25/32

CorridorModeScreen

NVR508‑16B:3/4/5/7/9/10/12/16 NVR508‑32B/NVR508‑64B:3/4/5/7/9/10/12/16/32

Two-wayAudio

Description

Two-wayAudio

1‑ch, RCA(Using the audio input and output)

Snapshot

Description

FTP/Schedule/EventSnapshot

4‑ch snapshot, up to D1 resolution

Recording

Description

RecordingResolution

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF

SynchronousPlaybackinLocal

16‑ch

Smart

Description

VCADetectionbyIPC

Face Detection; Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring

VCASearch

Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map

SmartbyIPC

All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

Alarm

Description

GeneralAlarm

Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection

AlertAlarm

IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal

GUILanguage

Description

GUILanguage

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

HardDisk

Description

SATA

8 SATA Interfaces

Capacity

Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)

DiskGroup

Support

RedundantStorage

Support

DiskArrayType

RAID 1, 5

ExternalInterface

Description

NetworkInterface

2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface

USB

Front panel: 2 x USB2.0; Rear panel: 1 x USB3.0

RS485

1

RS232

N/A

AlarmIn

16‑ch

AlarmOut

4‑ch

PowerSupply

AC 100 ～ 240 V

PowerSwitch

Support

WorkingEnvironment

Description

WorkingTemperature

‑10 °C ~ 55 °C (14 °F ~ 131 °F)

WorkingHumidity

≤ 90% RH (non‑condensing)

PowerConsumption(withoutHDD)

≤ 32W

Dimensions

Description

Weight(withoutHDD)

≤ 5.5Kg (12.13lb)

Dimensions

442mm × 426mm × 89mm (17.4"×16.8"×3.5")

Certification

Description

Certification

CE;FCC;UL;RoHS;WEEE

CE

EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035

FCC

Part15 Subpart B
