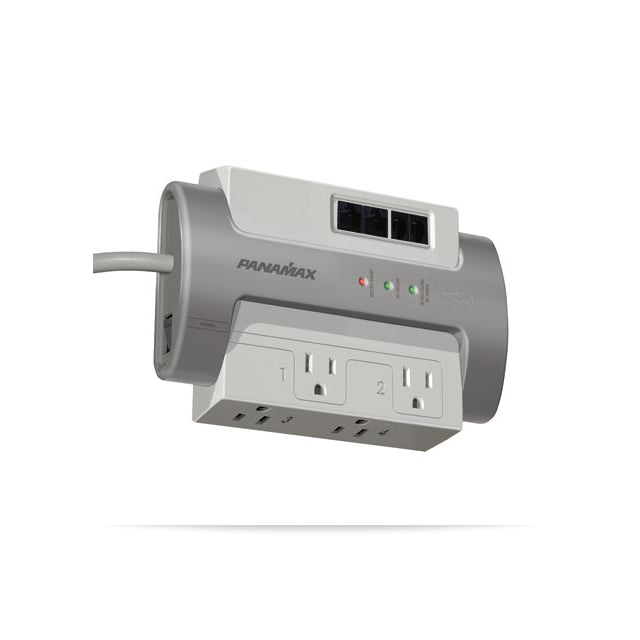

Panamax M4LT-EX, Max 4 Tel and Data

by Panamax
SKU PNM4LTEX
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Panamax Max 4 Tel and Data

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Exceeds UL Safety Standards
  • Solid-State Telephone Line Protection
  • Compatibility 10/100/1000 BASE-T (CAT 5e)
  • Includes DSL Phone Line Splitter
  • Four AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accomodate System Expansion
  • RJ-11 Phone line IN/OUT connectors.
  • RJ-45 CAT5e IN/OUT LAN connectors.
  • Power indicator LEDs.
  • Four (4) protected AC receptacles with tranformer spacing.
General
  • FamilyFloor Models
  • Line Voltage120 (Volts)
  • Number of Outlets4
  • Outlet DescriptionsAll 4 outlets filtered and surge protected
  • ControlOn/Off control to all outlets through power switch.
  • ComplianceUL 1449 3rd Edition, 3000A
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power Cord8 ft. captive cord
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    Automatic Voltage Monitoring
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage Shutoff90 VAC ± 6 VAC
  • Over-Voltage Shutoff144 VAC ± 8 VAC
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating50 dB @ 100 KHz - 1 MHz
  • Signal Line Protection1 LAN
    1 Tel
Shipping Info
  • Length9.9 (Inches)
  • Width2.1 (Inches)
  • Height10.3 (Inches)
  • Weight2.65 (Lbs)
