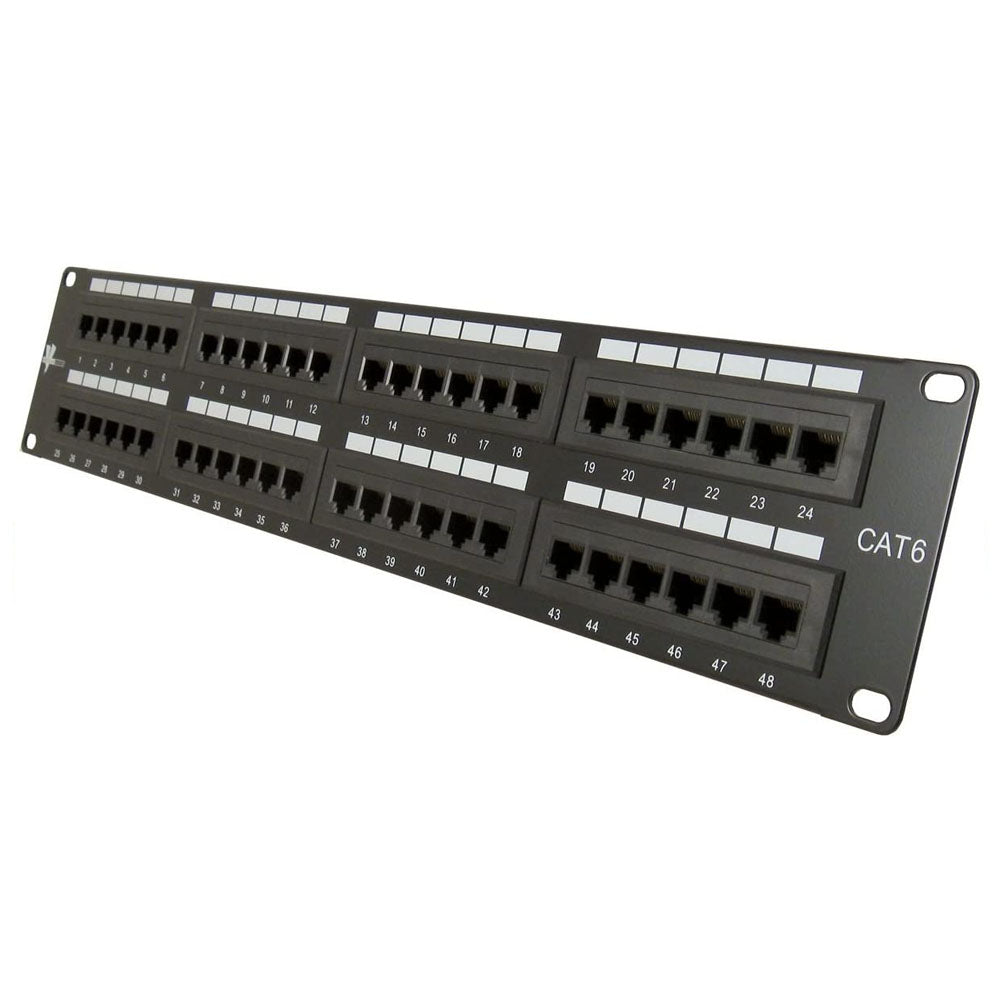

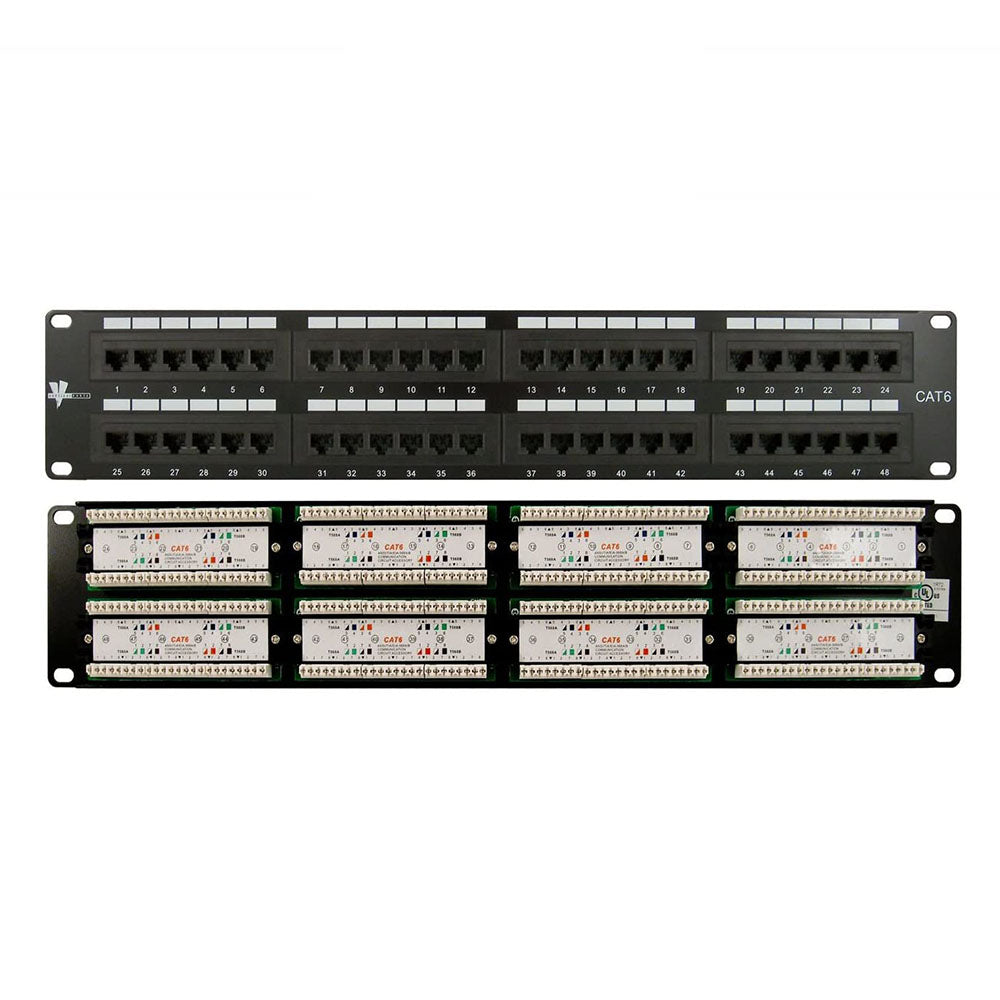

Vertical Cable (042-378/48), Patch Panel 2U, CAT6 48 Port (UL)

SKU VE48PORTCAT6PATCHPANEL2U(042-378/48)(UL)
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Flexible design (12&24 ports for 1U; 48 ports for 2U; 96 ports for 4U)
  • Made of sturdy, rolled-edge, anodized aluminum
  • Fully enclosed design for protection of printed circuitry during termination.
  • Color-coded for T568A and T568B wiring schemes.
  • Vertical Cable CAT5E &.6 panels are designed for maximum strength and are compatible with standard 110 or Krone Installation tools.
  • Our panels fit and install in standard 19 inch cabinets.
  • High-density 1U/2U/4U, 19, RMS (rack mount standard) design.
  • Meets EIA-310-D specifications.
  • Constructed from UL94-V-0 high-impact, fire-retardant ABS or PC material.
  • Pair punch sequence enables a pair twist within 1/2, of termination.
  • Beryllium copper contacts: 50,µ gold-plated pins over100,µ nickel layer.
  • Insertion life cycle: 750 cycles (minimum) / I.D.C. 250 cycles (minimum).
  • Operating temperature: -40ºC to +68ºC
  • FCC Part 68
  • 2xEIA Unit 19(W)x3.1/2(H)x1.1/4(D)
  • UL Listed, RoHS Compliant
