TRENDnet  |  SKU: TNTPE-TG160g

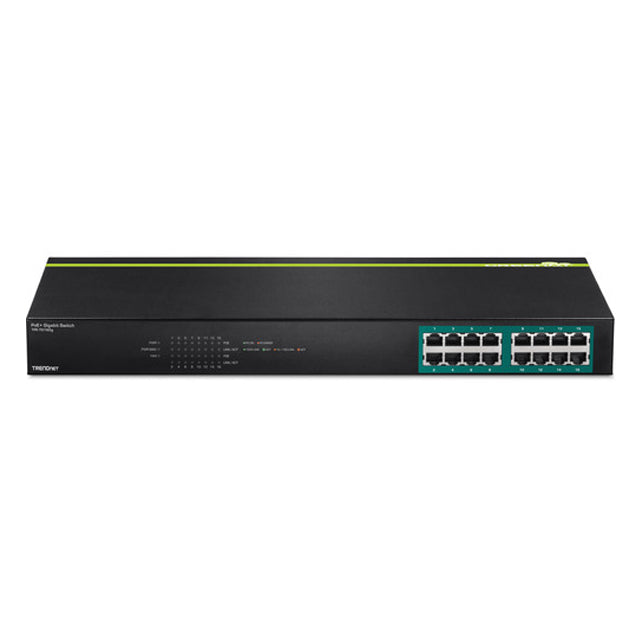

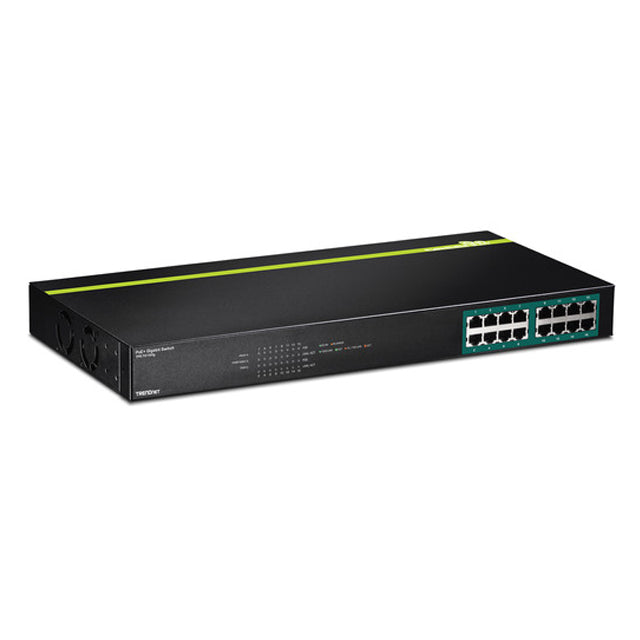

TRENDnet TPE-TG160g 16-port GREENnet Gigabit PoE+ Switch (250W)

MPN:

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

TRENDnet TPE-TG160g 16-port GREENnet Gigabit PoE+ Switch (250W) is backordered and will ship as soon as it is back in stock.

Description
  • 16 x Gigabit PoE+ ports
  • 246 W PoE budget
  • 32 Gbps switching capacity
  • Sturdy metal switch
  • Rack mount brackets included
  • Lifetime Warranty*
Overview

Ports

Eight gigabit PoE+ ports provide a 16Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB) for increased performance

Rack Mountable

Rack mountable metal enclosure with included mounting kit

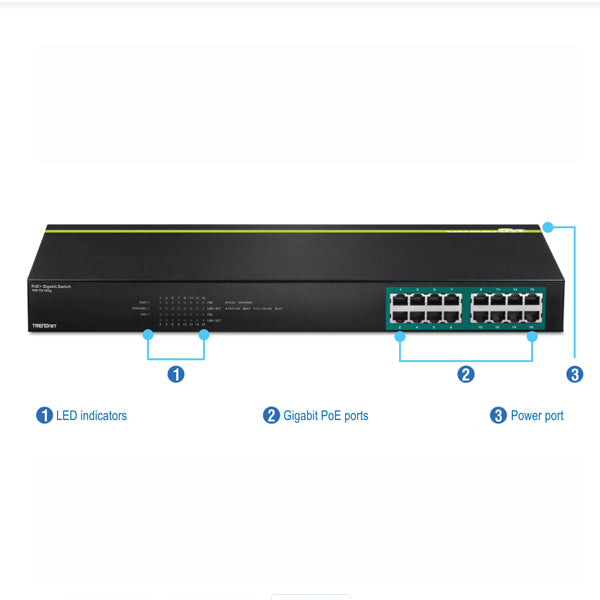

LED Indicators

The desktop PoE managed switch includes LED indicators that convey port status


Switching Capacity

48 Gbps switching capacity

Energy Savings

Embedded GREENnet technology reduces power consumption


PoE+

Supplies up to 30 Watts of power per port with a 246 Watt PoE budget
Feature

TRENDnet’s 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity, and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.

Specs
Standards
  • IEEE 802.1d
  • IEEE 802.1w
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 16 x Gigabit PoE/PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 512 KB
  • Switch Fabric: 32 Gbps
  • MAC Address Table: 8 K entries
  • Forwarding rate: 23.8 Mpps (64-byte packet size)
  • Jumbo Frame: 10 KB
Management
  • HTTP Web based GUI
  • Backup/Restore configuration
  • Upgrade firmware
  • 802.3ad Dynamic LACP
Spanning Tree
  • IEEE 802.1d STP (spanning tree protocol)
  • IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation
  • Static link aggregation (up to 2 groups)
Quality of Service (QoS)
  • Port-based QoS
  • 802.1p Class of Service (CoS)
  • Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
  • Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Up to 32 VLAN groups, ID Range 1-4094
  • Private VLAN
  • Asymmetric VLAN
  • Voice VLAN (5 user defined OUIs)
Multicast
  • IGMP Snooping v1/2/3
  • Block unknown multicast source
  • Up to 32 multicast groups
Port Mirror
  • One to one
  • Many to one
Storm Control
  • Broadcast (Min. Limit: 8Kbps)
  • Multicast (Min. Limit: 8Kbps)
  • Loopback Detection
Special Features
  • PoE+ support
  • Enable/disable 802.3az Power Saving
  • Wall mountable

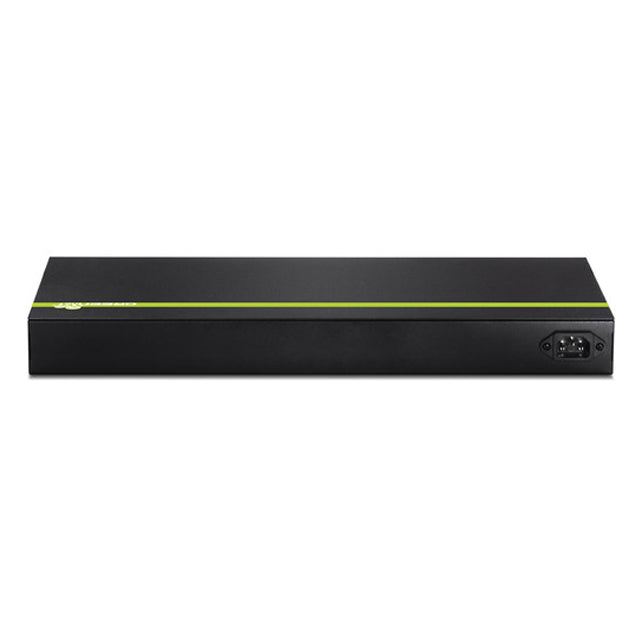

Power
  • Input: 100 – 240V AC, 50/60Hz, 1.2A
  • Output: 54V DC, 1.67A external power adapter
  • Max. consumption: 68.6W
PoE
  • PoE budget: 246 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
  • Over current protection
  • Short circuit protection
Fan / Acoustics
  • Fanless design
MTBF
  • 195,809 hours
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 210 x 44 mm (17.3 x 8.3 x 1.7 in.)
Weight
  • 3 kg (6.8 lbs.)
Certifications
  • CE
  • FCC

Download Specs
