TRENDnet | SKU: TNTPE-TG82ES

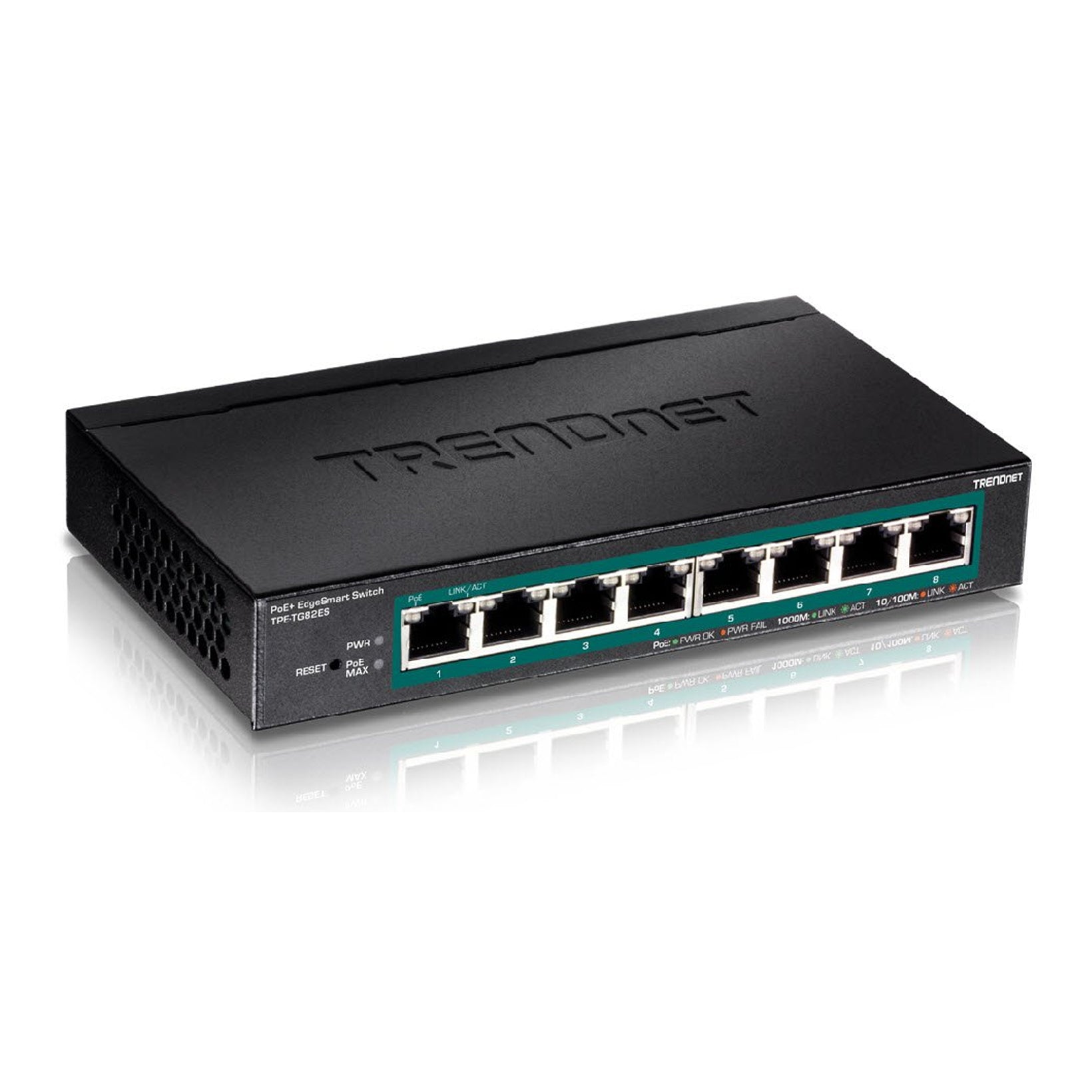

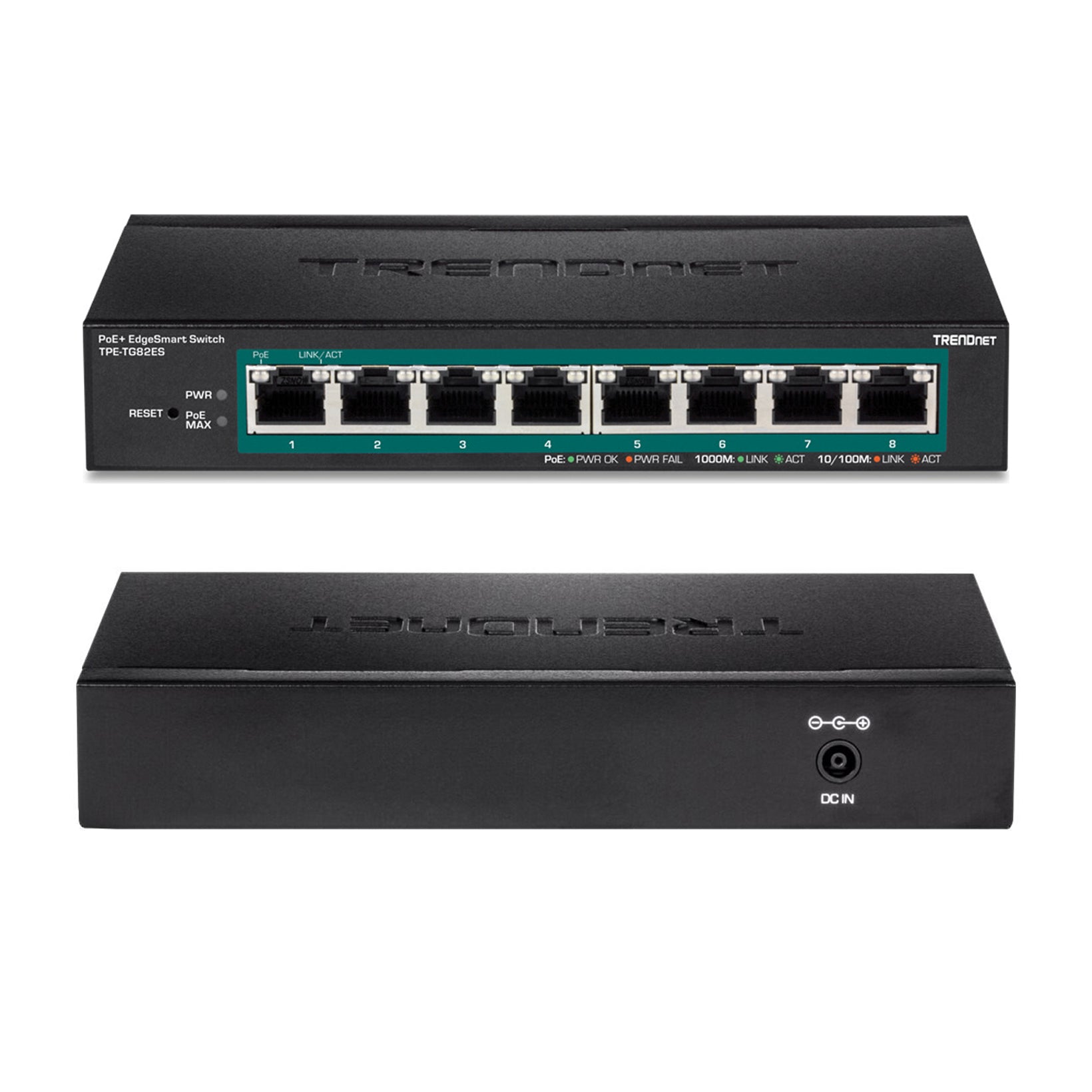

TRENDnet TPE-TG82ES 8-Port Gigabit EdgeSmart PoE+ Switch (61W)

Name: TRENDnet TPE-TG82ES 8-Port Gigabit EdgeSmart PoE+ Switch (61W)
Brand: TRENDnet
SKU: TNTPE-TG82ES
Availability: InStock

MPN:

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

TRENDnet TPE-TG82ES 8-Port Gigabit EdgeSmart PoE+ Switch (61W) is backordered and will ship as soon as it is back in stock.

Description

8 x Gigabit PoE+ ports
64W PoE power budget
Easy-to-use web-based management interface
Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
Voice VLAN for VoIP applications
Bandwidth control per port
16Gbps switching capacity
IEEE 802.1p CoS with queue scheduling support
Compact fanless design
Wall mountable metal housing
Lifetime Warranty*

Overview

	Ports Eight gigabit PoE+ ports provide a 16Gbps switching capacity
	Compact Design With a compact and lightweight metal housing design, this desktop PoE managed switch is also well-suited for wall mount installations
	Network Management The web-based management interface offers features for loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS
	Monitoring SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
	Troubleshooting Traffic statistics and a convenient cable diagnostic test
	Fanless Desktop PoE managed switch with fanless design is ideal for quiet environments that require silent operation
	LED Indicators The desktop PoE managed switch includes LED indicators that convey port status

Feature

ETHERNET PORT CONFIGURATION: 8 x Gigabit PoE+ ports.

EDGESMART NETWORK MANAGEMENT: Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment. The web-based management interface offers features for loop-back detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS

INTEGRATION FLEXIBILITY: Managed features include loop-back detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS for flexible network integration.

PoE+ POWER: A 64W PoE power budget supplies up to eight Power over Ethernet devices.

MONITORING SOLUTIONS: SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

COMPACT FANLESS DESIGN: With a fanless compact and lightweight metal housing design, this switch is well-suited for desktop and wall mount installations

TRENDnet LIFETIME PROTECTION: Lifetime TRENDnet Manufacturer Warranty

Specs

Standards	IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az
Device Interface	8 x Gigabit PoE+ ports LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 16Gbps RAM buffer: 192KB MAC Address Table: 4K entries Jumbo Frames: 9KB Forwarding rate: 11.9Mpps (64-byte packet size)
Management	HTTP Web based GUI SNMP v1, v2c Cable diagnostic test Backup/Restore Configuration Upload Firmware
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation	Static link aggregation (up to 2 groups)
Quality of Service (QoS)	Port-based QoS 802.1p Class of Service (CoS) Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN	Port-based VLAN 802.1Q Tagged VLAN Up to 32 VLAN groups, ID Range 1-4094 Private VLAN Asymmetric VLAN Voice VLAN (5 user defined OUIs)
Multicast	IGMP Snooping v1/2/3 Block unknown multicast source Up to 32 multicast groups
Port Mirror	One to one Many to one
Storm Control	Broadcast (Min. Limit: 8Kbps) Multicast (Min. Limit: 8Kbps) Loopback Detection
Special Features	PoE+ support Enable/disable 802.3az Power Saving Wall mountable
Power	Input: 100 â€“ 240V AC, 50/60Hz, 1.2A Output: 54V DC, 1.67A external power adapter Max. consumption: 68.6W
PoE	PoE budget: 64W 802.3at: Up to 30W per port PoE Mode A: Pins 1,2 for power and pins 3,6 for power PD auto classification Over current/short circuit protection
Fan / Acoustics	Fanless design
MTBF	730,455 hours
Operating Temperature	0Â° â€“ 40Â° C (32Â° â€“ 104Â° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	171 x 97.8 x 28.6mm (6.73 x 3.85 x 1.12 in.)
Weight	423g (14.92 oz.)
Certifications	CE FCC
