UNV | SKU:
UVNSW2100-9GT1GP-POE-IN

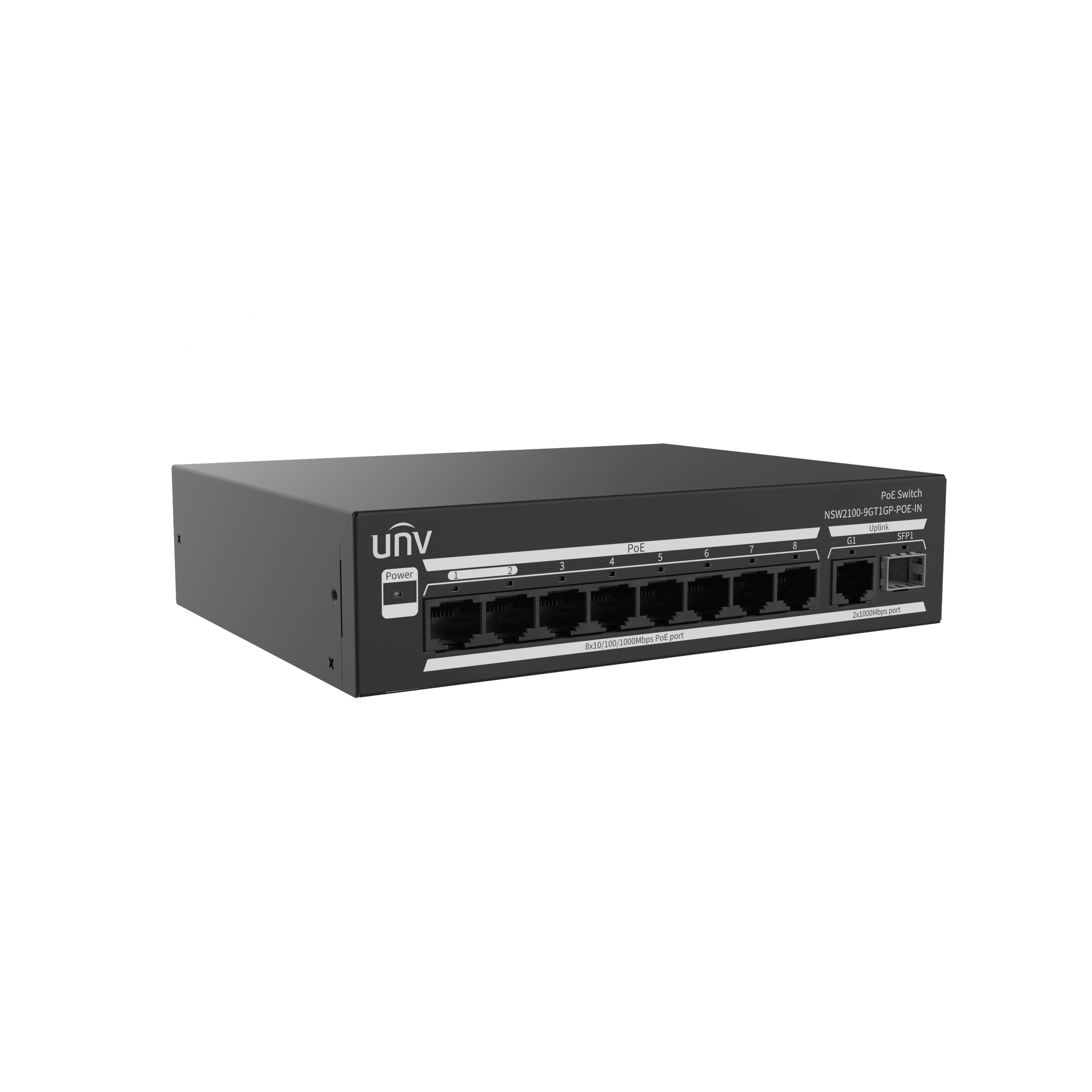

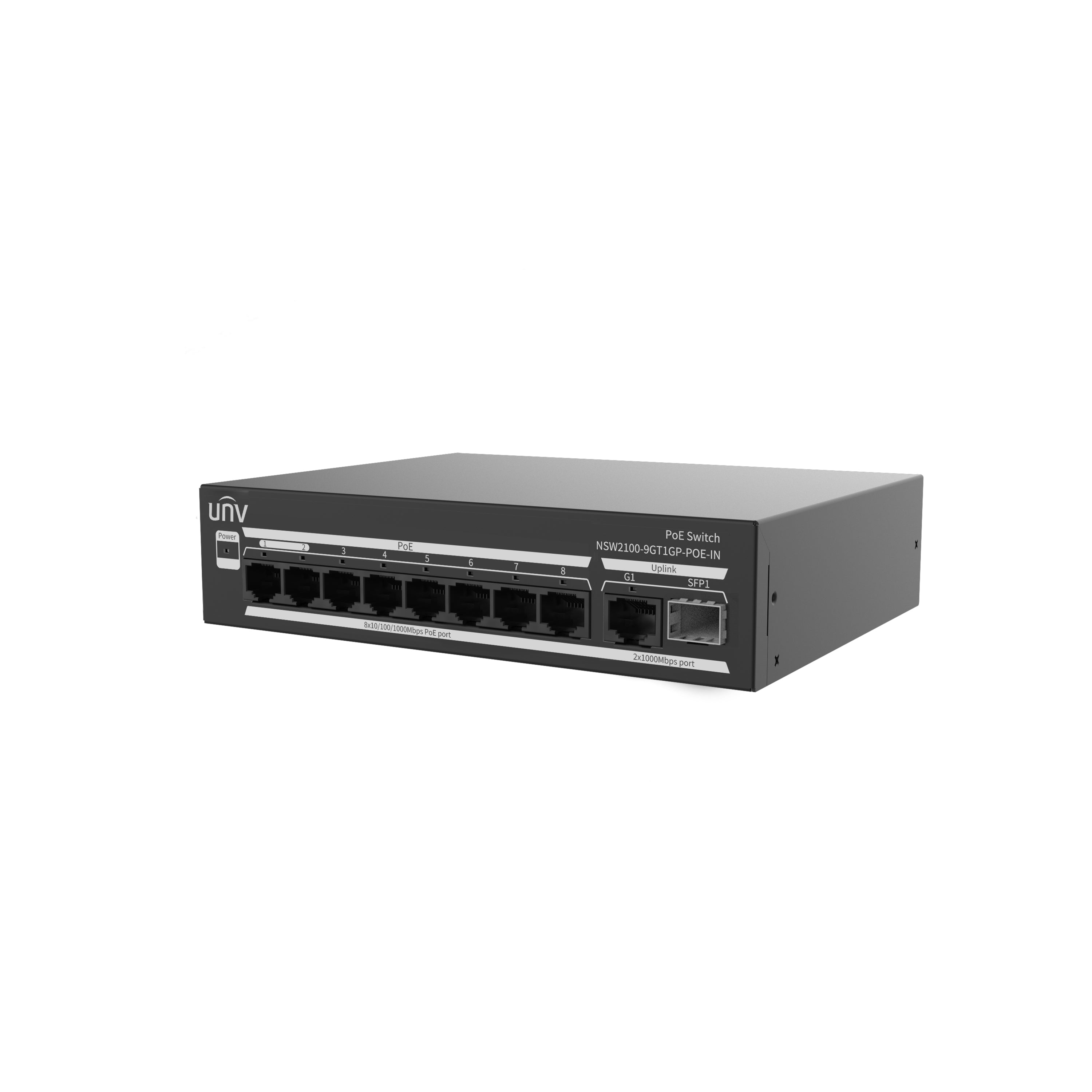

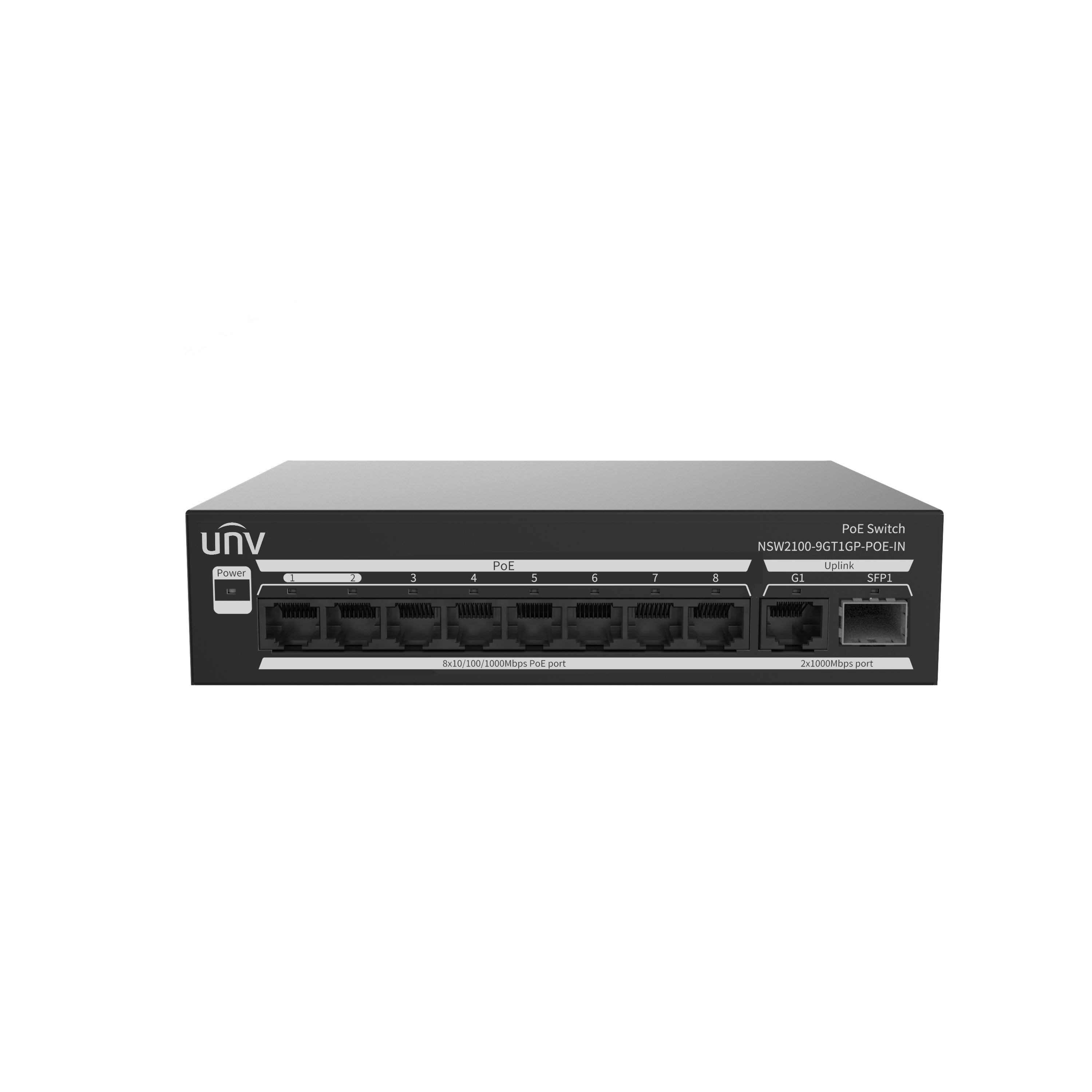

UNV NSW2100-9GT1GP-POE-IN, 8 Port POE Switch with Lite Cloud Management
MPN: NSW2100-9GT1GP-POE-IN
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV NSW2100-9GT1GP-POE-IN, 8 Port POE Switch with Lite Cloud Management is backordered and will ship as soon as it is back in stock.
Description
Description
NSW2100-9GT1GP-POE-IN Gigabits PoE Switch
• Supports Web login, and device configuration and management on the Web interface.
• Supports visiting the cloud by scanning the QR code. Allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply ; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
• Supports port priority. The priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.
• Supports visiting the cloud by scanning the QR code. Allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply ; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
• Supports port priority. The priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.
Specifications
Hardware Specification | ||||||||
Ports Type |
8x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP |
|||||||
Switching capacity |
20Gbps |
|||||||
Forwarding performance |
14.88Mpps |
|||||||
Packet Buffer |
4 M bit |
|||||||
MAC |
8K |
|||||||
Prior Ports |
1 to 2 |
|||||||
Dimensions (W×D×H) |
169*132*40mm |
|||||||
Power Supply |
AC: 100V to 240V, 50/60Hz |
|||||||
PoE Standard |
IEEE 802.3af, IEEE 802.3 at |
|||||||
PoE Mode |
ModeA (1236),ModeB (4578) |
|||||||
Max.PoE Power |
Max capacity: 120W Maximum PoE power for single port: 30W |
|||||||
Max.Power |
125W |
|||||||
Cooling Fans |
0 |
|||||||
Weight |
0.85KG |
|||||||
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|||||||
Operating Humidity |
10% to 90% (noncondensing) |
|||||||
Indicator |
Power: Off: Abnormal power input. Green: Normal power input. Yellow: The total PoE power is higher than 85% of the total power of the device. Link/Act: Off: Disconnected to the port On: Connected to the port. Blinking: Transmitting data. |
|||||||
Software Specification | ||||||||
Ethernet |
Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port flow statistics Supports four link aggregation groups (up to eight ports). |
|||||||
VLAN |
allows up to 10 VLANs with IDs from 1 to 4094 |
|||||||
MAC |
Support static MAC, up to 32. |
|||||||
POE |
Allows to view PoE status and enable/disable PoE power supply in the APP |
|||||||
Loop Detection |
Loop Detection |
|||||||
Security |
Supports port isolation |
|||||||
Maintenance |
Supports N:1 port mirroring. Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software. |
|||||||
System |
Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name. |
|||||||
