UNV | SKU:
UVNSW3000-16T1GT1GC-POE-IN

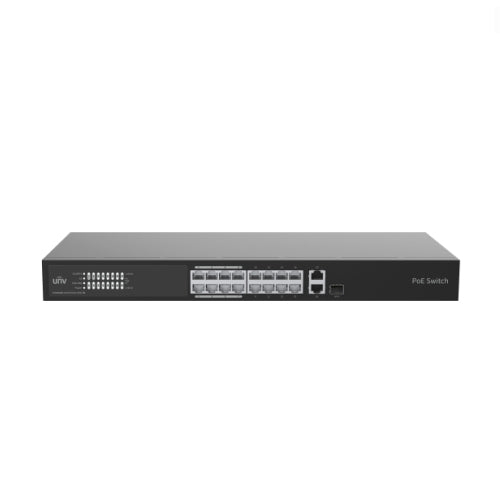

UNV NSW3000-16T1GT1GC-POE-IN,16 Port 250W Cloud Managed Ethernet PoE Switch 10/100
MPN: NSW3000-16T1GT1GC-POE-IN
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV NSW3000-16T1GT1GC-POE-IN,16 Port 250W Cloud Managed Ethernet PoE Switch 10/100 is backordered and will ship as soon as it is back in stock.
Description
Description
NSW3000 Series
Cloud Managed Ethernet PoE Switch
• Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
• Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code, and allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps full-duplex port rate.
• Allows to report port abnormal alarms to the software for realtime monitoring.
• Supports port priority. The packets received by the priority port will be forwarded first and the priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.
• Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code, and allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps full-duplex port rate.
• Allows to report port abnormal alarms to the software for realtime monitoring.
• Supports port priority. The packets received by the priority port will be forwarded first and the priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.
Specifications
|
Item
|
NSW3000-16T1GT1GC-POE-IN
|
|
Service port
|
16 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45)+ 1 x Gigabit Combo
|
|
Switching capacity
|
7.2Gbps
|
|
Packet forwarding rate
|
5.36Mpps
|
|
Packet buffer
|
4Mbit
|
|
MAC
|
16K
|
|
Weight
|
2.1kg
|
|
Power supply
|
AC 100V to 240V, 50/60Hz
|
|
PoE standard
|
IEEE802.3af/at
|
|
PoE power
|
Maximum total power: 250W
Maximum PoE power for single port: 30W |
|
PoE power supply mode
|
Mode A, 1/2+, 3/6-
Mode B, 4/5+, 7/8- |
|
Priority ports
|
1 to 8
|
|
Priority QoS
|
Forwards the packets from the first eight priority ports in the event of data congestion
|
|
Fan
|
1
|
|
Dimensions (W×D×H)
|
440mm x 189.8mm x 44mm
|
|
Operating temperature
|
0°C to 40°C
|
|
Operating humidity
|
10% to 90% RH, noncondensing
|
|
Storage temperature
|
-40°C to 70°C
|
|
Storage humidity
|
5% to 90% RH, noncondensing
|
|
Indicator
|
Power:
Steady on: Normal power input Off: Abnormal power input |
|
PoE:
Off: The PoE port is not supplying power Steady on: The PoE port is supplying power normally |
|
|
Link/Act:
Off: Disconnected to the port On: Connected to the port Blinking: Transmitting data |
|
|
MAX:
Off: The total PoE power is less than 80% of the total power of the device Steady on: The total PoE power is higher than 85% of the total power of the device |
|
Service
|
NSW3000-16T1GT1GC-POE-IN
|
|
Ethernet
|
Supports full duplex, half duplex, and auto-negotiation working modes
|
|
Supports port auto-negotiation rate
|
|
|
Supports port priority flow control.
|
|
|
Supports a link aggregation group (consist of two uplink ports)
|
|
|
Supports port flow statistics
|
|
|
Supports enabling/disabling ports
|
|
|
System
|
Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.
|
|
Allows to edit and manage the IP address and device name
|
|
|
Supports single-user management, user authentication, and password modification
|
|
|
Supports manual time configuration and NTP
|
|
|
Allows to view other switches information on the same network, up to 32 switches
|
|
|
Allows to view the connected video devices information, up to 64 devices
|
|
|
VLAN
|
Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4095
|
|
MAC
|
Support (up to 16K)
|
|
Supports clearing the dynamic MAC address
|
|
|
Port loopback detection
|
Support
|
|
QoS
|
Supports port rate limitation
|
|
Supports broadcast storm control
|
|
|
PoE
|
Allows to view PoE status and power
|
|
Allows to enable/disable PoE power supply
|
|
|
Security
|
Supports port isolation (only for the downlink ports)
|
|
Supports locking login IP address, up to 64 addresses can be locked
|
|
|
Maintenance
|
Supports N:1 port mirroring
|
|
Supports unified software configuration, management, and search
|
|
|
Supports discovering the connected video devices and generating a network topology on the software.
|
|
|
Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.
|
