UNV  |  SKU: UVNSW3000-17GT1GP1GC-POE-IN

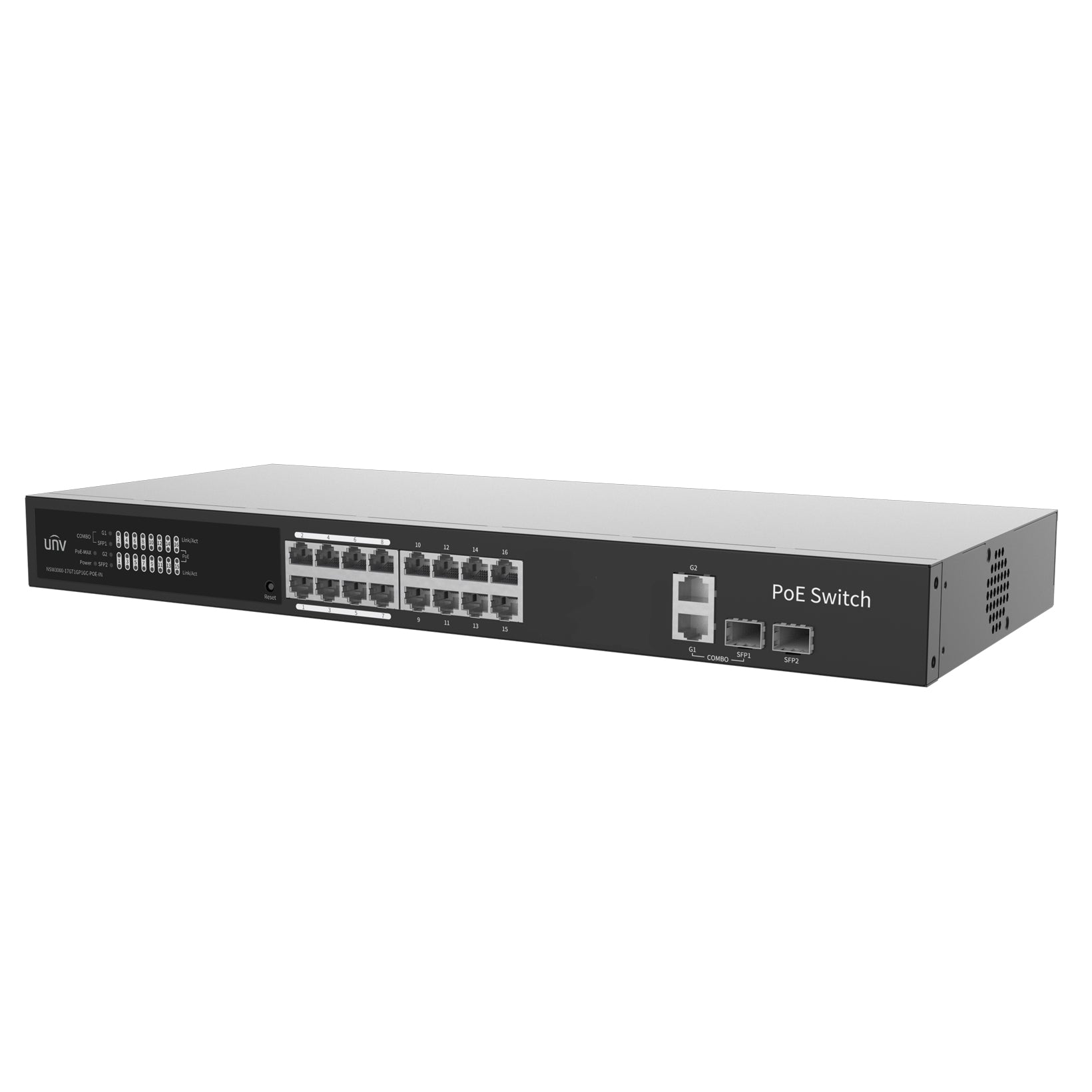

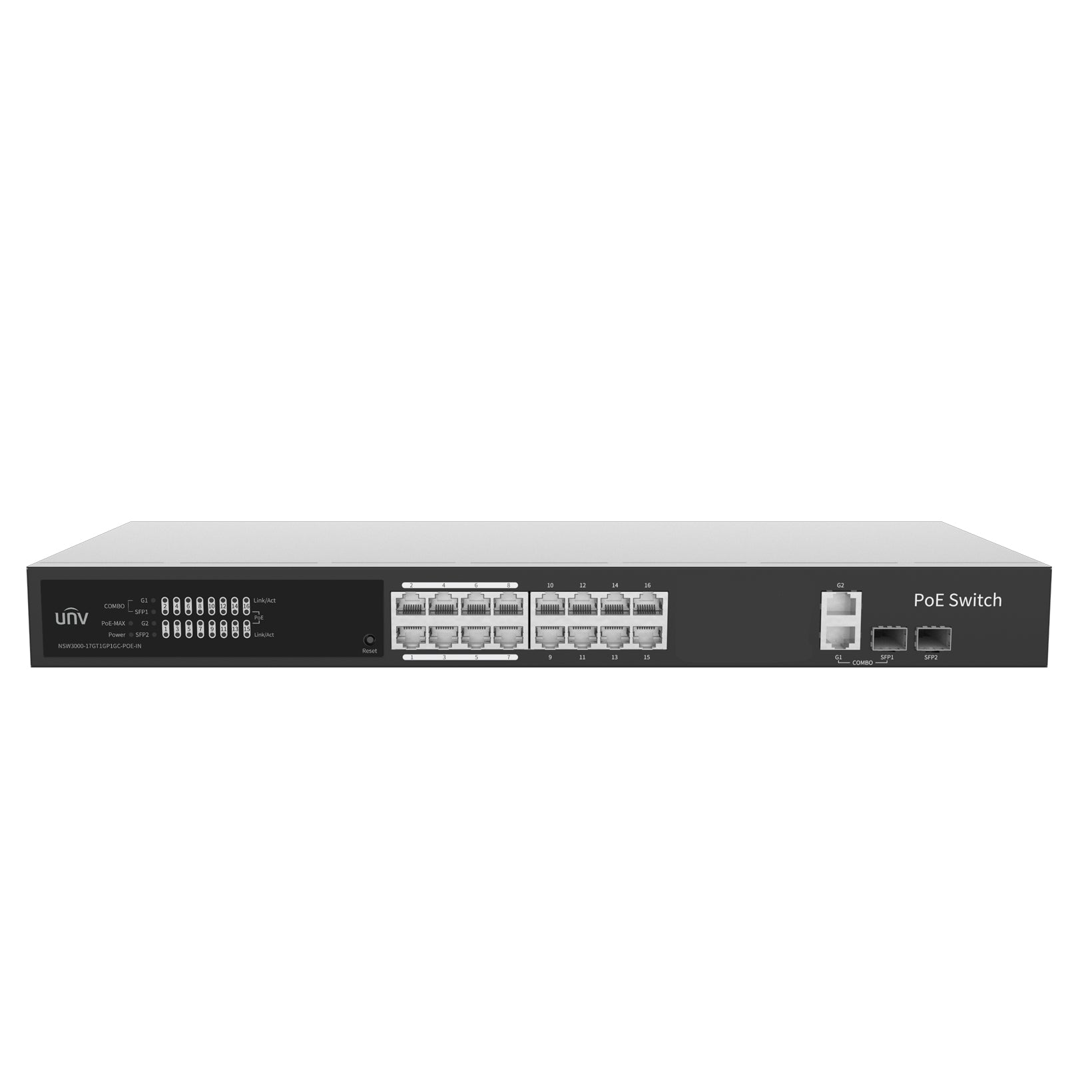

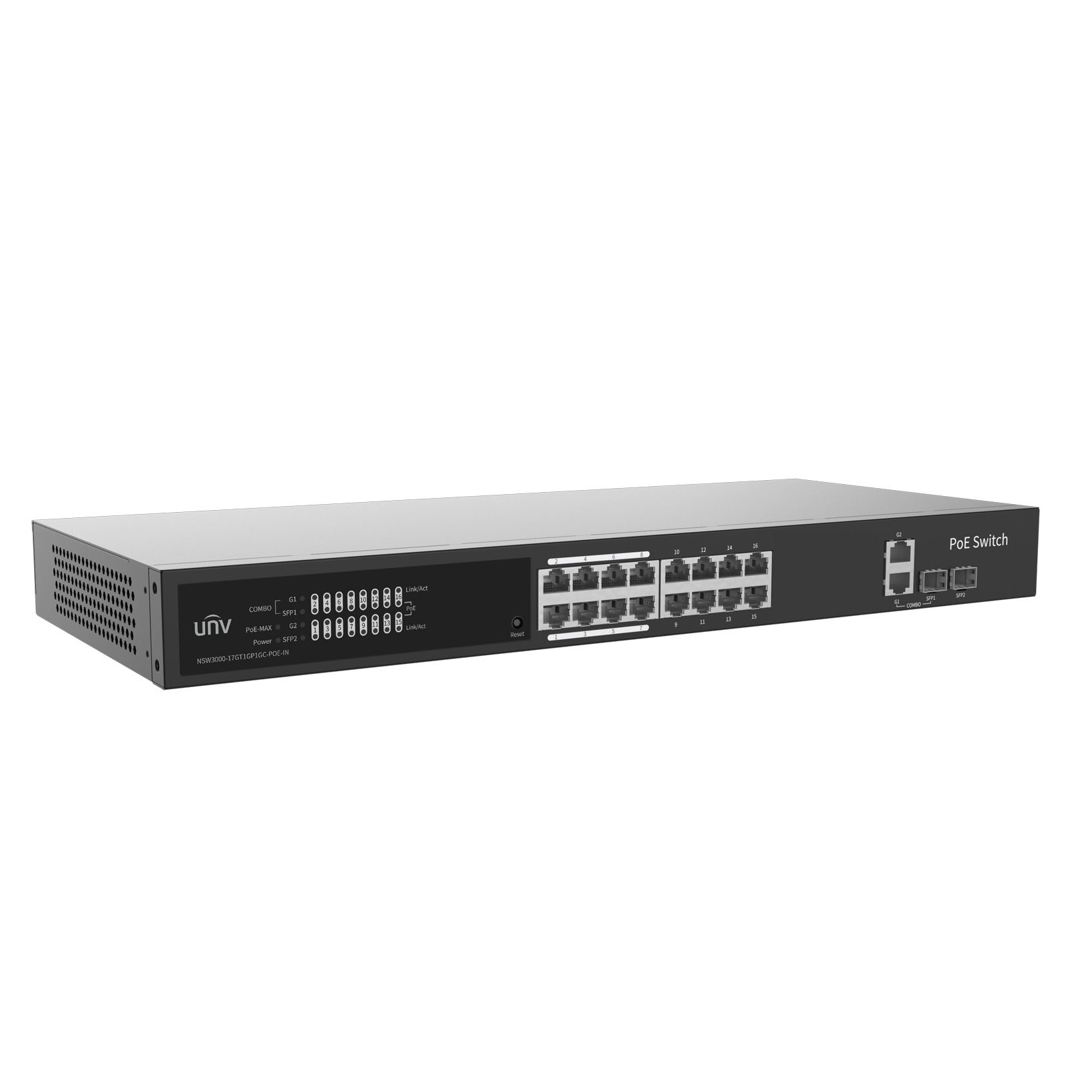

UNV NSW3000-17GT1GP1GC-POE-IN, 16 Port Gigabit, 250W Cloud Managed Ethernet PoE Switch

MPN: NSW3000-17GT1GP1GC-POE-IN

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description
  • Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
  • Supports Web login, and device configuration and management on the Web interface
  • Supports visiting the cloud by scanning the QR code. Allows to view the device status and network topology in real time on the app, and remotely restart the PoE power supply.
  • Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
  • Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
  • Allows to report port abnormal alarms to the software for realtime monitoring.
  • Supports port priority. The packets received by the priority port will be forwarded first when the switch is fully loaded and the priority port will be powered first when the PoE power supply is full.
  • All metal casing, secure and reliable.
Specifications
Hardware Specification
Ports Type
16 x 10/100/1000Mbps PoE port (RJ45)
1 x 10/100/1000Mbps port (RJ45)
1 x Gigabit SFP
1 x Gigabit Combo
Standards
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching capacity
38Gbps
Forwarding performance
28.272Mpps
Packet Buffer
4 M bit
MAC
8K
Weight
2.18kg
Dimensions (W×D×H)
440mm x 189.8mm x 44mm
Power Supply
AC 100V to 240V, 50/60Hz
Max.Power
265W
Max.PoE Power
Maximum total power: 250W
Maximum PoE power for single port: 30W
Mode A, 1/2+, 3/6-
Mode B, 4/5+, 7/8-
Prior Ports
1 to 8
Cooling Fans
1
Operating temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Operating humidity
10%～90% (non-condensing)
Storage Temperature
-40 ℃ to 70 ℃
Storage Humidity
5% to 90% RH, noncondensing
Indicator
POWER Off: No AC input, Power On (Green): Normal power input, Power On (Yellow): The total PoE power is higher than 85% of the total power of the device, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification
Software Specification
Ethernet
Supports full duplex, half duplex, and auto-negotiation working modes.
Supports port auto-negotiation rate.
Supports port priority flow control.
Supports a link aggregation group (consist of two uplink ports)
Supports port flow statistics
Supports enabling/disabling ports
VLAN
Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
MAC
Support (up to 8K) .
Supports clearing the dynamic MAC address
POE
Allows to view PoE status and power.
Allows to enable/disable PoE power supply.
Loop Detection
Loop Detection
QoS
Supports port rate limitation.
Supports broadcast storm control.
System
Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.
Allows to edit and manage the IP address and device name
Supports single-user management, user authentication, and password modification
Supports manual time configuration and NTP
Allows to view other switches information on the same network, up to 32 switches
Allows to view the connected video devices information, up to 64 devices
Security
Supports port isolation (only for the downlink ports)
Supports locking login IP address, up to 64 addresses can be locked
Maintenance
Supports N: 1 port mirroring
Supports unified software configuration, management, and search
Supports discovering the connected video devices and generating a network topology on the software.
Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.
