TRENDnet | SKU: TNTPL-423E

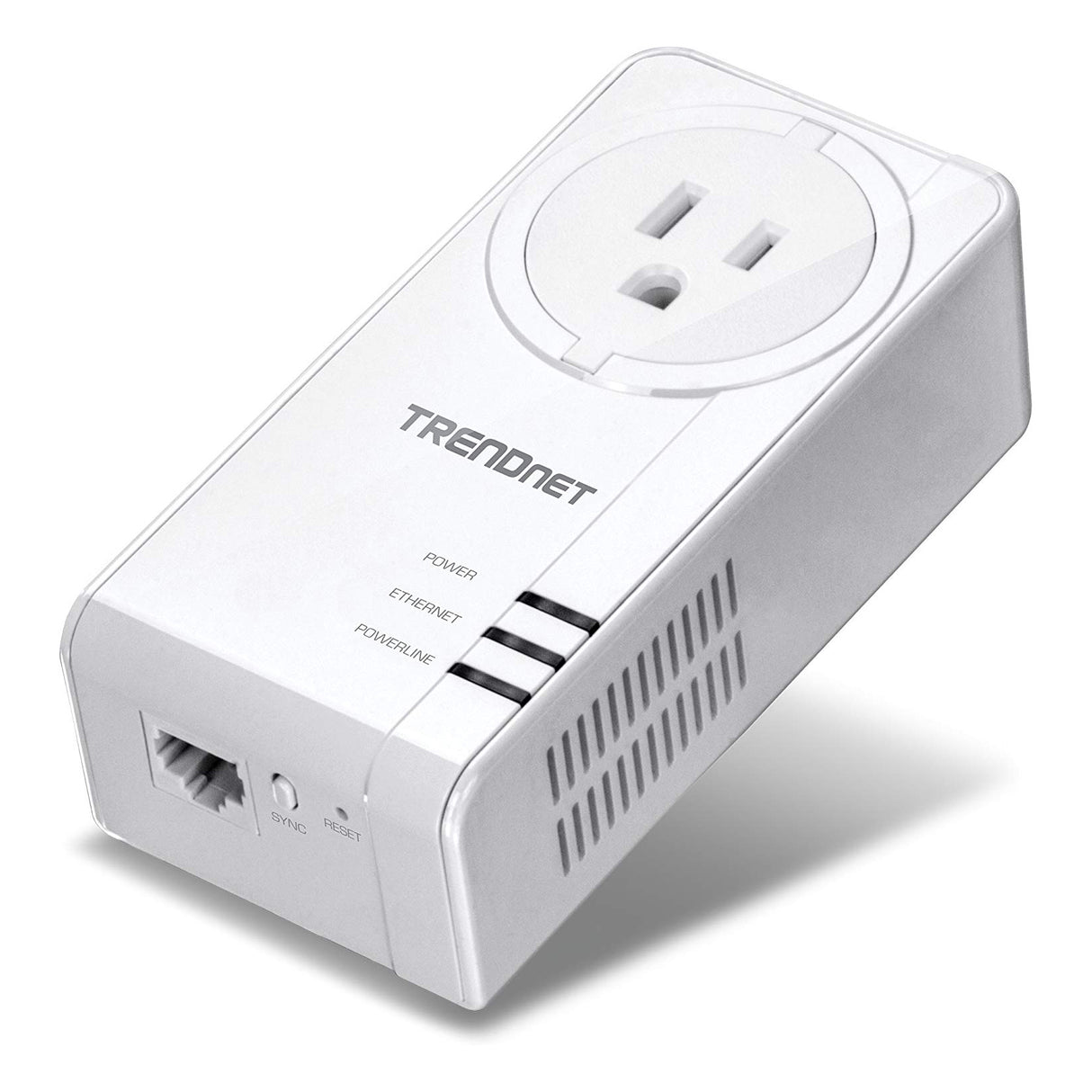

TRENDnet TPL-423E Powerline 1300 AV2 Adapter with Built-in Outlet

Name: TRENDnet TPL-423E Powerline 1300 AV2 Adapter with Built-in Outlet
Brand: TRENDnet
SKU: TNTPL-423E
Availability: InStock

MPN:

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

TRENDnet TPL-423E Powerline 1300 AV2 Adapter with Built-in Outlet is backordered and will ship as soon as it is back in stock.

Description

Powerline 1300 networking over existing electrical lines
Built-in electrical outlet
Powerline noise filter minimizes interference from powered devices
Enhanced Powerline performance and range from MIMO with Beamforming technology
Encrypted TRENDnet adapters auto-connect out of the box
Gigabit port for high-speed connectivity
Powerline range up to 300m (984 ft.)
Two Powerline adapters are required to start a network
Cross compatible with Powerline 1200, 600, 500, and 200 adapters

Overview

	Sync Button Press the Sync button to change existing Powerline encryption keys
	Powerline 1200 Powerline 1200 networking over existing electrical lines using all three electrical wires: the live, neutral, and ground wires to achieve faster throughput speeds
	Gigabit Ports Convenient gigabit ports to hardwire computers, smart TVs, or other network enabled devices
	Compatibility Backward compatible with Powerline 600, 500, and 200 adapters
	MIMO with Beamforming Technology Enhanced performance and range
	Multiple Adapters Use up to 8 adapters on a single Powerline network

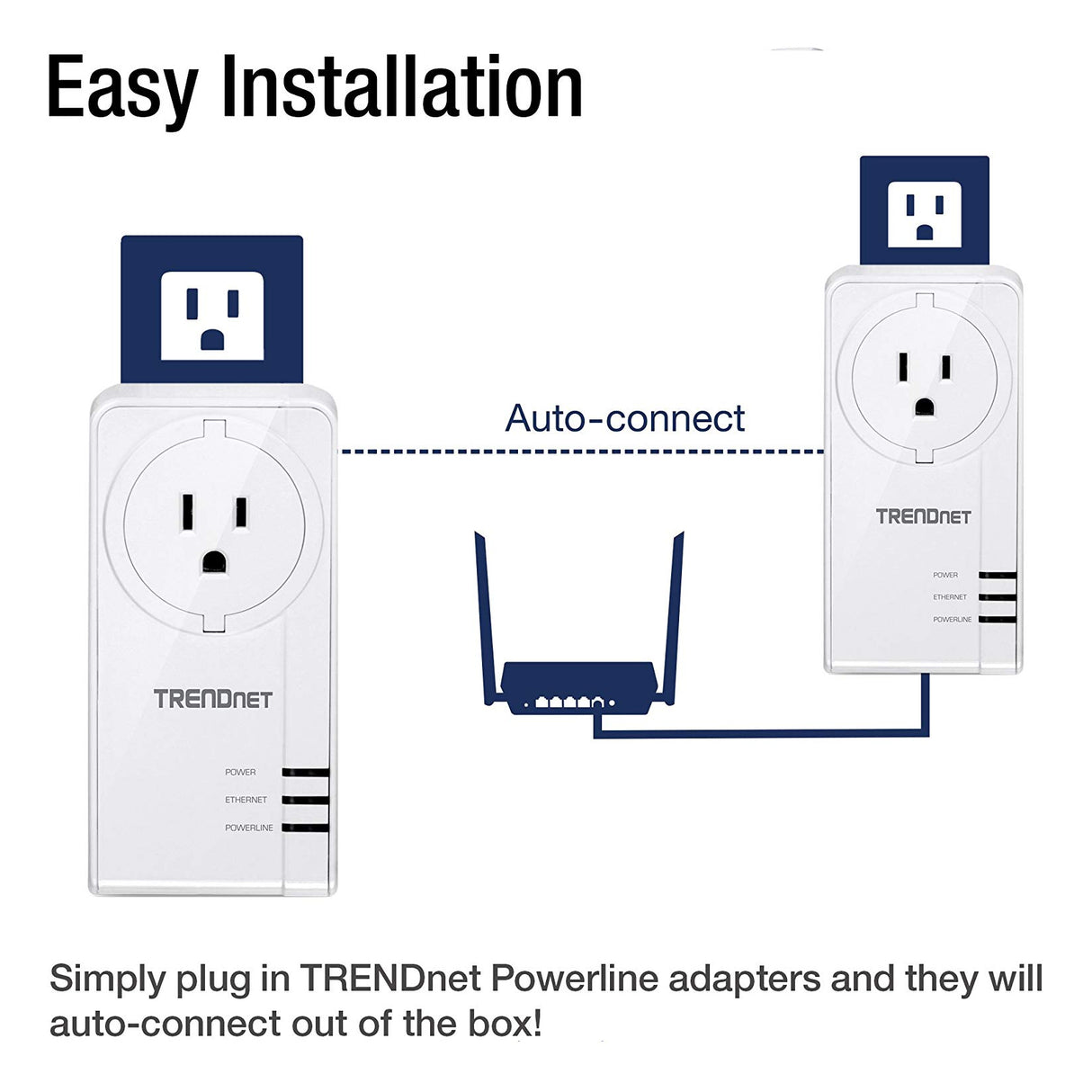

	Easy Installation TRENDnet adapters auto-connect out of the box
	Concurrent Dual Band AC1200: concurrent 867 Mbps WiFi AC + 300 Mbps WiFi N bands
	Wireless Coverage Expand your wireless coverage with MIMO antenna technology
	Pre-Encrypted For your convenience, the wireless is pre-encrypted with a unique password
	WiFi Clone Use your routerâ€™s WPS button and the TPL-430APâ€™s WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration.

Fetures

TRENDnetâ€™s Powerline 1300 AV2 Adapter with Built-in Outlet, model TPL-423E, creates a high-speed Powerline 1300 network using your homeâ€™s existing electrical system. Two adapters are needed to start a network.

TRENDnet adapters are protected with 128-bit AES encryption. Plug in the first adapter and network it to your existing router.

Plug in other adapters on the same electrical system and they will auto-connect to the first adapter for instant internet access. Avoid losing a power outlet by using the built-in electrical outlet to power other devices.

Specs

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 1901

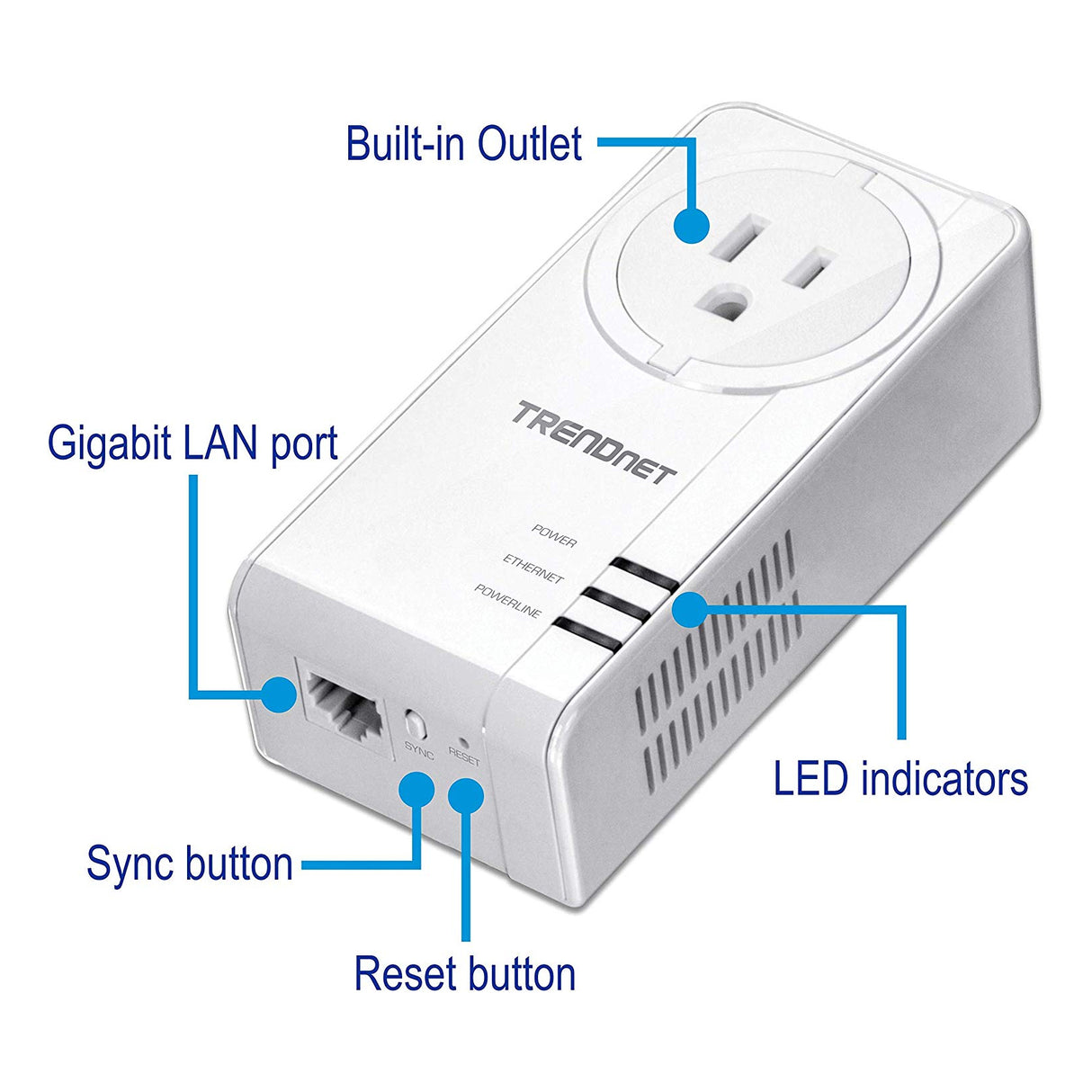

Device Interface	1 x Gigabit LAN port Sync button Reset button LED indicators Built-in electrical power socket with noise filter North America Type B (NEMA 5â€“15) (10A max. @ 120V AC)
Power plug	North America Type B (NEMA 5â€“15)
Frequency Band	2 â€“ 67.5MHz
Modulation/Protocol	OFDM, 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO, HS-ROBO, Mini-ROBO CSMA/CA
Data PHY Rate	Up to 1300Mbps
Networking Distance	Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
Encryption	128-Bit AES (Advanced Encryption Standard)
Powerline Nodes	Up to 8 (max.)
Overlapping Powerline Networks	Up to 4 (per electrical system)
Special Features	Built-in power socket Auto-connects to other TRENDnet Powerline adapters IPv6 support IGMP / MLDv2 Streams
Optional Utility: OS Compatibility	Windows^Â®Â 10, 8.1, 8, 7, Vista, XP
Power	Input: 100 - 240V AC, 50-60Hz Consumption: Active mode: 4W (max.); Standby mode: 0.5W (max.)
Operating Temperature	0 â€“ 50Â°C (32 â€“ 122Â°F)
Operating Humidity	Max. 90 % non-condensing
Certifications	FCC IC ETL

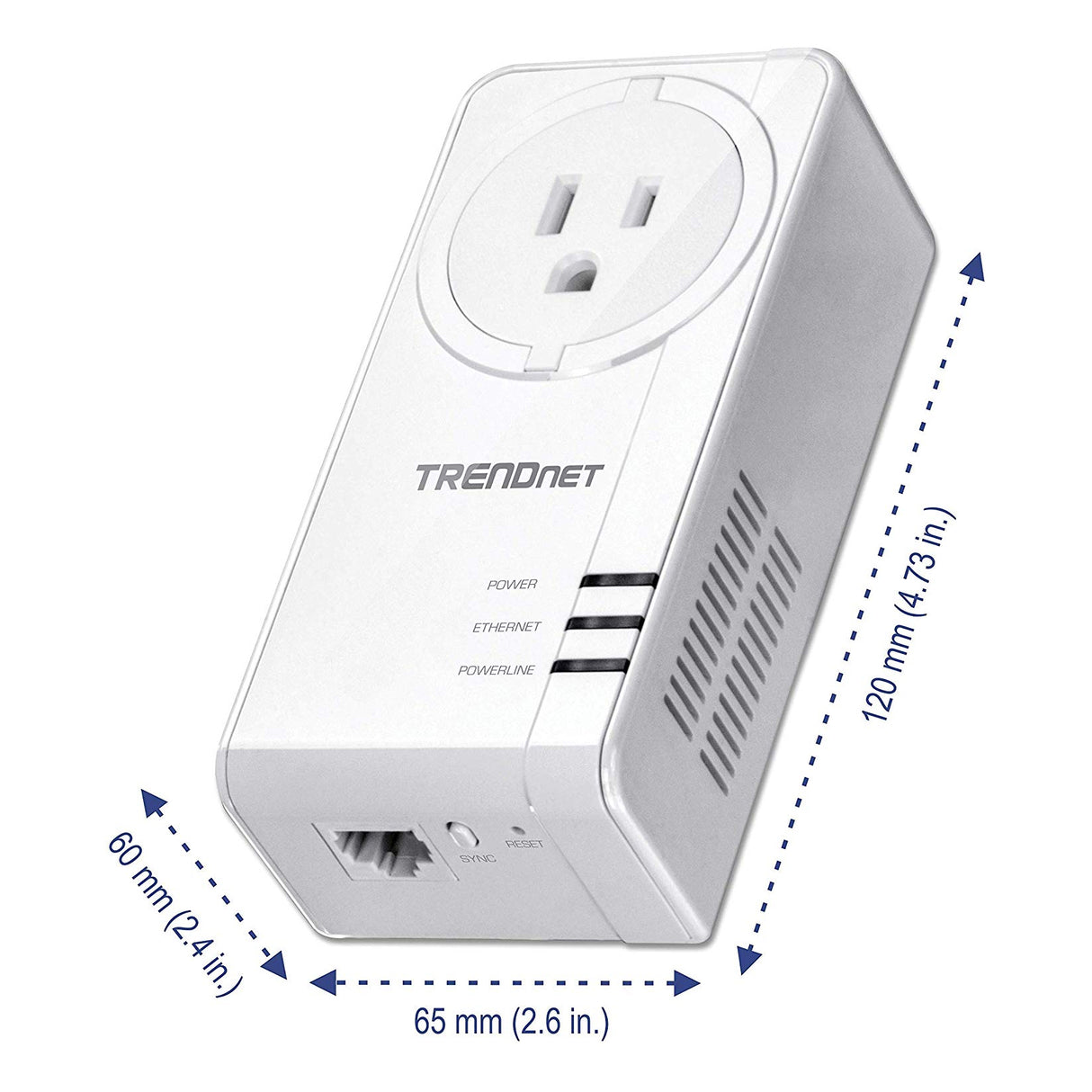

Dimensions	(4.73 x 2.4 x 2.6 in.)
Weight	0.39 lbÂ

TRENDnet TPL-423E Powerline 1300 AV2 Adapter with Built-in Outlet
