TRENDnet TPL-423E2K Powerline 1300 AV2 Adapter Kit with Built-in Outlet

SKU TNTPL-423E2K
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

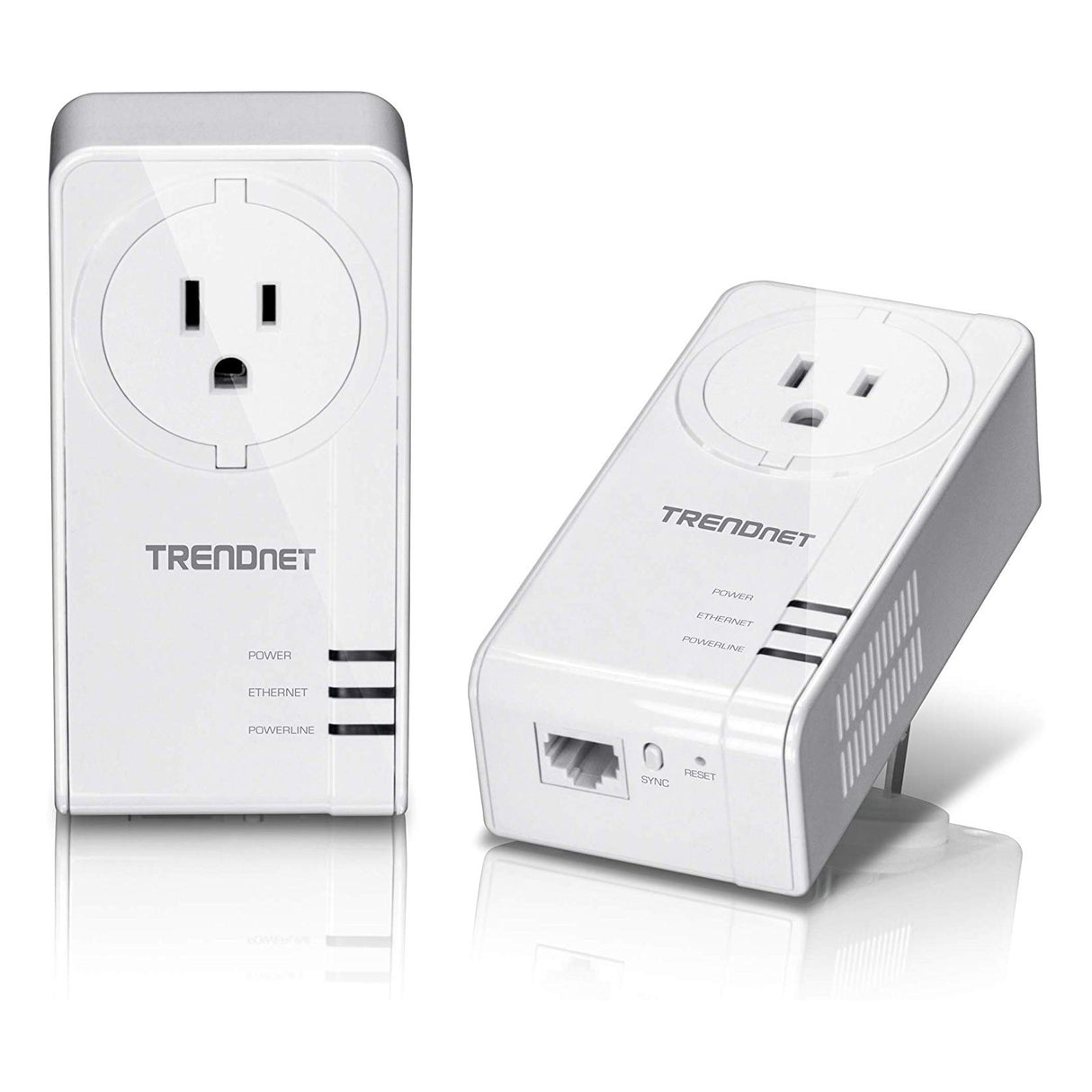

  • Includes two TPL-423E adapters
  • Powerline 1300 networking over existing electrical lines
  • Powerline noise filter minimizes interference from powered devices
  • Built-in electrical outlet
  • Enhanced Powerline performance and range from MIMO with Beamforming technology
  • Encrypted TRENDnet adapters auto-connect out of the box
  • Gigabit port for high-speed connectivity
  • Powerline range up to 300m (984 ft.)
  • Two Powerline adapters are required to start a network
  • Cross compatible with Powerline 1200, 600, 500, and 200 adapters

Sync Button

Press the Sync button to change existing Powerline encryption keys

Powerline 1200

Powerline 1200 networking over existing electrical lines using all three electrical wires: the live, neutral, and ground wires to achieve faster throughput speeds

Gigabit Ports

Convenient gigabit ports to hardwire computers, smart TVs, or other network enabled devices

Compatibility

Backward compatible with Powerline 600, 500, and 200 adapters

Cross Compatibility

Cross compatible with Powerline 1200, 600, 500, and 200 adapters

Multiple Adapters

Use up to 8 adapters on a single Powerline network

Easy Installation

TRENDnet adapters auto-connect out of the box

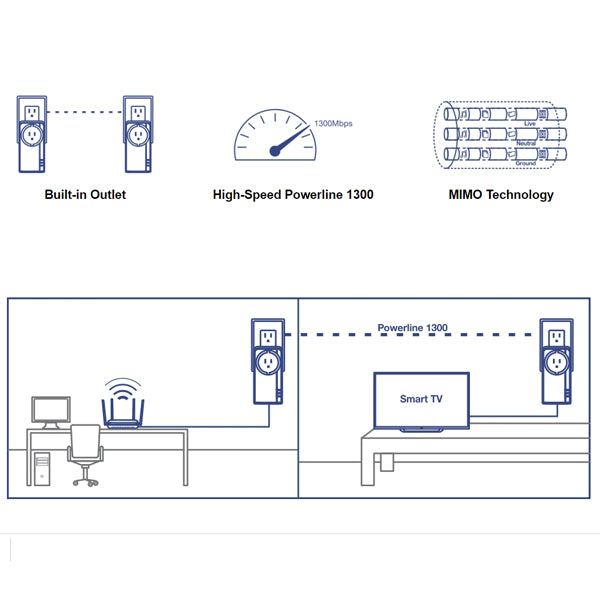

TRENDnet’s Powerline 1300 AV2 Adapter Kit with Built-in Outlet, model TPL-423E2K, comes with two Powerline adapters to create a high-speed Powerline 1300 network using your home’s existing electrical system.

Two adapters are needed to start a network. TRENDnet adapters are protected with 128-bit AES encryption.

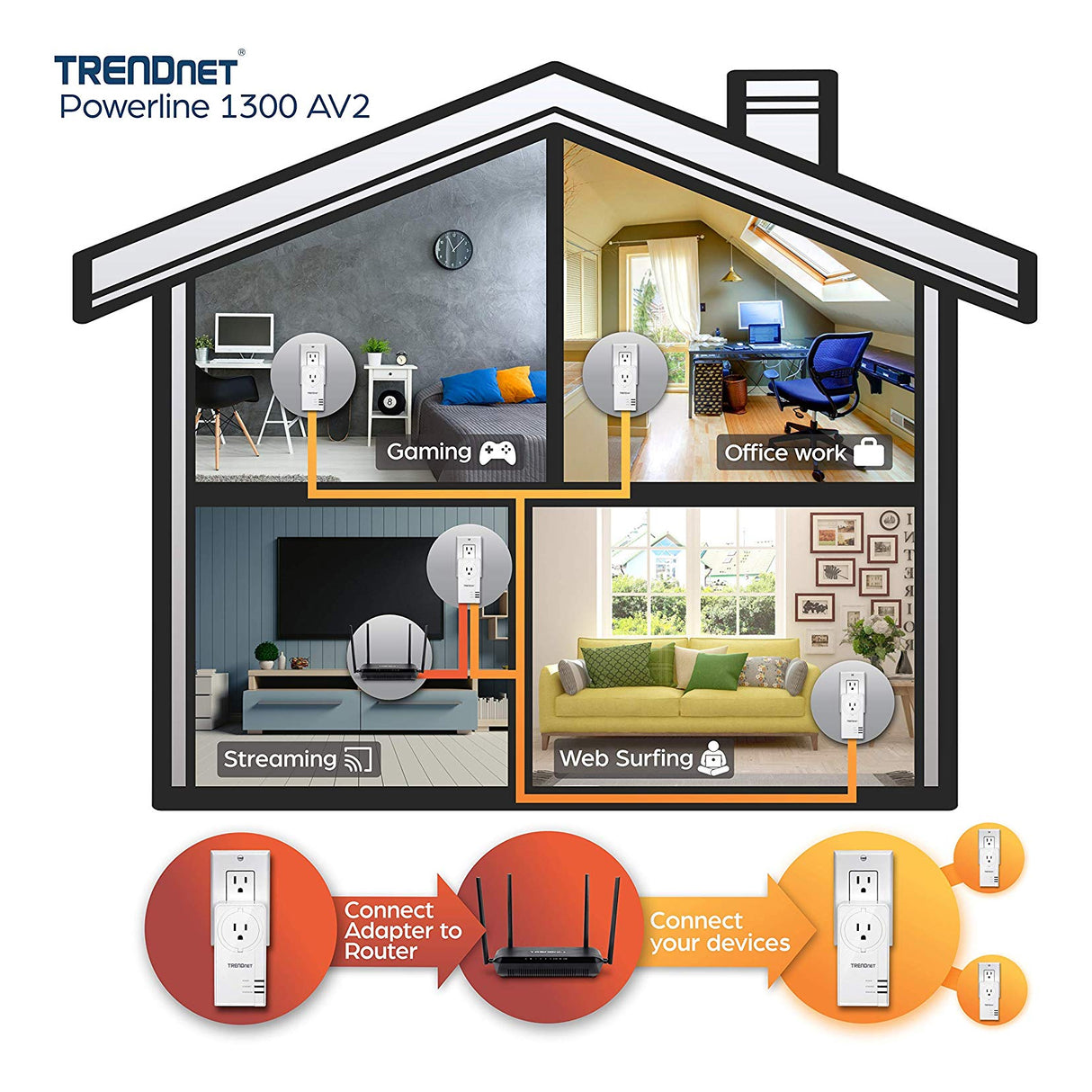

Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they will auto-connect to the first adapter for instant internet access.

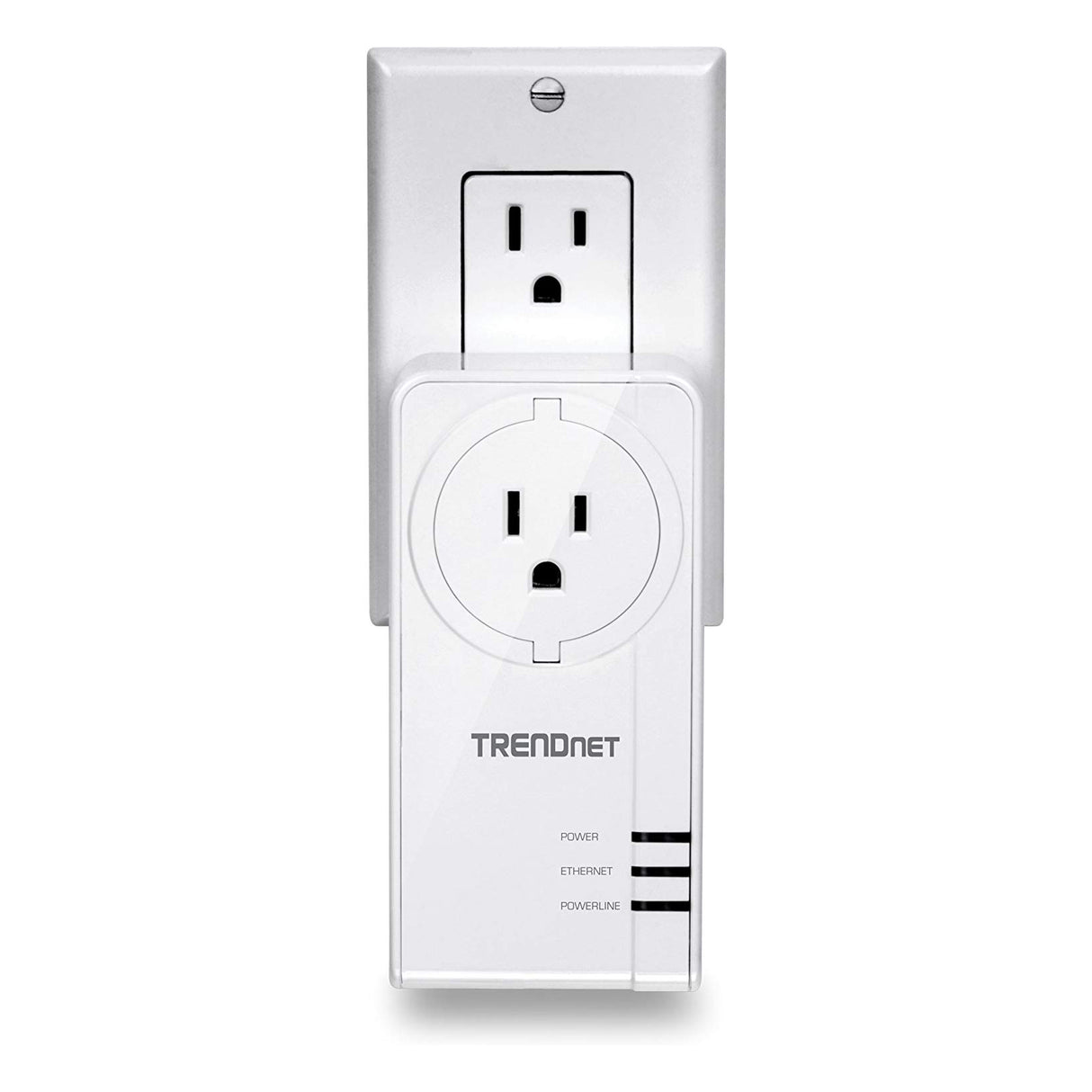

Avoid losing a power outlet by using the built-in electrical outlet to power other devices.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 1901

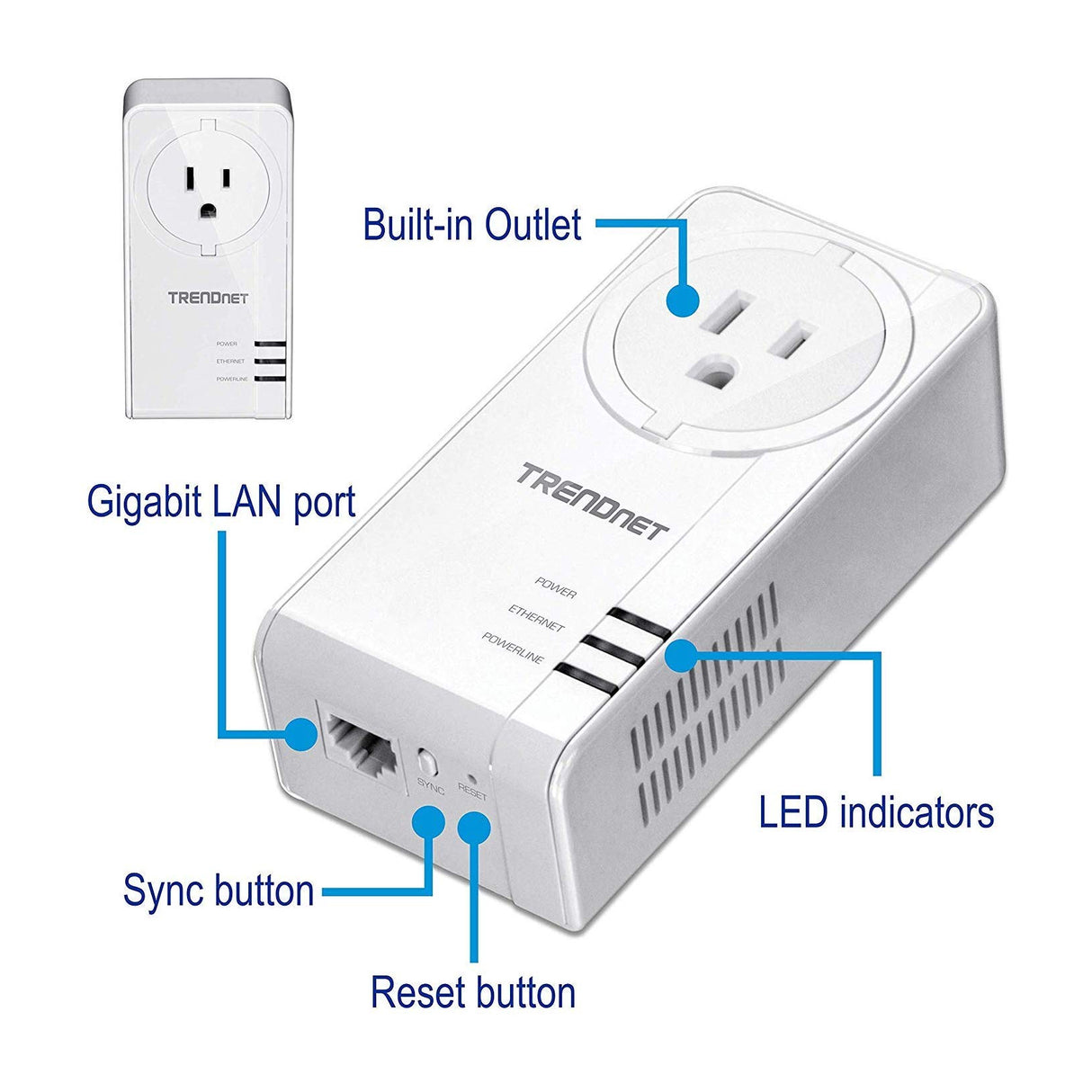

Device Interface
  • 1 x Gigabit LAN port
  • Sync button
  • Reset button
  • LED indicators
  • Built-in electrical power socket with noise filter
  • North America Type B (NEMA 5–15) (10A max. @ 120V AC)
Power plug
  • North America Type B (NEMA 5–15)
Frequency Band
  • 2 – 67.5MHz
Modulation/Protocol
  • OFDM, 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO, HS-ROBO, Mini-ROBO
  • CSMA/CA
Data PHY Rate
  • Up to 1300Mbps
Networking Distance
  • Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Built-in power socket
  • Auto-connects to other TRENDnet Powerline adapters
  • IPv6 support
  • IGMP / MLDv2 Streams
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Power
  • Input: 100 - 240V AC, 50-60Hz
  • Consumption: Active mode: 4W (max.); Standby mode: 0.5W (max.)
Operating Temperature
  • 0 – 50°C (32 – 122°F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • FCC
  • IC
  • ETL

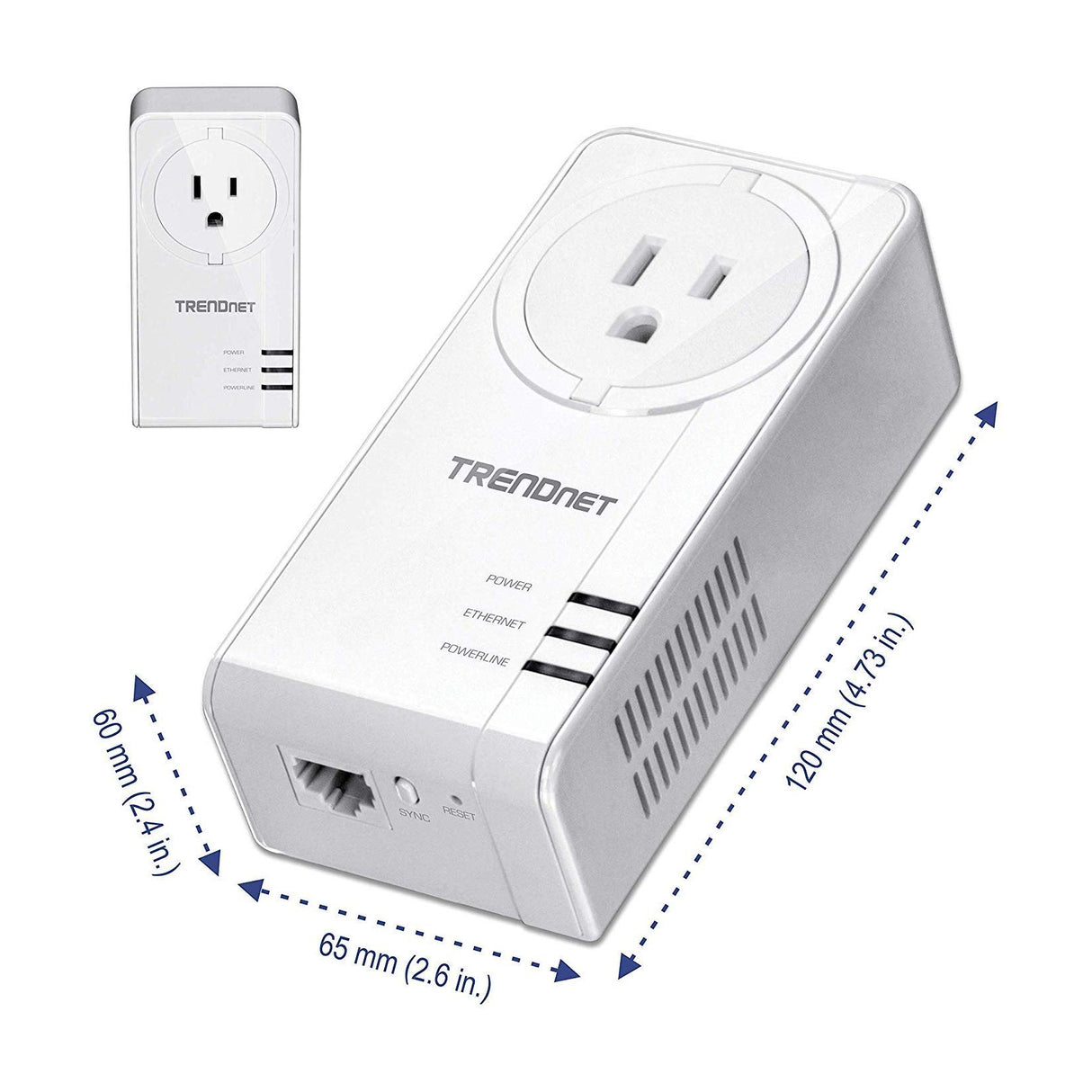

Dimensions
  • 120 x 60 x 65mm (4.73 x 2.4 x 2.6 in.)
Weight
  • 176g (6.2 oz.)
Warranty:
  • 3 year
