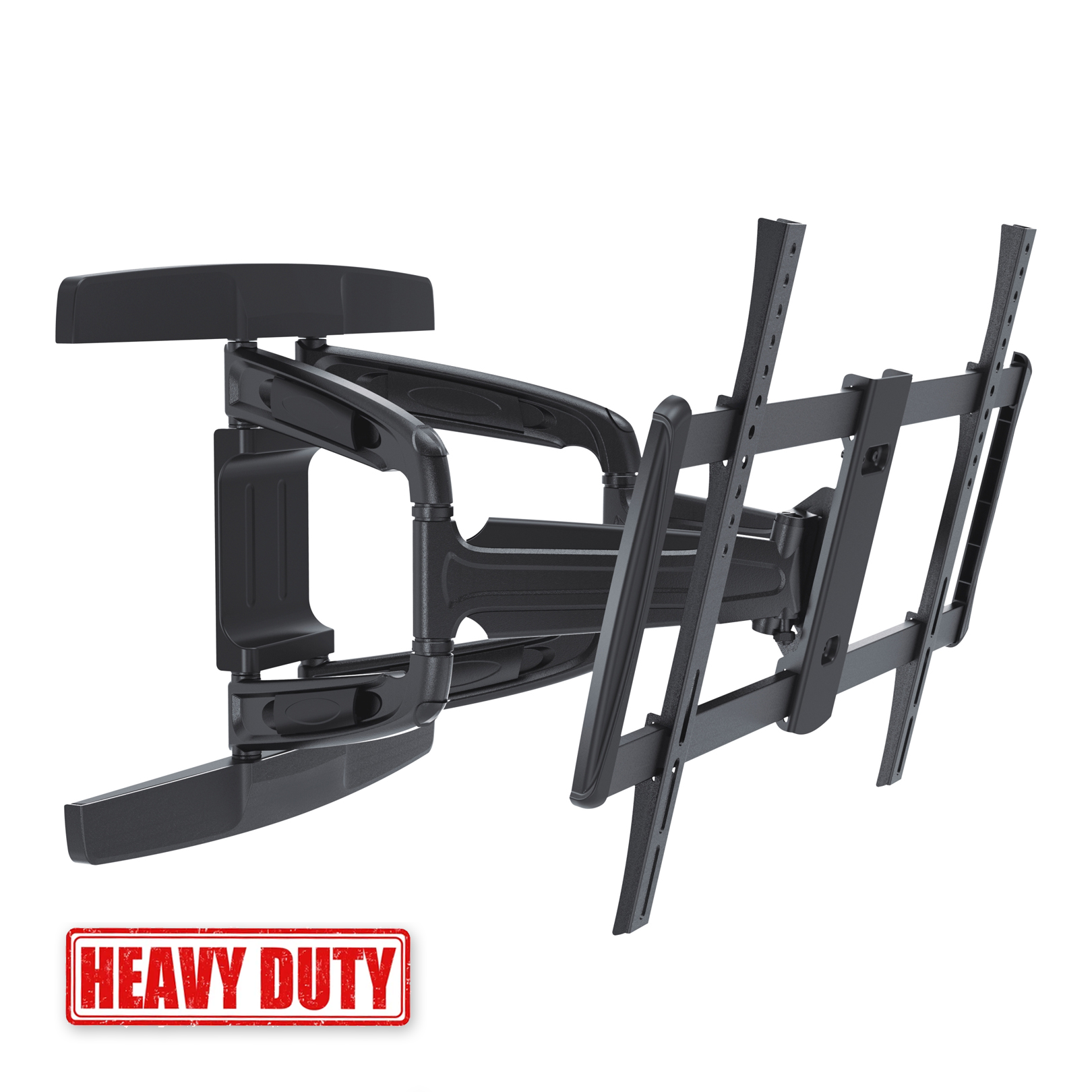

Rhino Mounts A3780HD Articulating 37"- 80" Heavy Duty TV Mount, Up to 110lbs / Profile: 53~518mm
by Rhino Mounts
SKU RMA3780HD
Rhino Mounts A3770HD Solid Aluminum Full-motion Curved & Flat Panel TV Wall Mount
The A3770HD is a full-motion wall mount for most 37"-70" curved & flat panel TVs up to 110lbs. This mount extends out 518mm from wall and places only 53mm to wall when retracted. It allows smooth, effortless tilt motion with the push of a finger, making it easy to reduce glare and find the perfect TV angle at any height. Full motion allows maximum flexibility — extends, tilt and swivel your TV up to 60” left and right for easy viewing from any seat in a room. It combines integrated cable management features and decorative covers to ensure an elegant and tidy look.
- Installation is as easy as 1-2-3
- Swiveling Arm(s): offer(s) maximum viewing flexibility
- Cable Management: keeps everything organized
- Decorative covers for a more elegant look
- Detachable VESA Plate Design: enables easy installation
- Direction Indicator: assures correct installation
| Product Category: | TV wall mount |
|---|---|
| Rank: | Premium |
| Material: | Aluminum Arm and Plate, Steel Adapter Bracket, Plastic Decorative Caps and Cable Management |
| Surface Finish: | Powder Coating |
| Color: | Silver Arm and Plate, Black Adapter Bracket, Plastic Decorative Caps and Cable Management |

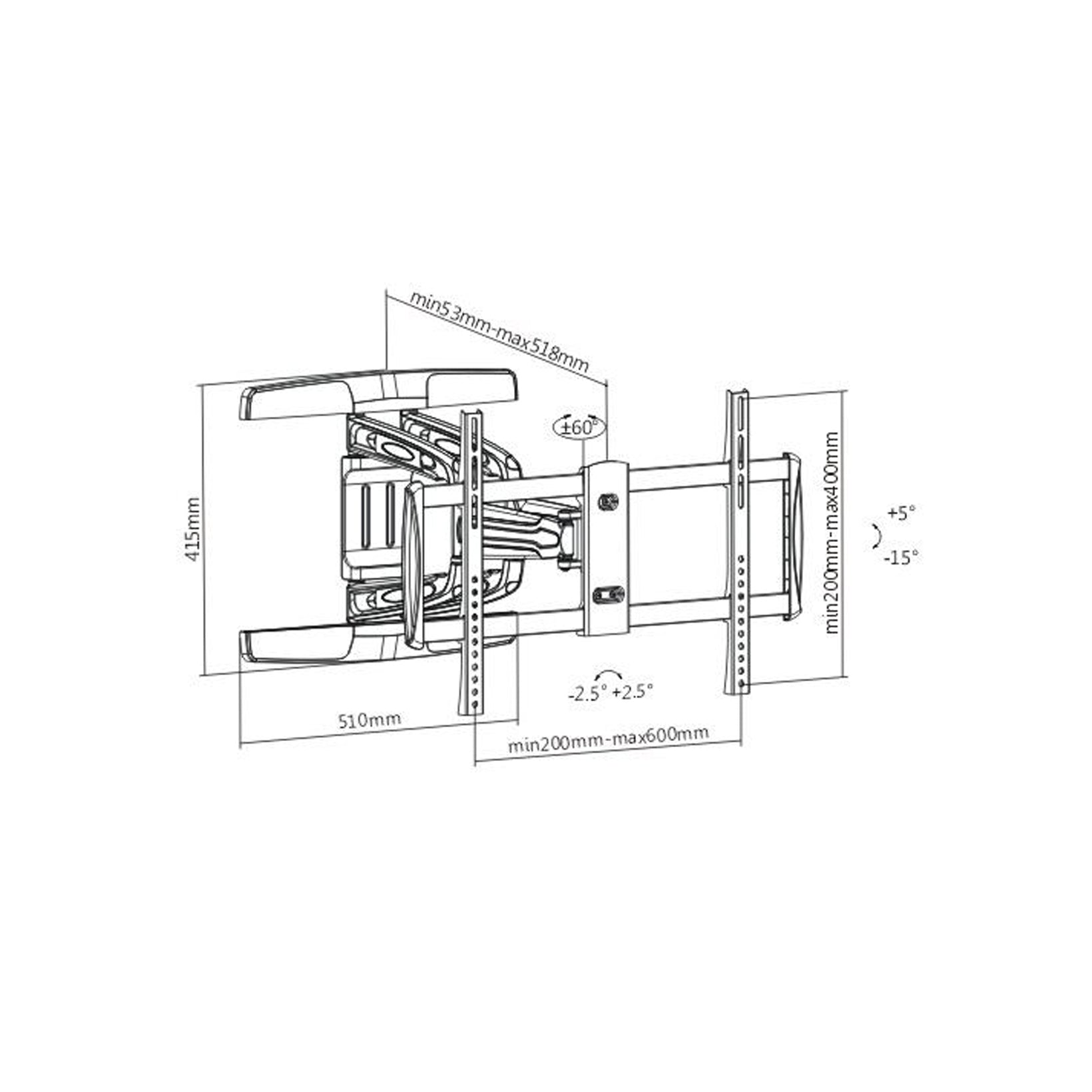

| Dimensions: | 518 x 639 x 439mm (20.4"x 25.2"x 17.3") |
| Fit Screen Size: | 37"-70" |
| Fit Curved TV: | Yes |
| Weight Capacity: | (110lbs) |
| Strength Tested: | 3 Times Approved |
| Mounting Hole Pattern: | Universal |
| VESA Compatible: | 200x200, 300x300, 400x200, 400x400, 600x400 |
| Max. VESA: | 600X400mm |
| Panel Type: | Detachable Panel |
| Screen Freely Tilting: | Yes |
| Tilt Range: | -15° ~+5° |
| Swivel Range: | -60°~+60° |
| Screen Level: | -2.5°~+2.5° |
| Profile: | 53-518mm (2.1"-20.4") |
| Installation: | Single Stud |
| Wall Plate Type: | Fixed Wall Plate |
| Freely Height Adjustable: | Yes |
| Cable Management: | Yes |
| Anti-theft: | No |
| Motorized: | No |
| By Function: | Full motion |
| Accessory Kit Package: | Compartment Polybag |
| Instruction Manual Included: | Yes |
| Certification: | GS UL |
