Rhino Mounts T3770E, Tilt 37"-70" Economic TV Mount, Up to 110lbs / Profile: 56mm (2.2")
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Rhino Mounts T3770E, Tilt 37"-70" Economic TV Mount, Up to 110lbs / Profile: 56mm (2.2") is backordered and will ship as soon as it is back in stock.
Description
Description

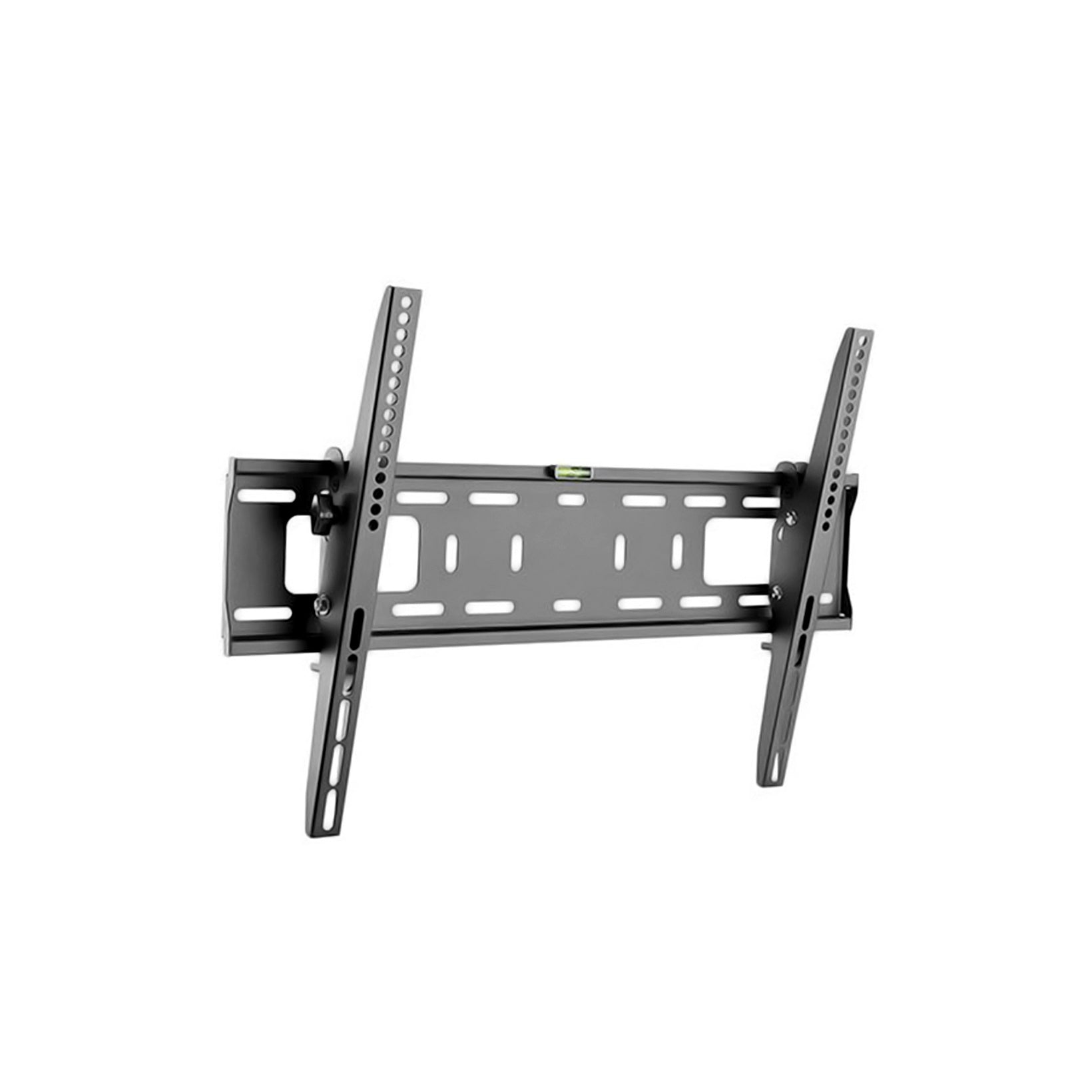

Rhino Mounts T3770E Heavy-duty Tilt TV Economy Wall Mounts
Easy to use and install, the T3770E is design to fit most 37"-70" LED, LCD Flat Panel TVs up to 110lbs. A tilting mount is recommended when reflections from windows or lighting interfere with TV viewing or when multiple viewing angles are desired. Adjustable structure allows freely tilting for 5°up and 10°down for viewing ease and enjoyment. Lateral shift allows the TV to move left and right on the wall plate so it’s placed exactly where you want it. Compatible with VESA hole up to 600x400.
Features
- Free-tilting design for multiple monitor viewing angles
- Installation is as easy as 1-2-3
- Lateral shift brackets enable fast alignment
Specs
| Rank: | Standard |
|---|---|
| Material: | Steel, Plastic |
| Metal Sheet Thickness: | 1.5mm (0.059") |
| Surface Finish: | Powder Coating |

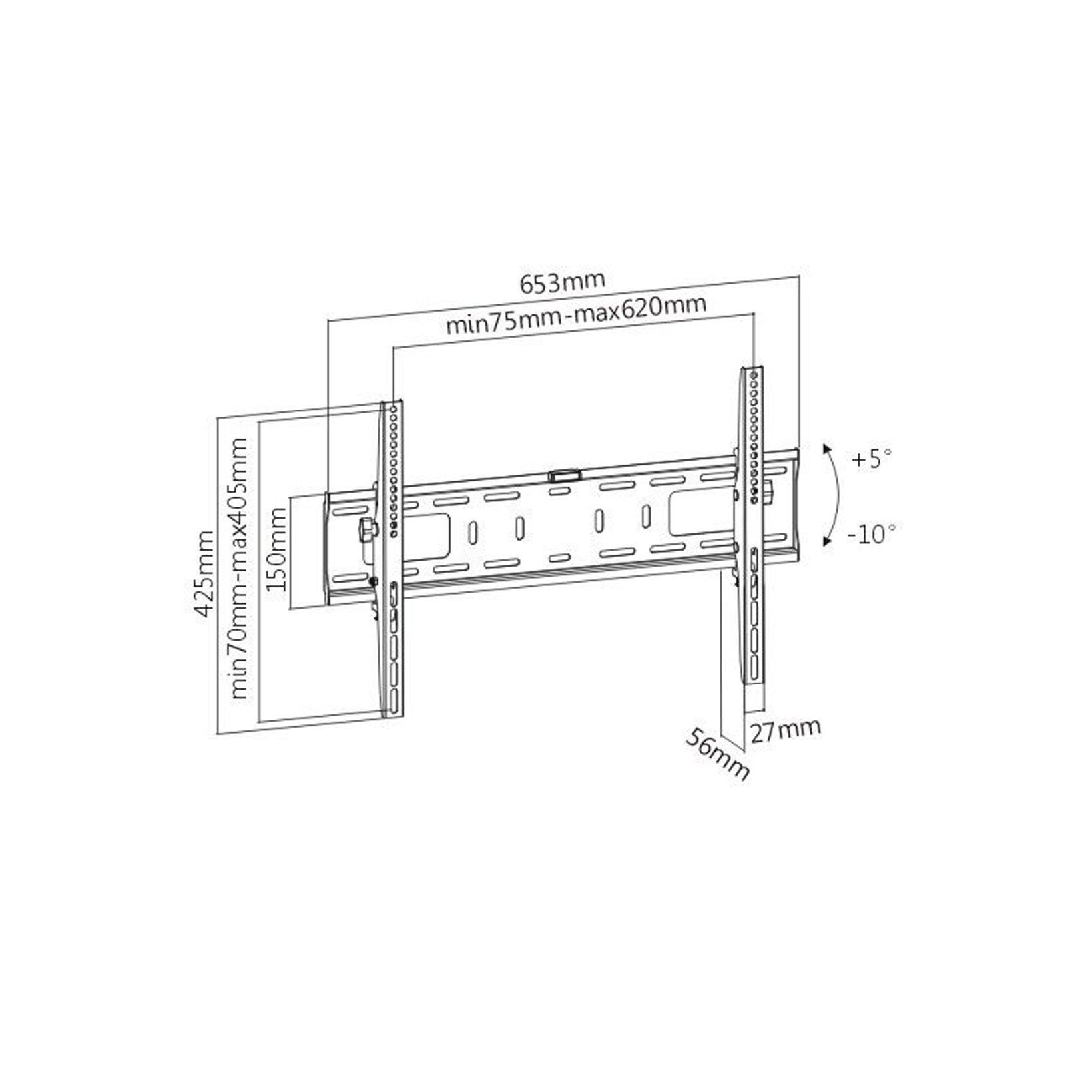

| Dimensions: | 653 X 425 X 56mm (25.7" X 16.7" X 2.2") |
| Fit Screen Size: | 37"-70" |
| Weight Capacity: | (110lbs) |
| Strength Tested: | 3 Times Approved |
| Mounting Hole Pattern: | Universal |
| VESA Compatible: | 200x200, 300x300, 400x200, 400x400, 600x400 |
| Max. VESA: | 620 X 405 |
| Panel Type: | Detachable Panel |
| Screen Freely Tilting: | No |
| Tilt Range: | -10°～＋5° |
| Profile: | 56mm (2.2") |
| Installation: | Single Stud |
| Wall Plate Type: | Fixed Wall Plate |
| Freely Height Adjustable: | No |
| AV Component Shelf: | No |
| Cable Management: | No |
| Anti-theft: | Yes |
| Motorized: | No |
| By Function: | Tilting |
| Bubble Level Mount: | No |
| Instruction Manual Included: | Yes |
| Certification: | GS |
